602 Binary Number Systems

602.1 Learning Objectives

By the end of this section, you will be able to:

Understand Binary Numbers: Convert between decimal and binary number systems
Apply Powers of 2: Calculate ADC resolution ranges from bit depth
Interpret Place Values: Use positional notation in base-2 arithmetic
Handle Floating Point: Understand IEEE 754 representation and its limitations
Avoid Precision Errors: Write code that correctly compares floating-point sensor values

602.2 Prerequisites

Before diving into this chapter, you should be familiar with:

Basic Mathematics: Understanding of exponents and place value systems (decimal notation)
Electricity Fundamentals: Basic understanding of voltage as a measurable quantity

For Kids: Meet the Sensor Squad!

Analog and digital are like the difference between a slide (smooth) and stairs (steps)!

602.2.1 The Sensor Squad Adventure: The Translator

Sammy the Sensor had a problem. “Max, I can feel temperatures that go smoothly from cold to hot - like 20.1, 20.2, 20.3 degrees. But you only understand numbers like 20, 21, 22!”

Max the Microcontroller nodded. “You’re right, Sammy! I’m a digital thinker. I can only work with exact step numbers, like climbing stairs. But your feelings are analog - smooth like sliding down a slide.” This was a big problem! How could they work together?

Lila the LED had an idea. “What about our friend ADC Andy? He’s a translator!” ADC Andy arrived with a big smile. “I can help! When Sammy feels 20.7 degrees, I’ll translate it to the nearest step - 21 - so Max can understand!” Bella the Battery was curious. “But don’t you lose some information?” Andy explained, “A little bit, yes. But I can make my stairs have MORE steps - instead of big steps like 20, 21, 22, I can use tiny steps like 20.0, 20.1, 20.2. The more steps I use, the closer I get to Sammy’s smooth feelings!” Now Sammy could measure temperatures, Andy would translate them into step-numbers, and Max could process them. The Sensor Squad’s translation team was complete!

602.2.2 Key Words for Kids

Word	What It Means
Analog	Smooth signals that can be any value (like a slide)
Digital	Step signals that jump between exact values (like stairs)
ADC	A translator that changes smooth signals into step numbers
Resolution	How many steps you have - more steps means more precise
Sampling	Taking snapshots of a smooth signal to turn it into steps
Binary	A number system using only 0 and 1 (how computers count)

602.2.3 Try This at Home!

The Temperature Translator Game!

Get a cup of water and feel how warm it is
Try to describe the temperature in two ways:
- Analog way: “It feels kind of warm, a bit cooler than my hand, slightly warmer than the air…”
- Digital way: “I’ll call it a 6 out of 10” (pick a number from 1-10)
Now try with MORE steps (1-100):
- Is “62 out of 100” more precise than “6 out of 10”?

What you learned: When you pick a number, you’re doing what an ADC does - translating a smooth feeling into a step-number! More steps (higher resolution) means a more accurate translation, but you can never perfectly capture the smooth original feeling - you’re always rounding to the nearest step!

602.3 Getting Started: Analog vs Digital

Analog vs Digital: What’s the Difference?

Analogy: Think of a ramp vs stairs.

Analog = A smooth ramp (infinite positions)
Digital = Stairs (fixed steps, you’re on step 1, 2, or 3—never 1.5)

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#E67E22', 'primaryTextColor': '#fff', 'primaryBorderColor': '#D35400', 'lineColor': '#2C3E50', 'secondaryColor': '#16A085', 'tertiaryColor': '#7F8C8D', 'noteTextColor': '#2C3E50', 'noteBkgColor': '#ECF0F1', 'textColor': '#2C3E50', 'fontSize': '16px'}}}%%
graph LR
    subgraph Analog["Analog Signal (Ramp)"]
        A1["0V"] -->|Smooth<br/>Continuous| A2["1V"]
        A2 -->|Infinite<br/>Values| A3["2V"]
        A3 -->|Any voltage<br/>possible| A4["3V"]
    end

    subgraph Digital["Digital Signal (Stairs)"]
        D1["0<br/>(0V)"] -.Step.-> D2["1<br/>(1V)"]
        D2 -.Step.-> D3["2<br/>(2V)"]
        D3 -.Step.-> D4["3<br/>(3V)"]
    end

    style Analog fill:#E67E22,stroke:#D35400,color:#fff
    style Digital fill:#16A085,stroke:#138D75,color:#fff
    style A1 fill:#ECF0F1,stroke:#2C3E50,color:#2C3E50
    style A2 fill:#ECF0F1,stroke:#2C3E50,color:#2C3E50
    style A3 fill:#ECF0F1,stroke:#2C3E50,color:#2C3E50
    style A4 fill:#ECF0F1,stroke:#2C3E50,color:#2C3E50
    style D1 fill:#ECF0F1,stroke:#2C3E50,color:#2C3E50
    style D2 fill:#ECF0F1,stroke:#2C3E50,color:#2C3E50
    style D3 fill:#ECF0F1,stroke:#2C3E50,color:#2C3E50
    style D4 fill:#ECF0F1,stroke:#2C3E50,color:#2C3E50

Figure 602.1: Analog vs Digital Signals: Continuous Ramp vs Discrete Steps

{fig-alt=“Analog-to-digital conversion diagram showing analog signals as continuous ramps and digital signals as discrete steps, illustrating the fundamental difference between the two representations.”}

The Real-World Problem

Everything we want to measure is analog, but computers only understand digital!

Real World (Analog)	Computer Needs (Digital)
Temperature: 23.7°C	Binary: `01001011`
Light level: 847 lux	Number: `847`
Sound wave: smooth curve	Samples: `[128, 130, 145, ...]`

Solution: Use an ADC (Analog-to-Digital Converter) to translate!

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#1A252F', 'lineColor': '#2C3E50', 'secondaryColor': '#16A085', 'tertiaryColor': '#E67E22', 'noteTextColor': '#2C3E50', 'noteBkgColor': '#ECF0F1', 'textColor': '#2C3E50', 'fontSize': '16px'}}}%%
flowchart LR
    A["Analog Sensor<br/>23.7°C<br/>(1.85V)"]
    ADC["ADC<br/>Converter"]
    D["Digital Value<br/>75<br/>(01001011)"]
    MCU["Microcontroller<br/>Processing"]

    A -->|Continuous<br/>Voltage| ADC
    ADC -->|Binary<br/>Number| D
    D -->|Process| MCU

    style A fill:#E67E22,stroke:#D35400,color:#fff
    style ADC fill:#16A085,stroke:#138D75,color:#fff
    style D fill:#2C3E50,stroke:#1A252F,color:#fff
    style MCU fill:#2C3E50,stroke:#1A252F,color:#fff

Figure 602.2: ADC Conversion Process: Temperature Sensor to Digital Value

{fig-alt=“ADC conversion diagram showing how an analog sensor’s continuous voltage output is converted to a binary digital value for microcontroller processing.”}

602.4 Binary: The Language of Computers

602.4.1 What is a Bit?

Bit = Binary Digit = Smallest unit of information = 0 or 1

One transistor = One bit

Real-world binary examples: - Light switch: ON/OFF - Door: OPEN/CLOSED - Answer: YES/NO - Coin: HEADS/TAILS

602.4.2 Powers of 2: Why Binary Uses These Numbers

Binary groupings are always powers of 2:

Bits	Calculation	Possible Values	Range
1	2¹	2	0-1
2	2²	4	0-3
4	2⁴	16	0-15
8	2⁸	256	0-255
10	2¹⁰	1,024	0-1023
12	2¹²	4,096	0-4095
16	2¹⁶	65,536	0-65535
32	2³²	4,294,967,296	0-4.3 billion

Why This Matters for IoT: - 8-bit ADC: 256 different sensor values - 10-bit ADC: 1,024 values (typical Arduino) - 12-bit ADC: 4,096 values (typical ESP32) - 16-bit ADC: 65,536 values (high-precision sensors)

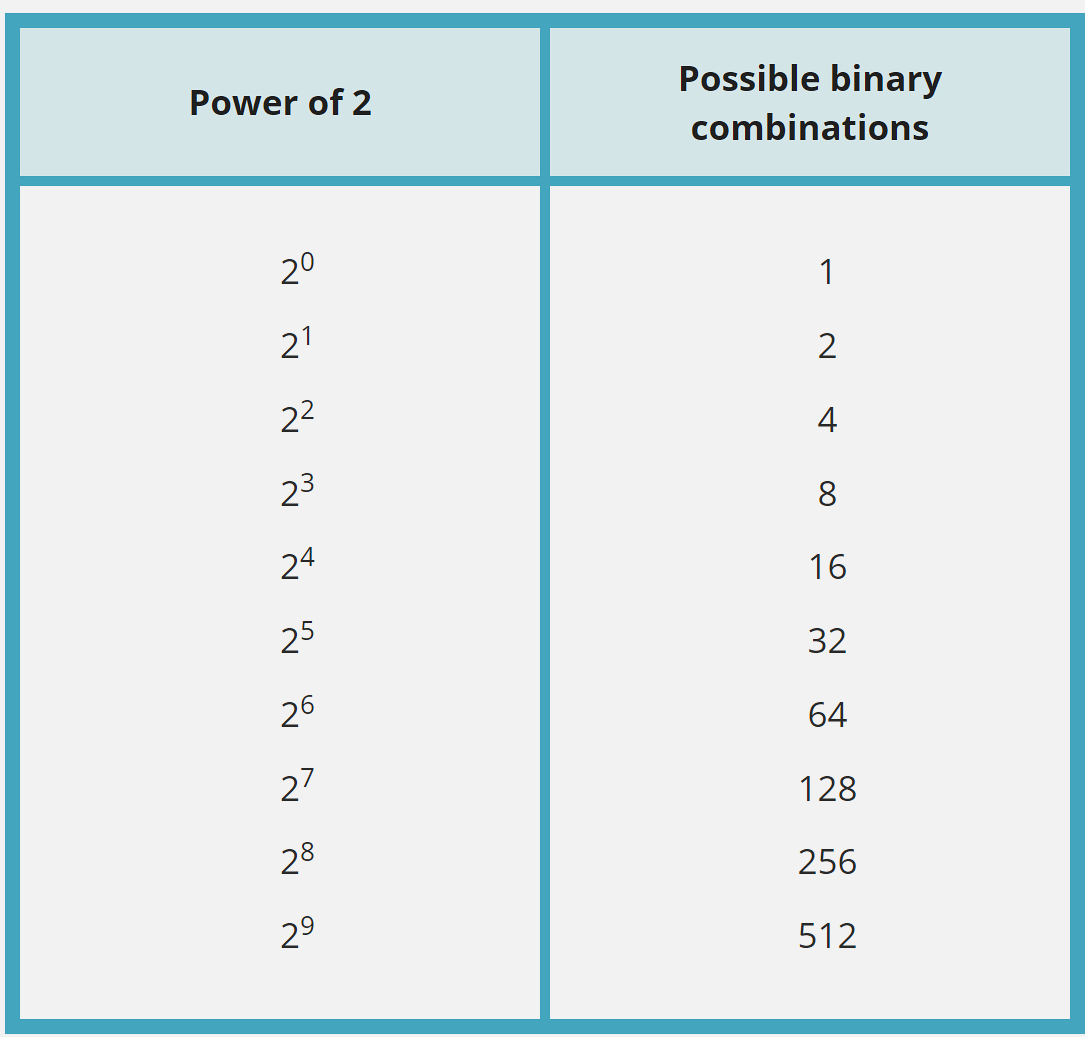

Table showing binary powers of 2 from 2^0=1 to 2^10=1024, illustrating how bit depth determines ADC resolution ranges used in microcontroller analog-to-digital conversion — Figure 602.3: Powers of 2 and binary place values

602.5 Binary Number System

602.5.1 Place Value in Binary

Just like decimal uses powers of 10, binary uses powers of 2:

Decimal (base 10):

237 = (2 × 10²) + (3 × 10¹) + (7 × 10⁰)
    = (2 × 100) + (3 × 10) + (7 × 1)
    = 200 + 30 + 7

Binary (base 2):

101 = (1 × 2²) + (0 × 2¹) + (1 × 2⁰)
    = (1 × 4) + (0 × 2) + (1 × 1)
    = 4 + 0 + 1
    = 5 (in decimal)

602.5.2 Example: Convert Decimal 37 to Binary

Step 1: Find largest power of 2 ≤ 37

Position	2⁵	2⁴	2³	2²	2¹	2⁰
Value	32	16	8	4	2	1
Bit	1	0	0	1	0	1

Step 2: Calculate: - 37 ÷ 32 = 1 remainder 5 → Bit 5 = 1 - 5 ÷ 16 = 0 → Bit 4 = 0 - 5 ÷ 8 = 0 → Bit 3 = 0 - 5 ÷ 4 = 1 remainder 1 → Bit 2 = 1 - 1 ÷ 2 = 0 → Bit 1 = 0 - 1 ÷ 1 = 1 → Bit 0 = 1

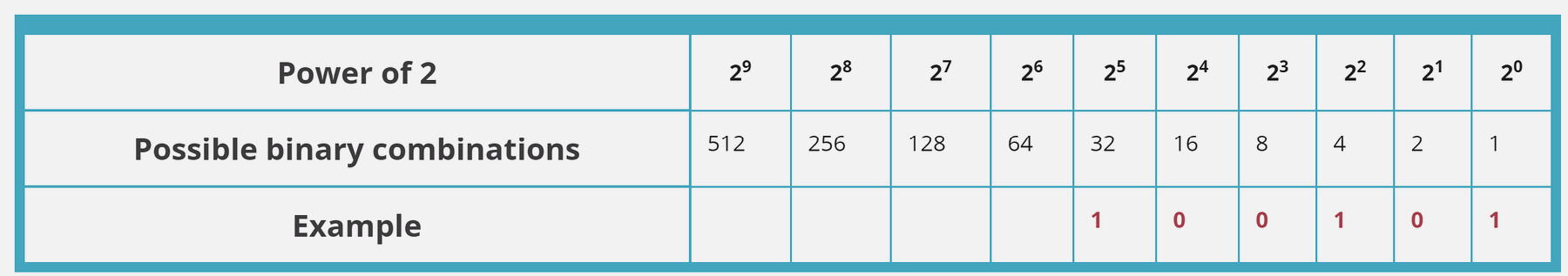

Decimal number 37 converted to 6-bit binary representation 100101, showing place values: 1×32 + 0×16 + 0×8 + 1×4 + 0×2 + 1×1 equals 37 — Figure 602.4: Number 37 in binary representation

Figure 602.5: Number 37 binary conversion process

Result: 37_decimal = 100101_binary

Verification: (1×32) + (0×16) + (0×8) + (1×4) + (0×2) + (1×1) = 32 + 4 + 1 = 37 ✓

Video: Introduction to Binary Numbers

Recommended: Intro to Binary Numbers (10 minutes)

Visual explanation of binary counting, conversion, and why computers use base-2.

602.6 Floating Point Numbers

Problem: How to represent very large or very small numbers efficiently?

Solution: Floating point notation (scientific notation for computers)

602.6.1 Decimal Scientific Notation

Instead of: - 300,000,000,000 → Write: 3 × 10¹¹ - 0.000000000015 → Write: 1.5 × 10^-11

602.6.2 Binary Floating Point (IEEE 754)

32-bit float representation:

Sign	Exponent	Mantissa
1 bit	8 bits	23 bits

Example: 3.14159… stored as: - Sign: 0 (positive) - Exponent: Adjusted power - Mantissa: Fractional part

IoT Relevance: - Arduino: Supports 32-bit floats - ESP32: Hardware floating-point unit (FPU) - Sensors: Temperature as 23.456°C stored efficiently

Floating Point Precision Limitations

Never compare floats with == in code!

Due to rounding errors, 0.1 + 0.2 may not exactly equal 0.3.

Correct:

if (abs(value1 - value2) < 0.0001) {
    // Close enough!
}

Video: Floating Point Numbers

Recommended: Floating Point Numbers Explained (12 minutes)

How computers represent decimal numbers and why precision matters.

Knowledge Check

Question: Why should you avoid using == to compare floating-point numbers in IoT sensor code?

It’s too slow for real-time processing
Rounding errors make exact comparison unreliable
Floating-point numbers can’t be compared
It causes compiler errors

Explanation: Due to binary representation limitations, operations like 0.1 + 0.2 may not exactly equal 0.3 in floating-point arithmetic. Use threshold comparison instead: if (abs(a - b) < 0.0001). This is critical for IoT sensor thresholds, PID controllers, and any comparison involving floating-point sensor readings to avoid unpredictable behavior.

602.7 Quiz: Binary Fundamentals

Question 1: Binary Conversion

What is the decimal value of binary 1101?

A) 11 B) 13 C) 15 D) 9

Show Answer

Answer: B) 13

\[1101_2 = (1×8) + (1×4) + (0×2) + (1×1) = 8 + 4 + 0 + 1 = 13_{10}\]

Question 2: Powers of 2

How many different values can a 16-bit ADC represent?

A) 16,384 B) 32,768 C) 65,536 D) 131,072

Show Answer

Answer: C) 65,536

\[Values = 2^{bits} = 2^{16} = 65,536\]

The actual digital output ranges from 0 to 65,535 (one less than total values).

Question 3: Floating Point Comparison

Why should you avoid using == to compare floating-point numbers?

A) It’s too slow B) Rounding errors make exact comparison unreliable C) Floating-point numbers can’t be compared D) It causes compiler errors

Show Answer

Answer: B) Rounding errors make exact comparison unreliable

Due to binary representation limitations, 0.1 + 0.2 may not exactly equal 0.3.

Correct approach: Use threshold comparison like abs(a - b) < 0.0001.

602.8 Summary

This chapter covered the binary number system - the foundation for all digital electronics:

Analog vs. Digital: Real-world signals are continuous (analog); computers work with discrete values (digital)
Binary (Base-2): Uses only 0 and 1; each position represents a power of 2
Powers of 2: Determine ADC/DAC resolution (8-bit = 256 values, 12-bit = 4,096 values)
Place Value: Convert binary to decimal by summing bit × 2^position
Floating Point: IEEE 754 representation allows efficient storage of very large/small numbers
Precision Pitfalls: Never use == for float comparison; use threshold-based comparison

Understanding binary is essential for interpreting ADC values, calculating memory requirements, and debugging sensor data in IoT systems.

602.9 What’s Next?

Now that you understand binary representation, continue to learn about how Analog-to-Digital Converters (ADCs) use these concepts to convert sensor voltages into digital values.

Continue to ADC Fundamentals →
