1455 Hardware Vulnerabilities

1455.1 Hardware Vulnerabilities

This chapter covers hardware-level security threats to IoT devices, including hardware trojans, side-channel attacks, supply chain risks, and countermeasures for protecting physical device integrity.

1455.2 Learning Objectives

By the end of this chapter, you will be able to:

Identify hardware trojan trigger mechanisms and payloads
Understand side-channel attack techniques (SPA, DPA, CPA)
Assess supply chain security risks
Implement hardware security countermeasures
Detect hardware tampering in production devices

1455.3 Hardware Trojans

Hardware trojans are malicious modifications to integrated circuits that can: - Leak cryptographic keys - Create backdoors for unauthorized access - Disable security functions under specific conditions - Cause device failure at critical moments

1455.3.1 Trojan Anatomy

%% fig-alt: "Hardware trojan anatomy showing trigger mechanism (what activates the malicious behavior - could be specific input sequence, time-based, or environmental condition) and payload (the malicious action - could be key leakage, denial of service, or privilege escalation). Both components are embedded in the silicon during manufacturing."
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor':'#2C3E50','primaryTextColor':'#fff','primaryBorderColor':'#16A085','lineColor':'#16A085','secondaryColor':'#E67E22','tertiaryColor':'#7F8C8D'}}}%%
flowchart TB
    subgraph trojan["HARDWARE TROJAN"]
        subgraph trigger["TRIGGER MECHANISM"]
            T1["Combinational<br/>(input pattern)"]
            T2["Sequential<br/>(state machine)"]
            T3["Analog<br/>(voltage, temp)"]
            T4["Time-based<br/>(counter)"]
        end
        subgraph payload["PAYLOAD"]
            P1["Key Leakage"]
            P2["Denial of Service"]
            P3["Privilege Escalation"]
            P4["Information Leak"]
        end
    end

    trigger --> payload

    style trigger fill:#E67E22,stroke:#2C3E50,stroke-width:2px,color:#fff
    style payload fill:#c0392b,stroke:#2C3E50,stroke-width:2px,color:#fff

1455.3.2 Trigger Types

Trigger Type	Description	Example	Detection Difficulty
Combinational	Activates on specific input pattern	Magic password enables debug mode	Medium
Sequential	Requires sequence of events	After 1000 boot cycles, leak keys	High
Analog	Temperature, voltage, EM conditions	At >50°C, disable encryption	Very High
Time-based	After specific time period	After 1 year, enable backdoor	High

1455.4 Supply Chain Security Risk

The IC supply chain has multiple insertion points for hardware trojans:

%% fig-alt: "IC supply chain attack points showing Design (IP cores, EDA tools), Fabrication (foundry, mask making), Assembly (packaging, testing), Distribution (logistics, resellers), and Integration (OEM, contract manufacturer). Each stage presents opportunities for trojan insertion or device tampering."
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor':'#2C3E50','primaryTextColor':'#fff','primaryBorderColor':'#16A085','lineColor':'#16A085','secondaryColor':'#E67E22','tertiaryColor':'#7F8C8D'}}}%%
flowchart LR
    subgraph design["DESIGN"]
        D1["IP Cores"]
        D2["EDA Tools"]
        D3["RTL/Netlist"]
    end

    subgraph fab["FABRICATION"]
        F1["Mask Making"]
        F2["Foundry"]
        F3["Wafer Testing"]
    end

    subgraph asm["ASSEMBLY"]
        A1["Die Packaging"]
        A2["Final Testing"]
        A3["Marking"]
    end

    subgraph dist["DISTRIBUTION"]
        S1["Logistics"]
        S2["Resellers"]
        S3["Brokers"]
    end

    subgraph integ["INTEGRATION"]
        I1["OEM"]
        I2["Contract Mfg"]
        I3["End Product"]
    end

    design --> fab --> asm --> dist --> integ

    style design fill:#16A085,stroke:#2C3E50,stroke-width:2px,color:#fff
    style fab fill:#2C3E50,stroke:#16A085,stroke-width:2px,color:#fff
    style asm fill:#7F8C8D,stroke:#2C3E50,stroke-width:2px,color:#fff
    style dist fill:#E67E22,stroke:#2C3E50,stroke-width:2px,color:#fff
    style integ fill:#c0392b,stroke:#2C3E50,stroke-width:2px,color:#fff

1455.5 Side-Channel Attacks

Side-channel attacks extract secrets by analyzing physical properties of a device during operation:

1455.5.1 Simple Power Analysis (SPA)

Directly observes power consumption patterns to identify cryptographic operations:

Power Trace During RSA:
        │
  High  │    ██    ██████    ██
Power   │   ████  ████████  ████
        │  ██████████████████████
  Low   │──────────────────────────
        └─────────────────────────► Time
              ^       ^
              │       │
          Square  Multiply (reveals key bit = 1)

1455.5.2 Differential Power Analysis (DPA)

Uses statistical analysis of many power traces to extract keys:

Collect thousands of power traces during encryption
Hypothesize key byte values
Correlate hypothesis with power consumption
Correct key hypothesis shows higher correlation

1455.5.3 Countermeasures

Technique	Description	Overhead
Constant-time code	Same operations regardless of data	~10-20% slower
Power randomization	Add random delays/operations	~30% power increase
Masking	Split secrets into random shares	2-3x computation
Noise injection	Add power noise during operations	10% power increase
Shielding	Metal mesh over chip	Manufacturing cost

1455.6 Physical Attack Vectors

1455.6.1 Debug Interface Exploitation

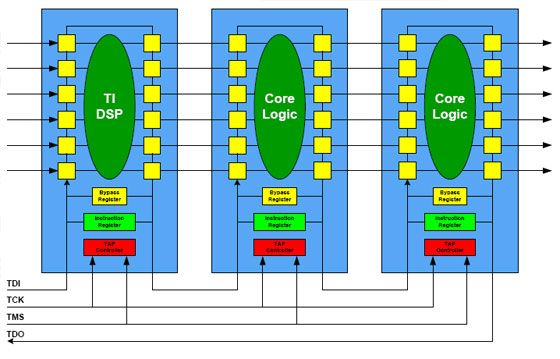

Academic Reference: JTAG Chain Architecture (University of Edinburgh)

Diagram showing JTAG daisy-chain architecture with three chips (TI DSP and two Core Logic processors) connected in series. Each chip contains Bypass Register, Instruction Register, and Boundary Scan cells shown as yellow squares around the chip perimeter. The four JTAG signals (TDI - Test Data In, TCK - Test Clock, TMS - Test Mode Select, TDO - Test Data Out) connect all chips in a chain, with TDO of one chip feeding TDI of the next. Source: University of Edinburgh IoT Security Course. — JTAG Daisy-Chain Architecture showing multiple chips connected via debug interface

Source: University of Edinburgh - IoT Systems Security Course

This diagram illustrates the JTAG daisy-chain architecture - a critical hardware attack vector in IoT devices:

How JTAG Chains Work: - TDI (Test Data In): Serial data input to the chain - TDO (Test Data Out): Serial data output from the chain - TCK (Test Clock): Synchronizes all chips in the chain - TMS (Test Mode Select): Controls the TAP state machine

Security Implications for IoT: - Multi-chip access: A single JTAG port provides access to ALL chips in the chain - Boundary scan: Yellow cells around chip perimeter allow testing/controlling every I/O pin - Bypass register: Attackers can selectively target specific chips while bypassing others - Daisy-chain vulnerability: Compromising one debug port compromises the entire system

Why This Matters for Device Security: IoT devices often contain multiple processors (main CPU, wireless radio, sensor MCU) connected via JTAG. If debug ports are not disabled in production: 1. Attacker connects to single exposed JTAG header 2. Gains access to ALL processors in the chain 3. Can read/write firmware, extract keys, inject malware on any chip 4. Even “secure” chips become vulnerable through chain access

Mitigation: Disable JTAG by burning eFuse bits, remove test points from production PCBs, or implement JTAG authentication.

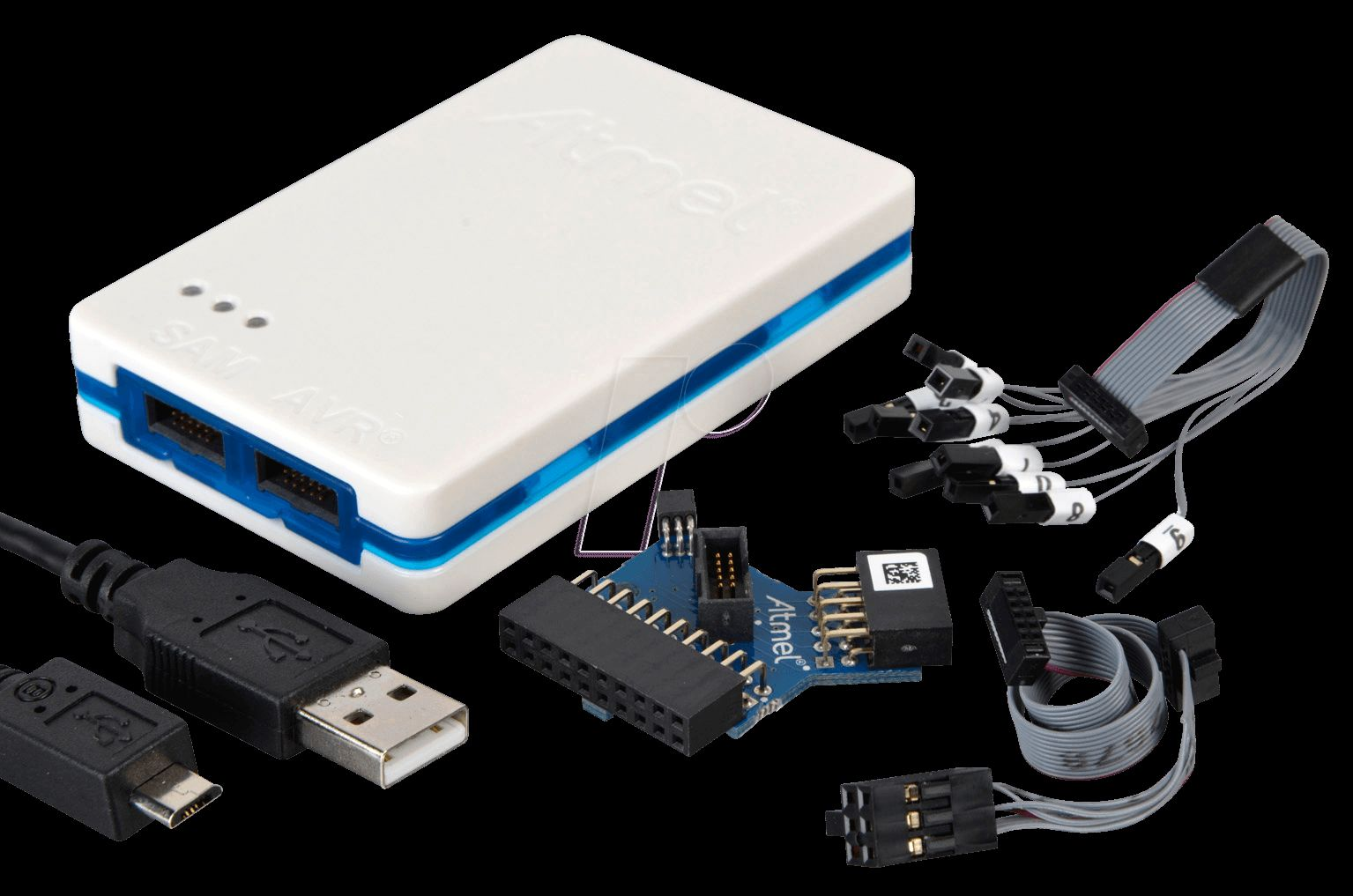

Academic Resource: Hardware Debugging Tools

Professional hardware debugging kit showing a white rectangular device (logic analyzer or debugger) with USB ports and blue LED indicators, alongside multiple cable adapters including JTAG ribbon cable connector, SWD probe clips, and various debugging probes for connecting to IoT device test points and extracting firmware or debugging hardware. — Hardware Debugging Kit with JTAG/SWD Interfaces

Source: University of Edinburgh - IoT Systems Security Course

This image shows typical hardware hacking tools used for IoT security assessments:

Logic analyzer/debugger: Captures signals from JTAG, SWD, UART, SPI interfaces
Probe clips: Connect to test points on PCBs without soldering
JTAG ribbon cable: Standard 10/20-pin connector for ARM Cortex debug

Why this matters for device security: These tools cost under $100 and allow attackers with physical device access to: 1. Extract firmware for reverse engineering 2. Read encryption keys from memory 3. Bypass secure boot by debugging bootloader 4. Inject malicious code into flash memory

Production IoT devices must disable these debug interfaces to prevent exploitation.

1455.6.2 Tamper Detection and Response

Level	Protection	Response
Level 1	Tamper-evident seals	Visual inspection
Level 2	Mesh break detection	Log event
Level 3	Active monitoring	Alert + log
Level 4	Key zeroization	Wipe secrets on breach
Level 5	Device destruction	Self-destruct circuit

1455.7 Detecting Hardware Trojans in Production

1455.7.1 Detection Methods

Method	When Applied	Detection Rate	Cost
Visual Inspection	Incoming QC	Low (obvious only)	Low
X-ray Imaging	Sample testing	Medium	Medium
Side-channel analysis	Production testing	Medium-High	Medium
Formal verification	Design phase	High (known patterns)	High
Golden model comparison	Production	High	Very High

Common Misconception: “Firewalls Protect IoT Devices”

The Myth: “Our IoT devices are behind a corporate firewall, so they’re protected from hackers.”

The Reality: Firewalls protect against network-based attacks from outside the perimeter, but they cannot defend against:

Physical attacks: Attacker with device access extracts keys via JTAG
Supply chain attacks: Trojan inserted during manufacturing
Insider threats: Employee with network access
Compromised internal hosts: Malware on workstation pivots to IoT
Side-channel attacks: Power analysis extracts keys through the power plug

The Truth: Firewalls are ONE layer of defense. IoT security requires: - Device-level hardening (secure boot, encrypted storage) - Network segmentation (VLANs isolate IoT) - Zero-trust architecture (authenticate every connection) - Physical security (tamper detection)

1455.8 Hardware Security Assessment Exercise

Exercise: Hardware Security Assessment and Countermeasures

Scenario: You’re tasked with assessing the hardware security of a new IoT gateway being considered for industrial deployment. The device will handle sensitive process control data and must resist physical tampering.

Assessment Checklist:

Debug Interface Analysis:
- Identify all debug headers (JTAG, SWD, UART)
- Test if interfaces are enabled
- Attempt firmware extraction
Physical Security:
- Inspect for tamper-evident features
- Check enclosure security (screws, seals)
- Identify exposed test points
Component Analysis:
- Verify chip authenticity (markings, packaging)
- Check for signs of rework
- Identify security components (TPM, SE)
Side-Channel Assessment:
- Power consumption profiling during crypto
- EM emissions measurement
- Timing analysis of security functions

Countermeasure Recommendations:

Finding	Countermeasure	Implementation Cost
JTAG enabled	Burn eFuse to disable	$0 (software)
Exposed test points	Epoxy fill, remove from layout	$0.50/device
No tamper detection	Add mesh + accelerometer	$2-5/device
Readable flash	Enable encryption	$0 (if chip supports)
Side-channel leakage	Add countermeasures in firmware	Development time

1455.9 Summary

This chapter covered hardware vulnerabilities:

Hardware Trojans: Malicious circuit modifications with triggers and payloads
Supply Chain Risks: Multiple insertion points from design to deployment
Side-Channel Attacks: SPA, DPA, CPA extract secrets through physical analysis
Physical Attacks: JTAG, UART, flash access enable firmware extraction
Countermeasures: Disable debug, add tamper detection, use constant-time code

1455.10 What’s Next

The next chapter explores Access Control models for IoT including RBAC, ABAC, OAuth 2.0, and identity management strategies for device fleets.
