265  Mobile Computing Challenges and Network Architectures

265.1 Learning Objectives

By the end of this chapter, you will be able to:

  • Manage Power Constraints: Balance gateway functionality with mobile device battery limitations
  • Handle Connectivity Challenges: Design for intermittent, heterogeneous network conditions
  • Evaluate Network Architectures: Compare infrastructure-based and ad-hoc mobile networks
  • Design for Mobility: Implement solutions that handle device movement and topology changes

265.2 Prerequisites

Before diving into this chapter, you should be familiar with:

NoteKey Concepts
  • Duty Cycling: Alternating between active and sleep modes to conserve battery
  • Store-and-Forward: Buffering data locally during connectivity outages
  • Network Heterogeneity: Managing connections across Wi-Fi, cellular, and Bluetooth simultaneously
  • Ad-hoc Networks: Self-organizing networks without fixed infrastructure
  • MANET: Mobile Ad-hoc Network - devices communicating directly without central coordination

265.3 Fundamental Challenges in Mobile Computing

Mobile computing introduces unique challenges that impact IoT implementations using mobile phones as infrastructure components.

265.3.1 Resource Constraints

Limited Battery Life: Mobile devices operate on battery power, creating fundamental tradeoffs between functionality and energy consumption.

Mitigation Strategies: - Duty cycling: Alternating between active and sleep modes - Adaptive sensing: Adjusting sampling rates based on context - Energy-efficient algorithms: Optimizing computation for minimal power consumption - Offloading: Delegating intensive tasks to cloud or nearby infrastructure when beneficial

Processing Limitations: Despite improvements, mobile processors have limited computational capacity compared to cloud servers or desktop systems.

Mitigation Strategies: - Edge-cloud collaboration: Partitioning tasks between local and remote processing - Lightweight algorithms: Using simplified models suitable for mobile constraints - Hardware acceleration: Leveraging specialized chips (AI accelerators, GPUs)

Storage Constraints: Mobile devices have limited storage compared to cloud systems, constraining local data retention.

Mitigation Strategies: - Intelligent caching: Keeping only essential data locally - Compression: Reducing data size before storage - Tiered storage: Using cloud for archival, local for active data

265.3.2 Connectivity Challenges

Network Heterogeneity: Mobile devices connect through multiple, changing networks (Wi-Fi, 4G, 5G, Bluetooth) with varying characteristics.

Challenges: - Seamless handoff between network types - Maintaining connections during transitions - Adapting to bandwidth and latency variations - Managing connectivity costs (data plans)

Intermittent Connectivity: Mobile devices frequently lose network connectivity due to movement, obstacles, or network congestion.

Mitigation Strategies: - Offline capabilities: Functioning without continuous connectivity - Store-and-forward: Queuing data for transmission when connectivity resumes - Opportunistic networking: Using available connectivity windows efficiently

Variable Network Quality: Signal strength, bandwidth, and latency vary significantly based on location and network load.

Adaptation Strategies: - Adaptive bitrate: Adjusting data transmission rates based on network conditions - Protocol selection: Choosing appropriate protocols for current network state - Predictive pre-loading: Anticipating connectivity gaps and pre-fetching data

265.3.3 Mobility Management

Location Variability: Mobile devices constantly change location, requiring dynamic service discovery and adaptation.

Challenges: - Maintaining service continuity during movement - Discovering local IoT devices and services - Context adaptation based on location changes

Dynamic Topologies: Network topology changes as devices move, requiring robust routing and discovery protocols.

265.4 Challenges in Designing Mobile Computing Systems

Designing effective mobile computing systems for IoT applications requires addressing multiple architectural and operational challenges.

265.4.1 User Experience Considerations

Interface Design: Mobile interfaces must be intuitive despite small screen sizes and varied user contexts (walking, driving, multitasking).

Design Principles: - Simplicity: Minimal steps to accomplish tasks - Context awareness: Adapting interface based on user situation - Feedback: Clear indication of system status and actions - Error prevention: Designing to minimize user mistakes

Performance Expectations: Users expect instant responsiveness despite computational and network limitations.

Strategies: - Optimistic UI: Showing results immediately while processing in background - Progressive enhancement: Displaying basic information quickly, details later - Skeleton screens: Visual placeholders during loading

265.4.2 Security and Privacy

Multi-Tenant Environments: Personal devices hosting IoT applications raise security concerns about data isolation and access control.

Security Requirements: - Data encryption: Protecting data at rest and in transit - Authentication: Verifying user and device identities - Authorization: Controlling access to resources and data - Secure updates: Protecting against malicious software updates

Privacy Concerns: Mobile IoT applications collect sensitive personal data (location, health, behavior), raising privacy issues.

Privacy Protection Measures: - Data minimization: Collecting only necessary data - User consent: Transparent permission requests - Anonymization: Removing personally identifiable information - Local processing: Keeping sensitive data on-device when possible

265.4.3 Application Development Complexity

Platform Fragmentation: Developing for multiple mobile platforms (iOS, Android) with different capabilities and APIs increases complexity.

Approaches: - Cross-platform frameworks: React Native, Flutter, Xamarin - Progressive web apps: Web-based applications with native-like capabilities - Platform-specific optimization: Tailoring experiences to each platform

Version Diversity: Supporting various OS versions with different features and APIs is challenging.

Strategies: - Graceful degradation: Providing basic functionality on older versions - Feature detection: Dynamically adapting to available capabilities - Minimum version requirements: Focusing development on recent versions

265.5 Infrastructure-based vs Ad-hoc Mobile Networks

Mobile IoT systems can operate using different network architectures, each with distinct characteristics and use cases.

265.5.1 Infrastructure-based Networks

Infrastructure-based networks rely on fixed network infrastructure (cell towers, Wi-Fi access points) to facilitate communication.

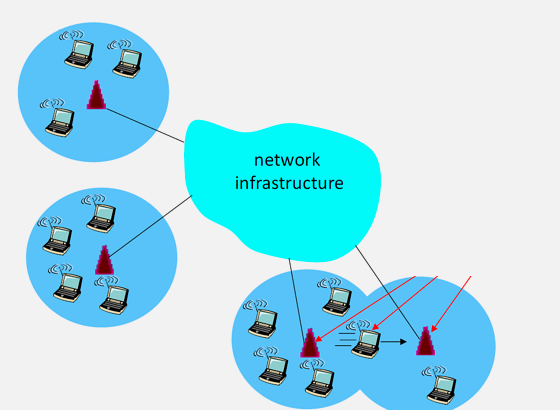

Infrastructure-based wireless network topology diagram showing mobile devices connecting to fixed access points (cell towers and Wi-Fi base stations) that link to wired backbone network, with centralized control, coordinated handoffs between coverage areas, and gateway access to internet
Figure 265.1: Infrastructure-based wireless network architecture showing mobile devices connecting through fixed base stations (cell towers, Wi-Fi access points) that provide access to wired backbone networks with centralized coordination and handoff capabilities

Characteristics: - Centralized Control: Network managed by service providers - Fixed Access Points: Devices connect through established infrastructure - Reliable Coverage: Predictable service in covered areas - Scalability: Supports large numbers of devices - Quality of Service: Managed bandwidth and priority

Examples: - Cellular networks (4G/5G) for wide-area IoT connectivity - Wi-Fi networks in smart homes and buildings - Dedicated IoT networks (NB-IoT, LTE-M)

Advantages: - Reliable, managed connectivity - Wide coverage areas - Quality of service guarantees - Well-established protocols and standards - Professional network management

Disadvantages: - Infrastructure deployment costs - Dependency on service providers - Limited flexibility in remote areas - Potential single points of failure - Ongoing operational costs

IoT Use Cases: - Smart city infrastructure monitoring - Connected vehicle telematics - Industrial IoT with cloud connectivity - Remote patient monitoring - Fleet management and logistics

265.5.2 Ad-hoc Networks

Ad-hoc networks form spontaneously without fixed infrastructure, with devices communicating directly or through multi-hop routing.

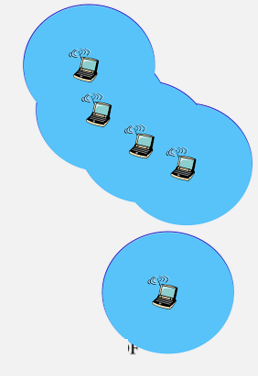

Ad-hoc wireless network topology diagram showing mobile nodes communicating directly peer-to-peer without central infrastructure, forming dynamic mesh topology where nodes self-organize and relay packets through intermediate neighbors in multi-hop fashion
Figure 265.2: Ad-hoc wireless network showing mobile nodes communicating directly without fixed infrastructure, forming self-organizing multi-hop networks where nodes route packets through intermediate peers

Characteristics: - Decentralized: No central coordination required - Self-Organizing: Network topology adapts dynamically - Peer-to-Peer: Devices communicate directly or through intermediaries - Temporary: Networks form and dissolve as needed - Autonomous: Independent of infrastructure

Types of Ad-hoc Networks:

Mobile Ad-hoc Networks (MANETs): Self-configuring networks of mobile devices connected via wireless links.

Vehicular Ad-hoc Networks (VANETs): Networks formed by vehicles communicating for safety and traffic management.

Wireless Sensor Networks (WSNs): Networks of sensor nodes collaborating for environmental monitoring or tracking.

Opportunistic Networks: Networks exploiting brief contact opportunities between mobile devices.

Advantages: - Rapid deployment without infrastructure - Flexibility in dynamic environments - Cost-effective for temporary applications - Resilience through distributed operation - Privacy through local communication

Disadvantages: - Limited range and scalability - Variable connectivity and reliability - Higher battery consumption (routing overhead) - Security vulnerabilities - Complex routing protocols

IoT Use Cases: - Disaster response and emergency networks - Temporary event monitoring (concerts, sports events) - Collaborative mobile sensing - Wildlife tracking in remote areas - Peer-to-peer smart home device communication

265.5.3 Hybrid Approaches

Many modern IoT systems combine infrastructure-based and ad-hoc networking to leverage advantages of both approaches.

WarningTradeoff: Infrastructure-Based vs Ad-Hoc Mobile Networks

Option A: Infrastructure-Based Networks - Rely on fixed infrastructure (cell towers, Wi-Fi access points) for centralized, reliable connectivity with managed QoS.

Option B: Ad-Hoc Networks - Form spontaneous peer-to-peer networks without fixed infrastructure, enabling rapid deployment and resilience through distributed operation.

Decision Factors:

  • Choose Infrastructure-Based when: Reliable coverage is available, QoS guarantees are needed (latency, bandwidth), scale requires professional management, or ongoing connectivity costs are acceptable.

  • Choose Ad-Hoc when: Infrastructure doesn’t exist (disaster response, remote wilderness), temporary deployment is needed (events, construction sites), privacy requires avoiding centralized collection, or cost constraints prohibit infrastructure subscription fees.

  • Consider Hybrid when: Primary infrastructure provides reliable baseline while ad-hoc capabilities handle edge cases (D2D communication for nearby devices, mesh fallback during outages). 5G networks increasingly support both modes natively.

Examples: - Mesh Wi-Fi Networks: Combining infrastructure access points with mesh networking for extended coverage - Bluetooth Mesh: Devices form mesh networks while maintaining cloud connectivity through gateways - Cellular-D2D: 5G networks supporting both infrastructure and direct device-to-device communication - Fog-Cloud Hybrid: Local ad-hoc processing with cloud synchronization when connectivity available

265.6 Knowledge Check

Question 1: Your mobile gateway needs to upload 10MB of sensor data. Wi-Fi consumes 75mA during transmission, 4G consumes 200mA. If transmission takes 16 seconds, which network saves more battery?

Explanation: Battery consumption = current × time. Wi-Fi: 75mA × (16s / 3600s/h) = 0.33mAh. 4G: 200mA × (16s / 3600s/h) = 0.89mAh. Wi-Fi uses (0.89 - 0.33) / 0.89 = 63% less battery. This is why mobile gateways should prefer Wi-Fi when available and reserve cellular for when Wi-Fi is unavailable. On a 4000mAh battery, this difference equals hours of additional operation time.

Question 2: Your mobile gateway has 30% battery remaining. To extend operation for 24 hours, it implements duty cycling. If active mode draws 150mA, what duty cycle is needed? (Battery capacity: 4000mAh)

Explanation: Available capacity = 4000mAh × 0.30 = 1200mAh. Sustainable current = 1200mAh / 24h = 50mA. Duty cycle = 50mA / 150mA = 0.33 (33%). Per minute: Active 20s × 150mA = 50mA average when distributed over 60s. This means the gateway actively processes data for 20s, then sleeps (low-power doze mode ~2mA) for 40s. During sleep, data buffers locally. This energy management is critical for mobile gateways operating on battery power.

Question 3: A mobile gateway buffers sensor data when Wi-Fi is unavailable, then uploads when connectivity resumes. What is this pattern called?

Explanation: Store-and-forward handles intermittent connectivity by locally buffering data during network outages and transmitting when connectivity resumes. Example: User enters subway (offline) → Gateway continues collecting sensor data → Buffers 500 readings locally → User exits subway (online) → Gateway detects Wi-Fi → Uploads all 500 readings in batch. This is essential for mobile devices with variable connectivity. Alternative without buffering: lose all data during outage. This pattern enables reliable IoT operation despite network unreliability.

Question 4: Comparing BLE and Classic Bluetooth for mobile gateway applications, which statement is most accurate?

Explanation: Bluetooth Low Energy (BLE) is optimized for IoT: Power: BLE ~3mA (can run months on coin cell) vs Classic ~20mA. Connection: BLE connects in <3ms vs Classic ~100ms. Use case: BLE for sensors (temperature, heart rate, beacons), Classic for continuous audio/data (headphones, file transfer). Most wearables and IoT sensors use BLE exclusively. A fitness tracker using Classic Bluetooth would drain its battery in days instead of months. Mobile gateways should support both but prioritize BLE for sensor networks.

Question 5: Your mobile gateway app needs to minimize battery drain while maintaining reasonable responsiveness. Which strategy is most effective?

Explanation: BLE advertisements optimize battery for both gateway and sensors: Sensor side: Broadcasts data in advertisement packets (31 bytes) at intervals (e.g., every 1 second). No connection needed. Example: Eddystone beacon broadcasts temperature 0x16 0x18 without pairing. Gateway side: Passive scanning receives broadcasts without transmitting (low power ~15mA vs active connection ~30mA). Alternative comparison: (A) Polling every 100ms = 10 samples/second drains battery (connection overhead, active radio), (C) Persistent connections keep radio active continuously (~30mA), (D) Turning off radio loses data and adds reconnection overhead (100ms + pairing). Best practice: Use BLE advertisements for periodic sensor data (temperature, humidity every 1-5 sec), reserve connections for interactive control (locking door, changing settings). Example deployment: Xiaomi Mi Temperature Sensor broadcasts temperature every 2s via BLE advertisement, phone gateway scans passively - sensor runs 6 months on CR2032 coin cell, phone battery impact <2%/hour.

265.7 Summary

This chapter examined fundamental challenges in mobile computing:

  • Resource Constraints: Battery life requires duty cycling (33% active time extends operation), processing limitations need edge-cloud collaboration, storage constraints require intelligent caching
  • Connectivity Challenges: Network heterogeneity (Wi-Fi saves 63% battery vs cellular), intermittent connectivity needs store-and-forward buffering, variable quality requires adaptive protocols
  • Infrastructure vs Ad-hoc: Infrastructure provides reliable managed connectivity; ad-hoc enables rapid deployment without fixed hardware; hybrid approaches combine both advantages
  • Design Considerations: UX requires optimistic UI and progressive enhancement; security needs encryption and authentication; platform fragmentation addressed through cross-platform frameworks
