440  Link Quality Based Routing

440.1 Learning Objectives

By the end of this chapter, you will be able to:

  • Evaluate Link Quality: Use link quality metrics to improve routing reliability and performance
  • Implement WMEWMA: Configure Window Mean with Exponentially Weighted Moving Average for link estimation
  • Calculate ETX/MIN-T: Compute Expected Transmission Count for path selection
  • Avoid Gray Zone Links: Identify and route around unreliable intermediate-distance links

440.2 Prerequisites

Before diving into this chapter, you should be familiar with:

440.3 Introduction

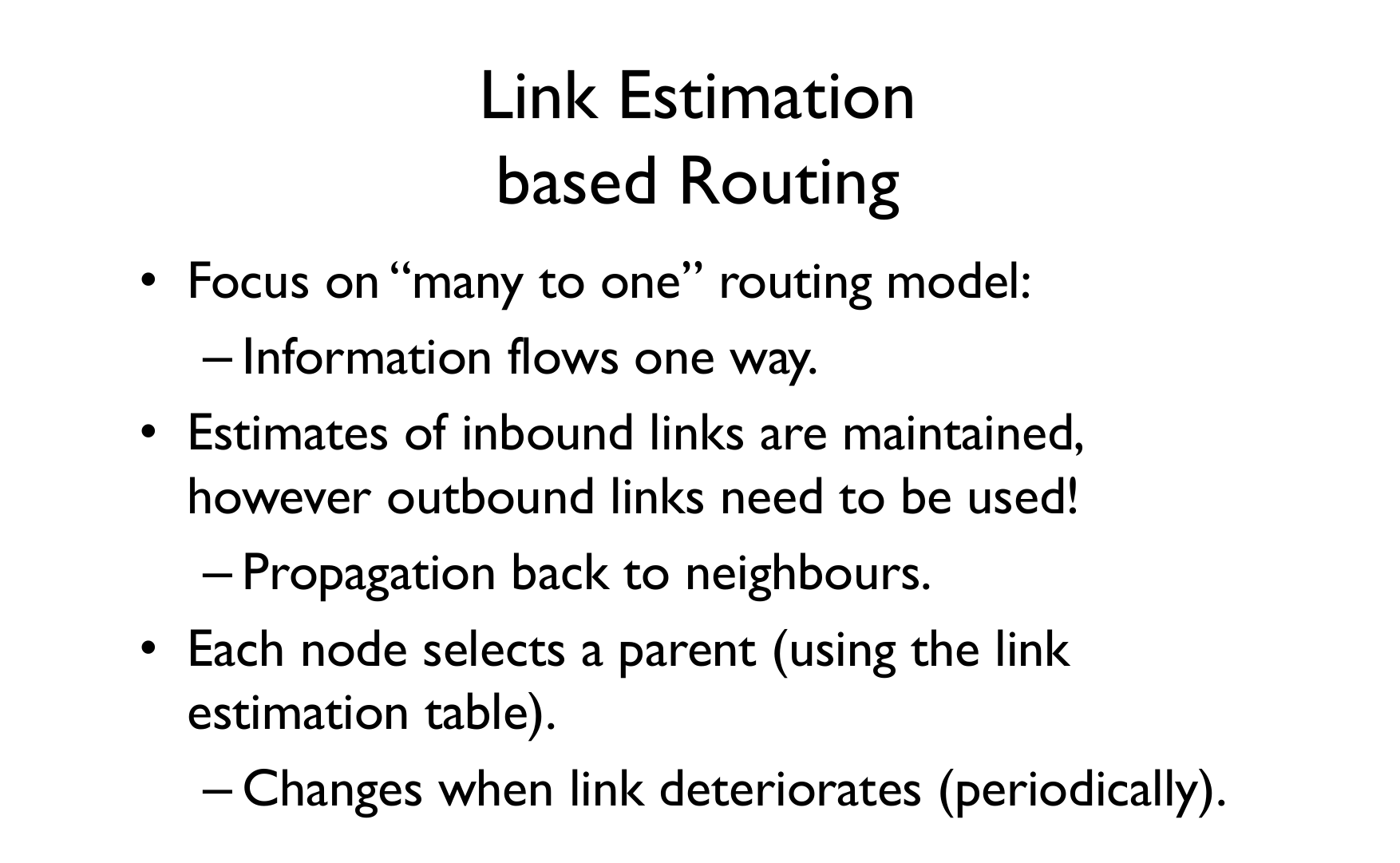

Traditional routing protocols use hop count as the primary metric. However, in WSNs with unreliable wireless links, the shortest path may not be optimal.

440.4 Problems with Hop Count

440.4.2 2. Doesn’t Account for Asymmetry

Forward and reverse links may have different quality: - Data might reach the next hop successfully - But ACKs fail on the poor reverse link - Results in unnecessary retransmissions

440.4.3 3. Assumes Spherical Communication Range

Reality shows highly irregular communication patterns: - Obstacles create dead zones - Interference varies by location - Fading effects unpredictable

%% fig-alt: "Comparison of hop count routing (chooses 2-hop path with poor links) vs link quality routing (chooses 3-hop path with reliable links)"
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#ECF0F1', 'fontSize': '16px'}}}%%
graph LR
    subgraph "Hop Count vs Link Quality Routing"
        SOURCE["Source<br/>Node"]

        PATH1_H1["Hop 1<br/>PDR: 50%"]
        PATH1_H2["Hop 2<br/>PDR: 50%"]

        PATH2_H1["Relay 1<br/>PDR: 90%"]
        PATH2_H2["Relay 2<br/>PDR: 90%"]
        PATH2_H3["Relay 3<br/>PDR: 90%"]

        SINK["Sink<br/>Node"]
    end

    SOURCE -->|"Path 1:<br/>2 hops"| PATH1_H1
    PATH1_H1 --> PATH1_H2
    PATH1_H2 --> SINK

    SOURCE -->|"Path 2:<br/>3 hops"| PATH2_H1
    PATH2_H1 --> PATH2_H2
    PATH2_H2 --> PATH2_H3
    PATH2_H3 --> SINK

    PATH1_H2 -.-> COST1["Expected TX:<br/>1/0.5 + 1/0.5<br/>= 4 transmissions"]
    PATH2_H3 -.-> COST2["Expected TX:<br/>1/0.9 × 3<br/>= 3.33 transmissions"]

    COST1 -.->|"Hop count chooses this"| BAD["Path 1: Higher cost<br/>More retransmissions"]
    COST2 -.->|"ETX chooses this"| GOOD["Path 2: Lower cost<br/>Better overall"]

    style SOURCE fill:#2C3E50,stroke:#16A085,stroke-width:3px,color:#fff
    style PATH1_H1 fill:#E74C3C,stroke:#2C3E50,stroke-width:2px,color:#fff
    style PATH1_H2 fill:#E74C3C,stroke:#2C3E50,stroke-width:2px,color:#fff
    style PATH2_H1 fill:#16A085,stroke:#2C3E50,stroke-width:2px,color:#fff
    style PATH2_H2 fill:#16A085,stroke:#2C3E50,stroke-width:2px,color:#fff
    style PATH2_H3 fill:#16A085,stroke:#2C3E50,stroke-width:2px,color:#fff
    style SINK fill:#E67E22,stroke:#2C3E50,stroke-width:3px,color:#fff
    style COST1 fill:#FADBD8,stroke:#E74C3C,stroke-width:2px
    style COST2 fill:#D5F4E6,stroke:#16A085,stroke-width:2px
    style BAD fill:#F5B7B1,stroke:#E74C3C,stroke-width:2px,color:#000
    style GOOD fill:#A9DFBF,stroke:#16A085,stroke-width:2px,color:#000

Figure 440.1: Comparison of hop count routing (chooses 2-hop path with poor links) vs link quality routing (chooses 3-hop path with reliable links)

440.5 RSSI (Received Signal Strength Indicator)

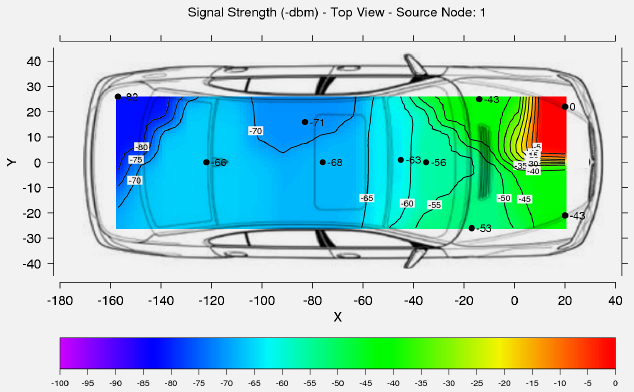

RSSI while driving
Figure 440.2: RSSI measurements while driving showing signal strength variability in mobile scenarios

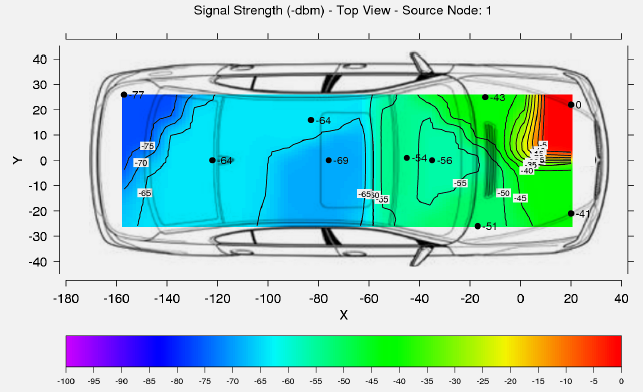

RSSI stationary measurements
Figure 440.3: RSSI measurements for stationary nodes showing temporal variations and environmental effects

RSSI measures the power of a received radio signal. It provides a basic indication of link quality.

440.5.1 Characteristics

  • Higher RSSI generally means better link quality
  • Varies with distance, obstacles, interference
  • Highly dynamic in mobile scenarios
  • Can be measured passively

440.5.2 Limitations

  • Temporal variations (fading)
  • Spatial variations (multipath)
  • Doesn’t directly indicate packet delivery rate
  • Requires calibration for different hardware

440.7 MIN-T (Minimum Transmission) Metric

MIN-T estimates the expected number of transmissions required to successfully deliver a packet over a path, accounting for retransmissions.

440.7.2 Path Cost

Cost(path) = Σ Cost(link_i) for all links in path

440.7.3 Example Calculation

Link P_forward P_backward Cost
A→B 0.9 0.9 1/(0.9×0.9) = 1.23
B→C 0.5 0.5 1/(0.5×0.5) = 4.0

Total path cost: 1.23 + 4.0 = 5.23 expected transmissions

440.8 ETX (Expected Transmission Count)

ETX is equivalent to MIN-T and is the standard metric used in many WSN protocols.

440.8.1 Calculation

ETX_link = 1 / (PRR_forward × PRR_reverse)
ETX_path = Σ ETX_link for all links

440.8.2 Path Comparison Example

Path Hops Link PRRs ETX per Link Total ETX
A 2 50%, 50% 4.0, 4.0 8.0
B 3 90%, 90%, 90% 1.23, 1.23, 1.23 3.69

Path B wins despite being longer (fewer expected transmissions = less energy).

440.9 Worked Example: ETX-Based Path Selection

NoteWorked Example: ETX-Based Routing Path Selection

Scenario: An industrial monitoring WSN tracks vibration levels on factory equipment. A sensor node S needs to route critical alarm data to the gateway G. Two candidate paths exist with different link qualities measured via probe packets.

Given:

Path Hops Link Qualities (PRR) Transmission Energy
Path A 2 S-R1: 95%, R1-G: 90% 25 mJ per TX
Path B 3 S-R2: 85%, R2-R3: 80%, R3-G: 75% 25 mJ per TX
Path C 2 S-R4: 60%, R4-G: 55% 25 mJ per TX

Steps:

  1. Calculate ETX for each path (assuming symmetric links: ETX = 1/PRR²):

  2. Path A ETX calculation:

    • Link S-R1: ETX = 1 / (0.95 × 0.95) = 1 / 0.9025 = 1.11
    • Link R1-G: ETX = 1 / (0.90 × 0.90) = 1 / 0.81 = 1.23
    • Path A Total ETX = 1.11 + 1.23 = 2.34 transmissions

  3. Path B ETX calculation:

    • Link S-R2: ETX = 1 / (0.85)² = 1.38
    • Link R2-R3: ETX = 1 / (0.80)² = 1.56
    • Link R3-G: ETX = 1 / (0.75)² = 1.78
    • Path B Total ETX = 1.38 + 1.56 + 1.78 = 4.72 transmissions

  4. Path C ETX calculation (shortest by hop count):

    • Link S-R4: ETX = 1 / (0.60)² = 2.78
    • Link R4-G: ETX = 1 / (0.55)² = 3.31
    • Path C Total ETX = 2.78 + 3.31 = 6.09 transmissions

  5. Calculate expected energy consumption:

    • Path A: 2.34 TX × 25 mJ = 58.5 mJ
    • Path B: 4.72 TX × 25 mJ = 118.0 mJ
    • Path C: 6.09 TX × 25 mJ = 152.3 mJ

Result:

Metric Path A (2 hops) Path B (3 hops) Path C (2 hops)
ETX 2.34 (best) 4.72 6.09
Energy 58.5 mJ (best) 118.0 mJ 152.3 mJ
First-attempt success 85.5% 51.0% 33.0%

Path A is optimal despite having the same hop count as Path C. The high link quality saves 93.8 mJ per packet (62% energy reduction) compared to Path C.

Key Insight: Hop-count routing would see Paths A and C as equivalent (both 2 hops), potentially selecting the inferior Path C. ETX-based routing correctly identifies that link quality dominates path selection.

440.10 Common Pitfalls

CautionPitfall: Choosing Shortest Path Without Link Quality Assessment

The Mistake: Implementing hop-count based routing in WSN deployments, assuming “fewer hops = better performance,” then experiencing 30-50% packet loss because the shortest path traverses marginal wireless links.

Why It Happens: Traditional networking education emphasizes shortest path algorithms (Dijkstra, Bellman-Ford). Teams apply this intuition without realizing that a “2-hop” path with 90% link quality outperforms a “1-hop” path with 50% link quality. Hop count ignores the retransmission cost of poor links.

The Fix: Use link quality metrics like ETX (Expected Transmission Count) or MIN-T instead of hop count:

  • ETX = 1/(forward_delivery_rate × reverse_delivery_rate)
  • A 3-hop path with ETX=3.3 beats a 2-hop path with ETX=8.0
  • Measure link quality during network formation using probe packets
  • Update metrics periodically to adapt to changing conditions
CautionPitfall: Gray Zone Links

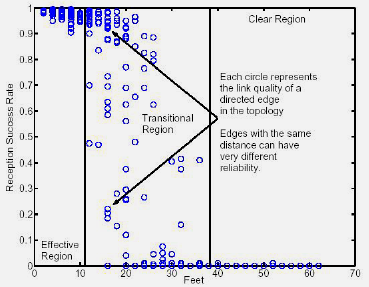

The Problem: Links at intermediate distances (the “gray zone”) have highly variable quality: - Sometimes work (60% delivery) - Sometimes fail (30% delivery) - Unpredictable behavior

Why It Happens: At the edge of transmission range: - Signal strength varies with environmental conditions - Small movements cause large quality changes - Interference effects magnified

The Fix: - If measured PRR is between 10-90%, consider the link unreliable - Prefer links with PRR > 90% (clearly good) or < 10% (clearly avoid) - Use hysteresis: don’t switch routes for small quality differences - Require stable measurements over time (20+ packets minimum)

440.11 Knowledge Check

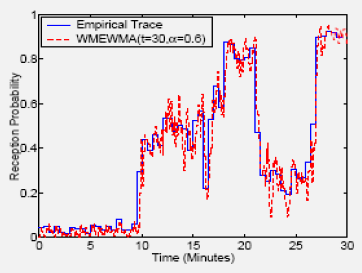

Question: Link quality estimation uses WMEWMA (Window Mean with EWMA) to balance responsiveness and stability. A link has recent packet delivery: [100%, 100%, 100%, 0%, 0%]. What will WMEWMA estimate compared to pure EWMA?

Explanation: WMEWMA combines two estimators: (1) Window Mean (WM): Average of last N packets (e.g., N=5). Responds quickly to changes - when recent packets fail, estimate drops immediately. WM for [100,100,100,0,0] = (100+100+100+0+0)/5 = 60%. (2) EWMA (Exponential Weighted Moving Average): Weighted average with parameter α (e.g., α=0.9). Smooths long-term trends but slow to respond. EWMA updates: E₁=100%, E₂=100%, E₃=100%, E₄=0.9×100+0.1×0=90%, E₅=0.9×90+0.1×0=81%. (3) WMEWMA: Takes minimum of WM and EWMA → min(60%, 81%) = 60%. Why this matters: WM drops quickly when link degrades, avoiding bad routes faster than pure EWMA.

Question: Why is hop-count routing suboptimal for WSNs with lossy links?

Explanation: Lossy link problem: WSN links are often unreliable (interference, obstacles, weather). A link with 50% delivery rate requires average 2 transmissions per successful packet. Example scenario: Path 1: Direct 1-hop, delivery rate 25% (requires avg 4 transmissions). Path 2: Via relay, 2 hops, each link 90% delivery rate (requires avg 1.11 + 1.11 = 2.22 transmissions). Hop count chooses Path 1 (fewer hops), but Path 2 actually needs fewer transmissions! Using ETX: Energy consumption ∝ transmissions. Hop count wastes 2-3× more energy on lossy networks.

Question: Why does the MIN-T metric consider both forward and backward link quality?

Explanation: MIN-T accounts for both forward (data) and backward (ACK) link quality because a poor backward link will cause ACK losses, triggering retransmissions even if the forward link is good. The formula is: Cost = 1/(P_forward × P_backward). Example: Link with 90% forward but 50% reverse delivery = 1/(0.9×0.5) = 2.22 expected transmissions, not the 1.11 you’d expect from forward quality alone.
