280 SDN Introduction and Architecture
280.1 Learning Objectives
By the end of this chapter, you will be able to:
- Explain SDN Architecture: Describe the separation of control and data planes in software-defined networks
- Understand SDN Motivation: Articulate limitations of traditional networks that SDN addresses
- Identify SDN Layers: Distinguish between application, control, and data/infrastructure layers
- Evaluate Controller Architectures: Compare monolithic vs microservices SDN controller designs
- Apply SDN to IoT: Recognize how centralized control benefits IoT deployments
TipFor Kids: Meet the Sensor Squad!
Software-Defined Networking is like having one super-smart traffic controller instead of every intersection making its own decisions!
280.1.1 The Sensor Squad Adventure: The Traffic Jam Solution
The Sensor Squad had grown SO big! There were hundreds of sensors all over the smart city - Sunny the Light Sensors on every street lamp, Thermo the Temperature Sensors in every building, Motion Mo the Motion Detectors watching every crosswalk. But there was a problem: messages were getting lost and stuck!
“My temperature warning took forever to get through!” complained Thermo. “The network was jammed!”
Motion Mo nodded. “Every switch and router was making its own decisions about where to send messages. It was like having every traffic light in the city decide on its own when to turn green - total chaos!”
That’s when Signal Sam the Communication Expert introduced a brilliant new friend: Connie the Controller. Connie could see the ENTIRE network from above, like a bird watching all the city streets at once. Instead of every switch deciding on its own, Connie made ALL the routing decisions from one central place.
“Temperature emergency on Oak Street?” Connie announced. “I’ll create a fast lane RIGHT NOW!” With one command, Connie told all the switches to prioritize Thermo’s message. Power Pete the Battery Manager was impressed: “Connie can even turn off unused network paths to save energy!”
The Sensor Squad cheered. Now ALL their messages flowed smoothly because one smart controller was orchestrating everything!
280.1.2 Key Words for Kids
| Word | What It Means |
|---|---|
| Software-Defined Networking | Having one smart “brain” that controls how all messages travel through the network, instead of each part deciding alone |
| Controller | The central brain that sees everything and tells all the network switches where to send messages |
| OpenFlow | The special language the controller uses to give instructions to all the network switches |
280.1.3 Try This at Home!
Play the “Traffic Controller” game:
Setup: Draw a simple grid of 4-6 “intersections” (dots) on paper. Place toy cars or game pieces as “messages” that need to travel from one side to another.
Round 1 - No Controller: Each “intersection” flips a coin to decide which way messages go. Watch how chaotic and slow it gets!
Round 2 - With Controller: One person is the “SDN Controller” who can see the whole grid. They decide the best path for EVERY message. Much faster and organized!
Discuss: Why is having one smart controller better than everyone deciding on their own? When might you need a REALLY fast controller?
280.2 Prerequisites
Before diving into this chapter, you should be familiar with:
- Networking Basics: Understanding fundamental networking concepts including IP addressing, routing, switching, and network protocols is essential for grasping how SDN separates the control and data planes
- SDN Fundamentals and OpenFlow: Core SDN concepts, OpenFlow protocol basics, and the architectural principles of programmable networks provide the foundation for advanced SDN implementations in IoT
- WSN Overview: Fundamentals: Knowledge of wireless sensor network architectures helps understand how SDN can optimize IoT device management and multi-hop routing decisions
NoteKey Concepts
- Software-Defined Networking (SDN): Network architecture decoupling control plane (decision-making) from data plane (packet forwarding) for centralized programmable control
- Control Plane: Centralized intelligence determining how network traffic should be routed and managed across the network
- Data Plane: Distributed forwarding infrastructure executing packet transmission decisions made by the control plane
- OpenFlow: Protocol enabling SDN controllers to communicate with network switches, instructing them how to forward packets
- Network Programmability: Ability to dynamically modify network behavior through software without reconfiguring hardware devices
- SDN Controller: Centralized software application managing network-wide policies and configuring individual network devices
280.3 🌱 Getting Started (For Beginners)

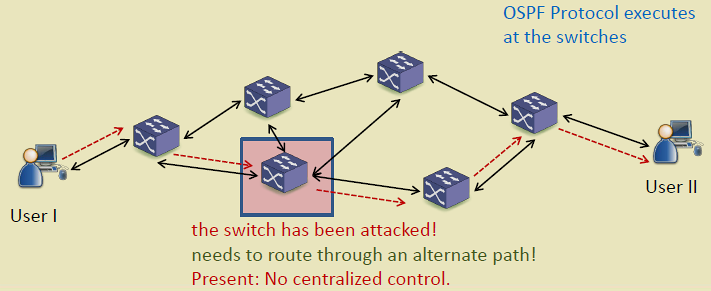

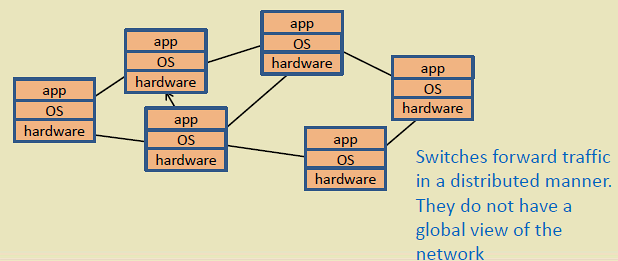

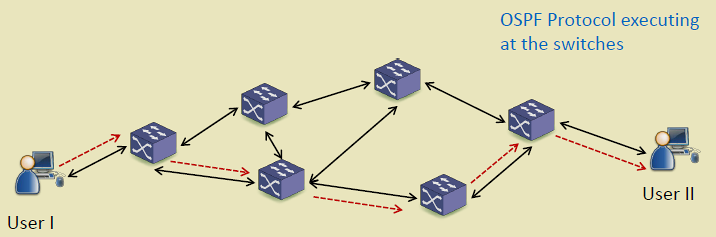

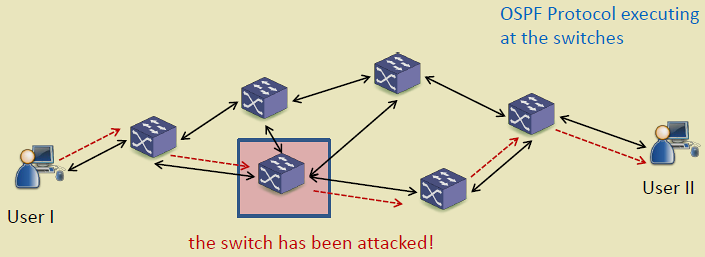

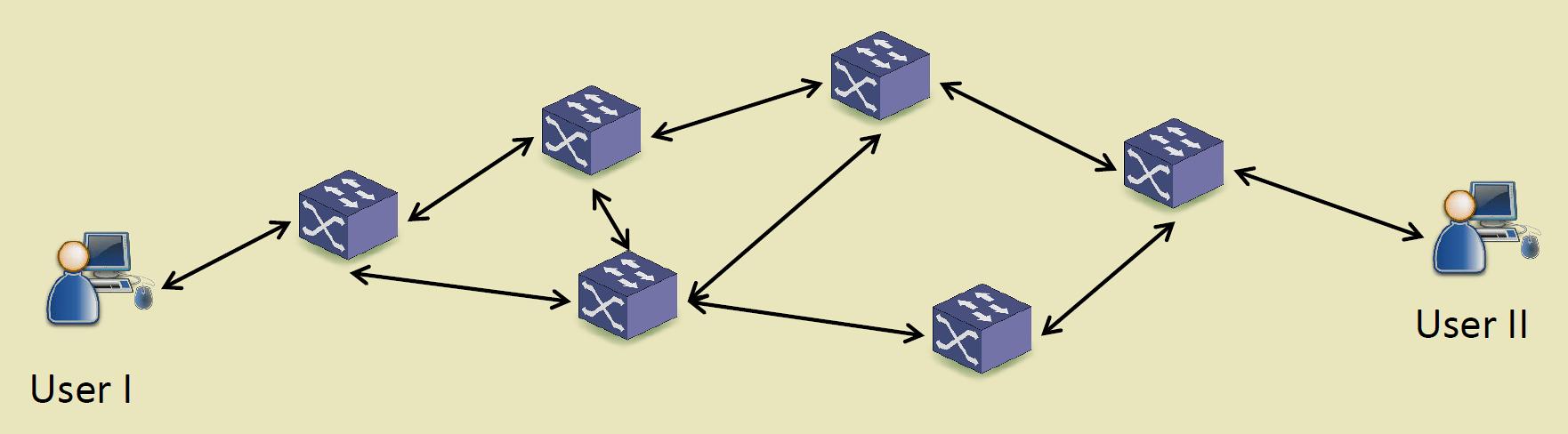

280.3.1 The Problem with Traditional Networks
Analogy: A City Without Central Traffic Control
Imagine a city where every traffic light makes its own decisions:
{fig-alt=“Traditional network analogy showing four traffic lights each making independent decisions with no central coordination, illustrating distributed control where each device operates autonomously”}
This is how traditional networks work: - Each router/switch makes its own forwarding decisions - No centralized view of the whole network - Changes require configuring each device individually - No easy way to respond to network-wide events
280.3.2 SDN: Centralized Control
Analogy: Smart City Traffic Control Center
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor':'#E8F4F8','primaryTextColor':'#2C3E50','primaryBorderColor':'#16A085','lineColor':'#16A085','secondaryColor':'#FEF5E7','tertiaryColor':'#FDEBD0','fontSize':'14px'}}}%%
graph TB
Controller["Traffic Control Center<br/>(Makes all decisions)"]
L1["Light 1<br/>(Executes)"]
L2["Light 2<br/>(Executes)"]
L3["Light 3<br/>(Executes)"]
L4["Light 4<br/>(Executes)"]
Controller -->|Commands| L1
Controller -->|Commands| L2
Controller -->|Commands| L3
Controller -->|Commands| L4
L1 -->|Status| Controller
L2 -->|Status| Controller
L3 -->|Status| Controller
L4 -->|Status| Controller
style Controller fill:#16A085,stroke:#2C3E50,color:#fff,stroke-width:3px
style L1 fill:#2C3E50,stroke:#16A085,color:#fff
style L2 fill:#2C3E50,stroke:#16A085,color:#fff
style L3 fill:#2C3E50,stroke:#16A085,color:#fff
style L4 fill:#2C3E50,stroke:#16A085,color:#fff
{fig-alt=“SDN analogy showing central traffic control center making all decisions and sending commands to traffic lights that simply execute instructions, illustrating centralized control plane”}
280.3.3 The Two “Planes” in SDN
SDN separates the “brain” from the “muscles”:
| Plane | Function | Traditional Network | SDN |
|---|---|---|---|
| Control Plane | Makes decisions (where should this packet go?) | Each device decides | Centralized controller |
| Data Plane | Moves packets (forward, drop, modify) | Same device executes | Simple switches execute |
Analogy: Restaurant Kitchen
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor':'#E8F4F8','primaryTextColor':'#2C3E50','primaryBorderColor':'#16A085','lineColor':'#16A085','secondaryColor':'#FEF5E7','tertiaryColor':'#FDEBD0','fontSize':'14px'}}}%%
graph LR
subgraph Control["Control Plane (Head Chef)"]
Chef["Decides: What dish?<br/>Which station?<br/>What priority?"]
end
subgraph Data["Data Plane (Line Cooks)"]
Cook1["Grill Cook<br/>(Executes)"]
Cook2["Sauté Cook<br/>(Executes)"]
Cook3["Prep Cook<br/>(Executes)"]
end
Chef -->|Orders| Cook1
Chef -->|Orders| Cook2
Chef -->|Orders| Cook3
style Chef fill:#16A085,stroke:#2C3E50,color:#fff
style Cook1 fill:#2C3E50,stroke:#16A085,color:#fff
style Cook2 fill:#2C3E50,stroke:#16A085,color:#fff
style Cook3 fill:#2C3E50,stroke:#16A085,color:#fff
{fig-alt=“Restaurant kitchen analogy showing head chef (control plane) making decisions about dishes and priorities while line cooks (data plane) execute the actual cooking tasks”}
280.3.4 Why SDN for IoT?
IoT networks have unique challenges that SDN solves:
| IoT Challenge | SDN Solution |
|---|---|
| Thousands of devices | Centralized management from one controller |
| Dynamic topology | Instantly reconfigure routes when devices move/fail |
| Diverse requirements | Program different rules for different device types |
| Security threats | Detect attacks from central view, isolate compromised devices |
| Energy efficiency | Route traffic to let unused switches sleep |
Example: Smart Factory
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor':'#E8F4F8','primaryTextColor':'#2C3E50','primaryBorderColor':'#16A085','lineColor':'#16A085','secondaryColor':'#FEF5E7','tertiaryColor':'#FDEBD0','fontSize':'14px'}}}%%
graph TB
SDN["SDN Controller<br/>(Factory Brain)"]
subgraph Devices["IoT Devices"]
Temp["Temperature<br/>Sensors"]
Robots["Assembly<br/>Robots"]
Cameras["Vision<br/>Cameras"]
AGV["Autonomous<br/>Vehicles"]
end
SDN -->|"Priority: High QoS"| Robots
SDN -->|"Route via Path A"| Temp
SDN -->|"Bandwidth: 100Mbps"| Cameras
SDN -->|"Low Latency Path"| AGV
Temp -->|"Status + Data"| SDN
Robots -->|"Status + Data"| SDN
Cameras -->|"Status + Data"| SDN
AGV -->|"Status + Data"| SDN
style SDN fill:#16A085,stroke:#2C3E50,color:#fff,stroke-width:3px
style Temp fill:#2C3E50,stroke:#16A085,color:#fff
style Robots fill:#E67E22,stroke:#2C3E50,color:#fff
style Cameras fill:#2C3E50,stroke:#16A085,color:#fff
style AGV fill:#E67E22,stroke:#2C3E50,color:#fff
{fig-alt=“Smart factory SDN example showing controller managing diverse IoT devices (temperature sensors, assembly robots, vision cameras, autonomous vehicles) with different QoS requirements and routing policies”}
280.3.5 Self-Check: Understanding the Basics
Before continuing, make sure you can answer:
- What does SDN separate? → Control plane (decision-making) from data plane (packet forwarding)
- What is the main benefit of centralization? → Network-wide visibility and coordinated control from one point
- Why is SDN useful for IoT? → Manages thousands of diverse devices, enables dynamic reconfiguration, improves security
- What is OpenFlow? → The protocol that lets the SDN controller communicate with network switches
NoteKey Takeaway
In one sentence: SDN separates network control from forwarding, enabling programmable, centralized network management that can dynamically adapt to changing IoT requirements.
Remember this rule: SDN shines when you need dynamic traffic engineering, network-wide policies, or centralized visibility across thousands of diverse IoT devices.
280.4 Introduction
Software-Defined Networking (SDN) revolutionizes network architecture by decoupling the control plane (decision-making) from the data plane (packet forwarding). This separation enables centralized, programmable network management—particularly valuable for IoT where diverse devices, dynamic topologies, and application-specific requirements demand flexible networking.
This chapter explores SDN fundamentals, OpenFlow protocol, controller architectures, and SDN applications in IoT ecosystems including wireless sensor networks, mobile networks, and smart cities.
TipCross-Hub Connections
Explore Related Content:
- Knowledge Gaps Hub: Common SDN misconceptions (centralization = single point of failure, control overhead myths, OpenFlow limitations)
- Simulations Hub: Interactive SDN controller labs with Mininet, POX/Ryu controller programming, OpenFlow rule testing
- Videos Hub: SDN architecture animations, OpenFlow protocol walkthroughs, controller placement strategies
- Quizzes Hub: Self-assessment on control/data plane separation, flow table processing, SDN vs traditional networking
Why This Matters: Understanding SDN architecture is critical for designing scalable, manageable IoT networks that can adapt to changing requirements and optimize resource usage dynamically.
WarningCommon Misconception: “SDN Creates a Single Point of Failure”
Myth: “Centralizing control in an SDN controller makes the network fragile - if the controller fails, the entire network goes down.”
Reality: SDN controllers are deployed with redundancy and high availability architectures:
- Existing flows continue: Switches have local flow tables that persist during controller outage - established connections keep working
- Controller clustering: Production deployments use 3-5 controllers (ONOS, OpenDaylight) with automatic failover in seconds via leader election (Raft/Paxos protocols)
- Proactive vs reactive: Pre-installing flow rules for common patterns eliminates dependency on controller for every packet
- Graceful degradation: Switches can run emergency flow tables or fall back to traditional protocols during controller failure
Analogy: Air traffic control towers use redundant systems - primary controller failure doesn’t crash planes in flight. Similarly, SDN controller failure doesn’t crash existing network flows, and backup controllers take over new flow decisions.
Bottom Line: SDN’s centralized intelligence doesn’t mean centralized infrastructure. Modern SDN deployments are more resilient than traditional distributed protocols that can create routing loops and blackholes during failures.
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor':'#E8F4F8','primaryTextColor':'#2C3E50','primaryBorderColor':'#16A085','lineColor':'#16A085','secondaryColor':'#FEF5E7','tertiaryColor':'#FDEBD0','fontSize':'14px'}}}%%
graph TB
subgraph App["Application Layer"]
TrafficEng["Traffic Engineering"]
Security["Security Apps"]
LoadBal["Load Balancing"]
end
subgraph Control["Control Layer"]
Controller["SDN Controller<br/>(OpenFlow)"]
end
subgraph Data["Data Layer"]
S1["Switch 1"]
S2["Switch 2"]
S3["Switch 3"]
S4["Switch 4"]
end
TrafficEng <-->|"Northbound API"| Controller
Security <-->|"Northbound API"| Controller
LoadBal <-->|"Northbound API"| Controller
Controller <-->|"Southbound API<br/>(OpenFlow)"| S1
Controller <-->|"Southbound API<br/>(OpenFlow)"| S2
Controller <-->|"Southbound API<br/>(OpenFlow)"| S3
Controller <-->|"Southbound API<br/>(OpenFlow)"| S4
S1 <--> S2
S2 <--> S3
S3 <--> S4
S4 <--> S1
style TrafficEng fill:#E67E22,stroke:#2C3E50,color:#fff
style Security fill:#E67E22,stroke:#2C3E50,color:#fff
style LoadBal fill:#E67E22,stroke:#2C3E50,color:#fff
style Controller fill:#16A085,stroke:#2C3E50,color:#fff,stroke-width:3px
style S1 fill:#2C3E50,stroke:#16A085,color:#fff
style S2 fill:#2C3E50,stroke:#16A085,color:#fff
style S3 fill:#2C3E50,stroke:#16A085,color:#fff
style S4 fill:#2C3E50,stroke:#16A085,color:#fff

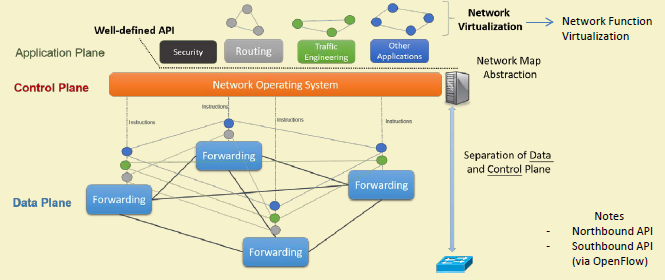

{fig-alt=“SDN three-layer architecture showing application layer (traffic engineering, security, load balancing) communicating with control layer (SDN controller) via northbound APIs, and controller managing data layer switches via southbound OpenFlow protocol”}
NoteAlternative View: SDN Life Cycle - From Policy to Packet
This variant shows the temporal flow of how an SDN system operates from policy definition to packet forwarding, helping students understand the operational sequence.
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D', 'fontSize': '11px'}}}%%
sequenceDiagram
participant Admin as Network Admin
participant App as SDN Application
participant Ctrl as SDN Controller
participant SW1 as Switch 1
participant SW2 as Switch 2
Note over Admin,SW2: Phase 1: Policy Definition
Admin->>App: Define Policy<br/>("Block IoT to Internet after 6PM")
Note over Admin,SW2: Phase 2: Policy Translation
App->>Ctrl: API Request<br/>(JSON: src=IoT_subnet, dst=0.0.0.0/0, action=DROP, time>18:00)
Ctrl->>Ctrl: Compute affected paths<br/>and switches
Note over Admin,SW2: Phase 3: Flow Installation
Ctrl->>SW1: FLOW_MOD<br/>(Match: IoT subnet, Action: DROP)
Ctrl->>SW2: FLOW_MOD<br/>(Match: IoT subnet, Action: DROP)
SW1-->>Ctrl: FLOW_MOD ACK
SW2-->>Ctrl: FLOW_MOD ACK
Note over Admin,SW2: Phase 4: Runtime Operation
SW1->>SW1: Packet arrives from IoT device
SW1->>SW1: Match flow table → DROP
SW1-->>Ctrl: Stats update (packets dropped: 1)
NoteAlternative View: SDN for IoT - Comparative Scenarios
This variant compares how the same network situation is handled with traditional networking versus SDN, highlighting the operational differences.
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D', 'fontSize': '11px'}}}%%
graph TB
subgraph Scenario["SCENARIO: IoT Device Compromised"]
Event["Compromised sensor<br/>sending malicious traffic"]
end
subgraph Traditional["TRADITIONAL NETWORK RESPONSE"]
direction TB
T1["1. Admin gets alert<br/>(30 min later)"]
T2["2. SSH to router 1<br/>Add ACL manually"]
T3["3. SSH to router 2<br/>Add ACL manually"]
T4["4. SSH to router 3<br/>Add ACL manually"]
T5["5. Verify on each<br/>(human error risk)"]
T_Time["Total time: 2-4 hours<br/>Damage: Significant"]
T1 --> T2 --> T3 --> T4 --> T5
end
subgraph SDN["SDN NETWORK RESPONSE"]
direction TB
S1["1. Controller detects anomaly<br/>(ML-based, instant)"]
S2["2. Security app triggered<br/>(API call: isolate device)"]
S3["3. Controller pushes rules<br/>to ALL switches instantly"]
S4["4. Device quarantined<br/>(logged for forensics)"]
S_Time["Total time: <5 seconds<br/>Damage: Minimal"]
S1 --> S2 --> S3 --> S4
end
Event --> Traditional
Event --> SDN
style Scenario fill:#E74C3C,color:#fff
style Traditional fill:#7F8C8D,color:#fff
style SDN fill:#16A085,color:#fff
style T_Time fill:#E74C3C,color:#fff
style S_Time fill:#16A085,color:#fff

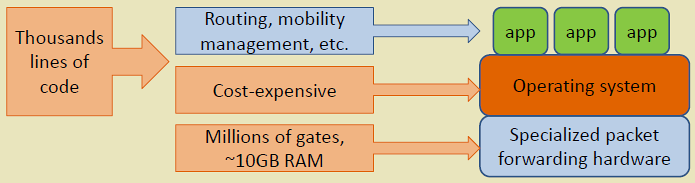

280.5 Limitations of Traditional Networks

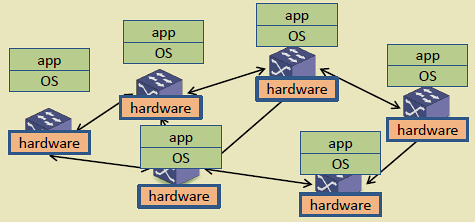

Traditional networks distribute intelligence across switches/routers, leading to several challenges:
1. Vendor Lock-In - Proprietary switch OS and interfaces - Limited interoperability between vendors - Difficult to introduce new features
2. Distributed Control - Each switch runs independent routing protocols (OSPF, BGP) - No global network view - Suboptimal routing decisions - Difficult coordination for traffic engineering
3. Static Configuration - Manual configuration per device - Slow deployment of network changes - High operational complexity - Prone to misconfiguration
4. Inflexibility - Cannot dynamically adapt to application needs - Fixed QoS policies - Limited support for network slicing
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor':'#E8F4F8','primaryTextColor':'#2C3E50','primaryBorderColor':'#16A085','lineColor':'#16A085','secondaryColor':'#FEF5E7','tertiaryColor':'#FDEBD0','fontSize':'14px'}}}%%
graph TB
subgraph Traditional["Traditional Network"]
R1["Router 1<br/>(Proprietary OS)<br/>Manual Config"]
R2["Router 2<br/>(Different Vendor)<br/>Manual Config"]
R3["Router 3<br/>(Proprietary OS)<br/>Manual Config"]
R1 -.OSPF.-> R2
R2 -.BGP.-> R3
R3 -.OSPF.-> R1
Problem1["❌ Vendor Lock-in"]
Problem2["❌ No Global View"]
Problem3["❌ Manual Changes"]
Problem4["❌ Slow Adaptation"]
end
style R1 fill:#E67E22,stroke:#2C3E50,color:#fff
style R2 fill:#E67E22,stroke:#2C3E50,color:#fff
style R3 fill:#E67E22,stroke:#2C3E50,color:#fff
style Problem1 fill:#FDEBD0,stroke:#E67E22
style Problem2 fill:#FDEBD0,stroke:#E67E22
style Problem3 fill:#FDEBD0,stroke:#E67E22
style Problem4 fill:#FDEBD0,stroke:#E67E22
{fig-alt=“Traditional network limitations showing routers from different vendors running proprietary operating systems with manual configuration, distributed routing protocols, and challenges including vendor lock-in, lack of global view, manual changes, and slow adaptation”}
280.6 SDN Architecture
NoteOriginal Source Figure: SDN Architecture (Alternative View)
Source: CP IoT System Design Guide, Chapter 2 - Architecture

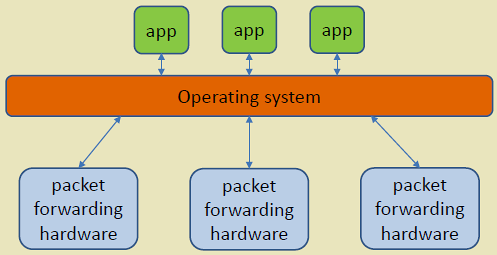

SDN introduces three-layer architecture with clean separation of concerns:
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor':'#E8F4F8','primaryTextColor':'#2C3E50','primaryBorderColor':'#16A085','lineColor':'#16A085','secondaryColor':'#FEF5E7','tertiaryColor':'#FDEBD0','fontSize':'14px'}}}%%
graph TB
subgraph ApplicationLayer["Application Layer"]
direction LR
App1["Traffic<br/>Engineering"]
App2["Security<br/>Firewall"]
App3["Load<br/>Balancer"]
App4["Network<br/>Monitor"]
App5["QoS<br/>Manager"]
end
subgraph ControlLayer["Control Layer"]
Controller["SDN Controller<br/>(OpenDaylight, ONOS, Ryu)<br/>• Network Topology<br/>• Flow Computation<br/>• Device Management"]
end
subgraph DataLayer["Data/Infrastructure Layer"]
direction LR
SW1["OpenFlow<br/>Switch 1"]
SW2["OpenFlow<br/>Switch 2"]
SW3["OpenFlow<br/>Switch 3"]
SW4["OpenFlow<br/>Switch 4"]
end
ApplicationLayer <-->|"Northbound API<br/>(REST, JSON-RPC)"| ControlLayer
ControlLayer <-->|"Southbound API<br/>(OpenFlow Protocol)"| DataLayer
SW1 <--> SW2
SW2 <--> SW3
SW3 <--> SW4
style App1 fill:#E67E22,stroke:#2C3E50,color:#fff
style App2 fill:#E67E22,stroke:#2C3E50,color:#fff
style App3 fill:#E67E22,stroke:#2C3E50,color:#fff
style App4 fill:#E67E22,stroke:#2C3E50,color:#fff
style App5 fill:#E67E22,stroke:#2C3E50,color:#fff
style Controller fill:#16A085,stroke:#2C3E50,color:#fff,stroke-width:3px
style SW1 fill:#2C3E50,stroke:#16A085,color:#fff
style SW2 fill:#2C3E50,stroke:#16A085,color:#fff
style SW3 fill:#2C3E50,stroke:#16A085,color:#fff
style SW4 fill:#2C3E50,stroke:#16A085,color:#fff
{fig-alt=“SDN three-layer architecture diagram showing application layer (traffic engineering, security, load balancing, monitoring, QoS) communicating via northbound REST APIs with control layer (SDN controller providing topology, flow computation, device management), which communicates via southbound OpenFlow protocol with data layer (interconnected OpenFlow switches)”}
280.6.1 Application Layer
Purpose: Network applications that define desired network behavior.
Applications: - Traffic Engineering: Optimize paths based on network conditions - Security: Firewall, IDS/IPS, DDoS mitigation - Load Balancing: Distribute traffic across servers - Network Monitoring: Real-time traffic analysis - QoS Management: Prioritize critical IoT traffic
Interface: Northbound APIs (REST, JSON-RPC, gRPC)
280.6.2 Control Layer (SDN Controller)
Purpose: Brain of the network—maintains global view and makes routing decisions.
Responsibilities: - Compute forwarding paths - Install flow rules in switches - Handle switch events (new flows, link failures) - Provide network state to applications - Maintain network topology
Popular Controllers: - OpenDaylight: Java-based, modular, widely adopted - ONOS: High availability, scalability for carriers - Ryu: Python-based, easy development - POX/NOX: Educational, Python/C++ - Floodlight: Java, fast performance
WarningTradeoff: Synchronous vs Asynchronous SDN Flow Installation
Option A (Synchronous / Blocking): Controller waits for switch acknowledgment before processing next flow. Guarantees flow is installed before returning success to application. Latency: 5-20ms per flow installation. Throughput: 50-200 flows/second per controller thread. Suitable for safety-critical applications requiring installation confirmation.
Option B (Asynchronous / Non-Blocking): Controller sends flow modification and continues immediately without waiting for acknowledgment. Higher throughput (1,000-10,000 flows/second), but application cannot confirm installation timing. Risk: packets may arrive before flow is installed, causing PACKET_IN storms or drops.
Decision Factors:
Choose Synchronous when: Flow installation must complete before traffic arrives (security quarantine, access control), application logic depends on flow state (load balancer needs confirmation before redirecting), or debugging requires deterministic flow timing. Accept 10x lower throughput for correctness guarantees.
Choose Asynchronous when: High flow churn (IoT device mobility, short-lived connections), controller is bottleneck (thousands of new flows/second), flows are best-effort (traffic engineering optimizations), or switches support reliable delivery with retries at OpenFlow layer.
Hybrid approach: Use asynchronous installation with barrier messages at critical points. Send batch of flows asynchronously, then send barrier request - switch replies only when all prior flows are installed. This achieves high throughput while providing synchronization when needed.
280.6.3 Data/Infrastructure Layer
Purpose: Packet forwarding based on flow rules installed by controller.
Components: - OpenFlow Switches: Hardware or software switches - Flow Tables: Store forwarding rules (match-action) - Secure Channel: Connection to controller (TLS)
Flow Processing: 1. Packet arrives at switch 2. Match against flow table 3. If match: execute action (forward, drop, modify) 4. If no match: send to controller (PACKET_IN)
NoteAlternative View: SDN Packet Decision Tree
This variant shows the decision process as a flowchart, helping students understand what happens when a packet enters an SDN switch.
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor':'#2C3E50','primaryTextColor':'#fff','primaryBorderColor':'#16A085','lineColor':'#16A085','secondaryColor':'#E67E22','tertiaryColor':'#7F8C8D','fontSize':'14px'}}}%%
flowchart TB
Start([Packet Arrives<br/>at Switch Port]) --> Lookup[Flow Table Lookup<br/>Match: src_ip, dst_ip,<br/>protocol, port]
Lookup --> Match{Match<br/>Found?}
Match -->|Yes| Priority[Select Highest<br/>Priority Rule]
Priority --> Action[Execute Actions<br/>• Forward to port<br/>• Drop packet<br/>• Modify headers<br/>• Send to group]
Action --> Counter[Update Counters<br/>• Packets: +1<br/>• Bytes: +packet_size]
Counter --> Done([Packet Processed])
Match -->|No| Buffer[Buffer Packet<br/>Store in switch memory]
Buffer --> PacketIn[Send PACKET_IN<br/>to Controller]
PacketIn --> Controller[Controller Processes<br/>• Calculate route<br/>• Generate flow rule]
Controller --> FlowMod[Send FLOW_MOD<br/>Install new rule]
FlowMod --> Install[Install Rule in<br/>Flow Table]
Install --> Reprocess[Reprocess<br/>Buffered Packet]
Reprocess --> Lookup
style Start fill:#2C3E50,stroke:#16A085,color:#fff
style Match fill:#E67E22,stroke:#2C3E50,color:#fff
style Controller fill:#16A085,stroke:#2C3E50,color:#fff
style Done fill:#2C3E50,stroke:#16A085,color:#fff
NoteAlternative View: Traditional vs SDN Side-by-Side
This variant directly compares traditional and SDN approaches for the same network change, quantifying the operational difference.
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor':'#2C3E50','primaryTextColor':'#fff','primaryBorderColor':'#16A085','lineColor':'#16A085','secondaryColor':'#E67E22','tertiaryColor':'#7F8C8D','fontSize':'14px'}}}%%
flowchart LR
subgraph Traditional["Traditional Network"]
direction TB
T_Admin["Network Admin"]
T_S1["Switch 1<br/>SSH → CLI"]
T_S2["Switch 2<br/>SSH → CLI"]
T_S3["Switch 3<br/>SSH → CLI"]
T_Dots["... 7 more ..."]
T_Admin -->|"Manual config"| T_S1
T_Admin -->|"Manual config"| T_S2
T_Admin -->|"Manual config"| T_S3
T_Admin -->|"Manual config"| T_Dots
T_Time["⏱️ Time: 2-4 hours<br/>❌ Risk: Inconsistent state<br/>❌ Rollback: Manual"]
end
subgraph SDN["SDN Network"]
direction TB
S_Admin["Network Admin"]
S_Controller["SDN Controller"]
S_S1["Switch 1"]
S_S2["Switch 2"]
S_S3["Switch 3"]
S_Dots["... 7 more ..."]
S_Admin -->|"1 API call"| S_Controller
S_Controller -->|"Auto push"| S_S1
S_Controller -->|"Auto push"| S_S2
S_Controller -->|"Auto push"| S_S3
S_Controller -->|"Auto push"| S_Dots
S_Time["⏱️ Time: 30 seconds<br/>✅ Guaranteed: Consistent<br/>✅ Rollback: Automatic"]
end
style T_Admin fill:#E67E22,stroke:#2C3E50,color:#fff
style S_Admin fill:#16A085,stroke:#2C3E50,color:#fff
style S_Controller fill:#16A085,stroke:#2C3E50,color:#fff
style T_Time fill:#FDEBD0,stroke:#E67E22
style S_Time fill:#D5F5E3,stroke:#16A085
NoteAlternative View: SDN Managing Smart Building IoT
This variant shows SDN controlling diverse IoT traffic in a smart building, demonstrating real-world application of QoS and network slicing.
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor':'#2C3E50','primaryTextColor':'#fff','primaryBorderColor':'#16A085','lineColor':'#16A085','secondaryColor':'#E67E22','tertiaryColor':'#7F8C8D','fontSize':'12px'}}}%%
flowchart TB
subgraph Building["Smart Building: 50 Floors"]
subgraph Critical["Critical IoT (Fire/HVAC)"]
Fire["Fire Sensors<br/>100 devices"]
HVAC["HVAC Controls<br/>200 devices"]
end
subgraph Standard["Standard IoT"]
Occupancy["Occupancy<br/>500 sensors"]
Lighting["Lighting<br/>1000 fixtures"]
end
subgraph Bulk["Bulk Data"]
Camera["Security Cameras<br/>200 cameras<br/>50 Mbps each"]
end
end
Controller["SDN Controller<br/>QoS Policy Engine"]
subgraph Network["Network Paths"]
Path1["Slice 1: Critical<br/>Low latency <10ms<br/>Reserved 100 Mbps<br/>99.99% reliability"]
Path2["Slice 2: Standard<br/>Best effort<br/>Shared bandwidth"]
Path3["Slice 3: Video<br/>High bandwidth<br/>Traffic shaped"]
end
Cloud["Building Management<br/>Cloud Platform"]
Critical --> Controller
Standard --> Controller
Bulk --> Controller
Controller -->|"Priority: 1"| Path1
Controller -->|"Priority: 3"| Path2
Controller -->|"Priority: 2"| Path3
Path1 --> Cloud
Path2 --> Cloud
Path3 --> Cloud
style Critical fill:#E67E22,stroke:#2C3E50,color:#fff
style Standard fill:#16A085,stroke:#2C3E50,color:#fff
style Bulk fill:#2C3E50,stroke:#16A085,color:#fff
style Controller fill:#16A085,stroke:#2C3E50,color:#fff
style Path1 fill:#E67E22,stroke:#2C3E50,color:#fff
style Path2 fill:#7F8C8D,stroke:#16A085,color:#fff
style Path3 fill:#2C3E50,stroke:#16A085,color:#fff
WarningTradeoff: Microservices vs Monolithic SDN Controller Architecture
Option A (Monolithic Controller): Single deployable unit containing topology management, flow computation, device drivers, and northbound APIs. Simpler deployment, lower inter-service latency (in-process calls: <1ms), easier debugging with single log stream. Examples: Ryu, POX. Suitable for: campus networks (<500 switches), development/testing, small IoT deployments.
Option B (Microservices Controller): Independent services for topology, flow management, device drivers, statistics. Each service scales independently, enables polyglot development, and provides fault isolation. Inter-service latency: 2-10ms via REST/gRPC. Examples: ONOS (clustered), OpenDaylight (OSGi modular). Suitable for: carrier networks, multi-site deployments, high-availability requirements.
Decision Factors:
Choose Monolithic when: Network size is under 500 switches, team is small (1-3 developers), time-to-deployment is critical, or latency requirements demand sub-millisecond internal processing. Monolithic controllers handle 1,000-10,000 flows/second with consistent latency.
Choose Microservices when: Multiple teams need independent development cycles, different components have vastly different scaling needs (topology changes rarely, flow installations constantly), fault isolation is critical (device driver crash shouldn’t affect flow computation), or you need 99.99% availability with rolling updates.
Scaling limits: Monolithic ONOS handles ~500K flows and ~1,000 switches per instance. Beyond this, clustering (3-5 controllers with distributed state) is required. For IoT deployments with millions of devices, microservices architecture with dedicated flow processors becomes necessary. Migration path: start monolithic, refactor to microservices when hitting scale or team coordination limits.
280.7 What’s Next?
Now that you understand SDN architecture and the separation of control and data planes, the next chapter explores:
- SDN OpenFlow and Challenges: Deep dive into the OpenFlow protocol, flow table processing, and SDN deployment challenges including scalability and fault tolerance
Related Topics: - SDN IoT Applications: SDN for wireless sensor networks, mobile networks, and data centers - SDN Advanced Topics: Python implementations, worked examples, and common pitfalls
