1472  IoT Protocol Security

1472.1 Learning Objectives

By the end of this chapter, you will be able to:

  • Secure MQTT Communications: Implement TLS encryption, authentication, and topic-level access control for MQTT brokers
  • Understand MQTT Vulnerabilities: Identify and mitigate UTF-8 validation DoS attacks and QoS abuse
  • Secure CoAP Endpoints: Apply DTLS encryption and rate limiting for constrained devices
  • Prevent Amplification Attacks: Understand and mitigate CoAP amplification vulnerabilities
  • Compare Protocol Security: Select appropriate security measures based on protocol characteristics

What is IoT Protocol Security? IoT devices communicate using specialized protocols designed for constrained environments. MQTT (Message Queuing Telemetry Transport) uses a publish-subscribe pattern where devices send messages through a central broker. CoAP (Constrained Application Protocol) provides REST-like communication over UDP for resource-limited devices. Both protocols require specific security measures beyond standard web security.

Why does it matter? In 2022, security researchers found that 47% of publicly exposed MQTT brokers had no authentication—anyone could connect and control devices. Unsecured IoT protocols enable attackers to intercept sensor data, send malicious commands to actuators, or use devices as DDoS amplifiers.

Key terms: | Term | Definition | |——|————| | MQTT | Message Queuing Telemetry Transport—lightweight pub/sub messaging protocol for IoT | | CoAP | Constrained Application Protocol—UDP-based REST protocol for constrained devices | | DTLS | Datagram TLS—security protocol for UDP-based communications | | QoS | Quality of Service—message delivery guarantees (0: at-most-once, 1: at-least-once, 2: exactly-once) | | Topic ACL | Access Control List defining which clients can publish/subscribe to which topics |

1472.2 Prerequisites

Before diving into this chapter, you should be familiar with:

1472.3 MQTT (Message Queuing Telemetry Transport)

MQTT publish-subscribe messaging protocol architecture showing publishers sending sensor data to central message broker which routes messages to subscribers based on topic hierarchies, enabling lightweight IoT device communication
Figure 1472.1: MQTT protocol overview

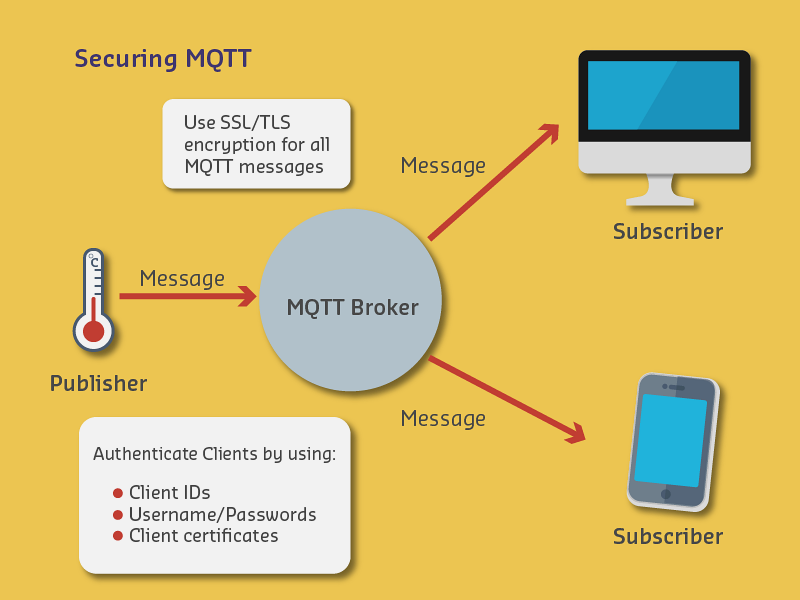

MQTT broker serving as central message routing hub connecting multiple IoT sensor publishers to application subscribers, managing topic subscriptions, Quality of Service levels, and message delivery guarantees
Figure 1472.2: MQTT broker architecture

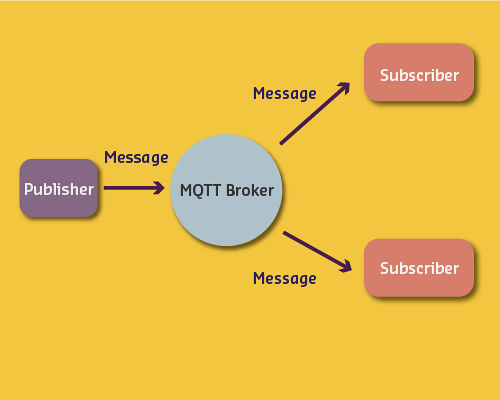

MQTT network topology diagram showing distributed IoT sensors, edge gateways, central message broker, and cloud applications connected through hierarchical topic-based message routing enabling scalable publish-subscribe communication
Figure 1472.3: MQTT network topology

Architecture: Publish-Subscribe pattern with message broker.

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#E67E22', 'secondaryColor': '#16A085', 'tertiaryColor': '#E67E22', 'fontSize': '13px'}}}%%
graph TB
    subgraph Pub["Publishers"]
    P1[Sensor 1<br/>Temperature]
    P2[Sensor 2<br/>Humidity]
    P3[Sensor 3<br/>Motion]
    end

    BROKER[MQTT Broker<br/>Message Router]

    subgraph Sub["Subscribers"]
    S1[Dashboard App]
    S2[Alert Service]
    S3[Data Logger]
    end

    P1 -->|PUBLISH<br/>temp/sensor1| BROKER
    P2 -->|PUBLISH<br/>humid/sensor2| BROKER
    P3 -->|PUBLISH<br/>motion/sensor3| BROKER

    BROKER -->|SUBSCRIBE<br/>temp/#| S1
    BROKER -->|SUBSCRIBE<br/>motion/#| S2
    BROKER -->|SUBSCRIBE<br/>#| S3

    style BROKER fill:#2C3E50,stroke:#16A085,color:#fff
    style P1 fill:#16A085,stroke:#0e6655,color:#fff
    style P2 fill:#16A085,stroke:#0e6655,color:#fff
    style P3 fill:#16A085,stroke:#0e6655,color:#fff
    style S1 fill:#E67E22,stroke:#d35400,color:#fff
    style S2 fill:#E67E22,stroke:#d35400,color:#fff
    style S3 fill:#E67E22,stroke:#d35400,color:#fff

Figure 1472.4: MQTT Publish-Subscribe Architecture: Sensors, Broker, and Subscriber Routing

Topic Hierarchy: adt/lora/adeunis/0018B2000000023A - Hierarchical organization with / separators - Wildcard subscriptions: # (multi-level), + (single-level)

1472.3.1 MQTT Security Risks

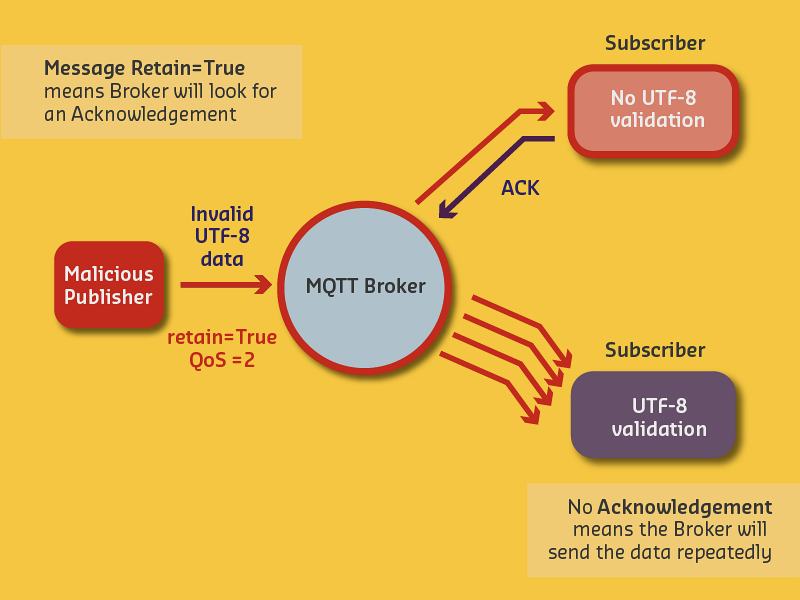

MQTT security vulnerabilities showing malicious client sending invalid UTF-8 characters to exploit broker validation weaknesses, causing subscriber disconnections and enabling Denial of Service attacks through Quality of Service retry mechanisms
Figure 1472.5: MQTT attack scenarios

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#E67E22', 'secondaryColor': '#16A085', 'tertiaryColor': '#E67E22', 'fontSize': '12px'}}}%%
flowchart TD
    A[Malicious Client<br/>Sends Invalid UTF-8] --> B{Broker<br/>Validates?}
    B -->|No| C[Broker Forwards<br/>Invalid Message]
    B -->|Yes| D[Broker Rejects<br/>Attack Stopped]
    C --> E[Subscriber Validates<br/>Detects Invalid UTF-8]
    E --> F[Subscriber Disconnects<br/>Rejects Message]
    F --> G[Broker Retries QoS=2<br/>Guaranteed Delivery]
    G --> E
    G --> H[Denial of Service<br/>Infinite Retry Loop]

    style A fill:#e74c3c,stroke:#c0392b,color:#fff
    style B fill:#E67E22,stroke:#d35400,color:#fff
    style C fill:#e74c3c,stroke:#c0392b,color:#fff
    style D fill:#16A085,stroke:#0e6655,color:#fff
    style E fill:#E67E22,stroke:#d35400,color:#fff
    style F fill:#e74c3c,stroke:#c0392b,color:#fff
    style G fill:#e74c3c,stroke:#c0392b,color:#fff
    style H fill:#e74c3c,stroke:#c0392b,color:#fff

Figure 1472.6: MQTT UTF-8 Validation DoS Attack: Invalid Message Causing Infinite Retry Loop

UTF-8 Validation DoS Attack:

  1. Malicious client sends invalid UTF-8 characters
  2. Broker doesn’t validate (passes through)
  3. Subscriber validates and disconnects
  4. Broker retries delivery (QoS=2)
  5. Continuous retry = Denial of Service

Mitigation: - Always validate UTF-8 at broker - Disable QoS=2 if not needed - Implement rate limiting

1472.3.2 MQTT Security Implementation

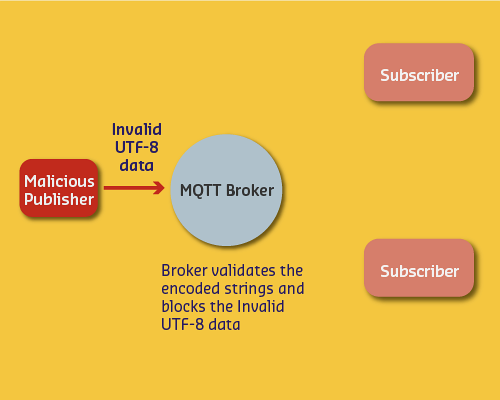

MQTT broker performing UTF-8 validation scenario where broker inspects incoming messages for invalid characters and rejects malformed data before forwarding to subscribers, protecting clients from malicious payloads
Figure 1472.7: MQTT: Broker validates

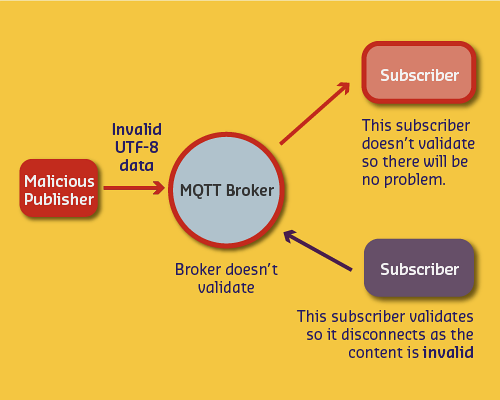

MQTT subscriber validation scenario where client application detects invalid UTF-8 in received message and disconnects from broker, creating vulnerability to Denial of Service if broker retries delivery with Quality of Service guarantees
Figure 1472.8: MQTT: Subscriber validates

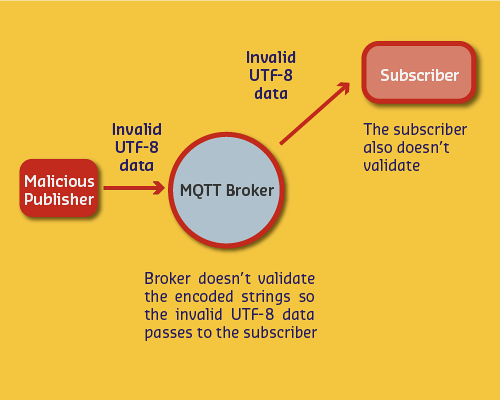

MQTT security risk scenario where neither broker nor subscriber validate message encoding, allowing invalid UTF-8 to propagate through system potentially causing application crashes, data corruption, or unpredictable behavior in client applications
Figure 1472.9: MQTT: Neither validates

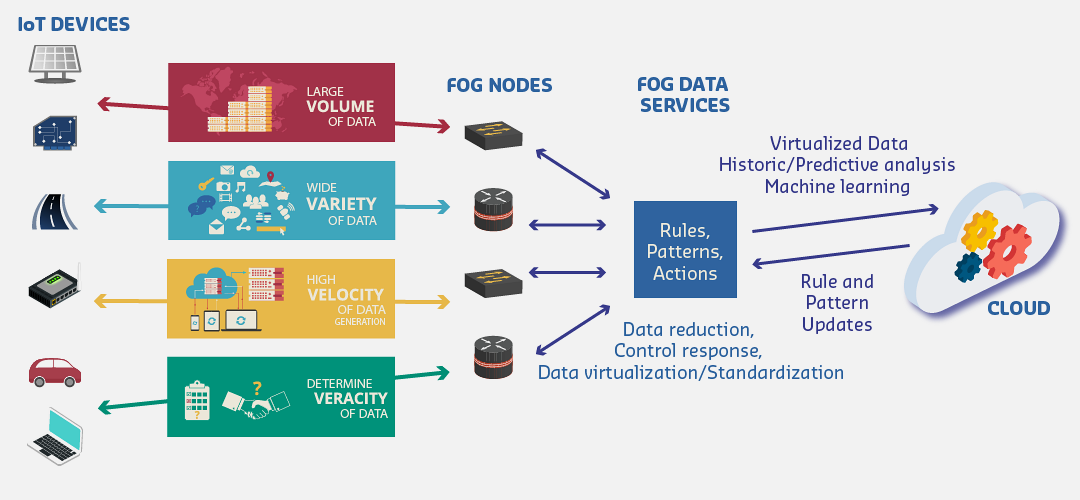

Fog computing three-tier architecture showing IoT devices at edge layer, fog nodes providing local processing and security filtering at middle layer, and cloud services at top layer, enabling distributed MQTT message validation and encryption
Figure 1472.10: Fog computing architecture for IoT security

Secure MQTT implementations require TLS encryption, authentication, topic-level access control, and UTF-8 validation. Production systems should use libraries like paho-mqtt with proper certificate management and QoS configuration.

1472.3.3 MQTT Security Configuration Checklist

Security Control Implementation Notes
Transport Encryption TLS 1.3 on port 8883 Disable TLS 1.0/1.1
Authentication Username/password or X.509 certificates No anonymous connections
Authorization Topic-level ACLs Restrict pub/sub per client
Message Validation UTF-8 validation at broker Prevent encoding attacks
Rate Limiting Message rate limits per client Prevent flooding
Last Will Testament Configure for ungraceful disconnection Detect compromised clients

1472.4 CoAP (Constrained Application Protocol)

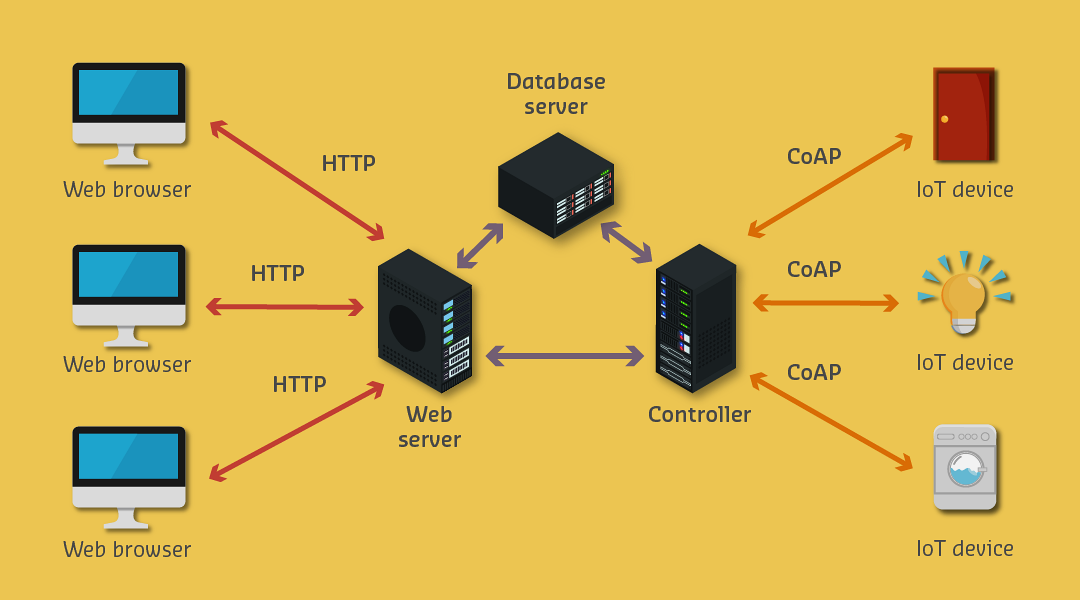

Constrained Application Protocol (CoAP) RESTful architecture for resource-limited IoT devices, showing UDP-based message exchange with GET, POST, PUT, DELETE methods and confirmable/non-confirmable message types for efficient constrained device communication
Figure 1472.11: CoAP protocol overview

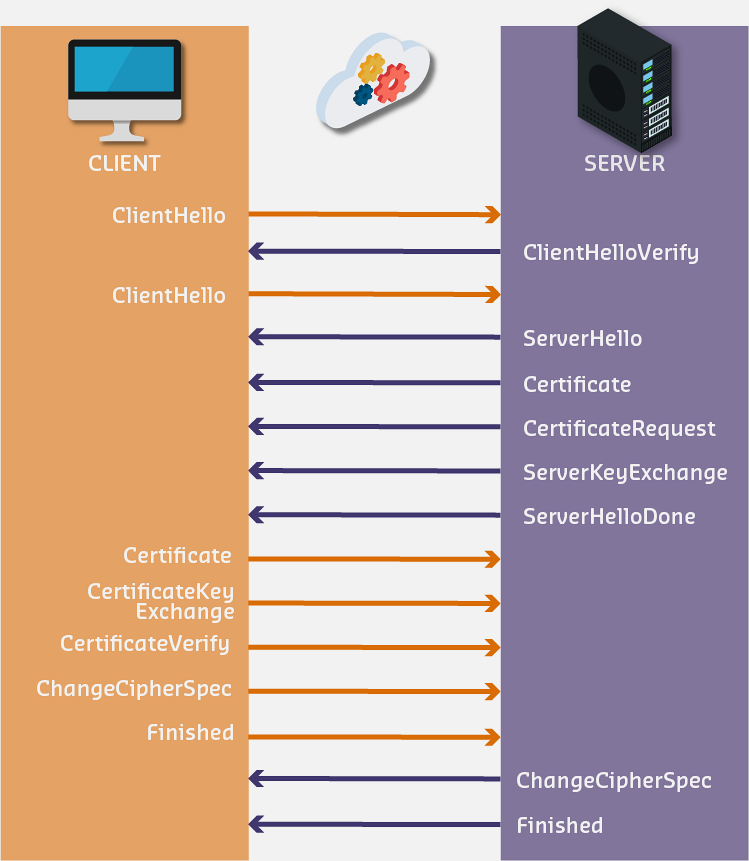

Datagram Transport Layer Security (DTLS) handshake sequence showing client and server exchanging HelloVerifyRequest with cookie to prevent denial-of-service, followed by certificate exchange, key agreement, and establishment of encrypted UDP communication channel for CoAP security
Figure 1472.12: DTLS two-way handshake

Characteristics: - UDP-based (smaller packets than MQTT) - No central broker required - RESTful API (GET, POST, PUT, DELETE) - Multicast support - Resource observation

Security: DTLS (Datagram TLS) for CoAP = CoAPs

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#E67E22', 'secondaryColor': '#16A085', 'tertiaryColor': '#E67E22', 'fontSize': '13px'}}}%%
graph LR
    subgraph CoAP["CoAP Protocol Stack"]
    APP[Application<br/>GET/POST/PUT/DELETE]
    COAP[CoAP Layer<br/>RESTful Requests]
    UDP[UDP Transport<br/>Lightweight]
    end

    subgraph CoAPS["CoAPS (Secure)"]
    APPS[Application<br/>GET/POST/PUT/DELETE]
    COAPS[CoAP Layer<br/>RESTful Requests]
    DTLS[DTLS Security<br/>Encryption + Auth]
    UDPS[UDP Transport<br/>Lightweight]
    end

    CoAP -.->|Add Security| CoAPS

    style APP fill:#2C3E50,stroke:#16A085,color:#fff
    style COAP fill:#E67E22,stroke:#d35400,color:#fff
    style UDP fill:#16A085,stroke:#0e6655,color:#fff
    style APPS fill:#2C3E50,stroke:#16A085,color:#fff
    style COAPS fill:#E67E22,stroke:#d35400,color:#fff
    style DTLS fill:#16A085,stroke:#0e6655,color:#fff
    style UDPS fill:#16A085,stroke:#0e6655,color:#fff

Figure 1472.13: CoAP vs CoAPS Protocol Stack: Adding DTLS Security Layer

Vulnerabilities: - IP address spoofing (IPv4) - Amplification attacks (small request triggers large response) - Amplification factor: 10-50x

The Misconception: If I use HTTPS, my IoT data is fully protected.

Why It’s Wrong: - HTTPS only protects data IN TRANSIT (network) - Data at rest (storage) needs separate encryption - Data in use (memory) can be extracted - Endpoints may be compromised (device or server) - Metadata (who talks to whom) still visible

Real-World Example: - Smart thermostat sends data over HTTPS - Data encrypted during transmission - Data stored in cloud database: Unencrypted! - Database breach: All temperature history exposed - HTTPS didn’t protect the stored data

The Correct Understanding: | Data State | HTTPS Protection | Additional Needed | |————|——————|——————-| | In transit | Protected | - | | At rest (storage) | Not protected | Database encryption, KMS | | In use (memory) | Not protected | Secure enclaves (TEE) | | Metadata | Not protected | VPN, anonymization |

HTTPS is necessary but not sufficient. Encrypt data at every state: transit, rest, and use.

1472.5 IoT Protocol Security Comparison

This view compares security features across major IoT application protocols, helping select the right protocol for your security requirements:

%% fig-alt: "IoT protocol security comparison showing MQTT, CoAP, and HTTP(S) across five security dimensions: encryption support where all support TLS/DTLS but with different overhead, authentication methods ranging from username/password to certificates to OAuth, authorization granularity from topic-level ACLs to URI-based permissions, resource constraints showing MQTT and CoAP optimized for constrained devices while HTTP higher overhead, and attack surface showing MQTT vulnerable to broker compromise, CoAP to amplification, HTTP to standard web attacks. Decision guide included for protocol selection based on use case."
%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D'}}}%%
flowchart TB
    subgraph COMPARE["IoT PROTOCOL SECURITY COMPARISON"]
        subgraph MQTT_SEC["MQTT"]
            M1["Encryption: TLS 1.2/1.3<br/>Port 8883"]
            M2["Auth: Username/Password<br/>or X.509 Certificates"]
            M3["Authz: Topic-level ACLs<br/>Wildcard patterns"]
            M4["Overhead: Low<br/>2-byte header"]
            M5["Risk: Broker is SPF<br/>All traffic routes through"]
        end

        subgraph COAP_SEC["CoAP"]
            C1["Encryption: DTLS 1.2<br/>UDP-based"]
            C2["Auth: Pre-shared Keys<br/>or Certificates"]
            C3["Authz: URI permissions<br/>Resource-level"]
            C4["Overhead: Very Low<br/>4-byte header"]
            C5["Risk: Amplification<br/>10-50x factor"]
        end

        subgraph HTTP_SEC["HTTP/REST"]
            H1["Encryption: TLS 1.2/1.3<br/>HTTPS standard"]
            H2["Auth: OAuth 2.0<br/>API keys, JWT"]
            H3["Authz: Endpoint ACLs<br/>Fine-grained"]
            H4["Overhead: High<br/>~200 byte headers"]
            H5["Risk: Web vulnerabilities<br/>XSS, CSRF, SQLi"]
        end
    end

    DECISION["SELECT PROTOCOL"] --> Q1{Constrained<br/>Device?}
    Q1 -->|Yes| Q2{Real-time<br/>Needed?}
    Q1 -->|No| HTTP_SEC
    Q2 -->|Yes| MQTT_SEC
    Q2 -->|No| COAP_SEC

    style M1 fill:#2C3E50,stroke:#16A085,color:#fff
    style M2 fill:#16A085,stroke:#0e6655,color:#fff
    style M3 fill:#16A085,stroke:#0e6655,color:#fff
    style M4 fill:#16A085,stroke:#0e6655,color:#fff
    style M5 fill:#E67E22,stroke:#d35400,color:#fff
    style C1 fill:#2C3E50,stroke:#16A085,color:#fff
    style C2 fill:#16A085,stroke:#0e6655,color:#fff
    style C3 fill:#16A085,stroke:#0e6655,color:#fff
    style C4 fill:#16A085,stroke:#0e6655,color:#fff
    style C5 fill:#E67E22,stroke:#d35400,color:#fff
    style H1 fill:#2C3E50,stroke:#16A085,color:#fff
    style H2 fill:#16A085,stroke:#0e6655,color:#fff
    style H3 fill:#16A085,stroke:#0e6655,color:#fff
    style H4 fill:#E67E22,stroke:#d35400,color:#fff
    style H5 fill:#E67E22,stroke:#d35400,color:#fff
    style DECISION fill:#2C3E50,stroke:#16A085,color:#fff
    style Q1 fill:#E67E22,stroke:#d35400,color:#fff
    style Q2 fill:#E67E22,stroke:#d35400,color:#fff

Protocol Selection Guide: - MQTT: Best for pub/sub patterns, many devices, real-time data (smart home, industrial sensors) - CoAP: Best for request/response with constrained devices (battery-powered sensors, LPWAN) - HTTP/REST: Best for cloud integration, web apps, non-constrained gateways

1472.6 Knowledge Check

Question 1: An MQTT broker is configured with no authentication. What’s the MOST critical security risk?

No authentication = complete unauthorized access! Attacker capabilities: 1) Subscribe to ANY topic: home/+/password, hospital/patient/+/vitals (steal data), 2) Publish to ANY topic: smart_lock/unlock (open doors), thermostat/set_temp (physical damage), 3) Enumerate topics: Discover system architecture, 4) DoS: Flood broker with messages. Proper security layers: 1) Authentication: Username/password or certificates, 2) Authorization/ACL: Topic-level permissions, 3) Encryption: TLS 1.3. Encryption alone (option C) protects confidentiality but doesn’t prevent unauthorized access!

Question 2: Which QoS level can amplify MQTT UTF-8 validation DoS attacks?

QoS 2 guarantees delivery through a four-way handshake, causing the broker to retry indefinitely if the subscriber rejects invalid UTF-8 messages. This creates an infinite retry loop. Mitigation: Validate UTF-8 at the broker level, use QoS 0 or 1 when guaranteed delivery isn’t critical.

Question 3: What security protocol does CoAP use?

DTLS (Datagram Transport Layer Security) provides TLS-like security for UDP-based protocols like CoAP. Since CoAP runs over UDP (connectionless), it cannot use standard TLS which requires TCP. DTLS adapts TLS for datagram transport, providing encryption, authentication, and integrity for CoAP communications.

Question 4: Which attack exploits CoAP’s UDP-based design?

Amplification attacks exploit CoAP’s UDP-based design. Attackers send small requests with spoofed source IP addresses that trigger large responses directed at the victim. CoAP’s amplification factor can reach 10-50x. Mitigation: Rate limiting, response caching, DTLS authentication (prevents source IP spoofing).

Question 5: MQTT QoS 2 uses a four-way handshake (PUBLISH, PUBREC, PUBREL, PUBCOMP). When is this overhead justified for IoT?

QoS 2 is for critical, non-idempotent operations where duplicates cause harm! QoS 0: Fire-and-forget, for frequent sensor readings. QoS 1: May duplicate, for alerts and logs. QoS 2: Guaranteed single delivery, for financial transactions, door unlock commands, billing events. QoS 2 overhead: 4 messages vs 1, higher latency, more bandwidth—use sparingly!

1472.7 Summary

This chapter covered IoT protocol security for MQTT and CoAP:

MQTT Security: - Publish-subscribe architecture with central broker - Requires TLS encryption (port 8883), authentication, and topic ACLs - UTF-8 validation DoS attack mitigated by broker-side validation - QoS levels: Use QoS 2 only for critical non-idempotent operations

CoAP Security: - UDP-based REST protocol for constrained devices - DTLS provides encryption and authentication - Vulnerable to amplification attacks (10-50x factor) - Rate limiting and response caching for mitigation

Protocol Selection: - MQTT: Real-time pub/sub with many devices - CoAP: Request/response for constrained devices - HTTP: Cloud integration with non-constrained gateways

1472.8 What’s Next

Continue to Authentication and Credentials to learn about password security, multi-factor authentication, and credential management for IoT systems.
