358  Fog Production: Understanding Checks

358.1 Fog Production Understanding Checks

This chapter provides scenario-based understanding checks that help you apply fog computing concepts to real-world deployment decisions. Each scenario presents a realistic situation requiring analysis of edge, fog, and cloud processing trade-offs.

358.2 Learning Objectives

By the end of this chapter, you will be able to:

  • Analyze Processing Placement: Determine optimal tier (edge/fog/cloud) for different workload types
  • Calculate Cost Trade-offs: Evaluate bandwidth, hardware, and operational costs for fog deployments
  • Design Multi-Tier Solutions: Architect systems that leverage appropriate tiers for each function
  • Apply Latency Constraints: Make processing placement decisions based on timing requirements

358.3 Prerequisites

Required Chapters: - Fog Production Framework - Architecture patterns and deployment tiers - Edge-Fog Computing - Three-tier architecture overview

Technical Background: - Edge vs fog vs cloud latency characteristics - Bandwidth cost models - Processing capability at each tier

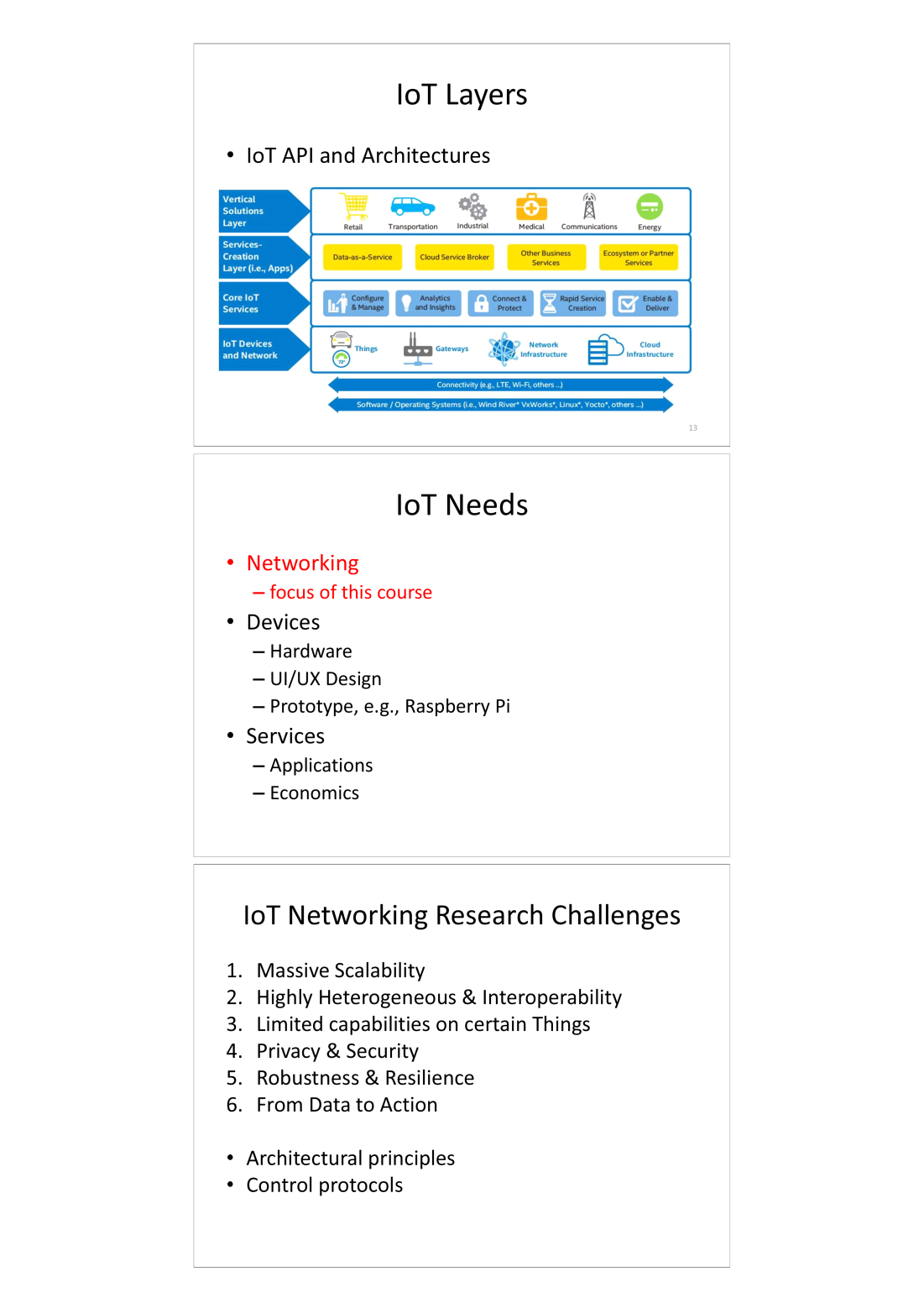

Three-panel diagram showing IoT layered architecture (devices, services, applications), IoT needs (networking, devices, services), and six key IoT networking research challenges including scalability, heterogeneity, device limitations, privacy/security, robustness, and data-to-action conversion

IoT architecture layers showing vertical stacks: IoT Devices and Network (Things, Gateways, Network Infrastructure, Cloud Infrastructure), Core IoT Services (Config & Manage, Analytics, Connect & Protect, Rapid Service Creation, Enable & Deliver), and Services Creation Layer (Retail, Transportation, Industrial, Medical, Communications, Energy) at the application level. Below lists IoT networking research challenges: massive scalability, high heterogeneity and interoperability, limited capabilities on certain things, privacy and security, robustness and resilience, and going from data to action.

Source: Princeton University, Coursera Fog Networks for IoT (Prof. Mung Chiang)

358.4 Understanding Check: Industrial Control Processing Placement

Scenario: You’re designing a smart factory with 500 sensors monitoring assembly line equipment. Each sensor generates 1KB/sec of vibration and temperature data. You need to detect anomalies within 100ms and coordinate responses across multiple machines.

Think about: 1. Why would cloud-only processing fail for emergency shutdowns even with gigabit connectivity? 2. What processing tasks belong at edge vs fog vs cloud layers? 3. How do you balance real-time control with long-term predictive maintenance?

Key Insight: Fog layer processes 50 MIPS control loops in 20ms round-trip (10ms up + 10ms down), meeting 100ms budget with headroom. Edge devices (10 MIPS) can’t handle complex correlation across sensors. Cloud (80ms+ latency) misses deadline. The fog “Goldilocks zone” provides sufficient compute (1,000 MIPS) at local latency - critical for industrial control, AR/VR, and autonomous vehicles where milliseconds matter.

358.5 Understanding Check: Agricultural IoT Cost Optimization

Scenario: 1,000-acre farm deploys soil moisture sensors every 50 feet (17,424 sensors total). Each sensor transmits 1KB readings every 5 minutes. Cloud costs: $0.15/GB bandwidth + $0.05/GB storage. Adjacent sensors in same irrigation zone show 90% identical readings.

Think about: 1. Calculate annual costs: cloud-only vs fog-enabled (90% data reduction) 2. What if real-time irrigation control requires <5 second response times? 3. How does fog computing affect decision-making during network outages?

Key Insight: Cloud-only: 1,788 GB/year × ($0.15 + $0.05) = $357/year bandwidth/storage. But fog enables local irrigation decisions during connectivity loss, adds $50-100K upfront gateway cost, reduces cloud dependency 90%. Real benefit isn’t cost savings alone - it’s autonomous operation during storms when cellular drops but crops still need water. Fog enables resilient agriculture IoT.

358.6 Understanding Check: Oil Refinery Multi-Tier Architecture

Scenario: Oil refinery monitors 500 sensors (pressure, temperature, flow, vibration) across distributed equipment. Need: (1) <10ms emergency shutdown for overpressure, (2) Real-time operator dashboards, (3) Predictive maintenance ML models requiring 2+ years historical data.

Think about: 1. Which processing tier handles emergency shutdowns and why? 2. How does fog layer aggregate 500 sensors without overwhelming operators? 3. Why can’t edge devices alone handle predictive maintenance?

Key Insight: Three-tier separation: Edge (local PLCs) = <10ms safety shutdowns, network-independent. Fog (on-site servers) = aggregate 500 sensors → 20 key metrics on operator HMI, detect cross-sensor correlations (e.g., pressure spike + temperature rise = leak), <1 second queries. Cloud = 1TB+ historical data for ML training (predict equipment failures 30 days ahead), deploy updated models back to fog weekly. Single-layer fails: edge-only lacks ML compute, cloud-only has dangerous latency, fog-only can’t store petabytes. Refineries need all three layers working together.

358.7 Understanding Check: Autonomous Vehicle Fleet Decision Latency

Scenario: Autonomous vehicle traveling 60 mph (27 m/s) detects pedestrian stepping off curb. Three processing options: (A) Vehicle edge computer (5ms detection + 10ms processing), (B) Nearby fog node (25ms network + 10ms processing), (C) Cloud datacenter (150ms network + 10ms processing).

Think about: 1. Calculate distance traveled during each option’s total latency 2. At what speed does fog-based processing become unsafe for collision avoidance? 3. Why do autonomous vehicles need edge processing even with 5G networks?

Key Insight: Distance = speed × latency: Edge (15ms total) = 0.4m, Fog (35ms) = 0.9m, Cloud (160ms) = 4.3m. The vehicle travels 4.3 meters before cloud processing completes - far too late for emergency braking! Even “low latency” 5G (20ms) adds 0.5m stopping distance. Life-safety decisions must happen at edge. Fog layer coordinates multi-vehicle awareness (“pedestrian at intersection X” broadcast), cloud trains improved detection models. This demonstrates why autonomous vehicles, industrial robotics, and medical devices require edge computing - network latency is physics, not engineering.

358.8 Understanding Check: Smart Factory Bandwidth Economics

Scenario: Factory deploys 1,000 sensors at 100 bytes/second each. Cloud bandwidth costs $0.10/GB. Without fog: all data streams to cloud. With fog: local processing filters 95% redundant data (e.g., “temperature stable at 20°C” doesn’t need continuous reporting).

Think about: 1. Calculate annual bandwidth costs for both architectures 2. What’s the payback period for $50K fog gateway investment? 3. Beyond cost savings, what operational benefits does fog provide?

Key Insight: Data volume: 1,000 sensors × 100 bytes/sec = 100KB/sec = 8.64GB/day = 3,154GB/year. Cloud-only: $315/year bandwidth. Fog-enabled (95% filtered): $16/year. Savings: $299/year. Payback period = $50K / $299/year = 167 years! Wrong metric. Real benefits: (1) Local analytics continue during WAN outages, (2) <100ms response for equipment coordination vs 200ms cloud round-trip, (3) GDPR compliance (sensor data never leaves factory), (4) Predictable latency (cloud has 50-500ms jitter). Fog value isn’t bandwidth savings - it’s operational resilience, data sovereignty, and deterministic performance.

358.9 Processing Placement Decision Framework

Based on the understanding checks above, use this framework for deciding where to process each workload:

Requirement Edge Fog Cloud
Latency <10ms ✓ Required ✗ ✗
Latency 10-100ms ✓ Possible ✓ Optimal ✗
Latency 100ms+ ✓ ✓ ✓ Acceptable
Cross-device correlation ✗ Limited ✓ Optimal ✓
Historical analysis (years) ✗ ✗ Limited ✓ Required
ML model training ✗ ✗ ✓ Required
Network independence ✓ Required ✓ Partial ✗
Privacy/compliance ✓ Optimal ✓ Good ⚠️ Review needed

358.10 Summary

This chapter provided scenario-based understanding checks for fog computing deployment:

  • Industrial Control: Fog layer provides the “Goldilocks zone” - sufficient compute at local latency for 100ms anomaly detection across 500 sensors
  • Agricultural IoT: Fog value is autonomous operation during connectivity loss, not just bandwidth savings - crops need water even when cellular fails
  • Oil Refinery: Three-tier separation is essential - edge for safety shutdowns, fog for operator dashboards, cloud for ML training on years of data
  • Autonomous Vehicles: Physics drives architecture - 27 m/s at 160ms cloud latency = 4.3m traveled, making edge processing mandatory for collision avoidance
  • Bandwidth Economics: Don’t calculate fog ROI on bandwidth alone - resilience, latency determinism, and compliance often justify fog even when bandwidth savings are minimal

358.11 Knowledge Check

A factory has 500 sensors generating 100 bytes/second each. Cloud bandwidth costs $0.10/GB. Fog gateway costs $50K upfront. If fog filtering reduces cloud traffic by 95%, what is the approximate payback period based on bandwidth savings alone?

Data: 500 × 100 = 50KB/sec = 1,577 GB/year. Cloud-only: $158/year. Fog-enabled (5%): $8/year. Savings: $150/year. Payback: $50K / $150 = 333 years! Fog is justified by latency, resilience, and compliance - not bandwidth economics at this scale.

An autonomous vehicle traveling 60 mph (27 m/s) needs to detect and respond to a pedestrian. If cloud processing takes 160ms total (network + compute), how far does the vehicle travel before the response arrives?

Distance = speed × time = 27 m/s × 0.160s = 4.32m. The vehicle travels over 4 meters before cloud processing completes. This is why life-safety systems require edge processing - no network can overcome the physics of latency × velocity.

358.12 What’s Next

Continue with the production case study:

  • Fog Production Case Study →: Deep dive into autonomous vehicle fleet management demonstrating production fog deployment at scale with quantified results

Related Topics: - Fog Fundamentals: Review core fog computing concepts - Network Design and Simulation: Model your own fog scenarios with NS-3 and OMNeT++
