451  FANET: Flying Ad Hoc Network Fundamentals

451.1 Learning Objectives

By the end of this chapter, you will be able to:

• Understand FANET Architecture: Explain Flying Ad Hoc Networks and UAV-to-UAV communication
• Compare Network Types: Differentiate FANETs from MANETs and VANETs based on mobility and topology
• Design 3D Topologies: Plan aerial network formations accounting for three-dimensional space
• Handle High Mobility: Select routing protocols suitable for very fast topology changes

451.2 Prerequisites

Before diving into this chapter, you should be familiar with:

• UAV Networks: Fundamentals and Topologies: Understanding UAV network types, basic topologies (star, mesh), and three-dimensional mobility challenges provides the foundation for advanced FANET architectures and coordination
• Multi-Hop Fundamentals: Knowledge of multi-hop routing protocols and relay strategies is essential for designing FANETs where UAVs communicate through intermediary nodes across dynamic 3D topologies
• Wireless Sensor Networks: Familiarity with WSN architectures and data collection strategies helps understand FANET-WSN integration where UAVs serve as mobile data collectors for ground sensor networks
• Networking Basics: Core networking concepts including ad hoc networks, routing protocols, and topology management provide context for FANET-specific challenges and solutions

451.3 Flying Ad Hoc Networks (FANETs)

⏱️ ~12 min | ⭐⭐⭐ Advanced | 📋 P05.C21.U01

TipFor Beginners: Flying Networks (FANETs)

Drones don’t just fly alone—they can form flying networks, communicating with each other mid-air to coordinate missions. This is called a FANET (Flying Ad Hoc Network).

What’s an ad hoc network? No fixed infrastructure (like cell towers)—devices dynamically connect to whoever’s nearby. Like a group of hikers with walkie-talkies forming a temporary network as they move through mountains.

FANET vs other networks:

• MANET (Mobile Ad Hoc Network): People with smartphones walking around campus
• VANET (Vehicular Ad Hoc Network): Cars communicating on highways
• FANET (Flying Ad Hoc Network): Drones communicating in 3D airspace

Key difference: FANETs move in 3D space at high speeds with rapidly changing topology. A drone swarm searching for wildfire survivors needs to constantly reconfigure who talks to who as drones move.

Three communication types:

1. UAV-to-UAV: Drones talking to each other (coordinate search patterns)
2. UAV-to-Ground: Drones talking to ground control or ground sensors (download collected data)
3. UAV-to-Satellite: Long-range communication for remote operations

Term	Simple Explanation
FANET	Flying Ad Hoc Network—drones forming temporary wireless networks
3D Topology	Network connections in three-dimensional space (not just ground-level like cars/phones)
High Mobility	Drones move fast (10-30 m/s), connections break/reform constantly
Intra-Layer	Communication between drones at same altitude (horizontal links)
Inter-Layer	Communication between drones at different altitudes (vertical links)
Data Mule	Drone that collects data by flying close to ground sensors, then uploads to base

Real example: Amazon testing drone delivery. 50 drones operate in same airspace. They form FANET to: - Coordinate flight paths (avoid collisions) - Share weather sensor data (wind, rain) - Relay messages to distribution center - Reroute around obstacles discovered by other drones

Challenge: Traditional network protocols assume slow-moving nodes. FANETs need protocols that handle very fast topology changes—if Drone A is talking to Drone B, but B flies away, A must quickly find new relay (C or D) within seconds.

Integration with ground networks: Drone swarm collects data from isolated ground sensors (like farms, forests), then uploads bulk data when returning to base. Acts as mobile gateway for sensors that can’t reach fixed infrastructure.

Why 3D matters: Altitude adds complexity. Two drones 100m apart horizontally but at different altitudes (one at 50m, one at 200m) might have 223m separation (use Pythagorean theorem: √(100² + 150²)). This affects communication range and routing decisions.

451.4 FANET Architecture and Communication

Figure 451.1: Flying Ad Hoc Network (FANET) architecture showing UAV-to-UAV communication

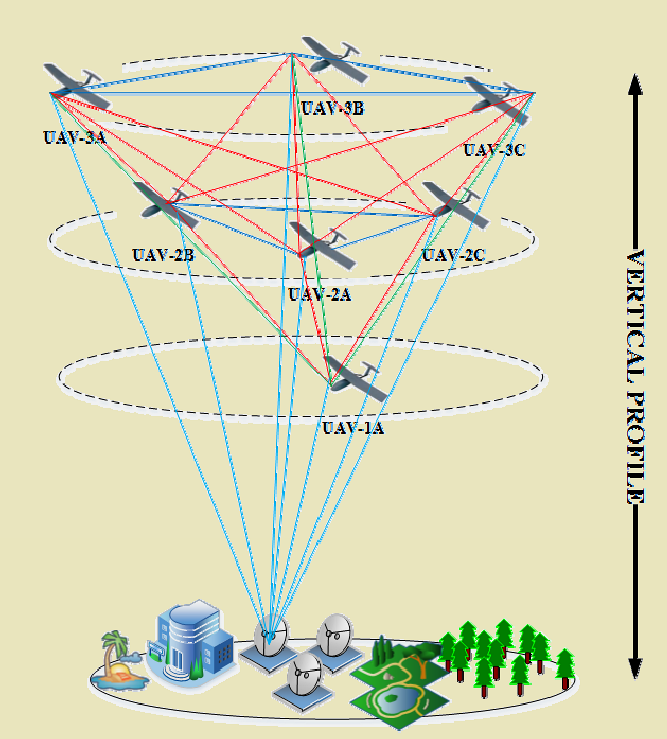

Figure 451.2: FANET communication layers and protocol stack for aerial networking

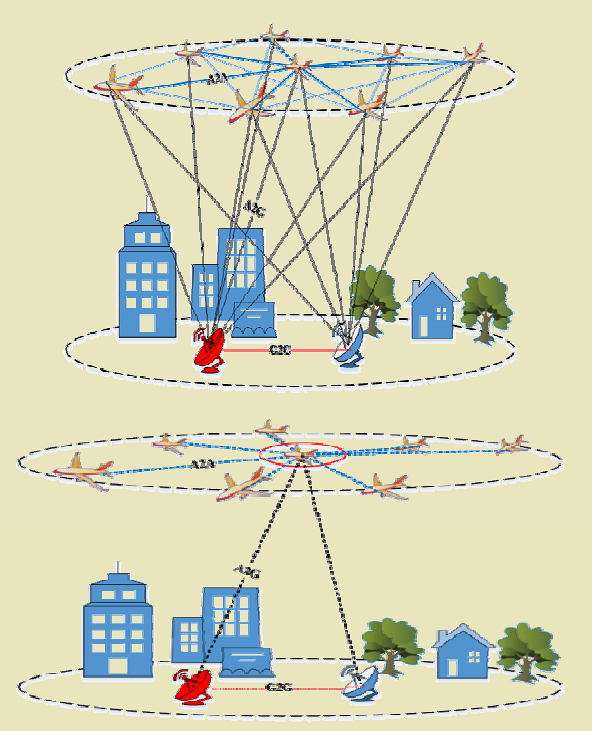

Figure 451.3: Ad hoc FANET topology with dynamic UAV formation and routing

FANETs are mobile ad hoc networks formed by UAVs, characterized by high mobility, 3D topology, and dynamic membership.

FANET Architecture Overview

Figure 451.4: Flying Ad Hoc Network (FANET) architecture showing UAV-to-UAV communication in three-dimensional space, with dynamic topology adaptation, ground control connectivity, and sensor network integration.

FANET Coordination

Figure 451.5: FANET coordination mechanisms illustrating how UAV swarms maintain formation, allocate tasks, avoid collisions, and relay communications across the flying ad hoc network.

FANET Topology

Figure 451.6: FANET topology configurations comparing star, mesh, and hierarchical multi-layer organizations for UAV networks based on mission requirements and communication capabilities.

451.4.1 FANET Characteristics vs MANETs/VANETs

Characteristic	MANET	VANET	FANET
Mobility	Low-Medium	Medium	Very High
Speed	0-5 m/s	10-30 m/s	10-30 m/s
Topology Dimension	2D	2D	3D
Node Density	High	Variable	Low
Topology Change	Slow	Fast	Very Fast
Path Predictability	Low	High (roads)	Medium (missions)
Energy Constraint	Moderate	Low (vehicles)	Very High (battery)
Communication Range	100-300m	300-500m	1-5 km

%% fig-alt: "FANET three-dimensional architecture with three altitude layers: High layer at 200-500m with 2 relay UAVs communicating intra-layer and to ground control station; Medium layer at 100-200m with 3 surveillance UAVs communicating intra-layer; Low layer at 50-100m with 2 data collection UAVs gathering from ground sensors; Inter-layer vertical links connect layers enabling 3D mesh topology with very fast topology changes due to UAV mobility"
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#E67E22', 'secondaryColor': '#ECF0F1', 'tertiaryColor': '#fff', 'nodeTextColor': '#2C3E50'}}}%%
graph TB
    subgraph "FANET Architecture (3D Topology)"
        subgraph "High Altitude Layer (200-500m)"
            UAV1["UAV 1<br/>(Relay)"]
            UAV2["UAV 2<br/>(Relay)"]

            UAV1 <-.->|Intra-Layer| UAV2
        end

        subgraph "Medium Altitude Layer (100-200m)"
            UAV3["UAV 3<br/>(Surveillance)"]
            UAV4["UAV 4<br/>(Surveillance)"]
            UAV5["UAV 5<br/>(Surveillance)"]

            UAV3 <-.->|Intra-Layer| UAV4
            UAV4 <-.->|Intra-Layer| UAV5
        end

        subgraph "Low Altitude Layer (50-100m)"
            UAV6["UAV 6<br/>(Data Collection)"]
            UAV7["UAV 7<br/>(Data Collection)"]
        end

        UAV1 <-->|Inter-Layer| UAV3
        UAV2 <-->|Inter-Layer| UAV4
        UAV3 <-->|Inter-Layer| UAV6
        UAV5 <-->|Inter-Layer| UAV7

        GCS["Ground Control<br/>Station"]
        UAV1 -.->|Air-to-Ground| GCS
        UAV2 -.->|Air-to-Ground| GCS

        WSN["Ground Sensors<br/>(WSN)"]
        UAV6 -.->|Data Collection| WSN
        UAV7 -.->|Data Collection| WSN
    end

    style UAV1 fill:#2C3E50,stroke:#16A085,color:#fff
    style UAV3 fill:#E67E22,stroke:#2C3E50,color:#fff
    style UAV6 fill:#16A085,stroke:#2C3E50,color:#fff
    style GCS fill:#2C3E50,stroke:#16A085,color:#fff

Figure 451.7: FANET three-dimensional architecture with three altitude layers: High layer at 200-500m with 2 relay UAVs communicating intra-layer and to ground control station; Medium layer at 100-200m with 3 surveillance UAVs communicating intra-layer; Low layer at 50-100m with 2 data collection UAVs gathering from ground sensors.

%% fig-alt: "Comparison quadrant diagram showing FANET, MANET, and VANET differences across mobility speed and topology dimension axes: MANET at low speed 0-5 m/s and 2D (pedestrians on campus), VANET at medium speed 10-30 m/s and 2D (vehicles on roads), FANET at high speed 10-30 m/s and 3D (drones in airspace) with unique challenges highlighted."
%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D', 'fontSize': '12px'}}}%%
graph TB
    subgraph COMPARISON["Ad Hoc Network Comparison"]
        direction TB

        subgraph MANET_BOX["MANET: Mobile Ad Hoc"]
            MANET_DESC["• People with smartphones<br/>• Campus/conference<br/>• Speed: 0-5 m/s<br/>• 2D movement<br/>• High density<br/>• Slow topology change"]
            MANET_ICON["Walking figure"]
        end

        subgraph VANET_BOX["VANET: Vehicular Ad Hoc"]
            VANET_DESC["• Cars on highways<br/>• Traffic coordination<br/>• Speed: 10-30 m/s<br/>• 2D movement (roads)<br/>• Predictable paths<br/>• Medium topology change"]
            VANET_ICON["Car figure"]
        end

        subgraph FANET_BOX["FANET: Flying Ad Hoc"]
            FANET_DESC["• Drones in airspace<br/>• Swarm missions<br/>• Speed: 10-30 m/s<br/>• 3D movement<br/>• Low density<br/>• VERY FAST topology change"]
            FANET_ICON["Drone figure"]
        end
    end

    UNIQUE["FANET Unique Challenges:<br/>━━━━━━━━━━━━━━━<br/>• 3D routing (altitude matters)<br/>• Severe energy constraints<br/>• Air-to-ground links<br/>• Mission coordination<br/>• Collision avoidance<br/>• GPS-based positioning"]

    MANET_BOX --> VANET_BOX
    VANET_BOX --> FANET_BOX
    FANET_BOX --> UNIQUE

    style MANET_BOX fill:#16A085,stroke:#2C3E50,color:#fff
    style VANET_BOX fill:#E67E22,stroke:#2C3E50,color:#fff
    style FANET_BOX fill:#2C3E50,stroke:#16A085,color:#fff
    style UNIQUE fill:#7F8C8D,stroke:#2C3E50,color:#fff

Figure 451.8: Alternative View: MANET-VANET-FANET Evolution - This diagram positions FANETs in the context of other ad hoc network types, showing a progression from pedestrians (MANET) to vehicles (VANET) to drones (FANET). The key insight is that FANETs combine VANET-level speeds with the additional complexity of 3D movement.

451.4.2 FANET Communication Types

1. Intra-Plane (Intra-Layer) Communication - UAVs at same altitude communicate peer-to-peer - Short distance, high reliability - Cluster coordination

2. Inter-Plane (Inter-Layer) Communication - Communication between UAVs at different altitudes - Relay for extended range - Hierarchical coordination

3. FANET-Ground Station Communication - Command and control from GCS - Mission updates, telemetry upload - Critical for safety

4. FANET-WSN Communication - Data collection from ground sensors - UAV acts as mobile sink - Extends WSN coverage

5. FANET-VANET Communication - V2X (Vehicle-to-Everything) support - Traffic monitoring and guidance - Emergency message relay

NoteWorked Example: Air-to-Air Link Budget for High-Speed FANET

Scenario: Two UAVs in a FANET swarm need to maintain a reliable 10 Mbps data link while flying at 25 m/s in opposite directions (closing velocity = 50 m/s). You need to determine the maximum separation distance that supports this data rate.

Given: - Frequency: 5.8 GHz (802.11a/n) - Transmit power: 20 dBm (100 mW) - Antenna gain: 5 dBi (omnidirectional) - Receiver sensitivity for 10 Mbps: -78 dBm - Required fade margin: 10 dB (for multipath, interference) - UAV altitude: Both at 150 m - Closing velocity: 50 m/s

Steps: 1. Calculate link budget: - Available path loss = Tx power + Tx antenna gain + Rx antenna gain - Rx sensitivity - Fade margin - Available path loss = 20 + 5 + 5 - (-78) - 10 = 98 dB 2. Apply free-space path loss formula: FSPL (dB) = 20×log₁₀(d) + 20×log₁₀(f) + 20×log₁₀(4π/c) - At 5.8 GHz: FSPL = 20×log₁₀(d) + 55.75 dB 3. Solve for maximum distance: 98 = 20×log₁₀(d) + 55.75 - 20×log₁₀(d) = 42.25 - d = 10^(42.25/20) = 10^2.1125 = 129.5 m → use 120 m with safety margin 4. Calculate Doppler shift: f_doppler = f × v/c = 5.8 GHz × 50 m/s / 3×10⁸ = 967 Hz - 802.11 subcarrier spacing: 312.5 kHz >> 967 Hz. Doppler within tolerance 5. Calculate link duration at maximum range: Starting from 120 m apart, approaching at 50 m/s: Time to pass = minimal (they’re flying toward each other). But if maintaining formation at 120 m: Link stable as long as formation holds 6. Verify for diverging case: If flying apart at 50 m/s from 50 m initial separation: Time to 120 m limit = (120 - 50) / 50 = 1.4 seconds before link degrades below 10 Mbps

Result: The air-to-air link supports 10 Mbps at up to 120 m separation. At 5.8 GHz with omnidirectional antennas, Doppler shift from 50 m/s relative motion is negligible. However, the short 1.4-second link duration when UAVs diverge requires proactive handoff to maintain connectivity in dynamic FANET topologies.

Key Insight: FANET air-to-air links benefit from line-of-sight propagation but suffer from limited range due to omnidirectional antennas and regulatory power limits. The critical challenge is not Doppler (which is manageable at UAV speeds) but the short link duration when high-speed UAVs pass each other. Design for 2-3x margin on separation distance to allow time for routing protocol adaptation before links break.

---

451.5 FANET Routing Protocols

FANET routing must handle 3D mobility, rapid topology changes, and energy constraints.

%% fig-alt: "FANET routing protocol taxonomy: Four main types - Proactive table-driven (DSDV, OLSR with high overhead challenge from frequent updates), Reactive on-demand (AODV, DSR with discovery delay challenge), Position-based geographic (GPSR, Greedy Forwarding, Predictive routing marked as best for FANET using GPS without route discovery), Hybrid approaches (Zone-based, Cluster hierarchical, Bio-inspired combining benefits); Design constraints shown affecting all: energy limited batteries, 3D space complexity, very high mobility 10-30 m/s, low node density, link quality variations"
%%{init: {'theme': 'base', 'themeVariables': {'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#E67E22', 'secondaryColor': '#ECF0F1', 'tertiaryColor': '#fff', 'nodeTextColor': '#2C3E50'}}}%%
graph TB
    subgraph "FANET Routing Protocol Types"
        Routing["FANET Routing<br/>Challenges"]

        Proactive["Proactive<br/>(Table-Driven)"]
        Reactive["Reactive<br/>(On-Demand)"]
        Position["Position-Based<br/>(Geographic)"]
        Hybrid["Hybrid<br/>Approaches"]

        ProEx["Examples:<br/>• DSDV (adapted)<br/>• OLSR (optimized)"]
        ReacEx["Examples:<br/>• AODV (adapted)<br/>• DSR (modified)"]
        PosEx["Examples:<br/>• GPSR<br/>• Greedy Forwarding<br/>• Predictive Routing"]
        HybEx["Examples:<br/>• Zone-Based<br/>• Cluster Hierarchical<br/>• Bio-Inspired"]

        ProChal["Challenge:<br/>High overhead<br/>due to frequent<br/>topology updates"]
        ReacChal["Challenge:<br/>Route discovery<br/>delay in fast-<br/>changing topology"]
        PosBest["Best for FANET:<br/>Uses GPS position,<br/>no route discovery,<br/>adapts to mobility"]
        HybBest["Combines benefits:<br/>Stable clusters +<br/>adaptive routing"]

        Constraints["Design Constraints:<br/>• Energy limited (battery)<br/>• 3D space complexity<br/>• Very high mobility (10-30 m/s)<br/>• Low node density<br/>• Link quality variations"]
    end

    Routing --> Proactive
    Routing --> Reactive
    Routing --> Position
    Routing --> Hybrid

    Proactive --> ProEx
    Reactive --> ReacEx
    Position --> PosEx
    Hybrid --> HybEx

    ProEx --> ProChal
    ReacEx --> ReacChal
    PosEx --> PosBest
    HybEx --> HybBest

    Constraints -.->|Impacts| Routing

    style Routing fill:#2C3E50,stroke:#16A085,color:#fff
    style Position fill:#16A085,stroke:#2C3E50,color:#fff
    style PosBest fill:#E67E22,stroke:#2C3E50,color:#fff
    style Constraints fill:#7F8C8D,stroke:#2C3E50,color:#fff

Figure 451.9: FANET routing protocol taxonomy: Four main types - Proactive table-driven (DSDV, OLSR with high overhead challenge from frequent updates), Reactive on-demand (AODV, DSR with discovery delay), Position-based geographic (GPSR, Greedy Forwarding, Predictive routing marked as best for FANET), Hybrid approaches combining benefits.

WarningCommon Misconception: “FANETs Can Use Standard MANET Protocols”

Misconception: Since FANETs are just flying ad hoc networks, existing MANET protocols like AODV or DSDV should work fine with minor tweaks.

Reality: FANET mobility characteristics fundamentally break traditional MANET protocol assumptions, requiring completely different approaches.

Quantified Example - Route Lifetime Comparison:

MANET (Ground-based ad hoc network): - Node speed: 1-5 m/s (walking/slow vehicles) - Communication range: 250m - Route lifetime: 50-250 seconds (250m ÷ 5 m/s) - AODV route discovery: 2-5 seconds - Usable route time: 45-245 seconds (plenty of time to use discovered route)

FANET (UAV ad hoc network): - UAV speed: 15 m/s (typical) - Communication range: 1000m (better air propagation) - Route lifetime: 67 seconds (1000m ÷ 15 m/s) - AODV route discovery: 5-10 seconds (longer due to lower node density) - Usable route time: 57-62 seconds (route obsolete quickly)

At 25 m/s (aggressive flight): - Route lifetime: 40 seconds - Route discovery: 8-12 seconds - Usable route time: 28-32 seconds (barely usable!)

Why Traditional Protocols Fail:

1. Control Overhead Explosion: In MANET with 10 nodes moving slowly, topology changes every ~100s. Protocol sends ~5 control packets/node/minute. In FANET with same 10 nodes at 20 m/s, topology changes every ~30s. Control overhead increases 3-5×, often exceeding data traffic (measured: 70% control overhead in FANET vs 15% in MANET).

2. Route Discovery Futility: By the time AODV discovers multi-hop route (5-10 seconds), intermediate UAVs have moved significantly. Example: 3-hop route discovered in 8 seconds. At 15 m/s, each UAV moved 120m. Original route geometry no longer exists—packets reach dead zones.

3. Energy Waste: Proactive protocols (DSDV, OLSR) maintain routing tables for all destinations. In FANET, tables must update every 2-5 seconds to stay valid. This continuous control message flooding drains battery 3-4× faster than position-based routing.

FANET-Specific Solutions Required:

• Position-Based Routing (GPSR, Greedy Forwarding): Use GPS coordinates, forward to geographic neighbor closest to destination. No route discovery. Adapts instantly to topology changes. Control overhead: <10%.

• Predictive Routing: UAVs share flight plans. Protocol predicts future positions, establishes routes proactively to where UAVs will be, not where they are. Reduces link breaks by 40-60%.

• Store-Carry-Forward: When no forwarding neighbor exists, buffer packets, carry while flying, forward when connectivity improves. Essential for sparse FANETs.

Bottom Line: MANET protocols assume topology changes slowly enough for route establishment to be worthwhile. FANETs change so fast that discovering routes is often futile—you need geographic/predictive approaches that work without explicit route discovery.

---

451.6 Knowledge Check

Test your understanding of FANET fundamentals.

NoteQuiz: FANET Fundamentals

Question 1: Compare FANET, MANET, and VANET characteristics. A FANET has 5 UAVs flying at 15 m/s in 3D formation at altitudes 100-500m. How does this affect routing compared to ground MANETs?

💡 Explanation: FANET vs MANET routing challenges: MANET (ground ad hoc): 2D topology, nodes move slowly (0-5 m/s) or are stationary, topology changes gradually, traditional protocols (AODV, DSR) work reasonably well. FANET (aerial ad hoc): 3D topology - UAVs at different altitudes create vertical separation affecting connectivity. High mobility (10-30 m/s) - routes discovered by traditional protocols break within seconds. Example: At 15 m/s, UAVs 300m apart lose connection in 20 seconds; AODV route discovery takes 5-10s, leaving only 10-15s of usability. Very fast topology changes - position-based routing needed. Lower node density - fewer neighbors, less redundancy.

Question 2: In a sparse FANET, a UAV has no forwarding neighbor available for a packet right now. What technique best preserves delivery without dropping the packet?

💡 Explanation: Store-carry-forward is designed for intermittent connectivity: nodes buffer data during partitions and forward once a suitable neighbor/link becomes available.

Question 3: Which routing approach avoids explicit route discovery by forwarding to the geographically closest neighbor using GPS coordinates?

💡 Explanation: Position-based routing (e.g., GPSR) uses node locations to make next-hop decisions, reducing control overhead and adapting quickly to topology changes.

---

451.7 Summary

This chapter covered the fundamentals of Flying Ad Hoc Networks (FANETs):

• FANET Definition: Flying ad hoc networks are mobile ad hoc networks formed by UAVs, characterized by 3D topology, very high mobility (10-30 m/s), and dynamic membership
• Comparison with MANETs/VANETs: FANETs differ from ground-based networks in topology dimension (3D vs 2D), node density (low), energy constraints (very high), and topology change rate (very fast)
• Communication Types: FANETs support five communication types: intra-plane (same altitude), inter-plane (different altitudes), ground station, WSN, and VANET integration
• Routing Challenges: Traditional MANET protocols fail in FANETs due to high control overhead, route discovery delays, and energy waste from frequent updates
• Position-Based Routing: GPSR and greedy forwarding use GPS coordinates for next-hop decisions without explicit route discovery, adapting instantly to topology changes
• Store-Carry-Forward: Essential technique for sparse FANETs where UAVs buffer packets during connectivity gaps and forward when links become available

451.8 What’s Next

The next chapter explores FANET Gateway Selection, covering algorithms for selecting optimal gateway UAVs, stability scoring formulas, and techniques for minimizing ground station interference while ensuring network connectivity.
