1382.1 Learning Objectives

By the end of this chapter, you should be able to:

  • Explain the defense-in-depth security model and its importance for IoT
  • Identify and describe the eight layers of defense in IoT systems
  • Categorize security controls as preventive, detective, or corrective
  • Design layered security architectures that protect against multiple attack vectors
  • Apply security controls at each layer of the IoT stack

What is Defense in Depth? Defense in depth is a security strategy that uses multiple layers of protection, so if one layer fails, others still protect your system. Think of it like a medieval castle with walls, a moat, guards, and a keep - an attacker must bypass ALL defenses to succeed.

Why does it matter? No single security measure is perfect. Firewalls can be bypassed, passwords can be stolen, encryption keys can be compromised. By layering multiple independent security controls, you ensure that a single failure doesnโ€™t result in complete compromise.

Key terms: | Term | Definition | |โ€”โ€”|โ€”โ€”โ€”โ€”| | Security Layer | An independent security control that provides protection at a specific level | | Preventive Control | Stops attacks before they happen (firewalls, encryption, access control) | | Detective Control | Identifies attacks in progress (IDS, logging, monitoring) | | Corrective Control | Fixes damage after an attack (backups, patches, incident response) |

1382.2 Prerequisites

Before diving into this chapter, you should be familiar with:

1382.3 Defense in Depth Architecture

Security is not a single layer but multiple concentric defenses working together. The defense-in-depth model implements security controls at every layer of the IoT stack.

Encryption communication flow diagram showing the sender transmitting plaintext through an encryption algorithm using an encryption key to produce ciphertext, which travels across a potentially hostile network where an interceptor may attempt to capture or analyze the data. The ciphertext then reaches the receiver where a decryption algorithm using the corresponding decryption key converts it back to plaintext. This diagram illustrates why encryption is essential for IoT security: even if an attacker intercepts network traffic (man-in-the-middle position), properly encrypted data remains unreadable without the decryption key.
Figure 1382.1: Source: University of Edinburgh IoT Security Course

%% fig-alt: "Comprehensive defense in depth architecture showing eight hierarchical security layers in IoT systems, flowing from bottom physical layer to top monitoring layer. Layer 1 (Physical Security) provides tamper-evident enclosures and physical access control as foundation. Layer 2 (Network Perimeter) implements firewalls, intrusion detection/prevention systems (IDS/IPS), and VPN gateways. Layer 3 (Network Segmentation) isolates traffic using VLANs, DMZ zones, and zero-trust architecture principles. Layer 4 (Device Authentication) verifies device identity through certificates, two-factor authentication (2FA), and unique device credentials. Layer 5 (Authorization) enforces role-based access control (RBAC), least privilege principle, and granular permissions. Layer 6 (Data Encryption) protects information using TLS/DTLS protocols, AES encryption, and end-to-end encrypted channels. Layer 7 (Application Security) secures software through input validation, secure coding practices, and regular security patches. Layer 8 (Monitoring & Response) provides continuous oversight via Security Information and Event Management (SIEM), anomaly detection algorithms, and incident response procedures. Arrows show progressive security hardening from physical to logical layers, with final teal-highlighted monitoring layer providing continuous visibility across all seven underlying layers. Key principle: attacker breaching any single layer still faces six additional defensive barriers before reaching critical assets."
%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#E67E22', 'secondaryColor': '#16A085', 'tertiaryColor': '#E67E22', 'fontSize': '13px'}}}%%
graph TB
    subgraph "Defense in Depth Layers"
    L1[Layer 1: Physical Security<br/>Tamper-evident enclosures, access control]
    L2[Layer 2: Network Perimeter<br/>Firewall, IDS/IPS, VPN]
    L3[Layer 3: Network Segmentation<br/>VLANs, DMZ, zero-trust architecture]
    L4[Layer 4: Device Authentication<br/>Certificates, 2FA, device identity]
    L5[Layer 5: Authorization<br/>RBAC, least privilege, access control]
    L6[Layer 6: Data Encryption<br/>TLS/DTLS, AES, end-to-end encryption]
    L7[Layer 7: Application Security<br/>Input validation, secure coding, patches]
    L8[Layer 8: Monitoring & Response<br/>SIEM, anomaly detection, incident response]
    end

    L1 --> L2
    L2 --> L3
    L3 --> L4
    L4 --> L5
    L5 --> L6
    L6 --> L7
    L7 --> L8

    style L1 fill:#2C3E50,stroke:#16A085,color:#fff
    style L2 fill:#2C3E50,stroke:#16A085,color:#fff
    style L3 fill:#2C3E50,stroke:#16A085,color:#fff
    style L4 fill:#2C3E50,stroke:#16A085,color:#fff
    style L5 fill:#2C3E50,stroke:#16A085,color:#fff
    style L6 fill:#2C3E50,stroke:#16A085,color:#fff
    style L7 fill:#2C3E50,stroke:#16A085,color:#fff
    style L8 fill:#16A085,stroke:#0e6655,color:#fff

Figure 1382.2: Comprehensive defense in depth architecture showing eight hierarchical security layers in IoT systems

Key Principle: If an attacker breaches one layer (e.g., passes firewall), they still face six more layers of defense before reaching critical assets. Each layer detects, delays, or blocks attacks.

TipMinimum Viable Understanding: Defense in Depth

Core Concept: Defense in depth layers multiple independent security controls at different system levels so that failure of any single protection does not result in complete compromise. Why It Matters: IoT systems face attacks from multiple vectors simultaneously (network, physical, application); relying on a single strong control creates a single point of failure that determined attackers will eventually bypass. Key Takeaway: Always implement at least three overlapping security layers (e.g., network firewall + device authentication + data encryption) because attackers who bypass one control still face additional barriers before reaching critical assets.

1382.3.1 The Eight Security Layers Explained

Layer Purpose Example Controls Attack It Prevents
Physical Security Prevent unauthorized physical access Tamper-evident cases, locked enclosures, security cameras Device theft, hardware tampering
Network Perimeter Filter traffic at network boundary Firewalls, IDS/IPS, VPN gateways Network intrusion, unauthorized access
Network Segmentation Isolate different network zones VLANs, DMZ, microsegmentation Lateral movement after breach
Device Authentication Verify device identity X.509 certificates, device tokens, mTLS Device impersonation, rogue devices
Authorization Control what authenticated entities can do RBAC, ABAC, ACLs Privilege escalation, unauthorized actions
Data Encryption Protect data confidentiality TLS/DTLS, AES, end-to-end encryption Eavesdropping, data theft
Application Security Secure application code Input validation, secure coding, patches SQL injection, buffer overflow
Monitoring & Response Detect and respond to incidents SIEM, anomaly detection, incident response Undetected breaches, slow response

1382.3.2 Real-World Example: Why One Layer Isnโ€™t Enough

Imagine your smart home with ONLY one security method:

Only Using What Happens When It Fails
Only encryption Encryption key is hardcoded โ†’ attacker extracts it โ†’ game over
Only authentication Password is phished โ†’ attacker logs in โ†’ full access
Only authorization Account is hijacked โ†’ limited damage, but still compromised
Only monitoring Attack detected, but no prevention โ†’ damage already done

Defense in Depth: Multiple layers working together

%% fig-alt: "Defense in depth flowchart showing layered security model with six consecutive defensive barriers that an attacker must penetrate. Attack flow begins with attacker encountering Layer 1 (Firewall blocking unauthorized IPs). If bypassed, attacker faces Layer 2 (Authentication verifying credentials). If compromised, Layer 3 (Authorization checking permissions) validates access rights. If escalated, Layer 4 (Encryption protecting data) secures information. If encryption key is extracted, Layer 5 (Monitoring detecting anomalies) identifies suspicious activity. If monitoring is evaded, final Layer 6 (Incident Response containing damage) limits impact. Each successive layer provides backup protection if previous layer fails, demonstrating that security depends on multiple overlapping controls rather than single point of defense. Attacker shown in red must overcome all six green/navy security layers, with final incident response layer highlighted in teal as last line of defense."
%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#E67E22', 'secondaryColor': '#16A085', 'tertiaryColor': '#E67E22', 'fontSize': '14px'}}}%%
graph TD
    A[Attacker] -->|Layer 1| B[Firewall<br/>Block unauthorized IPs]
    B -->|Bypassed| C[Authentication<br/>Verify credentials]
    C -->|Compromised| D[Authorization<br/>Check permissions]
    D -->|Escalated| E[Encryption<br/>Protect data]
    E -->|Key extracted| F[Monitoring<br/>Detect anomalies]
    F -->|Evaded| G[Incident Response<br/>Contain damage]

    style A fill:#e74c3c,stroke:#c0392b,color:#fff
    style B fill:#2C3E50,stroke:#16A085,color:#fff
    style C fill:#2C3E50,stroke:#16A085,color:#fff
    style D fill:#2C3E50,stroke:#16A085,color:#fff
    style E fill:#2C3E50,stroke:#16A085,color:#fff
    style F fill:#2C3E50,stroke:#16A085,color:#fff
    style G fill:#16A085,stroke:#0e6655,color:#fff

Figure 1382.3: Defense in depth flowchart showing layered security model with six consecutive defensive barriers

Each layer provides a second chance if the previous layer fails.

NoteKnowledge Check: Defense in Depth

Question: A smart factoryโ€™s firewall is compromised by an attacker. Which defense-in-depth principle explains why this single breach should NOT give the attacker full control of all industrial systems?

Click to reveal answer

Answer: Multiple independent security layers ensure attackers must bypass additional controls (authentication, encryption, monitoring) after passing the firewall.

Why? Defense in depth means each layer (network, device authentication, data encryption, access control, monitoring) operates independently. Even if the firewall fails, attackers still face device certificates, encrypted communications, role-based access control, and intrusion detection systems.

1382.4 Security Controls Framework

Security controls are categorized by their function in the security lifecycle: preventing attacks before they occur, detecting attacks in progress, and correcting damage after attacks.

%% fig-alt: "Security controls framework showing three complementary control types forming complete security lifecycle with feedback loop. Preventive Controls (navy) stop attacks before they occur through proactive measures including firewalls blocking malicious traffic, encryption protecting data confidentiality, and access control restricting unauthorized entry. If preventive controls are bypassed, Detective Controls (orange) identify attacks in progress using intrusion detection systems (IDS), comprehensive logging of security events, continuous monitoring of system behavior, and Security Information and Event Management (SIEM) correlation. When detective controls trigger alerts, Corrective Controls (teal) remediate damage after attacks through data restoration from backups, security patch deployment to close vulnerabilities, and structured incident response procedures to contain and recover from breaches. Final feedback arrow from corrective to preventive represents lessons learned cycle where post-incident analysis strengthens future preventive measures. Diagram demonstrates defense in depth philosophy: each control type has distinct function (prevent, detect, or correct) but all work together continuously."
%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#E67E22', 'secondaryColor': '#16A085', 'tertiaryColor': '#E67E22', 'fontSize': '14px'}}}%%
graph LR
    subgraph "Security Control Types"
    P[Preventive Controls<br/>Stop attacks before they happen<br/>Firewalls, encryption, access control]
    D[Detective Controls<br/>Identify attacks in progress<br/>IDS, logging, monitoring, SIEM]
    C[Corrective Controls<br/>Fix damage after attack<br/>Backups, patches, incident response]
    end

    P -->|If bypassed| D
    D -->|Alert triggered| C
    C -->|Lessons learned| P

    style P fill:#2C3E50,stroke:#16A085,color:#fff
    style D fill:#E67E22,stroke:#d35400,color:#fff
    style C fill:#16A085,stroke:#0e6655,color:#fff

Figure 1382.4: Security controls framework showing three complementary control types

1382.4.1 Preventive Controls

Purpose: Stop attacks before they occur

Control Type Description IoT Example
Firewalls Filter network traffic based on rules Block all inbound traffic except port 8883 (MQTT)
Encryption Protect data confidentiality AES-256 encryption of sensor data
Access Control Restrict who can do what Only admins can change device configuration
Input Validation Reject malicious input Reject MQTT messages with invalid JSON
Secure Boot Ensure only trusted code runs Verify firmware signature before execution

1382.4.2 Detective Controls

Purpose: Identify attacks in progress

Control Type Description IoT Example
Intrusion Detection (IDS) Monitor for attack signatures Alert on port scanning attempts
Logging Record security events Log all authentication attempts
Anomaly Detection Identify unusual behavior Flag sensor sending 100x normal data volume
SIEM Correlate events across systems Detect coordinated attack across multiple devices
File Integrity Monitoring Detect unauthorized changes Alert if firmware hash changes

1382.4.3 Corrective Controls

Purpose: Fix damage after an attack

Control Type Description IoT Example
Backups Restore data after loss Restore device configuration from backup
Patches Fix vulnerabilities Deploy security update to all devices
Incident Response Structured recovery process Isolate compromised device, analyze, remediate
Rollback Revert to known-good state Restore previous firmware version
Quarantine Isolate compromised systems Move infected device to isolated VLAN

1382.4.4 Security Controls by IoT Layer

This view maps security control types to specific IoT architecture layers:

%% fig-alt: "Security controls matrix showing preventive detective and corrective controls at each IoT layer: Device layer uses secure boot, firmware verification, anomaly detection, and recovery partitions; Network layer uses firewalls, TLS encryption, IDS/IPS, and network isolation; Application layer uses input validation, API authentication, logging, and patch management; Data layer uses encryption at rest, access control, audit trails, and backup restoration. Each layer requires all three control types for complete protection."
%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D'}}}%%
flowchart TB
    subgraph Controls["SECURITY CONTROLS BY LAYER"]
        subgraph Device["DEVICE LAYER"]
            DP["Preventive:<br/>Secure Boot<br/>Firmware Signing"]
            DD["Detective:<br/>Anomaly Detection<br/>Health Monitoring"]
            DC["Corrective:<br/>Recovery Partition<br/>Auto-rollback"]
        end

        subgraph Network["NETWORK LAYER"]
            NP["Preventive:<br/>Firewall<br/>TLS/DTLS"]
            ND["Detective:<br/>IDS/IPS<br/>Traffic Analysis"]
            NC["Corrective:<br/>Network Isolation<br/>Traffic Blocking"]
        end

        subgraph App["APPLICATION LAYER"]
            AP["Preventive:<br/>Input Validation<br/>API Auth"]
            AD["Detective:<br/>WAF Logging<br/>Error Monitoring"]
            AC["Corrective:<br/>Patch Deployment<br/>Service Restart"]
        end

        subgraph Data["DATA LAYER"]
            DaP["Preventive:<br/>Encryption<br/>Access Control"]
            DaD["Detective:<br/>Audit Trails<br/>Integrity Checks"]
            DaC["Corrective:<br/>Backup Restore<br/>Data Recovery"]
        end
    end

    Device --> Network --> App --> Data

    style DP fill:#2C3E50,stroke:#16A085,color:#fff
    style DD fill:#E67E22,stroke:#d35400,color:#fff
    style DC fill:#16A085,stroke:#0e6655,color:#fff
    style NP fill:#2C3E50,stroke:#16A085,color:#fff
    style ND fill:#E67E22,stroke:#d35400,color:#fff
    style NC fill:#16A085,stroke:#0e6655,color:#fff
    style AP fill:#2C3E50,stroke:#16A085,color:#fff
    style AD fill:#E67E22,stroke:#d35400,color:#fff
    style AC fill:#16A085,stroke:#0e6655,color:#fff
    style DaP fill:#2C3E50,stroke:#16A085,color:#fff
    style DaD fill:#E67E22,stroke:#d35400,color:#fff
    style DaC fill:#16A085,stroke:#0e6655,color:#fff

Complete IoT security requires all three control types (preventive, detective, corrective) at every architectural layer.

1382.4.5 Example Scenario: SQL Injection Attack

An attacker attempts SQL injection on an IoT dashboard:

  1. Preventive Control: Input validation rejects malicious SQL characters โ†’ Attack stopped
  2. Detective Control: If bypassed, Web Application Firewall (WAF) logs unusual query patterns โ†’ Alert triggered
  3. Corrective Control: Security team patches vulnerability, reviews logs, and restores any corrupted data

1382.5 Real-World Security Failures

1382.5.1 The Industrial Plant Attack (2014)

Location: German steel mill

What happened:

  • Attackers used phishing to steal employee credentials (failed authentication)
  • Once inside the network, attackers had full access to industrial controls (failed authorization)
  • Attackers disabled safety systems and caused a blast furnace to malfunction
  • Result: Massive physical damage to the plant

Which security methods failed?

Method What Failed What Should Have Been Done
Authentication Simple password, no 2FA Multi-factor authentication (password + hardware token)
Authorization Employee account had admin access to everything Least privilege (employees only access what they need)
Monitoring No detection of abnormal commands Intrusion detection system (alert on unusual commands)
Segmentation Office network connected to industrial control network Air gap or firewall between office and industrial networks

Lesson: Authentication alone is not enough. You need authorization, monitoring, and network segmentation too.

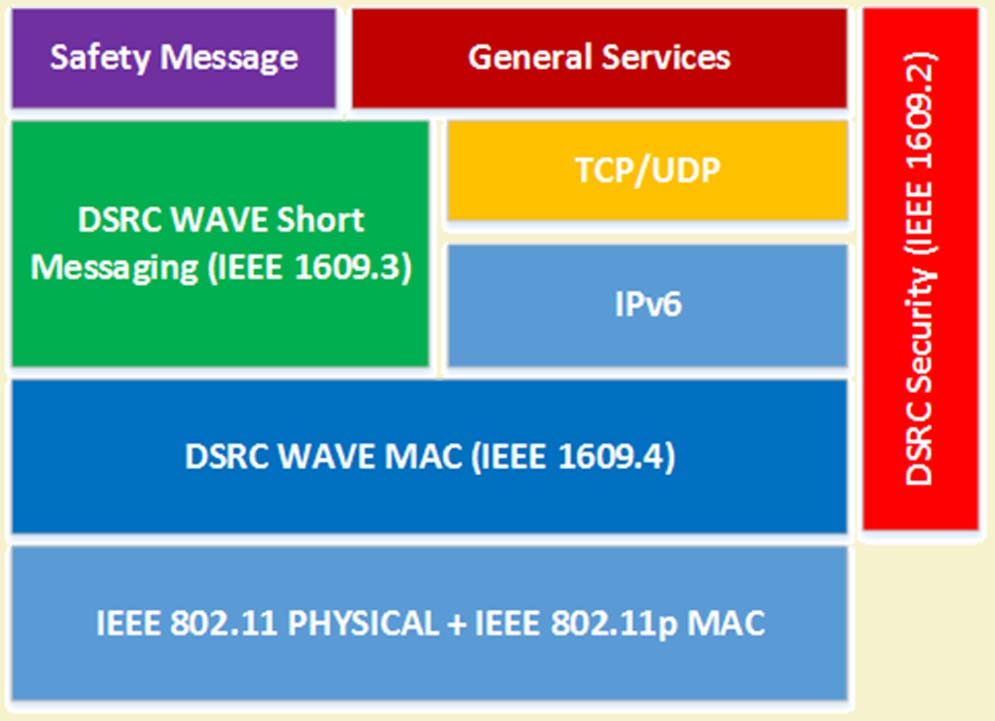

DSRC WAVE (Wireless Access in Vehicular Environments) protocol stack diagram from NPTEL showing layered security architecture for vehicular IoT. The stack shows: at the physical layer IEEE 802.11 PHYSICAL + IEEE 802.11p MAC, above that DSRC WAVE MAC (IEEE 1609.4), then IPv6 layer, followed by TCP/UDP transport protocols, and at the top application layers for Safety Messages and General Services. Critically, a vertical DSRC Security (IEEE 1609.2) layer spans the entire stack providing end-to-end security including authentication, encryption, and message integrity verification. This demonstrates how security must be integrated at every layer of IoT communication stacks, not added as an afterthought.

DSRC WAVE Protocol Stack with Security Layer

Source: NPTEL Internet of Things Course, IIT Kharagpur - This DSRC WAVE protocol stack illustrates a key security principle: security (IEEE 1609.2) is integrated as a vertical layer spanning all protocol layers, demonstrating defense-in-depth architecture where security is not bolted on but built into every communication layer.

1382.6 Chapter Summary

Defense in depth is the foundational security strategy for IoT systems, implementing multiple independent security controls at every layer of the architecture. The eight-layer model (physical, network perimeter, segmentation, authentication, authorization, encryption, application, monitoring) ensures that failure of any single control doesnโ€™t result in complete system compromise.

Security controls fall into three categories: preventive controls that stop attacks before they occur, detective controls that identify attacks in progress, and corrective controls that remediate damage after attacks. Effective IoT security requires all three control types working together at every architectural layer.

Real-world incidents like the German steel mill attack demonstrate the consequences of relying on single security measures. Organizations that implement layered defenses with multiple overlapping controls significantly reduce their attack surface and improve their ability to detect, contain, and recover from security incidents.
