1591  Prototyping Kits: Industrial and Wearable

1591.1 Learning Objectives

By the end of this chapter, you will be able to:

  • Evaluate Industrial IoT Platforms: Compare Siemens IOT2050 and Arduino Opta for factory automation and industrial control
  • Select Wearable Development Kits: Choose between LilyPad Arduino and Maxim Health platforms based on application requirements
  • Understand Industrial Requirements: Assess temperature range, voltage levels, certifications, and protocol support for industrial deployments
  • Plan Health Monitoring Prototypes: Leverage medical-grade sensors and validated algorithms for wearable health devices
  • Navigate Regulatory Considerations: Understand certification paths for industrial and medical device prototypes

1591.2 Prerequisites

Before diving into this chapter, you should be familiar with:

1591.3 Introduction

Industrial IoT and wearable health monitoring represent specialized domains with stringent requirements. Industrial kits must handle harsh environments, industrial protocols, and safety certifications. Wearable health kits require medical-grade sensors, validated algorithms, and consideration of regulatory pathways. This chapter explores leading platforms in both domains.

Industrial IoT Kits work in factories and harsh environments. They typically include: - Wide temperature range (-20°C to +60°C) - Industrial voltages (24V inputs) - Protocol support (Modbus, BACnet, OPC UA) - DIN rail mounting for industrial enclosures

Wearable Health Kits monitor body signals. They typically include: - Medical-grade sensors (heart rate, SpO2) - Small form factor for body-worn use - Low power for all-day battery life - Validated algorithms for accuracy

Example: Arduino Opta controls factory relays using Modbus. Maxim Health Platform measures heart rate with FDA-quality sensors.

1591.4 Industrial IoT Kits

1591.4.1 Siemens IOT2050

Description: Industrial-grade edge computing platform for IIoT applications.

Components: - ARM Cortex-A53/A72 processor - Industrial I/O modules - Industrial Ethernet - Real-time capable - Wide voltage input

Development: - Industrial Linux - Node-RED - Docker containers - CODESYS PLC runtime

Use Cases: - Factory automation - Predictive maintenance - Industrial edge computing - Protocol gateways

Strengths: - Industrial-grade reliability - Professional software stack - Real-time capability - Wide temperature range

Limitations: - Expensive ($400+) - Complex for beginners - Overkill for simple projects

1591.4.2 Arduino Opta

Description: Industrial micro PLC with IoT connectivity.

Components: - STM32H7 microcontroller - 8 digital inputs - 4 relay outputs - Ethernet and Wi-Fi - RS-485 interface - DIN rail mounting

Development: - Arduino IDE - PLC programming (61131-3) - Industrial protocols (Modbus, OPC UA) - Cloud integration

Use Cases: - Small-scale automation - Building management - Industrial control - Process monitoring

Strengths: - Arduino ecosystem - Industrial form factor - Multiple programming options - Competitive pricing ($100)

Limitations: - Limited I/O - New product (limited community)

1591.4.3 Industrial Kit Comparison

Feature Siemens IOT2050 Arduino Opta
Processor ARM Cortex-A53/A72 STM32H7
Price $400+ ~$100
OS Industrial Linux Bare metal/Arduino
Protocols Full industrial stack Modbus, OPC UA
I/O Expansion modules 8 DI, 4 relay
Target Enterprise IIoT Small-scale automation
Learning Curve High Medium

1591.5 Knowledge Check

Question 1: An industrial automation project requires interfacing with existing Modbus RTU devices and controlling 24V relays in harsh environment (-20°C to +60°C). Which kit is MOST appropriate?

Arduino Opta is purpose-built for industrial automation: RS-485 interface for Modbus RTU, 8 digital inputs (24V industrial voltage), 4 relay outputs (250V AC switching), wide temperature range (-20°C to +55°C), DIN-rail mounting (standard industrial enclosures), industrial certifications. Programs in Arduino IDE or IEC 61131-3 PLC languages. Consumer-grade Arduino/Raspberry Pi lack: industrial voltage inputs, relay drivers, temperature rating, certification, ruggedized design. Breadboards fail in vibration/temperature extremes.

1591.6 Wearable and Health Monitoring Kits

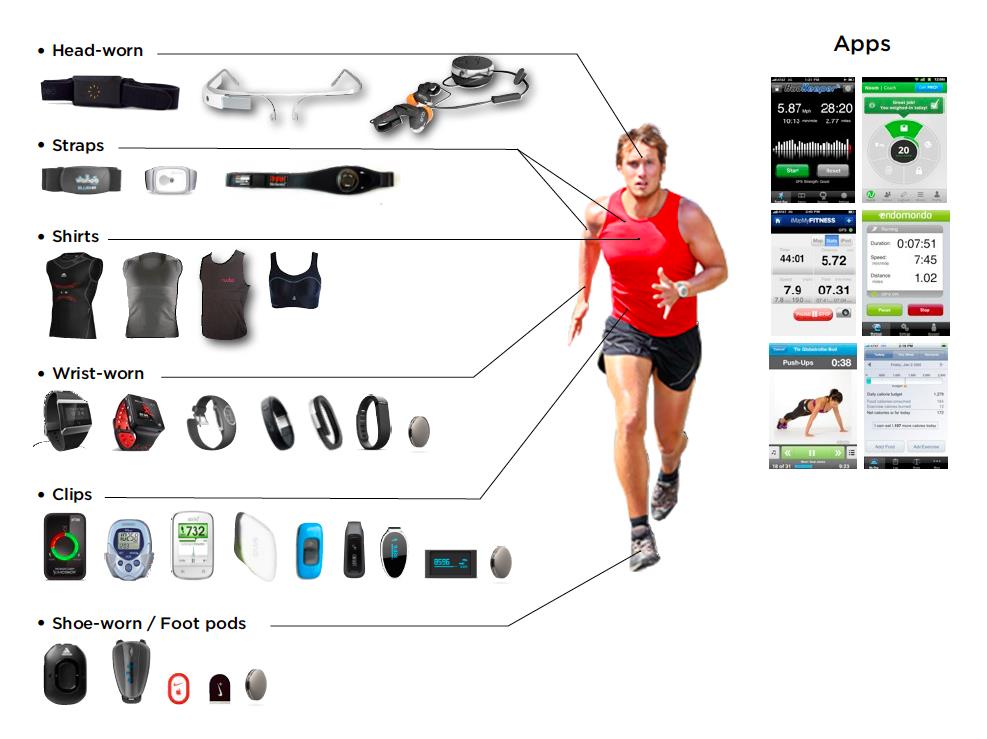

Comprehensive visual taxonomy of wearable IoT devices for fitness and health monitoring. The image is organized into six categories by body placement, each showing multiple commercial product examples: Head-worn devices include headbands and smart glasses. Straps section shows chest-mounted heart rate monitors from Polar and Garmin. Shirts category displays smart clothing with embedded sensors including OMsignal and Hexoskin biometric shirts. Wrist-worn devices include smartwatches (Apple Watch, Fitbit, Garmin) and fitness bands. Clips section shows waist and pocket-mounted devices like Fitbit One and Misfit. Shoe-worn/Foot pods include Nike+, Stryd, and various running dynamics sensors. On the right side, a runner figure demonstrates typical device placement, with smartphone app screenshots showing fitness tracking interfaces from RunKeeper, Endomondo, and workout tracking apps. This taxonomy is essential for prototyping decisions when designing wearable IoT products.

Comprehensive taxonomy of wearable IoT device form factors organized by body placement - head-worn, straps, shirts, wrist-worn, clips, and shoe-worn devices with companion mobile apps

Source: University of Edinburgh - Principles and Design of IoT Systems. This taxonomy helps prototypers understand the full landscape of wearable form factors when designing new wearable IoT products.

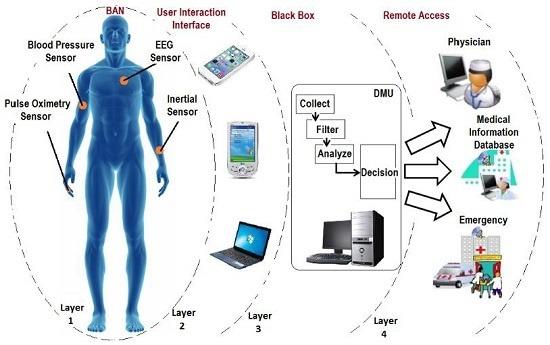

Diagram illustrating a complete Body Area Network (BAN) architecture for healthcare IoT applications. The system is organized into four distinct layers: Layer 1 (leftmost) shows a human body with attached biomedical sensors including blood pressure sensor, pulse oximetry sensor, EEG sensor on head, and inertial sensor on limbs. Layer 2 shows user interaction devices including smartphones and PDAs for local data display and user interface. Layer 3 depicts the Black Box containing a Decision Management Unit (DMU) with four processing stages: Collect, Filter, Analyze, and Decision, connected to desktop computer for data aggregation. Layer 4 (rightmost) shows Remote Access connections to three endpoints: Physician for medical consultation, Medical Information Database for health records storage, and Emergency services (ambulance icon) for critical alerts. Arrows show data flow from body sensors through processing to remote healthcare providers. This architecture is fundamental for designing wearable health monitoring prototyping kits.

Four-layer Body Area Network (BAN) architecture for health monitoring showing sensor layer, user interface, data processing, and remote access including physician and emergency services

Source: University of Edinburgh - Principles and Design of IoT Systems. This BAN architecture illustrates the complete system design needed for health monitoring wearables - from body sensors through local processing to cloud connectivity.

1591.6.1 LilyPad Arduino Wearable Kit

Description: Sew-able electronics platform for wearable projects.

Components: - LilyPad Arduino main board - LED modules - Accelerometer - Light sensor - Conductive thread - Battery holder

Development: - Arduino IDE - Specialized wearable libraries - Low-power modes

Use Cases: - E-textiles - Wearable art - Fashion tech - Educational wearables

Strengths: - Sew-able design - Washable components - Creative applications - Beginner-friendly

Limitations: - Limited processing power - Basic sensors - Durability concerns

1591.6.2 Maxim Integrated Health Sensor Platform

Description: Medical-grade health monitoring development kit.

Components: - MAX32664 biometric hub - MAX30101 heart rate/SpO2 sensor - MAX30205 temperature sensor - MAX32630 microcontroller - Accelerometer - Bluetooth

Development: - mbed OS - Algorithm library - Mobile app SDKs

Use Cases: - Health wearables - Fitness trackers - Medical device prototypes - Clinical research

Strengths: - Medical-grade sensors - Validated algorithms - Low power - FDA-quality components

Limitations: - Expensive - Complex integration - Regulatory considerations

1591.6.3 Wearable Kit Comparison

Feature LilyPad Arduino Maxim Health Platform
Target E-textiles, fashion Medical/fitness
Sensors Basic (light, motion) Medical-grade (HR, SpO2)
Price $50-100 $200-400
Form Factor Sew-able Module-based
Algorithms DIY Validated
Regulatory Consumer FDA-pathway

Question 2: An entrepreneur wants to prototype a wearable health monitor that tracks heart rate, SpO2, and temperature. They have firmware expertise but limited electronics knowledge. Which kit minimizes hardware complexity?

Maxim Health Sensor Platform integrates MAX30101 (heart rate/SpO2), MAX30205 (temperature), biometric hub, and validated algorithms - eliminating sensor selection, circuit design, and signal processing complexity. Medical-grade sensors meet clinical accuracy requirements. Validated algorithms save months of DSP development. Platform includes reference designs for production transition. ESP32 + breadboard requires selecting sensors, designing analog conditioning circuits, and developing signal processing. LilyPad emphasizes e-textiles (sewing) over medical accuracy. Custom PCB requires months of electronics design expertise.

1591.7 Industrial vs Wearable Considerations

%%{init: {'theme': 'base', 'themeVariables': {'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D'}}}%%

flowchart TD
    Start(["Application Domain?"]) --> Domain{"Environment?"}

    Domain -->|"Factory/Industrial"| IND["Industrial Kit"]
    Domain -->|"Body-worn"| WEAR["Wearable Kit"]

    IND --> Scale{"Scale/Budget?"}
    Scale -->|"Enterprise ($400+)"| SIEM["Siemens IOT2050<br/>Full industrial stack"]
    Scale -->|"Small-scale (~$100)"| OPTA["Arduino Opta<br/>Micro-PLC"]

    WEAR --> App{"Application?"}
    App -->|"Fashion/Art"| LILY["LilyPad Arduino<br/>Sew-able"]
    App -->|"Health/Medical"| MAX["Maxim Health<br/>Medical-grade"]

    style Start fill:#2C3E50,stroke:#16A085,color:#fff
    style SIEM fill:#7F8C8D,stroke:#2C3E50,color:#fff
    style OPTA fill:#16A085,stroke:#2C3E50,color:#fff
    style LILY fill:#E67E22,stroke:#2C3E50,color:#fff
    style MAX fill:#16A085,stroke:#2C3E50,color:#fff

Figure 1591.1: Decision flowchart for choosing between industrial and wearable kits based on deployment environment, scale, and application type.

1591.7.1 Key Differences

Aspect Industrial Kits Wearable Kits
Environment Factory, harsh Body-worn, personal
Temperature -20°C to +60°C Ambient (body temp)
Power Mains/industrial Battery (small)
Size DIN rail modules Miniaturized
Protocols Modbus, OPC UA BLE, proprietary
Certification Industrial (CE, UL) Medical (FDA, CE)
Durability Vibration, EMI Water, sweat

1591.8 Regulatory Considerations

1591.8.1 Industrial Certifications

Industrial IoT kits targeting production must address:

  • CE Marking (Europe): Electromagnetic compatibility, safety
  • UL Listing (North America): Safety certification
  • IEC 61131 compliance for PLC programming
  • ATEX/IECEx for hazardous environments

Kit Advantage: Pre-certified kits (Arduino Opta, Siemens IOT2050) include certifications, saving months of testing.

1591.8.2 Medical Device Regulations

Health monitoring wearables face additional requirements:

  • FDA 510(k) (US): Medical device clearance
  • CE Medical (Europe): Medical device directive
  • Clinical validation: Algorithm accuracy studies
  • Data privacy: HIPAA, GDPR compliance

Kit Advantage: Maxim Health Platform uses FDA-quality sensors and validated algorithms, providing a foundation for regulatory submissions.

WarningRegulatory Disclaimer

Prototyping kits are for development and research. Production medical devices require formal regulatory submissions, clinical validation, and quality management systems. Consult regulatory experts before commercializing health monitoring products.

1591.9 Summary

  • Siemens IOT2050 provides enterprise-grade industrial edge computing with Linux, Docker, real-time capability, and comprehensive industrial protocol support for factory automation and predictive maintenance
  • Arduino Opta offers accessible industrial automation with Arduino ecosystem familiarity, RS-485/Modbus support, relay outputs, and DIN rail mounting at a competitive price point
  • LilyPad Arduino enables creative wearable projects with sew-able, washable components for e-textiles, fashion tech, and educational applications
  • Maxim Integrated Health Sensor Platform provides medical-grade sensors (heart rate, SpO2, temperature) with validated algorithms for health monitoring prototypes targeting FDA-quality accuracy
  • Industrial kits emphasize harsh environment operation, industrial protocols, and safety certifications, while wearable kits emphasize miniaturization, low power, and body-worn comfort
  • Regulatory considerations differ significantly: industrial kits focus on CE/UL safety certifications, while medical wearables require FDA/CE medical device pathways

1591.10 What’s Next

The next chapter covers AI, Wireless, and Energy Harvesting Kits, exploring computer vision platforms, wireless communication kits, and energy harvesting solutions for battery-free IoT deployments.
