292  SDN for IoT: Variants and Challenges

292.1 Learning Objectives

By the end of this chapter, you will be able to:

• Understand TCAM Constraints: Explain flow table memory limitations and their impact on SDN deployments
• Design Rule Placement Strategies: Apply wildcard rules and hierarchical aggregation to optimize TCAM usage
• Address Scalability Challenges: Plan SDN architectures that handle large numbers of IoT devices
• Implement Caching Strategies: Select appropriate rule eviction algorithms (LRU, LFU, timeout-based)
• Evaluate Hybrid Approaches: Combine TCAM with DRAM for handling overflow scenarios
• Optimize Controller Communication: Minimize PACKET_IN messages to improve SDN performance

292.2 Prerequisites

Before diving into this chapter, you should be familiar with:

• SDN Fundamentals and OpenFlow: Understanding the basic SDN architecture, control/data plane separation, and OpenFlow protocol is essential for grasping the challenges and optimization strategies
• SDN Analytics and Implementations: Knowledge of traffic engineering, network slicing, and flow rule programming provides context for understanding TCAM constraints and rule placement strategies
• Wireless Sensor Networks: Familiarity with resource-constrained devices helps understand SD-WSN adaptations and energy-aware routing challenges
• Networking Basics: Understanding routing protocols, network topologies, and packet forwarding provides the foundation for evaluating SDN variants

TipFor Beginners: SDN Challenges and Trade-offs

SDN sounds perfect - centralized control, programmable networks, dynamic optimization. But like any powerful technology, it has real-world constraints. The biggest challenge? Network switches have limited memory for storing forwarding rules, like a restaurant having only 20 recipe cards even though the menu has 1000 dishes. The controller must decide which rules to keep and which to fetch on-demand.

Everyday Analogy: Imagine a library where you can only keep 100 books on shelves (TCAM - fast access), but own 10,000 books total in storage (slower access). When someone requests a book not on the shelf, you must fetch it from storage (slow), decide which shelf book to remove, and place the new book on the shelf. SDN faces the same challenge - switches have limited fast memory (TCAM) for flow rules, so the controller must smartly manage which rules stay cached.

Term	Simple Explanation
TCAM (Fast Memory)	Special expensive memory in switches for instant packet lookup (but very limited)
Flow Rule	An instruction telling the switch what to do with specific traffic
Rule Caching	Keeping frequently-used rules in fast memory, like browser caching websites
Controller Bottleneck	When too many switches ask the controller for help simultaneously, causing delays
Network Slicing	Dividing one physical network into multiple virtual networks for different uses
Scalability	How well the system handles growth from 100 to 10,000 devices

Why This Matters for IoT: A smart city with 100,000 IoT sensors can’t store rules for every device in switch memory. The SDN controller must be clever: use wildcard rules (one rule matching many devices), prioritize critical flows (fire alarms over temperature logs), and cache rules intelligently. Understanding these challenges prevents overloading the network controller and ensures your IoT system scales reliably.

NoteRelated Chapters

Deep Dives: - SDN Fundamentals and OpenFlow - OpenFlow basics and flow tables - SDN Controller Basics - Controller architecture and APIs

Protocols: - Wireless Sensor Networks - Resource-constrained devices - Routing Fundamentals - Traditional routing

Architecture: - Software Defined Networking - SDN overview - Edge Computing Patterns - Edge-SDN integration

Comparisons: - M2M Review - M2M vs SDN approaches - Ad-hoc Networks - Distributed vs centralized control

Production: - SDN Production and Analytics - Deployment strategies - Network Design and Simulation - SDN testing

Learning: - Simulations Hub - SDN simulators

292.3 SDN Challenges

⏱️ ~12 min | ⭐⭐⭐ Advanced | 📋 P04.C29.U01

292.3.1 Rule Placement Challenge

Figure 292.1: Rule placement strategies in SDN switches for efficient flow management

Figure 292.2: Rule placement challenges including TCAM limitations and update consistency

Problem: Switches have limited TCAM (Ternary Content-Addressable Memory) for storing flow rules.

TCAM Characteristics: - Fast lookup (single clock cycle) - Expensive ($15-30 per Mb) - Limited capacity (few thousand entries) - Power-hungry

Challenges: - How to select which flows to cache in TCAM? - When to evict rules (LRU, LFU, timeout-based)? - How to minimize PACKET_IN messages to controller?

Solutions: - Wildcard Rules: Match multiple flows with single rule - Hierarchical Aggregation: Aggregate at network edge - Rule Caching: Intelligent replacement algorithms - Hybrid Approaches: TCAM + DRAM for overflow

292.3.2 Controller Placement Challenge

Figure 292.3: Flat SDN architecture with single controller tier

Figure 292.4: Hierarchical SDN architecture with multi-tier controller deployment

Figure 292.5: Mesh SDN architecture with distributed controller interconnection

Figure 292.6: Ring SDN architecture for resilient controller connectivity

Problem: Where to place controllers for optimal performance?

Considerations: - Latency: Controller-switch delay affects flow setup time - Throughput: Controller capacity (requests/second) - Reliability: Controller failure impacts network - Scalability: Number of switches per controller

Architectures:

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D'}}}%%
graph TB
    subgraph Flat[Flat Architecture]
        F_C[Single Controller]
        F_S1[Switch 1]
        F_S2[Switch 2]
        F_S3[Switch 3]
        F_C --> F_S1
        F_C --> F_S2
        F_C --> F_S3
    end
    subgraph Hierarchical[Hierarchical Architecture]
        H_Root[Root Controller]
        H_C1[Local Controller 1]
        H_C2[Local Controller 2]
        H_S1[Switches]
        H_S2[Switches]
        H_Root --> H_C1
        H_Root --> H_C2
        H_C1 --> H_S1
        H_C2 --> H_S2
    end
    subgraph Distributed[Distributed Architecture]
        D_C1[Controller 1]
        D_C2[Controller 2]
        D_C3[Controller 3]
        D_C1 <--> D_C2
        D_C2 <--> D_C3
        D_C3 <--> D_C1
    end
    style Flat fill:#2C3E50,color:#fff
    style Hierarchical fill:#16A085,color:#fff
    style Distributed fill:#E67E22,color:#fff

Figure 292.7: SDN Controller Placement Architectures: Flat, Hierarchical, and Distributed Models

Alternative View:

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D'}}}%%
flowchart TB
    subgraph Problem["TCAM Capacity Challenge"]
        TCAM["Switch TCAM<br/>2,000 rules max"]
        FLOWS["IoT Traffic<br/>50,000 flows/hour"]
        OVERFLOW["Overflow!<br/>48,000 rules can't fit"]
    end

    subgraph Solution["Intelligent Rule Management"]
        WILD["Wildcard Rules<br/>1 rule = 1000 flows"]
        CACHE["LRU Caching<br/>Hot flows stay"]
        HYBRID["TCAM + DRAM<br/>Overflow to software"]
    end

    subgraph Result["Optimized Operation"]
        FAST["TCAM: Critical flows<br/><1μs lookup"]
        SLOW["DRAM: Bulk flows<br/>~10μs lookup"]
        CTRL["Controller: New flows<br/>~10ms setup"]
    end

    TCAM --> OVERFLOW
    FLOWS --> OVERFLOW
    OVERFLOW -->|"Apply"| WILD
    OVERFLOW -->|"Apply"| CACHE
    OVERFLOW -->|"Apply"| HYBRID
    WILD --> FAST
    CACHE --> FAST
    HYBRID --> SLOW
    SLOW -.-> CTRL

    style Problem fill:#c0392b,color:#fff
    style Solution fill:#16A085,color:#fff
    style Result fill:#2C3E50,color:#fff
    style OVERFLOW fill:#E67E22,color:#fff

Figure 292.8: Problem-solution flow showing the TCAM capacity challenge (2,000 rules vs 50,000 flows) and the three mitigation strategies: wildcard aggregation, LRU caching, and hybrid TCAM/DRAM. The result is tiered lookup performance with critical flows achieving sub-microsecond forwarding while bulk traffic uses software paths.

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D'}}}%%
graph LR
    subgraph Flat["Flat: 1 Controller"]
        F_P["Pros:<br/>Simple, Low cost"]
        F_C["Cons:<br/>Single point of failure<br/>Limited scalability<br/>High latency at edges"]
        F_Use["Use: <100 switches<br/>Small campus"]
    end

    subgraph Hier["Hierarchical: Root + Local"]
        H_P["Pros:<br/>Local decisions fast<br/>Global coordination<br/>Scalable"]
        H_C["Cons:<br/>Complex sync<br/>Root = bottleneck"]
        H_Use["Use: Multi-site<br/>Smart city districts"]
    end

    subgraph Dist["Distributed: Peer Controllers"]
        D_P["Pros:<br/>No single failure<br/>Load balanced<br/>Geo-distributed"]
        D_C["Cons:<br/>Consistency challenges<br/>Complex consensus"]
        D_Use["Use: >1000 switches<br/>Carrier/enterprise"]
    end

    style Flat fill:#2C3E50,color:#fff
    style Hier fill:#16A085,color:#fff
    style Dist fill:#E67E22,color:#fff

Figure 292.9: Alternative view: Trade-off comparison showing pros, cons, and appropriate use cases for each architecture. Flat suits small deployments (<100 switches). Hierarchical enables multi-site coordination with local responsiveness. Distributed provides carrier-grade reliability but requires complex consensus protocols. This decision-oriented view helps architects select appropriate placement based on scale and reliability requirements.

Placement Strategies: - K-median: Minimize average latency to switches - K-center: Minimize maximum latency (worst-case) - Failure-aware: Ensure backup controller coverage

---

292.4 SDN for IoT

⏱️ ~10 min | ⭐⭐ Intermediate | 📋 P04.C29.U02

Figure 292.10: SDN in IoT architecture showing centralized control for heterogeneous IoT devices

SDN brings significant benefits to IoT networks:

1. Intelligent Routing - Dynamic path computation based on IoT traffic patterns - Energy-aware routing for battery-powered devices - Priority-based forwarding (critical alarms vs routine telemetry)

2. Simplified Management - Centralized view of heterogeneous IoT devices - Programmatic configuration via APIs - Rapid service deployment

3. Network Slicing - Logical network per IoT application - Isolation between applications - Custom QoS per slice

TipUnderstanding Network Slicing

Core Concept: Network slicing creates multiple independent virtual networks on the same physical infrastructure, each with dedicated resources, isolated traffic, and custom policies - like having separate highways for trucks, cars, and emergency vehicles on the same road surface. Why It Matters: IoT deployments serve diverse applications with conflicting requirements - a fire alarm needs guaranteed low latency while a temperature sensor can tolerate delays. Network slicing ensures critical traffic gets dedicated bandwidth and priority without building separate physical networks for each use case. Key Takeaway: When designing network slices, define clear isolation boundaries (VLAN tags, MPLS labels, or VxLAN tunnels), allocate minimum guaranteed bandwidth per slice, and implement slice-aware admission control to prevent one slice from consuming resources allocated to another.

4. Traffic Engineering - Real-time adaptation to congestion - Load balancing across paths - Bandwidth allocation per IoT service

5. Enhanced Security - Centralized access control - Dynamic firewall rules - Anomaly detection via flow monitoring

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D'}}}%%
graph TB
    subgraph IoT[IoT Devices]
        Sensors[Sensors]
        Actuators[Actuators]
        Gateways[Gateways]
    end
    subgraph SDN[SDN Control Plane]
        Controller[SDN Controller]
        Router[Intelligent Routing]
        QoS[QoS Manager]
        Security[Security Manager]
    end
    subgraph Apps[Applications]
        SmartCity[Smart City]
        Industrial[Industrial IoT]
        Healthcare[Healthcare]
    end
    IoT --> SDN
    SDN --> Apps
    Controller --> Router
    Controller --> QoS
    Controller --> Security
    style IoT fill:#2C3E50,color:#fff
    style SDN fill:#16A085,color:#fff
    style Apps fill:#E67E22,color:#fff

Figure 292.11: SDN-IoT Integration Architecture with Device, Control, and Application Layers

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D'}}}%%
sequenceDiagram
    participant Sensor as IoT Sensor
    participant Switch as OpenFlow Switch
    participant Ctrl as SDN Controller
    participant App as Smart City App

    Note over Sensor,App: Scenario: Fire Alarm Priority Routing

    Sensor->>Switch: Fire alarm packet
    Switch->>Ctrl: PACKET_IN (new flow)
    Ctrl->>Ctrl: Classify: CRITICAL<br/>Compute fastest path<br/>Reserve bandwidth

    Ctrl->>Switch: Install high-priority rule<br/>Output: fast path to cloud

    Note over Switch: Flow table updated:<br/>Fire alarm → Priority 7<br/>Dedicated bandwidth

    Switch->>App: Alarm delivered <50ms
    App->>Ctrl: Acknowledge
    Ctrl->>Ctrl: Log for anomaly detection

    Note over Sensor,App: Regular Telemetry (Different Treatment)

    Sensor->>Switch: Temperature reading
    Note over Switch: Match: telemetry → Priority 1<br/>Best-effort queue
    Switch->>App: Delivered when capacity available

Figure 292.12: Alternative view: Sequence showing how SDN enables intelligent IoT traffic handling. Fire alarm (critical) triggers priority routing with reserved bandwidth and <50ms delivery. Regular telemetry uses best-effort queuing. This operational view demonstrates SDN’s differentiated service capability - impossible with traditional static routing.

---

292.5 Software-Defined WSN

⏱️ ~10 min | ⭐⭐⭐ Advanced | 📋 P04.C29.U03

Traditional WSNs are resource-constrained and vendor-specific, making dynamic reconfiguration difficult. SD-WSN applies SDN principles to wireless sensor networks.

292.5.1 Sensor OpenFlow

Concept: Adapt OpenFlow for resource-constrained sensor nodes.

Forwarding Modes: - ID-Centric: Route based on source node ID - Value-Centric: Route based on sensed value threshold - Example: Forward only if temperature > 30°C

Benefits: - Dynamic routing logic without firmware updates - Application-specific forwarding policies - Centralized network control

292.5.2 Soft-WSN

Features:

1. Sensor Management - Enable/disable sensors dynamically - Multi-sensor boards: activate subset based on application

2. Delay Management - Adjust sensing frequency in real-time - Balance freshness vs energy consumption

3. Active-Sleep Management - Dynamic duty cycling - Coordinated sleep schedules

4. Topology Management - Node-specific: Change routing at individual nodes - Network-wide: Broadcast policies (forward all, drop all)

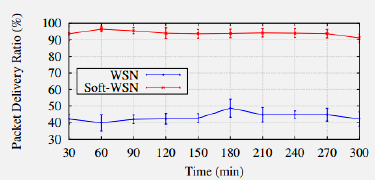

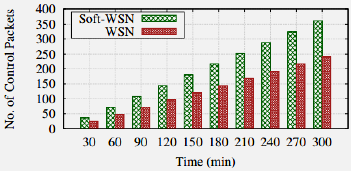

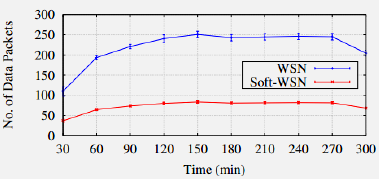

Results: - Packet Delivery Ratio: +15-20% improvement over traditional WSN - Data Replication: -30-40% reduced redundant packets - Control Overhead: +10-15% increased due to PACKET_IN messages - Net Benefit: Overall efficiency gain despite control overhead

292.5.3 SDN-WISE

Architecture:

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D'}}}%%
graph TB
    subgraph Controller[SDN-WISE Controller]
        Logic[Network Logic]
        FlowMgr[Flow Manager]
        Topo[Topology Manager]
    end
    subgraph WSN[Sensor Network]
        N1[Sensor Node 1<br/>Flow Table]
        N2[Sensor Node 2<br/>Flow Table]
        N3[Sensor Node 3<br/>Flow Table]
        Sink[Sink Node]
    end
    Controller <-->|SDN-WISE Protocol| Sink
    Sink --> N1
    N1 --> N2
    N2 --> N3
    N3 --> Sink
    style Controller fill:#2C3E50,color:#fff
    style WSN fill:#16A085,color:#fff
    style Sink fill:#E67E22,color:#fff

Figure 292.13: SDN-WISE Architecture for Software-Defined Wireless Sensor Networks

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D'}}}%%
flowchart TD
    subgraph Traditional["Traditional OpenFlow Matching"]
        T_PKT["Packet Header"] --> T_MATCH["Match: IP, Port, VLAN"]
        T_MATCH --> T_ACT["Action: Forward/Drop"]
        T_Note["Cannot inspect payload content"]
    end

    subgraph ValueCentric["SDN-WISE Value-Centric Matching"]
        V_PKT["Sensor Packet"] --> V_HDR["Match Header:<br/>Source Node ID"]
        V_PKT --> V_VAL["Match Payload:<br/>temperature > 30C?"]
        V_HDR --> V_DEC{Decision}
        V_VAL --> V_DEC
        V_DEC -->|"Critical"| V_ALERT["Forward to<br/>Emergency Handler"]
        V_DEC -->|"Normal"| V_AGG["Forward to<br/>Aggregator"]
    end

    subgraph Benefits["WSN Benefits"]
        B1["In-Network Filtering:<br/>Reduce 70% traffic"]
        B2["Content-Based Routing:<br/>Semantic forwarding"]
        B3["Energy Savings:<br/>Don't transmit irrelevant data"]
    end

    T_Note -.->|"SDN-WISE Extends"| V_VAL
    V_ALERT --> B1
    V_AGG --> B2
    B1 --> B3

    style Traditional fill:#7F8C8D,color:#fff
    style ValueCentric fill:#16A085,color:#fff
    style Benefits fill:#E67E22,color:#fff
    style V_ALERT fill:#c0392b,color:#fff

Figure 292.14: Alternative view: Comparison of traditional OpenFlow (header-only matching) vs SDN-WISE value-centric forwarding. Traditional SDN can only match packet headers (IP, port, VLAN). SDN-WISE extends matching to sensor payload content, enabling rules like “IF temperature > 30C THEN forward to emergency handler”. This semantic routing reduces network traffic by 70% through in-network filtering and enables content-aware forwarding critical for resource-constrained WSN deployments.

Key Features: - Flow tables adapted for sensor constraints - In-Network Packet Processing (INPP) for local computation - Programmable via any language through API - IEEE 802.15.4 compatible

---

292.6 SDN for Mobile Networks

⏱️ ~12 min | ⭐⭐⭐ Advanced | 📋 P04.C29.U04

Figure 292.15: SDN for mobile networking architecture enabling flexible mobility management

Figure 292.16: ANDSF (Access Network Discovery and Selection Function) in SDN mobile architecture

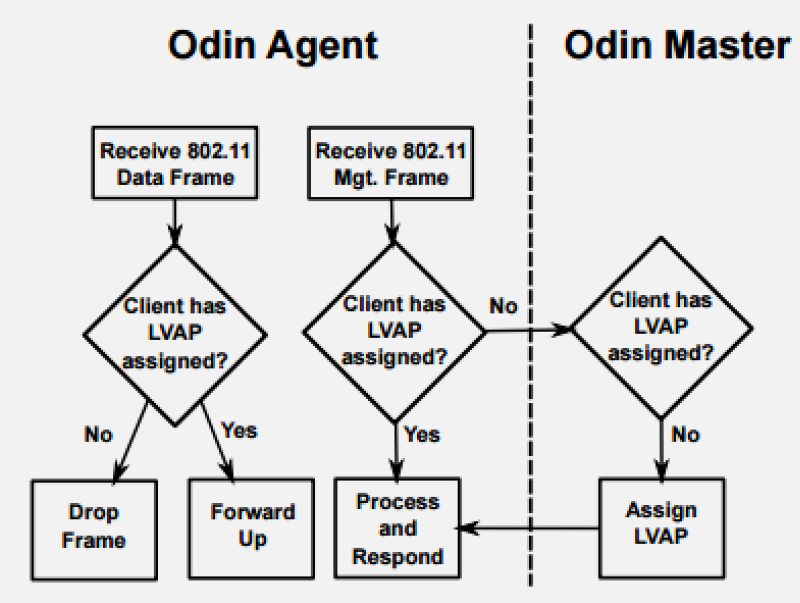

Traditional mobile networks (3G/4G/5G) face challenges: difficult to scale, inflexible, expensive. SDN addresses these:

Benefits:

1. Flow Table Paradigm - Seamless end-to-end communication across Wi-Fi, 3G, 4G, 5G - Unified forwarding model

2. Centralized Control - Base station coordination for interference mitigation - Efficient handoff management

3. Path Management - Route based on service requirements (latency, bandwidth) - Independent of core routing policies

4. Network Virtualization - Network slicing: dedicated slice per service type - Service differentiation: premium vs best-effort

Applications:

Mobile Traffic Offloading: - Intelligently offload from cellular to Wi-Fi - Based on user preferences, QoS requirements, network load - SDN controller coordinates: ANDSF (Access Network Discovery and Selection Function)

292.6.1 Mobility-Aware SDN

292.6.1.1 ODIN

Figure 292.17: ODIN: SDN-based enterprise WLAN with virtual AP support for mobility management

Figure 292.18: ODIN components showing ODIN Master controller and ODIN Agents on access points

Figure 292.19: Ubi-Flow: Scalable mobility management in software-defined IoT networks

Figure 292.20: Mobi-Flow: Proactive flow rule placement based on mobility prediction

Figure 292.21: Mobi-Flow operation showing predictive flow installation and handoff optimization

Concept: SDN-based enterprise WLAN with mobility support.

Components: - ODIN Agent: Runs on access points - ODIN Master: Runs on controller

Features: - Light Virtual APs: Multiple virtual APs per physical AP - Client association control - Seamless handoff

292.6.1.2 Ubi-Flow

Focus: Mobility management in SD-IoT.

Features: - Scalable AP control - Fault tolerance - Flow scheduling: - Network partitioning - Load balancing - Network matching

292.6.1.3 Mobi-Flow

Concept: Proactive flow rule placement based on mobility prediction.

Approach: 1. Predict user location at time t+1 using Order-K Markov predictor 2. Install flow rules at predicted APs before user arrives 3. Minimize PACKET_IN messages and handoff delay

Results: - 30-40% reduction in control message overhead - 20-30% energy savings at mobile devices - Improved QoS (lower latency)

---

292.7 SDN for Data Centers

⏱️ ~8 min | ⭐⭐ Intermediate | 📋 P04.C29.U05

Figure 292.22: SDN performance result 1 showing latency improvements

Figure 292.23: SDN performance result 2 showing throughput comparison

Figure 292.24: SDN performance result 3 showing energy efficiency gains

Data centers handle diverse traffic patterns:

Mice Flows: - Short-lived (< 10s) - Small size (< 1 MB) - Latency-sensitive - SDN Strategy: Wildcard rules for fast processing

Elephant Flows: - Long-lived (minutes to hours) - Large size (> 100 MB) - Throughput-sensitive - SDN Strategy: Exact-match rules with dedicated paths

Flow Classification: - Monitor initial packets to classify flow type - Install appropriate rules dynamically - Load balancing: distribute elephants across paths

---

292.8 Knowledge Check

Test your understanding of these architectural concepts.

NoteQuiz: SDN for Data Centers

Question 1: A smart factory has 1000 IoT sensors generating periodic data. The SDN controller calculates energy-efficient routes avoiding low-battery nodes. What is the primary scalability challenge?

💡 Explanation: SDN’s centralized control creates a scalability bottleneck: When a switch receives a packet with no matching flow rule, it sends PACKET_IN to the controller, asking “what should I do with this?”. The controller calculates the route and sends FLOW_MOD messages to install rules along the path. With 1000 sensors × periodic traffic, the controller could receive thousands of PACKET_INs per second, overwhelming its processing capacity and causing delays. Impact: Controller CPU saturated processing flow requests. Network latency increases (first packet of each flow delayed waiting for controller). Controller becomes single point of failure. Mitigations: (1) Proactive rules: Controller pre-installs flow rules before traffic arrives (eliminates PACKET_INs but requires predicting flows). (2) Distributed controllers: Multiple controllers divide workload. (3) Edge computing: Local switches handle routine decisions, controller only for complex policies. (4) Flow aggregation: Wildcard rules matching multiple flows (e.g., “forward all 192.168.1.0/24 to port5”) reduce rule count. Modern switches can store thousands-to-millions of rules, but controller processing, not switch capacity, is the bottleneck.

Question 2: An SDN-enabled switch has a TCAM with capacity for 2,000 exact-match rules. Traffic analysis shows 50,000 unique flows per hour. Which strategy best addresses this TCAM limitation?

💡 Explanation: TCAM (Ternary Content-Addressable Memory) is expensive, power-hungry, and has limited capacity. When flows exceed TCAM capacity, the solution is hierarchical rule placement: Use wildcard rules (e.g., match on destination prefix 10.0.0.0/8) to handle most traffic with few rules, while exact-match rules are reserved for high-priority or elephant flows. LRU (Least Recently Used) caching dynamically evicts stale rules to make room for active flows. This hybrid approach achieves both fine-grained control for critical traffic and efficient handling of bulk traffic. Simply upgrading TCAM is prohibitively expensive at scale, and switches cannot automatically handle overflow without explicit rule management.

Question 3: In SD-WSN (Software-Defined Wireless Sensor Networks), SDN-WISE introduces “value-centric” forwarding. What does this mean compared to traditional OpenFlow address-based matching?

💡 Explanation: SDN-WISE (Software-Defined Wireless Sensor Networks - WISE) extends SDN for resource-constrained sensors. Traditional OpenFlow matches packets based on header fields (IP addresses, ports, VLANs). SDN-WISE introduces value-centric forwarding where rules can match on payload content - the actual sensor readings. For example: “IF temperature_reading > 30C THEN forward to emergency aggregator” or “IF humidity < 20% THEN trigger irrigation controller”. This is critical for WSN because: (1) Sensors generate data that needs content-based processing, (2) Header-only matching cannot express application semantics, (3) In-network filtering reduces traffic by dropping irrelevant data at source. Value-centric forwarding enables semantic routing where the meaning of data, not just its addressing, determines forwarding behavior.

Question 4: A mobile SDN deployment for IoT uses ODIN (Open Infrastructure for Devices in Networks) for seamless Wi-Fi handoffs. What is the key architectural feature that enables handoff without connection interruption?

💡 Explanation: ODIN introduces Light Virtual Access Points (LVAPs) - virtual abstractions that represent a client’s Wi-Fi association state (BSSID, authentication, encryption keys, traffic queues). In traditional Wi-Fi, handoff requires the client to detect weak signal, scan for new AP, authenticate, and re-establish connection - causing 100-500ms interruption. With ODIN’s LVAP architecture: (1) The SDN controller monitors signal strength and predicts imminent handoffs, (2) When handoff is needed, the controller migrates the LVAP from physical AP1 to physical AP2, (3) The LVAP carries all client state, so no re-authentication is needed, (4) The client continues transmitting without awareness of the physical AP change. This achieves sub-10ms handoffs - seamless for real-time IoT applications like voice, video, and industrial control. The controller’s global view enables optimal handoff decisions based on network-wide load balancing, not just local signal strength.

Question 5: In data center SDN, traffic is classified into “mice flows” and “elephant flows”. Why is this distinction important for SDN traffic engineering?

💡 Explanation: Data center traffic exhibits a bimodal distribution: Mice flows are short-lived (milliseconds), small (<10KB), and latency-sensitive (e.g., database queries, API calls) - they represent 80% of flows but only 10% of bytes. Elephant flows are long-lived (minutes to hours), large (>100MB), and throughput-sensitive (e.g., VM migration, backup, MapReduce shuffles) - they represent 10% of flows but 80% of bytes. SDN traffic engineering treats them differently: Mice flows use wildcard rules for fast TCAM lookup and immediate forwarding - latency is critical so controller involvement is minimized. Elephant flows get exact-match rules with dedicated paths - the controller identifies elephants (flows lasting >X seconds or >Y bytes) and installs optimized routes that avoid congested links, enabling load balancing across multiple paths. This differentiated handling maximizes both low-latency responsiveness for interactive traffic and high-throughput utilization for bulk transfers.

292.9 Visual Reference Gallery

NoteSDN Architecture Visualizations

These AI-generated figures provide alternative visual representations of SDN concepts covered in this chapter.

292.9.1 SDN Architecture Layers

SDN Architecture Layers

292.9.2 OpenFlow Protocol

OpenFlow Protocol

292.9.3 SDN Controller Design

SDN Controller Design

292.10 Summary

This chapter covered SDN challenges and specialized variants for IoT deployments:

• Rule Placement: TCAM memory limitations require intelligent caching strategies using wildcard rules, hierarchical aggregation, and hybrid TCAM/DRAM approaches
• Controller Placement: Optimal controller positioning balances latency, throughput, reliability, and scalability using flat, hierarchical, or distributed architectures
• SDN for IoT Benefits: Centralized control enables intelligent routing, simplified management, network slicing, traffic engineering, and enhanced security for heterogeneous IoT devices
• Software-Defined WSN: Sensor OpenFlow and SDN-WISE adapt SDN principles to resource-constrained sensors with value-centric forwarding and dynamic duty cycling
• Mobile Network Integration: SDN enables seamless handoff management, mobile traffic offloading, and mobility prediction with systems like ODIN, Ubi-Flow, and Mobi-Flow
• Data Center Optimization: SDN handles mice flows (latency-sensitive) and elephant flows (throughput-sensitive) with flow classification and load balancing

NotePhantom Figure Gallery

The following AI-generated figures provide alternative visual representations of concepts covered in this chapter. These “phantom figures” offer different artistic interpretations to help reinforce understanding.

292.10.1 Additional Figures

Virtualized Gateway

292.11 What’s Next

The next chapter explores UAV: FANETs and Integration, covering flying ad hoc networks, 3D topology routing, gateway selection algorithms, and UAV-VANET integration for aerial IoT systems.
