842  Wi-Fi Standards Evolution: From 802.11b to Wi-Fi 7

Prerequisites: Wi-Fi Overview | Networking Fundamentals

This enables: Wi-Fi Frequency Bands | Wi-Fi Power Consumption

842.1 Learning Objectives

By the end of this chapter, you should be able to:

• Trace the evolution of Wi-Fi from 802.11b (1999) to Wi-Fi 7 (2024)
• Understand key innovations at each generation (MIMO, MU-MIMO, OFDMA, TWT)
• Identify which Wi-Fi standard is appropriate for different IoT applications
• Explain Wi-Fi 6 features that benefit IoT (TWT, OFDMA, BSS Coloring)
• Compare Wi-Fi HaLow (802.11ah) with traditional Wi-Fi for sensor applications
• Select the right Wi-Fi generation based on power, bandwidth, and density requirements

842.2 Wi-Fi Standards Timeline for IoT

Year	Standard	Key Features
1999	802.11b (Wi-Fi 1)	2.4 GHz, 11 Mbps
2003	802.11g (Wi-Fi 3)	2.4 GHz, 54 Mbps
2009	802.11n (Wi-Fi 4)	2.4/5 GHz, 600 Mbps, MIMO support
2013	802.11ac (Wi-Fi 5)	5 GHz, 3.5 Gbps, MU-MIMO
2019	802.11ax (Wi-Fi 6)	2.4/5 GHz, 9.6 Gbps, OFDMA, TWT (IoT optimized)
2024	802.11ax (Wi-Fi 6E)	6 GHz band, Ultra-low latency

842.3 Historical Context: How Wi-Fi Evolved

NoteThe Full Wi-Fi History

Understanding Wi-Fi’s evolution explains why it wasn’t originally designed for IoT - and how recent innovations address those limitations.

Original Problem (1990s): Wired LANs required expensive Ethernet cabling through walls. Businesses wanted laptop mobility without losing network access. The IEEE 802.11 working group formed in 1991 to create a wireless LAN standard.

First Standard (1997): IEEE 802.11 delivered 2 Mbps at 2.4 GHz using FHSS (frequency hopping) or DSSS (direct sequence spread spectrum). Range: ~20 meters. Adoption was limited due to high hardware cost and poor interoperability between vendors.

Speed Race (1999-2009): - 802.11b (1999): 11 Mbps at 2.4 GHz - First mass-market success, “Wi-Fi” trademark created - 802.11a (1999): 54 Mbps at 5 GHz - Higher speed but shorter range, expensive - 802.11g (2003): 54 Mbps at 2.4 GHz - Backward compatible with 802.11b, became ubiquitous - 802.11n / Wi-Fi 4 (2009): 600 Mbps using MIMO (multiple antennas), dual-band (2.4/5 GHz)

Gigabit Era (2013-2019): - 802.11ac / Wi-Fi 5 (2013): 3.5 Gbps at 5 GHz only, MU-MIMO (multi-user), beamforming - 802.11ax / Wi-Fi 6 (2019): 9.6 Gbps, OFDMA (orthogonal frequency division multiple access), Target Wake Time (TWT) for power savings - first standard designed with IoT in mind

IoT Optimizations (2021+): - Wi-Fi 6E (2021): Added 6 GHz band with 1200 MHz new spectrum - eliminates legacy interference - 802.11ah / Wi-Fi HaLow (2016, deployed 2021+): Sub-1 GHz (900 MHz), 1 km range, 100 kbps-86 Mbps, designed specifically for IoT sensors - Wi-Fi 7 / 802.11be (2024): 46 Gbps, 320 MHz channels, Multi-Link Operation

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#ecf0f1', 'fontSize': '12px'}}}%%
timeline
    title Wi-Fi Evolution: From Office LANs to IoT
    section Early Days
        1997 : 802.11 Original
             : 2 Mbps, 2.4 GHz
             : High-cost adapters
        1999 : 802.11b "Wi-Fi Born"
             : 11 Mbps, 2.4 GHz
             : Mass adoption begins
    section Speed Race
        2003 : 802.11g
             : 54 Mbps, 2.4 GHz
             : Backward compatible
        2009 : 802.11n / Wi-Fi 4
             : 600 Mbps, MIMO
             : Dual-band (2.4/5 GHz)
    section Gigabit Era
        2013 : 802.11ac / Wi-Fi 5
             : 3.5 Gbps, MU-MIMO
             : 5 GHz only, beamforming
        2019 : 802.11ax / Wi-Fi 6
             : 9.6 Gbps, OFDMA
             : Target Wake Time (IoT!)
    section IoT Era
        2021 : Wi-Fi 6E + HaLow
             : 6 GHz band, 900 MHz
             : 1 km range for sensors
        2024 : Wi-Fi 7
             : 46 Gbps, MLO
             : Ultra-low latency

Figure 842.1: Wi-Fi Standards Evolution Timeline from 802.11 (1997) to Wi-Fi 7 (2024)

842.4 Comprehensive Standards Comparison

Standard	Marketing Name	Year	Frequency	Max Speed	Channel Width	MIMO	Range	Power Efficiency	IoT Key Features	Best IoT Use Cases
802.11b	Wi-Fi 1	1999	2.4 GHz	11 Mbps	22 MHz	No	Good	Poor	None	Legacy devices only (obsolete)
802.11a	Wi-Fi 2	1999	5 GHz	54 Mbps	20 MHz	No	Medium	Poor	Less interference	Rarely used (5 GHz only)
802.11g	Wi-Fi 3	2003	2.4 GHz	54 Mbps	20 MHz	No	Good	Poor	Backward compatible with 11b	Legacy smart home devices
802.11n	Wi-Fi 4	2009	2.4/5 GHz	600 Mbps	20/40 MHz	Yes (4x4)	Excellent	Moderate	MIMO, frame aggregation	Most common for current IoT devices
802.11ac	Wi-Fi 5	2013	5 GHz	3.5 Gbps	20-160 MHz	Yes (8x8)	Medium	Moderate	MU-MIMO (downlink), beamforming	IP cameras, high-bandwidth IoT
802.11ax	Wi-Fi 6	2019	2.4/5 GHz	9.6 Gbps	20-160 MHz	Yes (8x8)	Excellent	High	TWT (battery), OFDMA, MU-MIMO (bi-directional), BSS Coloring	Modern smart home, battery IoT
802.11ax	Wi-Fi 6E	2020	6 GHz	9.6 Gbps	20-160 MHz	Yes (8x8)	Medium	High	All Wi-Fi 6 + 6 GHz band (no legacy interference)	High-density IoT, industrial
802.11be	Wi-Fi 7	2024	2.4/5/6 GHz	46 Gbps	20-320 MHz	Yes (16x16)	Excellent	Very High	Multi-link operation, 4K-QAM	Future ultra-high-bandwidth IoT

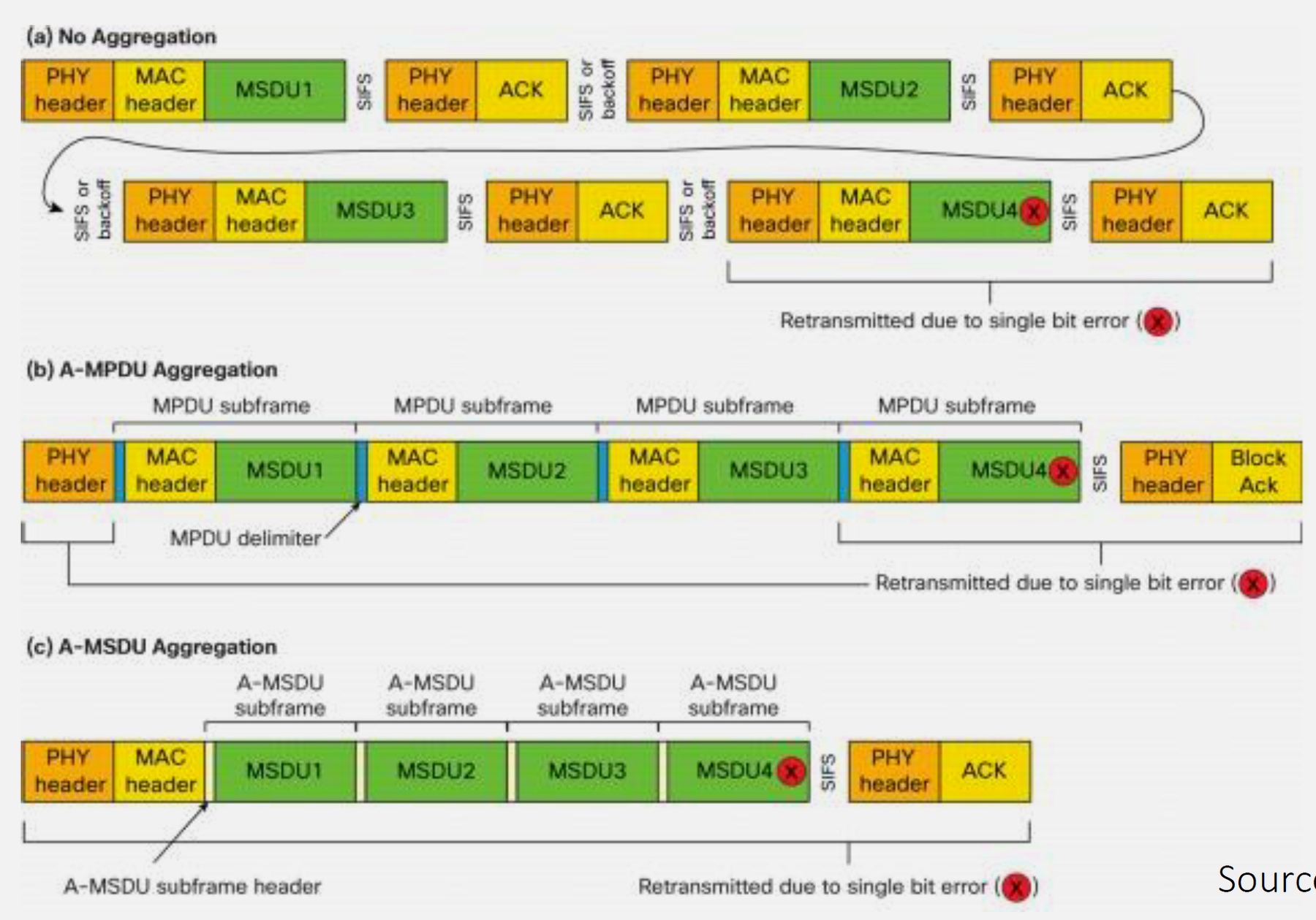

Figure 842.2: 802.11n frame aggregation improving throughput by combining multiple frames

842.5 Wi-Fi 6: The Game-Changer for IoT

ImportantKey Wi-Fi Standard Selection Criteria for IoT

For Battery-Powered IoT Devices: - Choose Wi-Fi 6 (802.11ax) - TWT feature extends battery life 10-100x - Avoid Wi-Fi 5 and earlier - No power-saving mechanisms for IoT - Use 2.4 GHz band - Slightly lower power draw than 5 GHz

For Video Cameras / High-Bandwidth Devices: - Choose Wi-Fi 5 (802.11ac) or Wi-Fi 6 - MU-MIMO handles multiple streams - Use 5 GHz band - Less congestion, higher throughput - Minimum 40-80 MHz channel width - 1080p needs ~5-10 Mbps per camera

For Dense Deployments (50+ devices): - Choose Wi-Fi 6 (802.11ax) - OFDMA divides channels efficiently - Enable BSS Coloring - Reduces interference from neighboring APs - Use 5 GHz or 6 GHz - More non-overlapping channels available

For Legacy Smart Home Devices: - Wi-Fi 4 (802.11n) is sufficient - Most IoT devices (thermostats, lights) use Wi-Fi 4 - 2.4 GHz for range - Better wall penetration throughout home - Ensure AP supports mixed mode - Allow Wi-Fi 4 devices on Wi-Fi 6 network

For Industrial IoT: - Wi-Fi 6E (6 GHz) - No interference from consumer devices - Dedicated SSIDs - Separate IoT from corporate traffic - Enterprise APs - Higher client capacity (200-500 vs 30-50 consumer)

842.6 Wi-Fi 6 Features Deep Dive

842.6.1 Target Wake Time (TWT) - The Battery Saver

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#ecf0f1', 'fontSize': '13px'}}}%%
sequenceDiagram
    participant Device as IoT Sensor<br/>(Wi-Fi 6)
    participant AP as Wi-Fi 6 Router<br/>(Access Point)

    Note over Device,AP: Initial TWT Negotiation
    Device->>AP: TWT Request: Wake every 6 hours
    AP->>Device: TWT Response: Confirmed (9am, 3pm, 9pm)

    Note over Device: Deep Sleep (10 µA)<br/>6 hours = 0.06 mAh

    rect rgb(230, 126, 34, 0.1)
    Note over Device,AP: 9:00 AM - Scheduled Wake
    Device->>AP: Wake up at TWT
    AP->>Device: Buffered data ready
    Device->>AP: Send temperature: 22°C
    Note over Device: TX: 200 mA for 2 sec<br/>= 0.11 mAh
    end

    Note over Device: Deep Sleep Again<br/>Next wake: 3:00 PM

    rect rgb(230, 126, 34, 0.1)
    Note over Device,AP: 3:00 PM - Scheduled Wake
    Device->>AP: Wake up at TWT
    AP->>Device: No buffered data
    Device->>AP: Send temperature: 23°C
    end

    Note over Device: Deep Sleep<br/>Next wake: 9:00 PM

    Note over Device,AP: Legacy Wi-Fi PS: frequent beacon/DTIM checks (often ~10^5–10^6/day)<br/>Wi-Fi 6 TWT: a handful of scheduled wake-ups/day (e.g., 4/day)

Figure 842.3: Target Wake Time (TWT) mechanism showing scheduled wake-ups vs continuous beacon monitoring

How TWT Works:

Without TWT (Wi-Fi 4/5):
Device: Wakes frequently for beacons/DTIM → "Any data for me?" → Sleep → Repeat
Battery life: often months for low-duty-cycle sensors (device/workload-dependent)

With TWT (Wi-Fi 6):
Device: "Wake me at 9am, 3pm, 9pm only"
Router: "OK, I'll buffer your data until then"
Device: Sleeps 6 hours → Wakes → Transmits → Sleeps again
Battery life: can extend to years when both device and AP support TWT

Real-World TWT Impact: - Temperature sensor (send every 6 hours): 4-10x battery life - Door sensor (send on event): 50-100x battery life - Security camera (always on): No benefit (can’t sleep)

842.6.2 OFDMA - Efficient Channel Sharing

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#ecf0f1', 'fontSize': '13px'}}}%%
graph TB
    subgraph WIFI5["Wi-Fi 5 (802.11ac) - OFDM<br/>Sequential Access = INEFFICIENT"]
        direction TB
        T1["Time Slot 1<br/>Camera A uses full channel<br/>99.5% WASTED"]
        T2["Time Slot 2<br/>Sensor B uses full channel<br/>99.999% WASTED"]
        T3["Time Slot 3<br/>Light C uses full channel<br/>99.999% WASTED"]

        T1 --> T2
        T2 --> T3
    end

    subgraph WIFI6["Wi-Fi 6 (802.11ax) - OFDMA<br/>Parallel Access = EFFICIENT"]
        direction TB
        COMBINED["Single Time Slot<br/>Camera A: 18 MHz | B: 2M | C: 1M | D: 1M<br/>ALL 4 devices transmit simultaneously<br/>4x throughput improvement"]
    end

    style WIFI5 fill:#e74c3c,stroke:#2C3E50,stroke-width:3px,color:#000
    style WIFI6 fill:#16A085,stroke:#2C3E50,stroke-width:3px,color:#000

Figure 842.4: OFDMA efficiency comparison: Wi-Fi 5 sequential access vs Wi-Fi 6 parallel multi-user channel sharing

842.6.3 BSS Coloring - Apartment Savior

Problem: Neighbor’s Wi-Fi causes your devices to wait (even though they can’t decode it)

Solution: Wi-Fi 6 “colors” networks so devices ignore neighbor traffic

Apartment Building:
Apartment A (Color 1): Router + 20 devices
Apartment B (Color 2): Router + 20 devices

Wi-Fi 5 behavior:
Your device hears Neighbor's Wi-Fi → "Someone talking, I'll wait"
Result: 50% throughput loss

Wi-Fi 6 behavior:
Your device hears Neighbor's Wi-Fi → "Different color, I'll transmit anyway"
Result: 2x throughput improvement in dense areas

842.6.4 Wi-Fi 6 Generations Comparison for IoT

Feature	Wi-Fi 4 (2009)	Wi-Fi 5 (2013)	Wi-Fi 6 (2019)
Battery Life (sensor)	3-6 months	3-6 months	2-5 years
Dense Deployment	30 devices max	50 devices	200+ devices
Latency	10-30ms	10-20ms	2-10ms
Apartment Performance	Poor (interference)	Poor	Good (BSS coloring)
2.4 GHz Support	Yes	NO	Yes

842.7 Wi-Fi HaLow (802.11ah) - IoT-Specific Wi-Fi

TipDeep Dive: Wi-Fi HaLow

Wi-Fi HaLow is a sub-1 GHz Wi-Fi standard specifically designed for IoT sensors (not for your laptop!)

842.7.1 Why HaLow is Different

Traditional Wi-Fi (2.4/5 GHz): - Range: 50-100m - Power: High - Use: Laptops, phones, cameras

Wi-Fi HaLow (900 MHz): - Range: 1+ km (10x traditional Wi-Fi!) - Power: Ultra-low (years on battery) - Use: Sensors, meters, agriculture

842.7.2 HaLow vs LoRaWAN Comparison

Feature	Wi-Fi HaLow	LoRaWAN	Winner
Range	1-2 km	5-15 km	LoRaWAN
Data Rate	150 kbps - 78 Mbps	0.3-50 kbps	HaLow
Battery Life	5-10 years	10+ years	LoRaWAN
IP Compatibility	Native IPv4/IPv6	Requires gateway	HaLow
Security	WPA3	AES-128	Tie
Hardware cost	Typically higher today	Often lower	Depends

842.7.3 When to Use Wi-Fi HaLow

Choose HaLow when: - Need Wi-Fi compatibility (IP addressing, cloud integration) - Moderate data rates (10-100 kbps) - Range: 500m - 2km (longer than Wi-Fi, shorter than LoRaWAN) - Outdoor sensors, smart agriculture, parking meters

Choose LoRaWAN instead when: - Ultra-long range needed (>2 km) - Ultra-low power critical (10+ year battery) - Very small payloads (<100 bytes)

HaLow Sweet Spot: Bridges gap between high-bandwidth Wi-Fi and ultra-long-range LoRaWAN!

842.8 Knowledge Check

{
  const container = document.getElementById('kc-wifi-standards-1');
  if (container && typeof InlineKnowledgeCheck !== 'undefined') {
    container.innerHTML = '';
    container.appendChild(InlineKnowledgeCheck.create({
      question: "A manufacturing company has 50 ESP32-based sensors deployed in 2019 and wants to extend battery life by upgrading their access points to Wi-Fi 6. What is the expected outcome?",
      options: [
        {text: "Battery life will improve 10x due to Wi-Fi 6 OFDMA efficiency", correct: false, feedback: "Incorrect. OFDMA improves channel efficiency for multiple simultaneous transmissions but doesn't significantly reduce power consumption for individual devices."},
        {text: "No improvement - ESP32 uses Wi-Fi 4 (802.11n) chips, which cannot use TWT", correct: true, feedback: "Correct! Wi-Fi 6 features like Target Wake Time (TWT) require BOTH the access point AND the client device to support Wi-Fi 6. The ESP32 (original, S2, S3, C3) uses Wi-Fi 4 chips, so upgrading only the AP provides no battery benefit. Only ESP32-C6 supports Wi-Fi 6."},
        {text: "Moderate improvement from BSS Coloring reducing interference", correct: false, feedback: "Incorrect. BSS Coloring helps APs identify and ignore signals from neighboring networks, but this is an AP-side optimization that doesn't affect device battery consumption significantly."},
        {text: "Significant improvement because newer APs have better beamforming", correct: false, feedback: "Incorrect. While beamforming can slightly improve signal strength (potentially allowing faster transmissions), it doesn't address the fundamental issue: the ESP32's Wi-Fi 4 radio cannot negotiate TWT sleep schedules with the AP."}
      ],
      difficulty: "medium",
      topic: "wifi-standards"
    }));
  }
}

{
  const container = document.getElementById('kc-wifi-standards-2');
  if (container && typeof InlineKnowledgeCheck !== 'undefined') {
    container.innerHTML = '';
    container.appendChild(InlineKnowledgeCheck.create({
      question: "A hotel is deploying 200 smart thermostats (one per room) that report temperature every 5 minutes. The thermostats are wall-powered. Which Wi-Fi 6 feature provides the MOST benefit for this deployment?",
      options: [
        {text: "Target Wake Time (TWT) for power savings", correct: false, feedback: "Incorrect. TWT is valuable for battery-powered devices, but these thermostats are wall-powered. The power savings from TWT would be negligible for mains-connected devices."},
        {text: "OFDMA for efficient multi-device transmission", correct: true, feedback: "Correct! With 200 devices sending small payloads (temperature readings) simultaneously, OFDMA is the key benefit. OFDMA divides the channel into Resource Units, allowing dozens of thermostats to transmit in parallel within a single time slot, instead of each waiting for the full channel. This reduces latency and increases efficiency for many small-packet IoT devices."},
        {text: "1024-QAM for higher data rates", correct: false, feedback: "Incorrect. 1024-QAM increases maximum data rate by ~25%, but thermostats send only ~100 bytes every 5 minutes. They don't need higher throughput - they need efficient channel sharing with 199 other devices."},
        {text: "160 MHz channel width for maximum bandwidth", correct: false, feedback: "Incorrect. Wider channels increase theoretical throughput but waste spectrum for low-bandwidth IoT devices. Thermostats sending 100 bytes don't benefit from gigabit speeds, and 160 MHz channels increase interference."}
      ],
      difficulty: "medium",
      topic: "wifi6-features"
    }));
  }
}

842.9 Real-World Wi-Fi Standard Adoption for IoT (2025)

Current Market Breakdown:

Standard	IoT Adoption %	Typical Devices
Wi-Fi 4 (802.11n)	60%	Thermostats, smart plugs, lights, door locks (ESP8266, ESP32)
Wi-Fi 5 (802.11ac)	30%	IP cameras, smart displays, hubs (newer devices)
Wi-Fi 6 (802.11ax)	8%	Premium smart home devices, Matter-certified products
Wi-Fi 6E (6 GHz)	1%	High-end industrial IoT, enterprise sensors
Legacy (11b/g)	1%	Very old devices, being phased out

Why Wi-Fi 4 Still Dominates IoT: - Widely available low-cost Wi-Fi modules (e.g., ESP8266/ESP32 class devices) - Sufficient for low-bandwidth sensors (<1 Mbps) - Excellent 2.4 GHz range - Supported by every router since 2009

When to Pay Extra for Wi-Fi 6: - Battery-powered devices (TWT saves battery) - Dense deployments (50+ devices) - New installations (future-proof) - High-bandwidth + efficiency (cameras that need to last)

842.10 Wi-Fi Evolution Summary (What Changed for IoT)

TipQuick Reference

Wi-Fi 1-3 (802.11 b/a/g): Not suitable for IoT - poor power efficiency, low speeds, no multi-device optimization

Wi-Fi 4 (802.11n) - 2009: FIRST IoT-READY GENERATION - MIMO (multiple antennas) - better reliability - Frame aggregation - reduced overhead - Dual-band (2.4/5 GHz) - flexibility - Still high power consumption for battery devices

Wi-Fi 5 (802.11ac) - 2013: High-bandwidth IoT (cameras) - MU-MIMO - multiple devices transmit simultaneously - Beamforming - stronger signal to specific device - Up to 3.5 Gbps - 4K video streaming capable - 5 GHz only - shorter range, poor wall penetration - Still no battery-saving features

Wi-Fi 6 (802.11ax) - 2019: GAME-CHANGER FOR IoT - TWT (Target Wake Time) - battery life 10-100x improvement - OFDMA - hundreds of devices share channel efficiently - BSS Coloring - reduced interference in apartments/offices - Works on 2.4 GHz AND 5 GHz - best of both worlds - MU-MIMO bi-directional - uplink and downlink efficiency

Wi-Fi 6E (6 GHz) - 2020: Clean spectrum for dense IoT - No legacy devices - zero 802.11b/g/n interference - 1200 MHz spectrum (vs 400 MHz on 5 GHz) - more channels - Shorter range than 2.4/5 GHz - needs more APs

Wi-Fi 7 (802.11be) - 2024: Future ultra-high performance - 46 Gbps theoretical - 8K video, AR/VR - Multi-link operation - use 2.4 + 5 + 6 GHz simultaneously - 320 MHz channels - massive throughput

842.11 Common Misconception: Wi-Fi 6 Routers Automatically Extend Battery Life

The Myth: “If I upgrade to a Wi-Fi 6 router, all my IoT devices will get 10x better battery life automatically.”

The Reality: Wi-Fi 6’s Target Wake Time (TWT) requires BOTH the router AND the IoT device to support Wi-Fi 6 (802.11ax). Simply upgrading your router does nothing for devices with older Wi-Fi chips.

Practical takeaway: - Upgrading only the router does not change the radio in a Wi-Fi 4 device - Even with Wi-Fi 6 on both ends, TWT benefits depend on firmware support, beacon/DTIM settings, and the device’s duty cycle

ESP32 Examples: - ESP8266, ESP32 (original), ESP32-S2/S3, ESP32-C3: Wi-Fi 4 (802.11n) - no Wi-Fi 6 TWT - ESP32-C6: Wi-Fi 6 (802.11ax) - can support TWT features

Bottom Line: Wi-Fi 6 battery benefits are bidirectional and implementation-dependent - treat them as something to validate, not assume.

842.12 What’s Next

Continue to Wi-Fi Frequency Bands to learn about 2.4 GHz vs 5 GHz vs 6 GHz selection, channel planning strategies, and how to avoid interference in dense IoT deployments.
