1400  STRIDE Framework and Threat Taxonomies

1400.1 Learning Objectives

By the end of this chapter, you will be able to:

  • Apply the STRIDE Model: Use Microsoft’s STRIDE framework to systematically identify threats
  • Understand Threat Taxonomies: Navigate comprehensive IoT threat classification systems
  • Map Threats to Security Properties: Connect STRIDE categories to CIA triad violations
  • Model Attack Scenarios: Build attack trees showing step-by-step compromise paths
  • Identify Entry Points: Map all attack surfaces across IoT system architecture

Threat Modeling Series: - Introduction & Fundamentals - Threat modeling basics and decision trees - Attack Scenarios - Real-world attack patterns - Assessments - Knowledge checks and quizzes - Hands-On Lab - Interactive threat detection simulator

Security Context: - Security Overview - Security landscape - Device Security - Device hardening - Encryption - Cryptographic protection

What is STRIDE? STRIDE is Microsoft’s threat modeling framework that helps you systematically identify six types of security threats: Spoofing (fake identity), Tampering (data modification), Repudiation (denying actions), Information disclosure (data leaks), Denial of service (making systems unavailable), and Elevation of privilege (gaining unauthorized access).

Why does it matter? STRIDE provides a checklist to ensure you don’t miss common vulnerability classes. Instead of guessing what might go wrong, you systematically ask: β€œCan an attacker spoof identity here? Can they tamper with data? Can they deny they did something?” This structured approach catches threats that ad-hoc brainstorming misses.

Key terms: | Term | Maps To | IoT Example | |β€”β€”|β€”β€”β€”|β€”β€”β€”β€”-| | Spoofing | Authentication | Attacker sends fake sensor data pretending to be legitimate device | | Tampering | Integrity | Attacker modifies firmware to inject malware | | Repudiation | Non-repudiation | Malicious user deletes audit logs to hide their actions | | Information Disclosure | Confidentiality | Attacker intercepts unencrypted Wi-Fi to steal passwords | | Denial of Service | Availability | Botnet floods IoT gateway with traffic, making it unresponsive | | Elevation of Privilege | Authorization | Attacker exploits firmware bug to gain root access |

TipMVU: STRIDE Threat Modeling

Core Concept: STRIDE systematically identifies six threat categories (Spoofing, Tampering, Repudiation, Information disclosure, Denial of service, Elevation of privilege) by asking what can go wrong at each component and trust boundary. Why It Matters: Ad-hoc threat analysis misses vulnerability classes; STRIDE’s structured checklist catches 95% of common IoT security flaws. Key Takeaway: Apply STRIDE at every trust boundary (deviceβ†’gateway, gatewayβ†’cloud, userβ†’app) to systematically uncover attack vectors.

1400.2 Threat Modelling Process

⏱️ ~15 min | ⭐⭐ Intermediate | πŸ“‹ P11.C05.U02

Threat Modelling: Structured analysis of system vulnerabilities from an attacker’s perspective to identify risks, quantify likelihood and severity, and prioritize mitigation mechanisms.

1400.2.1 Five-Step Process

Graph diagram

Graph diagram
Figure 1400.1: Five-Step Threat Modeling Process: From Architecture to Attack Scenarios

This view shows how organizations progress through threat modeling maturity, from reactive to proactive security:

%% fig-alt: "Threat modeling maturity model showing five progressive stages: Level 1 Ad-hoc where security is addressed only after incidents, Level 2 Repeatable with basic checklists and occasional reviews, Level 3 Defined with formal STRIDE analysis during design phase, Level 4 Managed with continuous threat assessment and metrics tracking, and Level 5 Optimized with automated threat detection and predictive security analytics. Each level includes key practices, tools used, and organizational indicators."
%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D'}}}%%
flowchart TB
    subgraph L1["LEVEL 1: AD-HOC"]
        L1A["Security after incidents only"]
        L1B["No formal process"]
        L1C["Reactive firefighting"]
    end

    subgraph L2["LEVEL 2: REPEATABLE"]
        L2A["Basic checklists"]
        L2B["Occasional reviews"]
        L2C["Manual documentation"]
    end

    subgraph L3["LEVEL 3: DEFINED"]
        L3A["Formal STRIDE analysis"]
        L3B["Design-phase reviews"]
        L3C["Documented threat models"]
    end

    subgraph L4["LEVEL 4: MANAGED"]
        L4A["Continuous assessment"]
        L4B["Metrics and KPIs"]
        L4C["Automated tooling"]
    end

    subgraph L5["LEVEL 5: OPTIMIZED"]
        L5A["Predictive analytics"]
        L5B["Threat intelligence"]
        L5C["ML-based detection"]
    end

    L1 --> L2 --> L3 --> L4 --> L5

    L1 -.-> T1["Tools: None"]
    L2 -.-> T2["Tools: Spreadsheets"]
    L3 -.-> T3["Tools: Microsoft TMT, OWASP Threat Dragon"]
    L4 -.-> T4["Tools: IriusRisk, ThreatModeler"]
    L5 -.-> T5["Tools: AI/ML platforms, SIEM integration"]

    style L1 fill:#e74c3c,stroke:#c0392b,color:#fff
    style L2 fill:#E67E22,stroke:#d35400,color:#fff
    style L3 fill:#f39c12,stroke:#E67E22,color:#fff
    style L4 fill:#16A085,stroke:#0e6655,color:#fff
    style L5 fill:#2C3E50,stroke:#16A085,color:#fff

Assessment Questions: - Level 1: Do you only address security after breaches? (Start here) - Level 2: Do you have security checklists but apply them inconsistently? - Level 3: Is threat modeling integrated into your design process? - Level 4: Do you measure and track security metrics continuously? - Level 5: Can you predict and prevent threats before they materialize?

1. Architecture Knowledge: - Identify all components (sensors, gateways, cloud services) - Map communication protocols - Document data storage locations - Understand key entities and their roles

2. Entry Points: - Physical interfaces (UART, JTAG, USB) - Network interfaces (Wi-Fi, Bluetooth, cellular) - Application interfaces (APIs, web portals) - Update mechanisms (OTA firmware)

3. Data Flow Paths: - Source β†’ Processing β†’ Storage β†’ Transmission - Identify where data is encrypted/decrypted - Map authentication and authorization points

4. Trust Boundaries: - IoT device (often least trusted) - Gateway (may be trusted if secured) - Cloud services (typically most trusted) - User/admin interfaces

5. Attack Scenarios: - Based on experience and threat intelligence - Consider Advanced Persistent Threats (APTs) - Model both opportunistic and targeted attacks

1400.3 Threat Taxonomies

⏱️ ~12 min | ⭐⭐ Intermediate | πŸ“‹ P11.C05.U03

Comprehensive threat taxonomy diagram showing hierarchical classification of IoT security threats organized into categories including spoofing, tampering, repudiation, information disclosure, denial of service, and elevation of privilege with subcategories and real-world IoT attack examples
Figure 1400.2: Threat categories part 1
Continuation of threat taxonomy showing technical threats including credential discovery, privilege escalation, cryptanalysis, denial of service attacks, data manipulation in transit, and application exploitation vulnerabilities specific to IoT systems
Figure 1400.3: Threat categories part 2
Artistic visualization of IoT threat categories showing hierarchical classification with stylized icons and visual metaphors. Threat categories are organized into interconnected nodes showing spoofing as identity masking, tampering as data corruption waves, repudiation as broken audit chains, information disclosure as data leakage streams, denial of service as traffic floods, and privilege escalation as ascending stairs representing unauthorized access levels.
Figure 1400.4: Threat Categories Part 1 - Artistic interpretation with visual metaphors
Artistic rendering of technical IoT threats showing attack vectors through stylized visualization. Credential discovery depicted as lock picking, privilege escalation as breaking through security barriers, cryptanalysis as code breaking puzzles, denial of service as overwhelming traffic waves, data manipulation as corrupted streams, and application exploitation as software vulnerability exploitation chains.
Figure 1400.5: Threat Categories Part 2 - Technical threats with attack vector visualization
Geometric visualization of the IoT threat landscape showing the full spectrum of security threats organized by attack surface. The diagram presents device-level threats, network-level attacks, application vulnerabilities, and cloud service risks in an interconnected geometric pattern. Each threat type is color-coded by severity and connected to show attack chain relationships and lateral movement possibilities.
Figure 1400.6: IoT Threat Landscape - Comprehensive geometric view of security threats

The threat landscape visualization helps security teams understand the breadth of potential attack vectors and prioritize defensive investments based on organizational risk profiles.

Geometric diagram analyzing IoT attack surfaces across the technology stack. The visualization maps entry points from physical device interfaces through network protocols to cloud APIs, showing how each surface area can be exploited. Attack surface metrics indicate relative exposure levels and recommended security controls for each entry point category.
Figure 1400.7: Threat Surface - Geometric analysis of attack entry points
Geometric representation of a comprehensive IoT threat taxonomy organized into hierarchical categories. The structure shows relationships between threat actors, attack vectors, vulnerabilities, and impacts. Each node represents a specific threat type with connections showing how threats can combine or escalate into more severe attack scenarios.
Figure 1400.8: Threat Taxonomy - Hierarchical geometric classification of IoT threats

This structured taxonomy provides a systematic framework for threat identification during security assessments and penetration testing engagements.

IoT threats impact assessment diagram showing weighted threat severity ratings organized in a circular visualization. The diagram displays various threat categories including unauthorized access, data breaches, denial of service, and physical tampering, with impact scores ranging from low to critical based on factors such as likelihood of occurrence, potential damage, and affected user base. Central IoT device icon surrounded by threat vectors demonstrates the multi-dimensional attack surface that IoT systems face.
Figure 1400.9: Source: University of Edinburgh IoT Security Course - Figure 9: IoT threats impact

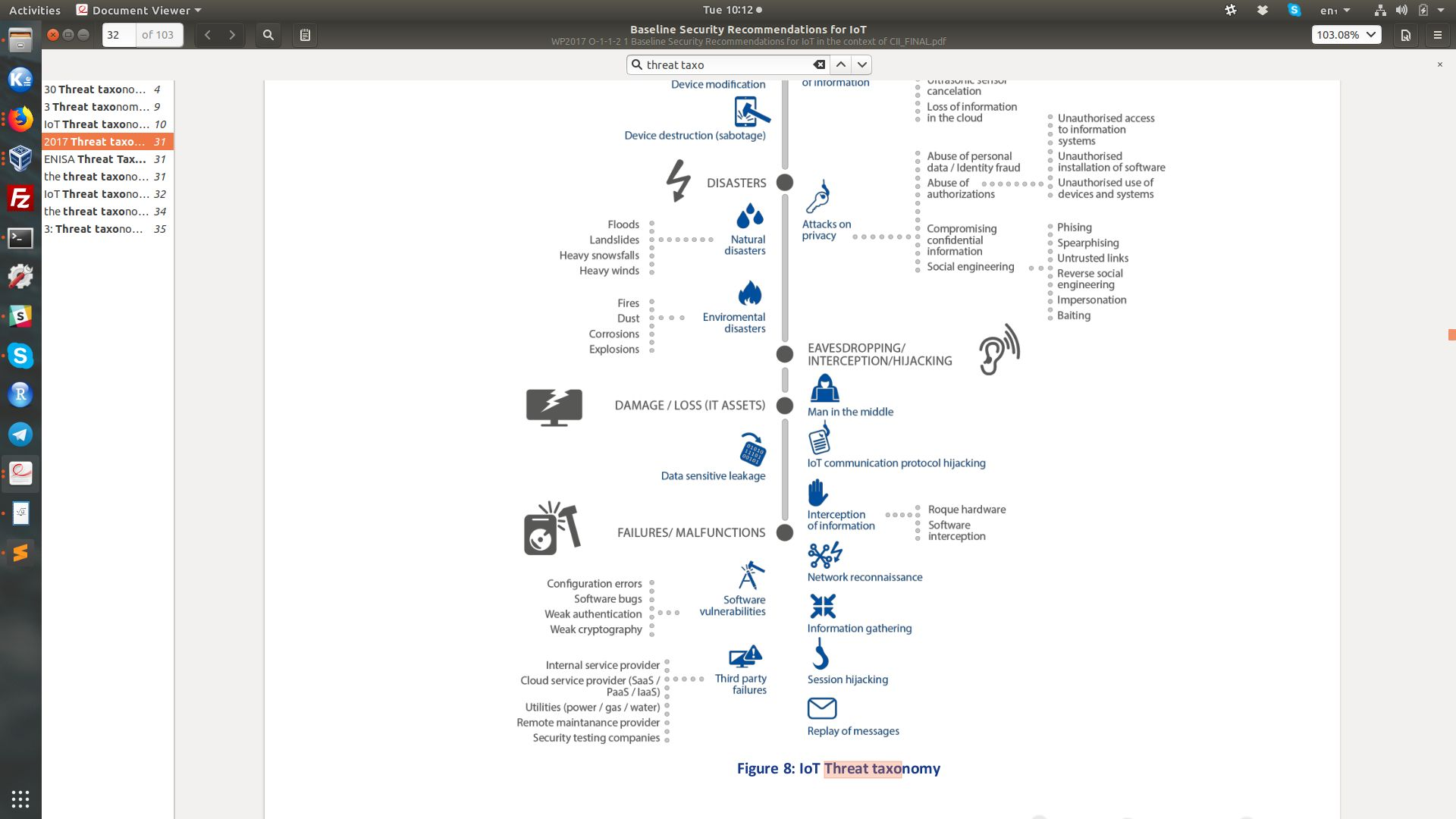

Comprehensive IoT threat taxonomy (Figure 8) showing complete classification of threats organized into major categories: Outages (device destruction, system failures), Disasters (floods, fires, power anomalies), Damage/Loss of IT Assets (data-sensitive leakage), Failures/Malfunctions (configuration errors, software vulnerabilities, third-party failures), and Eavesdropping/Interception/Hijacking (man-in-the-middle attacks, session hijacking, traffic analysis). Additional categories include Nefarious Activity covering social engineering, identity theft, denial of service, advanced persistent threats, botnets, exploitation of software bugs, manipulation of information, and unauthorized activities. Each category maps to specific IoT attack vectors and mitigation strategies.
Figure 1400.10: Source: University of Edinburgh IoT Security Course - Figure 8: IoT Threat taxonomy

1400.3.1 STRIDE (Microsoft)

Microsoft STRIDE threat modeling framework showing six threat categories mapped to security properties: Spoofing attacks authentication, Tampering attacks integrity, Repudiation attacks non-repudiation, Information Disclosure attacks confidentiality, Denial of Service attacks availability, and Elevation of Privilege attacks authorization
Figure 1400.11: STRIDE threat model
Artistic rendering of the STRIDE threat modeling framework with stylized visual elements showing the six threat categories in an interconnected design. Spoofing identity attacks are depicted targeting authentication mechanisms, Tampering shows data manipulation vectors, Repudiation illustrates audit trail evasion, Information Disclosure reveals data leakage pathways, Denial of Service demonstrates availability attacks, and Elevation of Privilege maps unauthorized access escalation paths in IoT environments.
Figure 1400.12: STRIDE Framework - Artistic interpretation highlighting the interconnected nature of threat categories

This artistic rendering emphasizes how the six STRIDE categories interact and overlap in real-world IoT attack scenarios. Understanding these interconnections helps security architects design comprehensive defense strategies.

Educational diagram presenting STRIDE threat model with teaching-focused annotations and step-by-step guidance. Each threat category includes learning prompts, real-world IoT examples, and suggested mitigation strategies. The pedagogical design uses color coding to distinguish between threat types and their corresponding security controls.
Figure 1400.13: STRIDE Framework - Pedagogical version designed for classroom instruction

This teaching-oriented visualization helps students systematically work through each STRIDE category when analyzing IoT system security.

Detailed STRIDE model diagram showing comprehensive breakdown of each threat category with specific attack techniques and countermeasures. The visualization includes attack trees for each category, mapping common IoT vulnerabilities to STRIDE classifications and recommended security controls.
Figure 1400.14: STRIDE Model - Detailed breakdown with attack techniques and countermeasures

STRIDE: Comprehensive threat classification model applicable across IoT system components.

Graph diagram

Graph diagram
Figure 1400.15: STRIDE Threat Model: Six Categories with IoT Attack Examples

This view maps each STRIDE threat category to specific defensive controls, showing the complete mitigation strategy:

%% fig-alt: "STRIDE threat-to-defense mapping showing each threat category connected to specific security controls: Spoofing countered by multi-factor authentication, certificates, and biometrics; Tampering countered by digital signatures, checksums, and tamper-evident hardware; Repudiation countered by audit logs, timestamps, and digital signatures; Information Disclosure countered by encryption, access controls, and data masking; Denial of Service countered by rate limiting, redundancy, and DDoS protection; Elevation of Privilege countered by least privilege, RBAC, and sandboxing."
%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#7F8C8D'}}}%%
flowchart LR
    subgraph THREATS["STRIDE THREATS"]
        S["Spoofing<br/>Identity"]
        T["Tampering<br/>Data"]
        R["Repudiation<br/>Actions"]
        I["Information<br/>Disclosure"]
        D["Denial of<br/>Service"]
        E["Elevation of<br/>Privilege"]
    end

    subgraph DEFENSES["SECURITY CONTROLS"]
        D1["MFA + Certificates<br/>+ Biometrics"]
        D2["Digital Signatures<br/>+ Checksums + TPM"]
        D3["Audit Logs<br/>+ Timestamps + Signing"]
        D4["Encryption<br/>+ ACLs + Masking"]
        D5["Rate Limiting<br/>+ Redundancy + CDN"]
        D6["Least Privilege<br/>+ RBAC + Sandboxing"]
    end

    S --> D1
    T --> D2
    R --> D3
    I --> D4
    D --> D5
    E --> D6

    style S fill:#e74c3c,stroke:#c0392b,color:#fff
    style T fill:#E67E22,stroke:#d35400,color:#fff
    style R fill:#f39c12,stroke:#E67E22,color:#fff
    style I fill:#3498db,stroke:#2980b9,color:#fff
    style D fill:#9b59b6,stroke:#8e44ad,color:#fff
    style E fill:#e74c3c,stroke:#c0392b,color:#fff
    style D1 fill:#16A085,stroke:#0e6655,color:#fff
    style D2 fill:#16A085,stroke:#0e6655,color:#fff
    style D3 fill:#16A085,stroke:#0e6655,color:#fff
    style D4 fill:#16A085,stroke:#0e6655,color:#fff
    style D5 fill:#16A085,stroke:#0e6655,color:#fff
    style D6 fill:#16A085,stroke:#0e6655,color:#fff

IoT-Specific Defense Implementation:

STRIDE Primary Defense IoT Implementation Cost Impact
Spoofing Device certificates X.509 in secure element +$2-5/device
Tampering Secure boot + TPM Hardware root of trust +$3-8/device
Repudiation Blockchain audit Distributed ledger logging +$1-2/device
Information Disclosure E2E encryption TLS 1.3 + encrypted storage +$1-3/device
Denial of Service Rate limiting Edge firewall + CDN +$0.50-2/device
Elevation of Privilege RBAC + sandboxing Container isolation +$1-3/device

STRIDE Mapping to Security Properties:

STRIDE Category Security Property Attack Example
Spoofing Authentication Attacker impersonates legitimate IoT device
Tampering Integrity Modify sensor readings or firmware
Repudiation Non-Repudiation Deny sending malicious commands
Information Disclosure Confidentiality Intercept unencrypted sensor data
Denial of Service Availability Flood network with requests
Elevation of Privilege Authorization Gain admin access from user account

1400.3.2 Open Threat Taxonomy

Four Threat Categories:

Graph diagram

Graph diagram
Figure 1400.16: Open Threat Taxonomy: Physical, Resource, Personnel, and Technical Threats

Technical Threats (Most Common in IoT):

  • Credential discovery (sniffing, brute forcing, cracking)
  • Escalation/abuse of system privileges
  • Cryptanalysis
  • Denial of Service (DoS)
  • Data capture/manipulation in transit
  • Application exploitation (code injection, reverse engineering, API abuse)

Severity Rating: Each threat rated 1-5 based on likelihood and impact.

1400.3.3 ENISA IoT Threat Taxonomy

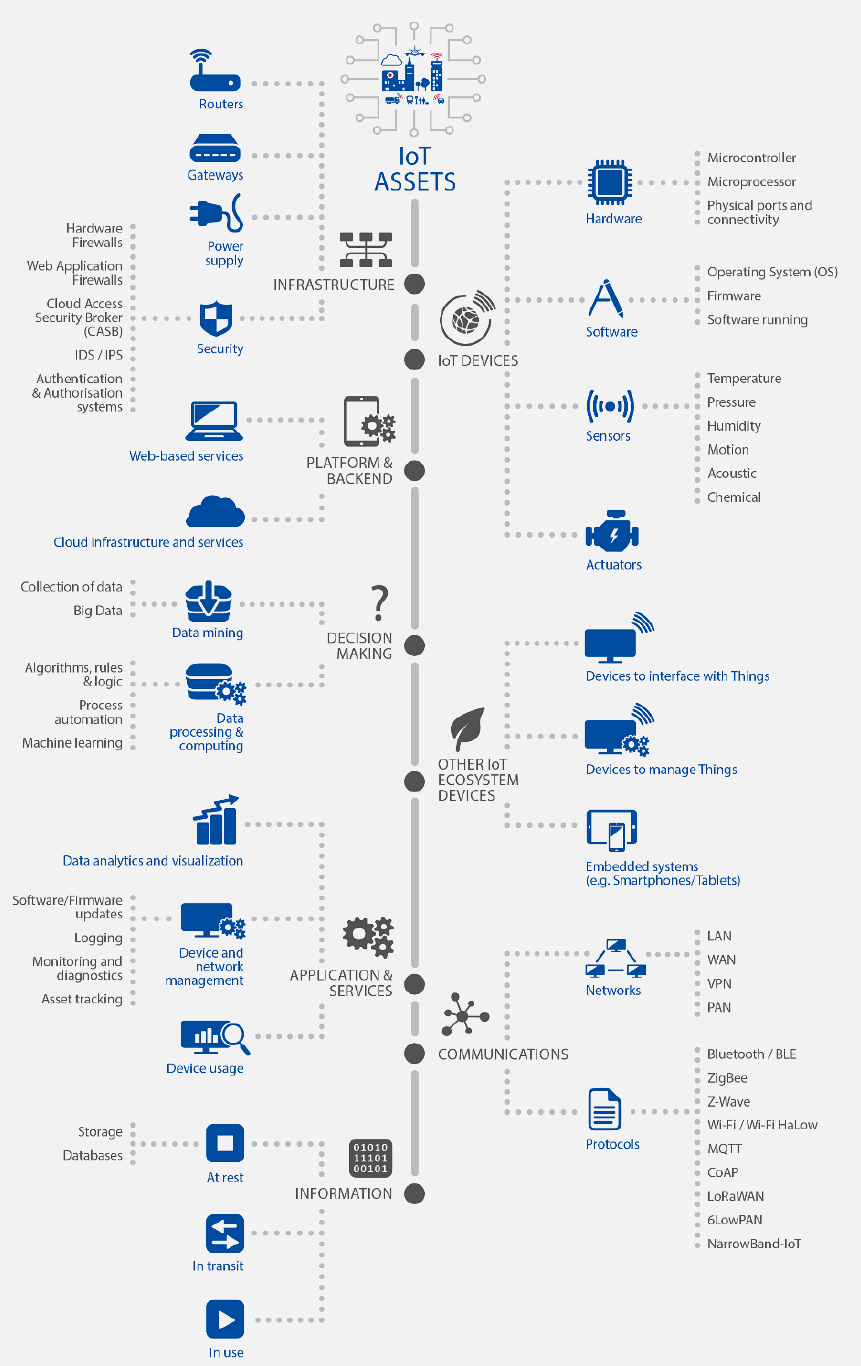

European Union Agency for Cybersecurity (ENISA) IoT threat taxonomy part 1 showing asset categories including devices, sensors, actuators, communication networks, protocols, data storage, processing, cloud services and applications with associated threat vectors
Figure 1400.17: ENISA IoT threat taxonomy part 1

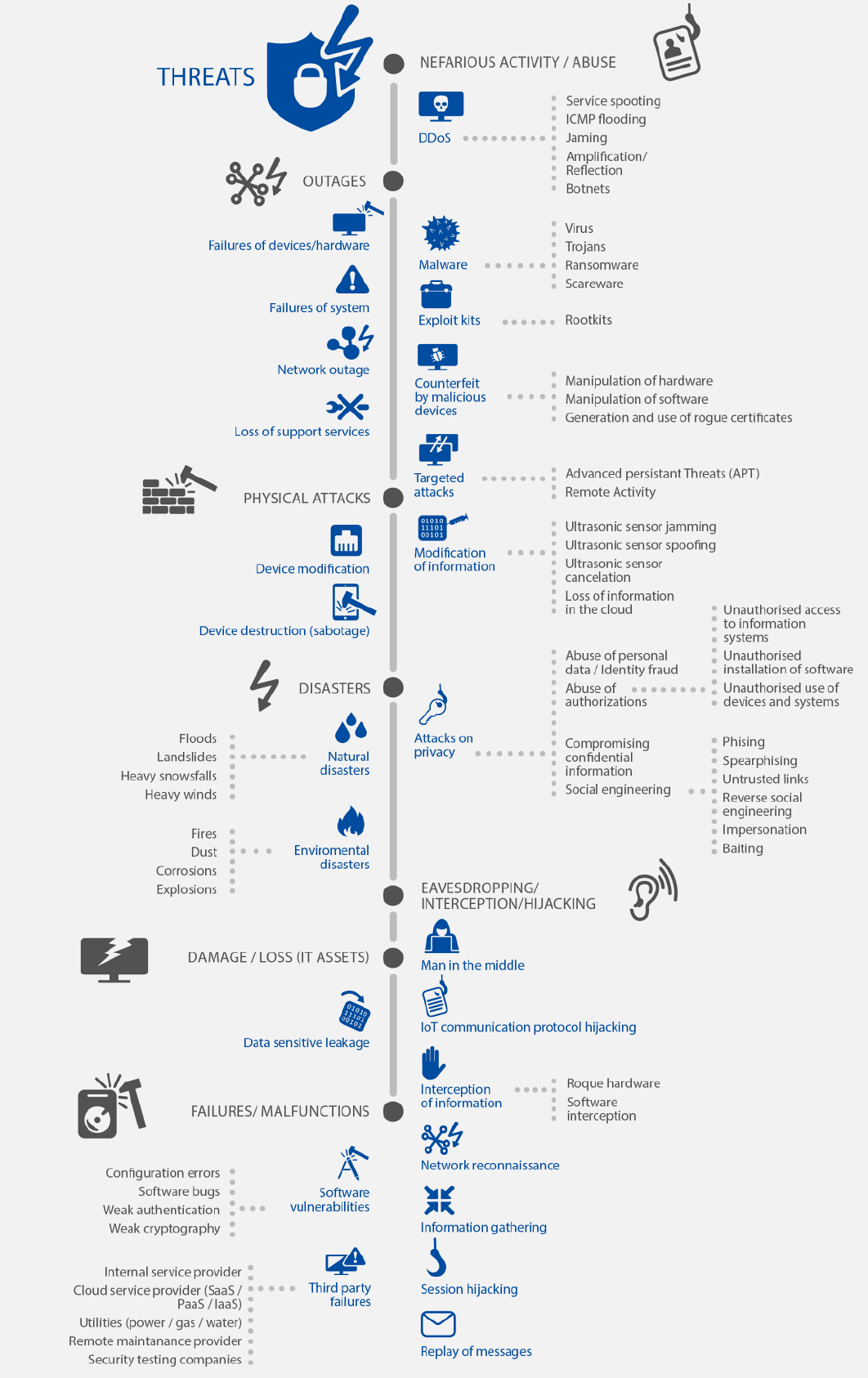

ENISA IoT threat taxonomy part 2 detailing threat categories: nefarious activity/abuse, eavesdropping/interception, physical attacks, outages and service disruption, and legal/regulatory compliance violations with specific IoT examples
Figure 1400.18: ENISA IoT threat taxonomy part 2
ENISA IoT threat taxonomy part 3 presenting vulnerability categories including hardware vulnerabilities (side-channel attacks, fault injection), software vulnerabilities (code flaws, backdoors), network protocol weaknesses, and human vulnerabilities through social engineering
Figure 1400.19: ENISA IoT threat taxonomy part 3

European Union Agency for Cybersecurity (ENISA) provides IoT-specific threat taxonomy.

Graph diagram

Graph diagram
Figure 1400.20: ENISA IoT Framework: Assets, Threats, and Vulnerabilities Classification

1400.3.4 IoT Threat Taxonomy: A Structured View

Understanding threats requires systematic categorization across the entire IoT stack. The following mindmap provides a comprehensive view of threats organized by layer:

Mind map diagram

Mind map diagram
Figure 1400.21: IoT Threat Taxonomy Mindmap: Physical, Network, Application, and Supply Chain Layers

1400.3.4.1 Attack Surface by IoT Component

Each component in an IoT system presents unique vulnerabilities that attackers can exploit:

Component Primary Threats Impact Mitigation Priority
Sensors Spoofing, tampering Data integrity Medium
MCU/SoC Side-channel, fault injection Complete compromise High
Radio Eavesdropping, jamming Availability, privacy High
Gateway MITM, privilege escalation Network pivot Critical
Cloud API Injection, auth bypass Mass compromise Critical
Mobile App Reverse engineering, credential theft Account takeover High
WarningCritical Insight: The Weakest Link

IoT security is only as strong as the weakest component. A secure cloud API is worthless if device firmware accepts unsigned updates. Defense in depth requires securing every layer.

1400.4 What’s Next

Now that you understand STRIDE and threat taxonomies, continue to:

Or revisit:

1400.5 Summary

This chapter covered systematic threat identification using STRIDE and comprehensive threat taxonomies:

STRIDE Framework: Six threat categories that map to security properties - Spoofing attacks authentication - Tampering attacks integrity - Repudiation attacks non-repudiation - Information Disclosure attacks confidentiality - Denial of Service attacks availability - Elevation of Privilege attacks authorization

Threat Modeling Process: Five-step systematic analysis 1. Architecture knowledge (components, protocols, data flows) 2. Entry points (physical, network, application interfaces) 3. Data flow paths (where data is encrypted, authenticated) 4. Trust boundaries (device, gateway, cloud, user interfaces) 5. Attack scenarios (opportunistic and targeted threats)

IoT Attack Surfaces: Multiple layers of vulnerability - Device layer (firmware, debug ports, storage) - Network layer (protocols, wireless, APIs) - Application layer (mobile apps, web dashboards) - Cloud layer (APIs, databases, authentication) - Physical layer (tampering, theft, environmental)

Key Insight: IoT security is only as strong as the weakest link. A secure cloud API is worthless if device firmware accepts unsigned updates. Defense in depth requires securing every layer.

Continue to Attack Scenarios to see how these theoretical threats manifest in real-world IoT breaches.
