1550  IoT Development Tools and Environments

1550.1 Learning Objectives

By the end of this chapter, you will be able to:

• Use Development Environments: Configure and utilize IDEs, compilers, and build systems for embedded development
• Apply Debugging Techniques: Use JTAG debuggers, serial monitors, and logic analyzers to diagnose firmware issues
• Implement Version Control: Apply Git workflows appropriate for embedded software and hardware co-development
• Understand Toolchain Architecture: Explain the role of compilers, linkers, and programmers in embedded development
• Select Testing Frameworks: Choose appropriate testing tools for embedded and IoT applications

1550.2 Prerequisites

Before diving into this chapter, you should be familiar with:

• Programming Paradigms: Understanding different programming approaches helps contextualize tool selection
• Electronics Basics: Hardware knowledge is essential for debugging and hardware-software integration

1550.3 Introduction

Modern development tools have dramatically increased IoT developer productivity. From powerful IDEs with intelligent code completion to sophisticated debugging tools and automated testing frameworks, the ecosystem supports rapid iteration from prototype to production.

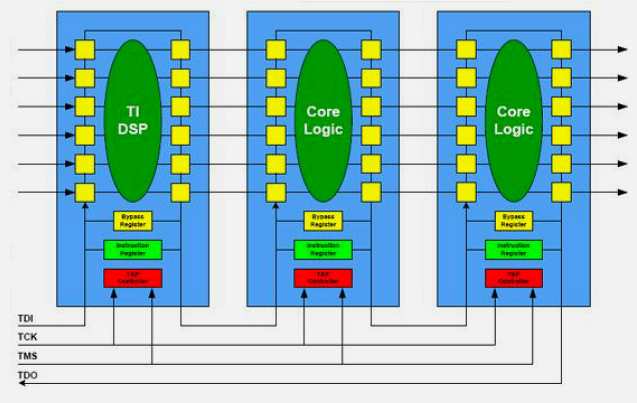

Figure 1550.1: Programming: JTAG interface for hardware debugging

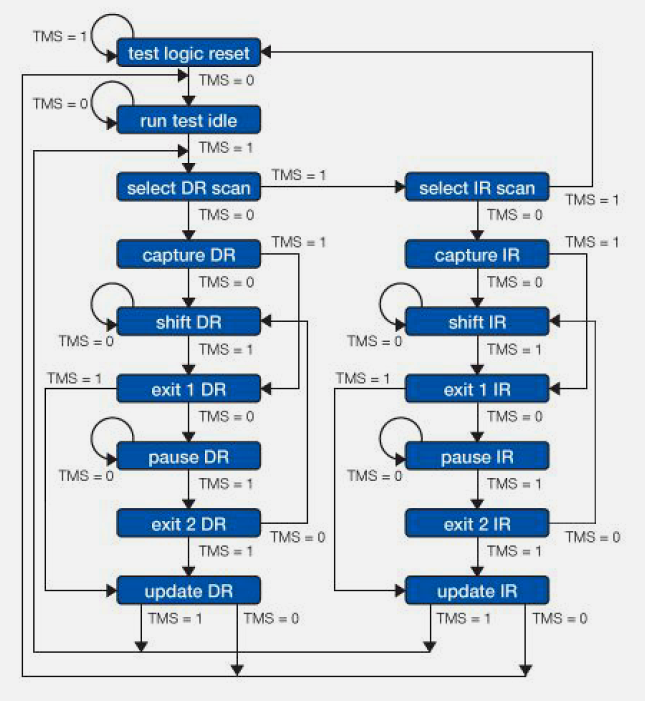

Figure 1550.2: Programming: JTAG hardware setup

Figure 1550.3: Programming and debugging workflow

1550.3.1 Essential IoT Programming Tools

%%{init: {'theme': 'base', 'themeVariables': { 'primaryColor': '#2C3E50', 'primaryTextColor': '#fff', 'primaryBorderColor': '#16A085', 'lineColor': '#16A085', 'secondaryColor': '#E67E22', 'tertiaryColor': '#fff'}}}%%
flowchart TD
    Dev[Developer] --> IDE[IDE/Editor]

    IDE --> IDE1[Arduino IDE:<br/>Beginner-friendly]
    IDE --> IDE2[VS Code + PlatformIO:<br/>Professional]
    IDE --> IDE3[CLion:<br/>Advanced C++]

    IDE1 --> Compiler[Compiler/Toolchain]
    IDE2 --> Compiler
    IDE3 --> Compiler

    Compiler --> Flash[Flash/Program<br/>Device]
    Flash --> Debug[Debugging Tools]

    Debug --> D1[Serial Monitor:<br/>Print statements]
    Debug --> D2[JTAG Debugger:<br/>Breakpoints, step]
    Debug --> D3[Logic Analyzer:<br/>Signal inspection]

    Debug --> Version[Version Control]
    Version --> Git[Git + GitHub]

    style IDE2 fill:#16A085,stroke:#2C3E50,color:#fff
    style D2 fill:#16A085,stroke:#2C3E50,color:#fff
    style Git fill:#16A085,stroke:#2C3E50,color:#fff

Figure 1550.4: IoT Development Toolchain: IDE, Compiler, Debugger, and Version Control

1550.4 Code Editors and IDEs

⏱️ ~20 min | ⭐⭐ Intermediate | 📋 P13.C04.U03a

1550.4.1 Visual Studio Code

Universal code editor with extensive IoT support through extensions.

Key Extensions: - PlatformIO IDE - Arduino - C/C++ IntelliSense - Python - GitLens

Features: - IntelliSense autocomplete - Integrated terminal - Git integration - Debugging support - Remote development (SSH to Raspberry Pi)

Strengths: - Lightweight yet powerful - Highly customizable - Large extension ecosystem - Free and open-source

1550.4.2 Arduino IDE 2.0

Modernized Arduino development environment.

Improvements over 1.x: - Code autocomplete - Debugger integration - Library dependency management - Dark mode - Multiple file tabs

1550.4.3 CLion

Professional C/C++ IDE by JetBrains.

Features: - Advanced code analysis - Refactoring tools - Embedded debugger support - CMake integration - Unit testing integration

Best For: Professional embedded development, complex C++ projects.

1550.4.4 Alternative Editors

Atom, Sublime Text: Alternative lightweight editors with IoT plugin ecosystems.

1550.5 Build Systems

⏱️ ~20 min | ⭐⭐ Intermediate | 📋 P13.C04.U03b

1550.5.1 Make

Traditional Unix build automation tool.

Makefile Example:

CC = avr-gcc
CFLAGS = -Os -DF_CPU=16000000UL -mmcu=atmega328p
TARGET = firmware

all: $(TARGET).hex

$(TARGET).hex: $(TARGET).elf
    avr-objcopy -O ihex -R .eeprom $< $@

$(TARGET).elf: main.o sensor.o
    $(CC) $(CFLAGS) -o $@ $^

%.o: %.c
    $(CC) $(CFLAGS) -c $<

upload: $(TARGET).hex
    avrdude -p atmega328p -c arduino -P /dev/ttyUSB0 -b 115200 -U flash:w:$<

clean:
    rm -f *.o *.elf *.hex

1550.5.2 CMake

Cross-platform build system generator.

CMakeLists.txt Example:

cmake_minimum_required(VERSION 3.10)
project(IoTProject)

set(CMAKE_C_STANDARD 11)
set(CMAKE_CXX_STANDARD 17)

add_executable(firmware
  src/main.cpp
  src/sensor.cpp
  src/communication.cpp
)

target_include_directories(firmware PRIVATE include)
target_link_libraries(firmware wiringPi pthread)

1550.5.3 PlatformIO Build System

Unified build system for embedded platforms.

platformio.ini:

[env:esp32]
platform = espressif32
board = esp32dev
framework = arduino
build_flags =
  -D DEBUG=1
  -D SENSOR_PIN=4
lib_deps =
  adafruit/Adafruit BME280 Library
  knolleary/PubSubClient

1550.6 Version Control Systems

⏱️ ~15 min | ⭐⭐ Intermediate | 📋 P13.C04.U03c

1550.6.1 Git

Distributed version control system, industry standard.

Essential Commands:

# Initialize repository
git init

# Clone existing repository
git clone https://github.com/user/iot-project.git

# Check status
git status

# Stage changes
git add src/sensor.cpp

# Commit
git commit -m "Add temperature sensor support"

# Push to remote
git push origin main

# Create branch
git checkout -b feature/new-sensor

# Merge branch
git checkout main
git merge feature/new-sensor

# View history
git log --oneline --graph

1550.6.2 Git Workflows for IoT

Feature Branch Workflow:

main (production)
├── develop (integration)
    ├── feature/wifi-manager
    ├── feature/mqtt-client
    └── bugfix/sensor-calibration

Release Workflow:

main (v1.0.0)
├── develop (v1.1.0-dev)
├── release/v1.1.0 (preparing release)
└── hotfix/critical-bug (emergency fix for production)

1550.6.3 Alternative Version Control

Subversion (SVN): Centralized version control, less common but still used in some organizations.

Mercurial: Distributed VCS alternative to Git.

1550.7 Debugging Tools

⏱️ ~25 min | ⭐⭐ Intermediate | 📋 P13.C04.U03d

1550.7.1 Serial Monitor

Basic debugging through UART communication.

Usage:

void setup() {
  Serial.begin(115200);
  Serial.println("System initializing...");
}

void loop() {
  Serial.print("Sensor value: ");
  Serial.println(readSensor());
  delay(1000);
}

1550.7.2 GDB (GNU Debugger)

Powerful debugger for embedded systems.

Basic Commands:

# Start GDB with firmware
arm-none-eabi-gdb firmware.elf

# Connect to target
(gdb) target remote localhost:3333

# Set breakpoint
(gdb) break main.cpp:42

# Run program
(gdb) continue

# Step into function
(gdb) step

# Step over function
(gdb) next

# Print variable
(gdb) print temperature

# Watch variable
(gdb) watch sensorValue

# View backtrace
(gdb) backtrace

1550.7.3 JTAG/SWD Debuggers

Hardware debuggers for professional development.

Popular Options: - ST-Link (STM32) - J-Link (Segger, multi-platform) - CMSIS-DAP (ARM standard)

Capabilities: - Real-time debugging - Breakpoints and watchpoints - Memory inspection - Register viewing - Flash programming

1550.7.4 Logic Analyzers

Capture and analyze digital signals.

Saleae Logic: Popular USB logic analyzer with excellent software.

Features: - Protocol analyzers (I2C, SPI, UART, CAN, etc.) - Trigger conditions - Measurements and timing - Export to CSV

Example Use Cases: - Verify I2C communication timing - Debug SPI protocol issues - Analyze timing between GPIO signals - Capture and decode UART traffic

1550.7.5 Oscilloscopes

Visualize analog and digital signals.

Applications: - Measure signal integrity - Analyze PWM signals - Debug power supply issues - Verify analog sensor outputs

USB vs Benchtop: - USB oscilloscopes: Portable, affordable ($50-500) - Benchtop: Professional features, higher performance ($500-5000+)

1550.7.6 AI-Generated Debugging Visualizations

JTAG Debugging Architecture

Figure 1550.5: JTAG debugging provides hardware-level access to microcontroller internals.

Logic Analyzer for IoT Debugging

Figure 1550.6: Logic analyzers are essential for debugging communication protocols.

1550.8 Testing Frameworks

⏱️ ~20 min | ⭐⭐ Intermediate | 📋 P13.C04.U03e

1550.8.1 Unity Test Framework

C testing framework popular in embedded systems.

test_sensor.c:

#include "unity.h"
#include "sensor.h"

void setUp(void) {
  initSensor();
}

void tearDown(void) {
  // Cleanup
}

void test_sensor_initialization(void) {
  TEST_ASSERT_TRUE(isSensorReady());
}

void test_temperature_reading(void) {
  float temp = readTemperature();
  TEST_ASSERT_FLOAT_WITHIN(0.1, 25.0, temp);
}

void test_temperature_bounds(void) {
  float temp = readTemperature();
  TEST_ASSERT_TRUE(temp >= -40.0 && temp <= 85.0);
}

int main(void) {
  UNITY_BEGIN();
  RUN_TEST(test_sensor_initialization);
  RUN_TEST(test_temperature_reading);
  RUN_TEST(test_temperature_bounds);
  return UNITY_END();
}

1550.8.2 Google Test (gtest)

C++ testing framework.

test_sensor.cpp:

#include <gtest/gtest.h>
#include "sensor.h"

class SensorTest : public ::testing::Test {
protected:
  void SetUp() override {
    sensor.init();
  }

  void TearDown() override {
    sensor.shutdown();
  }

  Sensor sensor;
};

TEST_F(SensorTest, Initialization) {
  EXPECT_TRUE(sensor.isReady());
}

TEST_F(SensorTest, TemperatureReading) {
  float temp = sensor.readTemperature();
  EXPECT_GE(temp, -40.0);
  EXPECT_LE(temp, 85.0);
}

TEST_F(SensorTest, MultipleReadings) {
  for(int i = 0; i < 10; i++) {
    float temp = sensor.readTemperature();
    EXPECT_FALSE(isnan(temp));
  }
}

1550.8.3 pytest (Python)

Testing framework for Python-based IoT (Raspberry Pi, MicroPython).

test_sensor.py:

import pytest
from sensor import TemperatureSensor

@pytest.fixture
def sensor():
    s = TemperatureSensor(pin=4)
    yield s
    s.cleanup()

def test_initialization(sensor):
    assert sensor.is_ready()

def test_temperature_reading(sensor):
    temp = sensor.read_temperature()
    assert -40.0 <= temp <= 85.0

def test_multiple_readings(sensor):
    readings = [sensor.read_temperature() for _ in range(10)]
    assert all(-40.0 <= r <= 85.0 for r in readings)

1550.8.4 Continuous Integration

Automated testing on code commits.

.github/workflows/iot-tests.yml:

name: IoT Firmware Tests

on: [push, pull_request]

jobs:
  test:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v2

      - name: Setup PlatformIO
        run: pip install platformio

      - name: Run tests
        run: pio test

      - name: Build firmware
        run: pio run

1550.9 Documentation Tools

⏱️ ~10 min | ⭐⭐ Intermediate | 📋 P13.C04.U03f

1550.9.1 Doxygen

Documentation generator for C/C++ code.

Example Comments:

/**
 * @brief Read temperature from sensor
 *
 * Reads the current temperature value from the BME280 sensor
 * and applies calibration offset.
 *
 * @return Temperature in Celsius, or NAN if read fails
 * @throws SensorException if sensor not initialized
 */
float readTemperature() {
  if (!sensorReady) {
    return NAN;
  }

  float raw = bme.readTemperature();
  return raw + CALIBRATION_OFFSET;
}

1550.9.2 Sphinx

Python documentation generator.

Example (reStructuredText):

def read_temperature():
    """Read temperature from sensor.

    Reads the current temperature value from the BME280 sensor
    and applies calibration offset.

    Returns:
        float: Temperature in Celsius

    Raises:
        SensorException: If sensor not initialized

    Example:
        >>> sensor = TemperatureSensor()
        >>> temp = sensor.read_temperature()
        >>> print(f"Temperature: {temp}°C")
    """
    pass

1550.9.3 README Documentation

Essential project documentation template:

IoT Temperature Monitor README:

• Overview: A battery-powered IoT device monitoring temperature and humidity
• Hardware: ESP32 DevKit, BME280 sensor, 18650 battery
• Dependencies: PlatformIO, Adafruit BME280 Library, PubSubClient (MQTT)
• Configuration: Copy config.h.template to config.h, edit Wi-Fi and MQTT credentials
• Usage: pio run --target upload then pio device monitor
• License: MIT

1550.10 Simulation Tools

⏱️ ~10 min | ⭐⭐ Intermediate | 📋 P13.C04.U03g

1550.10.1 Wokwi

Online Arduino and ESP32 simulator.

Features: - Web-based, no installation - Visual circuit building - Real-time simulation - Code editor with debugging - Library support

Use Cases: - Testing code without hardware - Educational demonstrations - Prototyping circuit designs - Sharing reproducible examples

1550.10.2 Proteus

Professional electronics design and simulation.

Features: - Schematic capture - PCB layout - Microcontroller simulation (PIC, AVR, ARM) - SPICE analog simulation - IoT libraries

1550.10.3 Fritzing

PCB design tool popular in maker community.

Features: - Breadboard view - Schematic view - PCB layout - Parts library - Export Gerber files

1550.10.4 Tinkercad Circuits

Browser-based Arduino simulator.

Features: - Visual programming (blocks) - Text-based coding - Circuit simulation - 3D design integration

1550.11 Collaboration Tools

⏱️ ~10 min | ⭐⭐ Intermediate | 📋 P13.C04.U03h

1550.11.1 Code Hosting Platforms

GitHub/GitLab/Bitbucket:

Features: - Version control hosting - Issue tracking - Pull requests / Merge requests - CI/CD integration - Wiki and documentation - Project boards

1550.11.2 Team Communication

Slack/Discord:

IoT Integration: - Webhook notifications (build status, deployments) - Bot integrations - File sharing - Channel organization

1550.11.3 Project Management

Jira/Trello:

Workflows: - Backlog → In Progress → Testing → Done - Bug tracking and prioritization - Sprint planning - Burndown charts

1550.11.4 Knowledge Sharing

Confluence/Notion:

Content: - Architecture documentation - API specifications - Deployment guides - Troubleshooting guides

1550.12 Summary

• IDEs and Editors range from beginner-friendly Arduino IDE to professional VS Code with PlatformIO and CLion for advanced C++ development
• Build Systems (Make, CMake, PlatformIO) automate compilation, linking, and deployment with reproducible configurations
• Version Control with Git enables team collaboration through feature branches, pull requests, and code review workflows
• Debugging Tools span from simple serial monitor output to sophisticated JTAG hardware debuggers with breakpoints and memory inspection
• Testing Frameworks (Unity, Google Test, pytest) enable automated verification at unit, integration, and system levels
• Documentation Tools (Doxygen, Sphinx) generate API references from code comments
• Simulation Tools (Wokwi, Proteus, Tinkercad) enable testing without physical hardware
• Collaboration Tools (GitHub, Slack, Jira) facilitate team communication and project management

1550.13 What’s Next

The next chapter covers Best Practices, which provides guidelines for selecting the right tools and paradigms for your IoT projects, along with knowledge checks to test your understanding.

NoteRelated Chapters & Resources

Continue Learning: - Programming Paradigms - Programming approaches - Best Practices - Tool selection guidelines - Code Examples - Complete practical implementations

Software Development: - Software Platforms - Frameworks - Simulating Hardware - Simulation tools

Hardware Integration: - Prototyping Hardware - Hardware platforms - Specialized Kits - Development kits

Learning Hubs: - Simulations - Interactive tools
