3  WSN Introduction and History

In 60 Seconds

Wireless Sensor Networks deploy tens to thousands of autonomous nodes that sense, process, and wirelessly relay data to a central sink. Originating from 1980s military research (DARPA Distributed Sensor Networks program), WSNs now underpin smart agriculture, structural health monitoring, and environmental surveillance. The fundamental design tension is energy vs. coverage: a typical AA-battery node lasts 1-2 years at 1% duty cycle but only days if always active, making sleep scheduling and multi-hop routing the two most critical design decisions.

3.1 Learning Objectives

By the end of this chapter, you will be able to:

• Define WSN Concepts: Explain wireless sensor networks, sensor nodes, and their role in IoT
• Describe Network Topologies: Compare star, mesh, cluster, and hybrid WSN configurations

• Trace Historical Evolution: Map WSN development milestones from DARPA military origins through academic research to modern IoT applications
• Evaluate Deployment Strategies: Analyze clustering and topology choices based on application requirements and energy constraints

3.2 Prerequisites

Before diving into this chapter, you should be familiar with:

• Sensor Fundamentals and Types: Understanding of basic sensor operation, measurement principles, and sensor characteristics
• Networking Basics: Knowledge of fundamental networking concepts including network topologies, protocols, and communication models

Related Chapters

Continue Learning:

• WSN Sensor Nodes - Hardware architecture and node characteristics
• WSN Swarm Behavior - Distributed intelligence and IoT relationship
• WSN Communication Patterns - N-to-1 paradigm and data aggregation
• WSN Energy Management - Power optimization and duty cycling

Deep Dives:

• WSN Coverage - Coverage theory and deployment
• WSN Tracking - Target localization algorithms
• Wireless Sensor Networks - Advanced concepts

Review:

• WSN Overview Review - Comprehensive quiz
• Architectural Enablers - WSN role in IoT

Cross-Hub Connections

Interactive Tools:

• Simulations Hub - WSN coverage visualization, duty cycle calculator
• Network Topology Explorer - Interactive topology comparison

Knowledge Validation:

• Knowledge Gaps Hub - Common WSN misconceptions

• Quizzes Hub - Test WSN fundamentals knowledge

---

Minimum Viable Understanding (MVU)

If you only learn three things from this chapter:

1. A WSN is many cheap sensors working together – hundreds to thousands of small, battery-powered nodes cooperatively monitor an environment, communicating wirelessly to report data to a base station
2. Radio transmission dominates energy consumption – communication uses 70% of a sensor node’s energy, so every protocol and algorithm in WSN design focuses on minimizing radio usage
3. WSN evolved from military research to modern IoT – DARPA’s 1980s distributed sensing program spawned protocols (802.15.4, Zigbee, 6LoWPAN, RPL, LoRaWAN) that form the backbone of today’s Internet of Things

Sensor Squad: Welcome to Sensor World!

Meet the Sensor Squad! Four friends who will guide you through the world of wireless sensor networks:

• Sammy the Sensor – A curious little device who loves measuring things like temperature, light, and motion. “I’m tiny, cheap, and I have lots of friends!”
• Lila the Listener – An excellent communicator who helps relay messages. “I pass messages between friends like a game of telephone!”
• Max the Messenger – The adventurous one who figures out the best routes. “I find the fastest path to deliver important news!”
• Bella the Battery – The energy expert who keeps everyone running. “I’m the most precious resource – once I’m empty, everyone goes to sleep!”

Sammy explains WSNs: “Imagine you want to check if any part of a huge forest is on fire. You could send ONE really expensive firefighter to walk through the ENTIRE forest every day… OR you could scatter hundreds of tiny me-clones throughout the forest! We each watch a small area and shout to each other when something is wrong. Many cheap sensors beat one expensive sensor!”

Bella warns: “But we all run on batteries, and talking on the radio uses LOTS of energy – 70% of everything I have! So we sleep most of the time and only wake up when something needs reporting.”

3.3 Getting Started (For Beginners)

What is a Wireless Sensor Network? (Simple Explanation)

Analogy: A WSN is like a team of scouts spread across a forest, each reporting back what they observe. Instead of one person trying to watch everything, many scouts share the job and relay messages to headquarters.

In everyday terms:

• 📡 Sensor Node = A small scout with a radio and battery
• 🏠 Base Station/Gateway = Headquarters that collects all reports

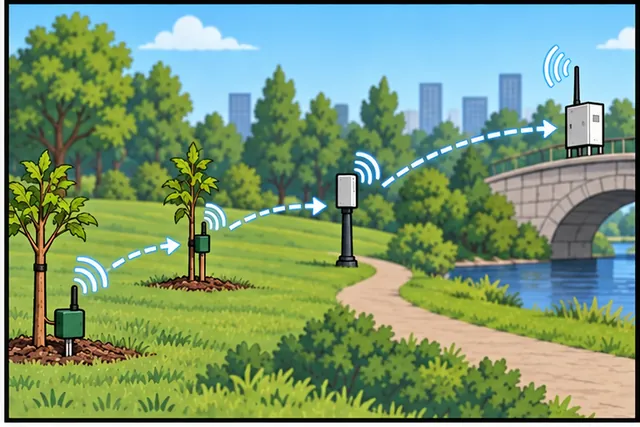

• 🔗 Multi-hop = Scouts passing messages through each other (like a relay race)

3.3.1 How WSNs Work (Visual Overview)

Figure 3.1: WSN architecture showing sensor nodes (temperature and humidity) sending data through relay nodes via multi-hop routing to a gateway, which connects to a cloud backend for data storage and analysis.

Many cheap sensors working together outperform one expensive sensor

3.3.2 Real-World Examples

Application	What Sensors Measure	Why WSN?
Smart Farm	Soil moisture, temperature	Fields are huge; one sensor can’t cover everything
Forest Fire Detection	Smoke, temperature	Fires can start anywhere; need eyes everywhere
Bridge Monitoring	Vibration, stress	Bridges are long; sensors at each point detect problems
Wildlife Tracking	Animal location, movement	Animals roam; sensors track migration patterns

3.3.3 The Key Challenge: Battery Life

Figure 3.2: Pie chart showing sensor node energy consumption breakdown: Radio TX/RX 70%, Microcontroller 15%, Sensing 10%, Sleep/Idle 5%

Alternative View:

Figure 3.3: Energy Strategy Variant: This flowchart connects the energy breakdown (70% radio) to concrete mitigation strategies. Since radio dominates, three complementary approaches attack the problem: (1) Data aggregation reduces the number of transmissions by combining readings at cluster heads. (2) Multi-hop routing reduces transmission power (power scales with distance squared). (3) Duty cycling reduces active time. Combined, these strategies transform a 4-day battery life into 2+ years. This actionable view helps students understand WHY these WSN techniques exist.

Radio transmission dominates WSN energy consumption - every design decision should minimize transmissions!

3.3.4 Interactive: Battery Life vs Duty Cycle

Adjust the sliders below to see how duty cycle and battery capacity affect WSN node lifetime:

viewof dutyCycle = Inputs.range([0.1, 20], {value: 1, step: 0.1, label: "Duty Cycle (%)"})

viewof batteryMah = Inputs.range([500, 10000], {value: 2000, step: 100, label: "Battery Capacity (mAh)"})

viewof activeCurrent = Inputs.range([5, 50], {value: 20, step: 1, label: "Active Current (mA)"})

viewof sleepCurrent = Inputs.range([0.001, 1], {value: 0.005, step: 0.001, label: "Sleep Current (mA)"})

{
  const dc = dutyCycle / 100;
  const avgCurrent = dc * activeCurrent + (1 - dc) * sleepCurrent;
  const lifetimeHours = batteryMah / avgCurrent;
  const lifetimeDays = lifetimeHours / 24;
  const lifetimeYears = lifetimeDays / 365;

  return html`<div style="background: var(--bs-light, #f8f9fa); padding: 1rem; border-radius: 8px; border-left: 4px solid #3498DB; margin-top: 0.5rem;">
    <p><strong>Average Current Draw:</strong> ${avgCurrent.toFixed(3)} mA</p>
    <p><strong>Estimated Battery Lifetime:</strong> ${lifetimeDays.toFixed(0)} days (${lifetimeYears.toFixed(2)} years)</p>
    <p style="font-size: 0.85em; color: #666;">Formula: I<sub>avg</sub> = DC × I<sub>active</sub> + (1−DC) × I<sub>sleep</sub> &nbsp;|&nbsp; Lifetime = Battery / I<sub>avg</sub></p>
    <p style="font-size: 0.85em; color: #888;">Note: does not account for battery self-discharge or temperature effects.</p>
  </div>`;
}

3.3.5 Quick Self-Check

Before continuing, make sure you understand:

1. What is a sensor node? → A small device that senses, processes, and wirelessly transmits data
2. Why many sensors instead of one? → Coverage, redundancy, and lower cost per area
3. What’s the biggest design constraint? → Battery life (energy efficiency)
4. What is multi-hop? → Data passing through intermediate nodes to reach the gateway

Common Misconception: “More Sensors = Better Coverage Always”

The Myth: Deploying more sensor nodes always improves coverage and network reliability.

The Reality: Over-provisioning sensors creates diminishing returns and introduces new problems:

• Energy Hotspots: Dense deployments create contention for the wireless channel, forcing nodes near the sink to relay massive amounts of traffic, depleting their batteries 10-100× faster than edge nodes
• Interference and Collisions: Too many sensors in close proximity increase radio interference, packet collisions, and retransmissions, actually decreasing reliability and throughput
• Cost-Benefit Break Point: Beyond optimal density (typically 5-10 neighbors per node), additional sensors provide minimal coverage improvement but linearly increase hardware, deployment, and maintenance costs
• Calibration Drift: More sensors mean more calibration maintenance—uncalibrated sensors provide redundant but inaccurate data, reducing fusion quality

Better Approach: Use k-coverage analysis (see WSN Coverage Fundamentals) to mathematically determine minimum node density for required coverage level. Deploy redundancy strategically only in critical areas (perimeters, near sinks) rather than uniformly. Consider hybrid topologies: sparse sensing layer + mobile data collectors, or hierarchical clustering with non-uniform node distribution matching application requirements.

Example: A precision agriculture deployment reduced nodes from 500 to 180 using coverage optimization, cutting costs 64% while maintaining 95% area coverage with k=2 redundancy.

---

4 Wireless Sensor Networks

Key Concepts

• Wireless Sensor Network (WSN): Network of spatially distributed autonomous sensor nodes cooperatively monitoring environmental or physical conditions
• Sensor Node: Small, battery-powered device with sensing, processing, and wireless communication capabilities deployed in monitored environments
• Network Topology: Organization of sensor nodes (star, mesh, cluster, hybrid) affecting communication patterns and energy efficiency
• Data Aggregation: Combining data from multiple sensors to reduce transmission overhead and extract higher-level information
• Energy Efficiency: Primary design constraint for WSNs, dictating node lifetime and determining feasible network operations
• Multi-Hop Communication: Nodes relay data through intermediaries to reach base stations beyond direct radio range

4.1 Overview

⏱️ ~10 min | ⭐⭐ Intermediate | 📋 P05.C31.U01

Wireless Sensor Networks (WSNs) represent a foundational technology in the Internet of Things ecosystem, consisting of spatially distributed autonomous sensors that cooperatively monitor physical or environmental conditions. These networks have evolved from specialized military and industrial applications to become integral components of modern IoT systems, enabling pervasive sensing across diverse application domains.

Definition

A Wireless Sensor Network (WSN) is a collection of spatially distributed, autonomous sensor nodes that communicate wirelessly to collectively monitor physical or environmental conditions such as temperature, pressure, humidity, motion, vibration, pollutants, or other parameters of interest.

4.1.1 Historical Evolution

Early Development (1980s-1990s): WSNs emerged from military applications, particularly the Distributed Sensor Networks (DSN) program initiated by DARPA. Early systems were expensive, power-hungry, and limited in capability.

Technological Advancement (2000s): Miniaturization of electronics, advances in wireless communication, and improvements in energy efficiency enabled widespread commercial adoption. The Berkeley Mote platform became a landmark development in WSN research.

IoT Integration (2010s-Present): WSNs have become integral to IoT architectures, with standardized protocols (IEEE 802.15.4, Zigbee, LoRaWAN), cloud integration, and edge computing capabilities transforming their role from isolated systems to connected components of larger ecosystems.

Historical Context: How Wireless Sensor Networks Evolved

Military Origins (1980s): The concept of distributed sensing emerged from DARPA’s Distributed Sensor Networks (DSN) program, which explored networks of acoustic sensors for tracking submarines and ground vehicles. Early nodes cost $10,000+ each, were the size of shoeboxes, and required wired power. The key insight was that many cheap, imperfect sensors could outperform a few expensive, precise ones through collaborative processing.

Smart Dust Vision (1997-2002): UC Berkeley’s Smart Dust project, led by Kris Pister, envisioned millimeter-scale sensors that would “float in the air like dust.” While the mm-scale goal remained aspirational, this project spawned the Berkeley Motes platform and TinyOS operating system that dominated WSN research for a decade. The original Mica motes cost ~$100 each—still expensive, but revolutionary for research.

Landmark Deployments (2002-2005):

• Great Duck Island (2002): 32 Mica motes monitored seabird nesting burrows on a Maine island—one of the first real-world, long-duration WSN deployments. Revealed practical challenges: node failures, clock drift, and the “energy hole” problem near gateways.
• Redwoods Study (2005): 70 nodes placed in 70-meter-tall redwood trees captured unprecedented microclimate data, demonstrating WSN value for environmental science.
• Golden Gate Bridge (2006): 64 accelerometers monitored structural vibrations, pioneering infrastructure monitoring applications.

Protocol Innovation Era (2000-2010): Academic researchers addressed unique WSN constraints with specialized protocols:

• Directed Diffusion (2000): Data-centric routing where queries propagated through the network and data flowed back along established gradients—fundamentally different from address-based Internet routing.
• LEACH (2000): Hierarchical clustering with rotating cluster heads, pioneering energy-balanced data aggregation.
• S-MAC (2002): Sensor-MAC introduced synchronized sleep schedules, trading latency for 10× energy savings over always-on approaches.
• TAG/TinyDB (2003): Treating the sensor network as a queryable database, enabling SQL-like queries over distributed sensors.

Standardization Wave (2003-2015): Research innovations became industry standards:

Standard	Year	Origin	WSN Contribution
IEEE 802.15.4	2003	Zigbee Alliance + IEEE	Low-power PHY/MAC from WSN research
Zigbee	2004	Zigbee Alliance	Mesh networking, application profiles
6LoWPAN	2007	IETF	IPv6 header compression for constrained nodes
RPL	2012	IETF	Distance-vector routing for lossy networks
LoRaWAN	2015	LoRa Alliance	Long-range from spread-spectrum research

IoT Convergence (2015-Present): The distinction between “WSN” and “IoT” blurred as:

• Commercial platforms (AWS IoT, Azure IoT) absorbed WSN concepts
• Edge computing brought intelligence back to sensor nodes (echoing early WSN processing)
• Machine learning enabled advanced in-network analytics
• Thread and Matter standards unified home/industrial sensing

Key Research Projects and Their Legacy:

Project	Institution	Year	Lasting Impact
Smart Dust	UC Berkeley	1997	Motes platform, TinyOS, WSN community
SensorWeb	NASA/JPL	2000	Earth observation, autonomous tasking
Habitat Monitoring	Intel/Berkeley	2002	Practical deployment lessons
VigilNet	UVA	2004	Military surveillance, target tracking
CitySense	Harvard	2008	Urban monitoring, participatory sensing
WisePlatform	ETH Zurich	2010	Reliable industrial WSN

Why This Matters for Modern IoT:

1. Protocol Design Decisions: Why does 802.15.4 use 250 kbps? Why does Zigbee limit payloads to 127 bytes? These choices reflect WSN energy constraints, not arbitrary decisions.

2. Architectural Patterns: Data aggregation, duty cycling, hierarchical clustering, and gradient-based routing—all IoT patterns originated in WSN research.

3. Energy-First Thinking: The obsession with energy efficiency in IoT protocols stems from WSN deployments where battery replacement was physically impossible.

4. Research Community: Most IoT researchers trained on WSN problems; SenSys, IPSN, and MobiCom conferences birthed the field.

The Evolution in Numbers:

Metric	1999 (Mica1)	2005 (Mica2)	2010 (TelosB)	2020 (Commercial IoT)
Node Cost	~$100	~$50	~$30	~$5-15
Radio Power (TX)	27 mA	17 mA	17 mA	5-10 mA
MCU	4 MHz	8 MHz	8 MHz	80-240 MHz
RAM	4 KB	4 KB	10 KB	256+ KB
Battery Life (typical)	Days	Weeks	Months	Years

Understanding this evolution explains why modern IoT standards look the way they do—they carry the DNA of two decades of WSN research embedded in every protocol choice and architectural pattern.

4.1.2 Core Characteristics

Distributed Sensing: Multiple sensor nodes deployed across an area provide redundancy, increased coverage, and improved accuracy through collaborative sensing and data fusion.

Wireless Communication: Nodes communicate without physical wiring, enabling deployment in challenging environments and reducing installation costs.

Self-Organization: Networks autonomously configure themselves, adapt to node failures, and optimize routing without centralized coordination.

Resource Constraints: Nodes typically operate under severe constraints in energy, computation, memory, and communication bandwidth.

Application-Specific Design: WSNs are often designed and optimized for specific applications, with hardware and protocols tailored to particular sensing requirements and environmental conditions.

Quick Check: WSN Characteristics

4.1.3 WSN Architecture

Figure 4.1: Example of wireless sensor network architecture showing sensor nodes, sink, and base station connectivity

Three-Tier Architecture:

Tier 1 - Sensor Nodes:

• Collect environmental data through sensors
• Perform local processing and filtering
• Transmit data to nearby nodes or gateways
• Often battery-powered with limited resources

Tier 2 - Gateway/Sink Nodes:

• Aggregate data from multiple sensor nodes
• Provide protocol translation (e.g., 802.15.4 to Wi-Fi/Ethernet)
• Perform edge processing and data fusion
• Connect sensor network to external networks

Tier 3 - Backend Systems:

• Cloud or on-premise servers
• Store and analyze large-scale data
• Provide user interfaces and applications
• Enable remote management and configuration

4.1.4 Application Domains

Environmental Monitoring:

• Climate and weather monitoring
• Pollution detection (air, water, soil)
• Forest fire detection
• Flood and landslide warning systems
• Wildlife habitat monitoring

Industrial Applications:

• Structural health monitoring (bridges, buildings, dams)
• Machine condition monitoring
• Supply chain and inventory tracking
• Quality control and process optimization
• Hazardous gas detection in industrial facilities

Smart Agriculture:

• Precision irrigation management
• Soil moisture and nutrient monitoring
• Crop health assessment
• Livestock tracking and health monitoring
• Greenhouse climate control

Healthcare:

• Patient vital signs monitoring
• Fall detection for elderly care
• Hospital asset tracking
• Environmental monitoring in medical facilities
• Pandemic and disease outbreak detection

Smart Cities:

• Traffic monitoring and management
• Smart parking systems
• Waste management optimization
• Street lighting control
• Noise level monitoring

Military and Defense:

• Battlefield surveillance
• Intrusion detection
• Target tracking
• Chemical/biological threat detection
• Equipment and personnel monitoring

4.1.5 Network Topology Visualization

Understanding how sensor nodes organize themselves into network structures is essential for designing effective WSN deployments. The following visualization illustrates common WSN topology patterns.

WSN Network Topology

Figure 4.2: Wireless sensor network topology showing self-organizing mesh structure with multi-hop paths converging toward a central sink node.

4.1.6 Cluster-Based Organization

Clustering is a fundamental organization strategy in WSNs where nodes are grouped into clusters, each with a designated cluster head that aggregates data and communicates with the base station.

WSN Clustering

Figure 4.3: Sensor network clustering architecture showing cluster heads (larger nodes) aggregating data from member nodes before forwarding to the base station.

The clustering approach offers several advantages:

Benefit	Description
Energy Efficiency	Only cluster heads transmit long distances, saving energy for member nodes
Scalability	Adding new nodes only requires joining a local cluster
Data Aggregation	Cluster heads can combine readings before transmission, reducing traffic
Load Balancing	Rotating cluster head role distributes energy consumption

Tradeoff: Star Topology vs Mesh Topology

Option A (Star Topology): All sensor nodes communicate directly with a central gateway/sink. Single-hop communication: 10-50ms latency, no routing overhead. Gateway handles all traffic aggregation. Radio range requirement: nodes must be within 50-100m of gateway. Failure mode: gateway failure = total network failure. Typical deployment: 10-30 nodes in small area (single room, small greenhouse).

Option B (Mesh Topology): Nodes form multi-hop network, forwarding data through neighbors to reach sink. Multi-hop paths: 3-10 hops typical, 100-500ms latency. Distributed routing: each node maintains neighbor table (50-200 bytes). Coverage area: extends to 500m+ through relaying. Failure tolerance: alternate paths available if nodes fail. Typical deployment: 50-1000+ nodes across large areas (farms, forests, cities).

Decision Factors:

• Choose Star Topology when: Coverage area is small (<100m diameter), all nodes within direct range of gateway, latency requirements are strict (<50ms), network size is limited (<30 nodes), or cost/complexity must be minimized (no routing protocol needed).
• Choose Mesh Topology when: Coverage area exceeds single-hop range (>100m), nodes are distributed across irregular terrain or obstacles, fault tolerance is critical (no single point of failure acceptable), or network must scale beyond 50 nodes.
• Quantified comparison: 100-node environmental monitoring. Star (requires 4 gateways for coverage): 100 direct transmissions, 4 gateway installations at $500 each = $2000 infrastructure. Mesh (1 gateway): 100 transmissions + 300 relay transmissions = 400 total, but only $500 infrastructure. Star: lower energy, higher infrastructure cost. Mesh: higher energy, lower infrastructure cost.

Putting Numbers to It

Star vs Mesh: Energy Consumption Analysis

Compare 100-node deployment across 300m × 300m area, reporting every 10 minutes:

Star topology (4 gateways, 25 nodes each):

• Average distance to nearest gateway: 75m
• Transmission power model: \(P_{tx} = P_0 + k \cdot d^{2.5}\) (path loss exponent 2.5 for outdoor)
• Base power \(P_0 = 10\) mW, coefficient \(k = 0.001\) mW/m^2.5
• Power per transmission: \(P = 10 + 0.001 \times 75^{2.5} = 10 + 24.5 = 34.5\) mW
• Transmission time: 50 ms (100-byte packet at 250 kbps)
• Energy per packet: \(34.5 \times 0.05 = 1.725\) mJ
• Daily energy per node: \(1.725 \times 144 \text{ packets/day} = 248\) mJ/day

Mesh topology (1 gateway, avg 3-hop paths):

• Hop 1 (sensor → relay 1): 50m, \(P = 10 + 0.001 \times 50^{2.5} = 21.2\) mW, 1.06 mJ
• Hop 2 (relay 1 → relay 2): 50m, 21.2 mW, 1.06 mJ
• Hop 3 (relay 2 → gateway): 50m, 21.2 mW, 1.06 mJ
• Total 3-hop energy: \(3 \times 1.06 = 3.18\) mJ per source packet
• Relay nodes forward 2× their own traffic on average
• Edge node (no forwarding): \(1.06 \times 3 \times 144 = 458\) mJ/day
• Relay node (2× forwarding): \(458 + 458 \times 2 = 1,374\) mJ/day (3× edge node energy)

Battery lifetime (2000 mAh at 3V = 21,600 J):

• Star node: \(\frac{21,600}{0.248} = 87,097\) days = 238 years
• Mesh edge node: \(\frac{21,600}{0.458} = 47,161\) days = 129 years
• Mesh relay node: \(\frac{21,600}{1.374} = 15,720\) days = 43 years

Verdict: Multi-hop uses more total energy per source packet (3.18 mJ vs 1.725 mJ for star), because each hop consumes energy and the source packet is relayed multiple times. However, each individual hop is shorter and lower power. The real advantage of mesh is reaching distant nodes without requiring a long-range (high-power) direct link. The relay burden creates hotspot nodes with 1/3 the lifetime of edge nodes. Solution: Solar-power the relay nodes.

Tradeoff: Fixed Cluster Head vs Rotating Cluster Head

Option A (Fixed Cluster Head Selection): Cluster heads are predetermined based on node capability (battery size, processing power, location). CHs remain fixed for network lifetime or until failure. Energy consumption: CHs deplete 5-10x faster than members. Typical CH lifetime: 3-6 months with 2000mAh battery. Advantage: stable routing, no CH election overhead (saves 5-10% energy per round). Disadvantage: CHs become network bottleneck and early failure points.

Option B (Rotating Cluster Head Selection): CH role rotates among nodes based on probability and residual energy (LEACH-style). Election overhead: 2-5% additional transmissions per round. Energy distribution: all nodes deplete at similar rate. Network lifetime extended by 40-60% compared to fixed CH. Typical rotation period: every 10-60 minutes. Disadvantage: routing instability during transitions (50-200ms convergence).

Decision Factors:

• Choose Fixed CH when: Some nodes have significantly more resources (mains-powered, larger batteries, better position), network lifetime is short-term (<6 months), routing stability is critical (real-time control applications), or CH election overhead is unacceptable (very low duty cycle networks).
• Choose Rotating CH when: All nodes have similar capabilities (homogeneous network), long network lifetime required (>1 year), energy fairness is important (all nodes should last equally), or network must survive multiple node failures without infrastructure changes.
• Quantified comparison: 200-node network, 2-year target lifetime. Fixed CH (20 CHs, 180 members): CHs fail at 4 months (20× relay traffic), network collapses. Rotating CH (LEACH with p=0.1): all nodes at 15% residual energy at 2 years. Rotating CH achieves 6× longer network operational lifetime.

4.1.7 Sensor Node Hardware Architecture

Understanding the hardware components of sensor nodes helps in designing energy-efficient systems and selecting appropriate platforms for specific applications.

WSN Node Architecture

Figure 4.4: Sensor node architecture showing the four primary subsystems: sensing, processing, communication, and power management.

Sensor Node Hardware

Figure 4.5: Physical representation of sensor node hardware components showing the compact integration of processing, sensing, and communication elements.

4.2 Test Your Understanding

Knowledge Check

Question 1: What is the PRIMARY design constraint that drives all WSN protocol and algorithm decisions?

1. Maximizing data throughput between nodes
2. Minimizing latency for real-time applications
3. Energy efficiency to extend battery-powered node lifetime
4. Ensuring military-grade encryption on all communications

Answer

c) Energy efficiency to extend battery-powered node lifetime – Energy is the most critical constraint in WSNs. Radio transmission consumes 70% of a node’s energy budget, and replacing batteries in hundreds or thousands of deployed nodes is often physically impossible or prohibitively expensive. This is why duty cycling, data aggregation, hierarchical clustering, and energy-aware routing exist – they all minimize radio usage to extend lifetime from days to years.

Question 2: Which network topology provides NO single point of failure but requires more energy due to relay traffic?

1. Star topology – all nodes connect directly to one gateway
2. Mesh topology – nodes form multi-hop paths with alternate routes
3. Chain topology – nodes pass data through a single linear path
4. Tree topology – hierarchical structure with one root node

Answer

b) Mesh topology – nodes form multi-hop paths with alternate routes – In a mesh topology, if one node fails, data can be rerouted through alternative paths, providing excellent fault tolerance. However, this requires nodes to relay traffic for other nodes, consuming additional energy. Star topology has a single point of failure (the gateway). Chain topology has single points of failure at every link. Tree topology is vulnerable at root and branch nodes.

Question 3: A precision agriculture WSN deploys 400 soil sensors on a hexagonal grid with 50m spacing. Each node costs $35. What is the total sensor node hardware cost?

1. $7,000
2. $14,000
3. $18,400
4. $35,000

Answer

b) $14,000 – The calculation is straightforward: 400 sensor nodes x $35/node = $14,000. This represents only the sensor node cost. A complete deployment would also include cluster head gateways ($2,400 for 20 solar-powered units), a main gateway ($800), and connectivity costs ($1,200 for 24 months of cellular), bringing the total system to $18,400 – well within a $50,000 budget.

Interactive: Sensor-to-Network Data Pipeline

Worked Example: Smart Agriculture WSN Sizing and Cost

Scenario: Design a soil moisture monitoring WSN for a 50-hectare (500,000 m²) vineyard. Calculate sensor requirements, topology, and total deployment cost.

Given:

• Area: 50 hectares = 500,000 m²
• Soil moisture sensor: Detection radius Rs = 8m
• Communication radio: Range Rc = 30m (802.15.4)
• Target coverage: 95%
• Data collection: Every 15 minutes
• Network lifetime: 3 years on batteries

Solution:

1. Calculate sensor density (hexagonal deployment): \[N_{theory} = \frac{A}{\pi R_s^2} = \frac{500,000}{\pi \times 8^2} = \frac{500,000}{201} \approx 2,488 \text{ sensors}\]

2. Apply overlap factor (alpha = 1.3 for random placement): \[N_{actual} = 2,488 \times 1.3 = 3,234 \text{ sensors}\]

3. Verify Zhang-Hou connectivity theorem: \[\frac{R_c}{R_s} = \frac{30}{8} = 3.75 \geq 2.0 \quad \checkmark\] Coverage guarantees connectivity – no additional relay nodes needed.

4. Design hierarchical cluster topology:

   • Cluster size: 20 sensors per cluster (optimal for LEACH)
   • Number of clusters: 3,234 / 20 = 162 clusters
   • Cluster heads: 162 (rotating role every 10 minutes)
   • Gateways: 6 (spaced across vineyard for max 5-hop paths)

5. Energy budget:

   • Active current: 20 mA (sensing + TX)
   • Sleep current: 5 µA
   • Duty cycle: 1% (data collection + transmission)
   • Average current: 0.01 × 20 + 0.99 × 0.005 = 0.205 mA
   • Battery: 2× AA (3,000 mAh)
   • Lifetime: 3,000 / 0.205 = 14,634 hours = 609 days (1.67 years)

6. Battery replacement strategy:

   • Replace batteries at 18 months (before failure)
   • One mid-term replacement to achieve 3-year lifetime

7. Cost breakdown: | Component | Quantity | Unit Cost | Total | |———–|———-|———–|——-| | Sensor nodes (Arduino + 802.15.4 + soil sensor) | 3,234 | $35 | $113,190 | | Gateway nodes (Raspberry Pi + cellular) | 6 | $250 | $1,500 | | Batteries (initial) | 6,468 (2 per node) | $1.50 | $9,702 | | Installation labor | 3,234 nodes × 15 min | $30/hr | $24,255 | | Software/cloud (3 years) | - | $5,000 | $5,000 | | Battery replacement (18 months) | 6,468 | $1.50 | $9,702 | | Total 3-year deployment | | | $163,349 |

8. Per-hectare cost: $163,349 / 50 hectares = $3,267 per hectare

Comparison with traditional irrigation:

• Manual soil checks: $2,500/year × 3 years = $7,500 (but only 20 sample points)
• WSN precision: 3,234 monitoring points vs. 20 manual samples
• Water savings: ~25% reduction through targeted irrigation
• ROI: Water savings of $15,000/year → payback in 1.1 years

Decision: Deploy 3,234-node WSN with 6 gateways and 162 clusters. Despite high upfront cost ($163K), precision irrigation savings provide 11-month ROI. Use LEACH protocol with 10-minute cluster head rotation for balanced energy consumption.

Decision Framework: When to Deploy WSN vs. Alternative Approaches

Factor	Deploy WSN	Use Wired Sensors	Use Manual Sampling	Use Satellite/Aerial
Area size	1-1,000 hectares	<1 hectare (building)	Any (low frequency)	>1,000 hectares
Access difficulty	Moderate (fields, forest)	Easy (indoor facility)	Any	Extreme (wilderness)
Sampling frequency	Minutes to hours	Seconds (real-time)	Days to weeks	Days
Data resolution	10-100m point measurements	cm precision	Low (sparse samples)	m to km resolution
Power availability	None (battery/solar)	Mains power available	N/A	N/A
Installation cost	$100-500/node	$50/sensor + wiring	Labor only	Service fee
Deployment time	Days to weeks	Weeks (wiring)	Immediate	Immediate (subscription)
Reconfigurability	High (move nodes)	Low (fixed wiring)	Infinite (walk anywhere)	None (fixed orbit)

Cost-benefit comparison (50-hectare farm): | Approach | Initial Cost | Annual Cost | Spatial Resolution | Temporal Resolution | |———-|————–|————-|——————-|——————-| | Manual sampling | $0 | $15,000 (labor) | 20 points | Weekly | | WSN (proposed) | $163,000 | $5,000 (cloud + maintenance) | 3,234 points | 15-minute | | Satellite imagery | $0 | $12,000 (subscription) | 3m pixels | 3-7 days | | Wired network | $280,000 (trenching) | $2,000 | 500 points | Real-time |

Decision guidelines:

1. <10 hectares, indoor, or mains power available → Wired sensors (highest reliability, real-time)
2. 10-1,000 hectares, moderate access, minutes-hours sampling → WSN (optimal coverage/cost balance)
3. Low-frequency monitoring (weekly), any size → Manual sampling (cheapest, flexible)
4. >1,000 hectares, coarse resolution acceptable → Satellite/aerial (covers vast areas)

Hybrid approaches:

• WSN for critical zones (irrigation heads, disease-prone areas) + satellite for broad field health
• Wired backbone (power, data) + wireless end nodes for flexibility
• Manual sampling for calibration + WSN for continuous monitoring

Common Mistake: Underestimating WSN Deployment Complexity

Misconception: “If I can get one sensor node working on my desk, deploying 1,000 nodes is just scaling up.”

Reality: Lab prototypes face none of the challenges that dominate real deployments. Reliability issues in field environments (temperature extremes -20°C to +60°C, moisture, dust, wildlife) cause 5-15% node failure in first year without hardening. Crystal oscillators drift 20-50 ppm leading to 1-2 second drift per day, breaking sleep scheduling. Soil sensors drift 5-10% per month due to chemical deposits. Installation takes 30-45 minutes per node (not the assumed 15) including GPS navigation, mounting, testing, and documentation. Hidden costs inflate budgets 40-60% above hardware: site surveys ($5K-15K), weatherproof enclosures ($15-40/node), logistics, commissioning (1-2 weeks), training (2-5 days), and ongoing maintenance (10-20% nodes annually). For a 3,234-node vineyard: naive hardware-only budget $113K becomes realistic all-in $163K (44% inflation). Budget 50% above hardware, plan 2× installation time, design for 10% annual failure rate, include quarterly calibration.

Common Pitfalls

1. Prioritizing Theory Over Measurement in WSN Introduction and History

Relying on theoretical models without profiling actual behavior leads to designs that miss performance targets by 2-10×. Always measure the dominant bottleneck in your specific deployment environment — hardware variability, interference, and load patterns routinely differ from textbook assumptions.

2. Ignoring System-Level Trade-offs

Optimizing one parameter in isolation (latency, throughput, energy) without considering impact on others creates systems that excel on benchmarks but fail in production. Document the top three trade-offs before finalizing any design decision and verify with realistic workloads.

3. Skipping Failure Mode Analysis

Most field failures come from edge cases that work in the lab: intermittent connectivity, partial node failure, clock drift, and buffer overflow under peak load. Explicitly design and test failure handling before deployment — retrofitting error recovery after deployment costs 5-10× more than building it in.

🏷️ Label the Diagram

Code Challenge

4.3 Summary

This chapter introduced wireless sensor networks, covering their definition, historical evolution from DARPA’s 1980s military research through the Smart Dust vision to modern IoT integration, core characteristics (distributed sensing, self-organization, resource constraints), three-tier architecture (sensor nodes, gateways, backend systems), application domains spanning environmental monitoring to smart cities, and fundamental topology trade-offs between star, mesh, and cluster-based organizations.

4.4 Knowledge Check

Quiz: WSN Introduction and History

Match: WSN Concepts and Definitions

Order: WSN Historical Evolution Timeline

4.5 What’s Next

Topic	Chapter	Description
Sensor Node Hardware	WSN Sensor Nodes	Node architecture, components, and multi-hop communication energy trade-offs
Communication Patterns	WSN Communication	N-to-1 paradigm, data aggregation, and collection protocols
Energy Management	WSN Energy and Duty Cycling	Power optimization strategies and sleep scheduling
