31.1 Start With the Field Story

Implementation turns coverage theory into installation work. The story moves from planned placement to active-set selection, rotation, gap repair, field validation, connectivity checks, and a retest rule when the environment changes.

31.2 In 60 Seconds

Implementing WSN coverage means turning an accepted coverage claim into a deployment plan that can survive field conditions. A useful plan names the sensing model, placement rule, active set, rotation schedule, connectivity path, gap-repair rule, validation evidence, owner, and retest trigger.

The implementation is not approved just because a diagram covers the map. It is approved when the active sensors can sense the required target, route readings to the sink, conserve energy in a controlled way, and show evidence that the coverage claim still holds after installation and maintenance.

31.3 Learning Objectives

By the end of this chapter, you will be able to:

Convert a WSN coverage claim into an implementation record.
Choose between planned placement, active-set selection, rotation, and gap-repair patterns.
Explain why coverage, connectivity, and energy must be reviewed together.
Identify implementation evidence that confirms coverage in the deployed environment.
Define retest triggers that prevent an accepted coverage plan from becoming stale.

31.4 WSN Coverage Implementations

31.5 Implementation Mindset

Coverage implementation starts after the learner has a clear coverage claim. The implementation question is practical: how will the network keep that claim true when sensors sleep, batteries age, obstacles appear, and links change?

Claim first State the region, point, route, or boundary that must be sensed. Avoid choosing sensors or algorithms before the accepted coverage target is clear.

Active state matters Coverage should be checked for the sensors that are awake, calibrated, reachable, and assigned to the monitoring task.

Evidence beats assumptions Field readings, install records, connectivity checks, and maintenance logs are stronger than a perfect-looking planning sketch.

Review is recurring Coverage decisions need retest triggers because the environment, hardware, and operating schedule change over time.

31.6 From Claim to Implementation

Before applying From Claim to Implementation, view Figure 31.1 and compare Accepted claim with consequence clear. Their relationship makes WSN coverage implementation route reviewable.

Wireless sensor network coverage implementation route moving from accepted coverage claim to placement plan, active set, rotation rule, gap repair, field validation, and evidence record. — Figure 31.1: WSN coverage implementation route

The visual in Figure 31.1 divides responsibilities clearly: Accepted claim names a responsibility; consequence clear fixes parsing or order; Placement plan sets spatial acceptance. Placing Accepted claim before Placement plan reveals the dependency in WSN coverage implementation route. A later From Claim to Implementation review can recheck consequence clear.

The route is deliberately sequential. Teams can iterate, but they should not skip directly from a coverage model to approval. Skipping the active-state, connectivity, or validation steps is how a plan that looks complete on paper still fails in the field.

31.7 Implementation Inputs

A coverage implementation record should be short enough to maintain and specific enough to audit.

Coverage claim Name the monitored space or target, the required coverage type, the operating state being reviewed, and the consequence of a missed event.

Sensing model State whether the team trusts a disk model, calibrated range, obstacle-aware map, empirical threshold, or application-specific detection rule.

Placement basis Explain whether sensors are planned on a grid, placed at known targets, scattered, attached to assets, carried by mobile nodes, or added during repair.

Active set Record which sensors are awake for the coverage claim and which sensors are reserved for redundancy, rotation, or repair.

Connectivity path Show how covered readings reach a sink or gateway. A sensor that detects an event but cannot report it is not operationally useful.

Energy rule Tie sleep, wake, sampling, and rotation choices to the coverage claim so energy savings do not quietly remove required sensing.

Validation method Name the check used after installation, such as walk tests, calibration readings, path probes, known-event tests, or comparison with a trusted reference.

Retest trigger List the conditions that reopen review: sensor replacement, firmware change, layout change, battery alarm, repeated packet loss, or a failed validation pass.

31.8 Choosing an Implementation Pattern

Most WSN coverage implementations combine more than one pattern. The important choice is not the label; it is the evidence the pattern must produce.

Planned placement Use when sensors can be installed at known locations. The evidence should include the layout, install confirmation, and field validation at boundaries and weak areas.

Active-set selection Use when many sensors are deployed but only a subset should be awake. Algorithms such as OGDC belong here, but the approved result is the active set and its evidence, not the algorithm name.

K-coverage rotation Use when the same target needs backup sensing or scheduled sleep. The record should show which set is active, which set is standby, and how failure or rotation preserves the claim.

Gap repair Use when validation finds an uncovered or unreliable area. Repair can wake a reserve node, move a mobile node, add a sensor, adjust placement, or narrow the accepted claim.

31.9 Field Validation Loop

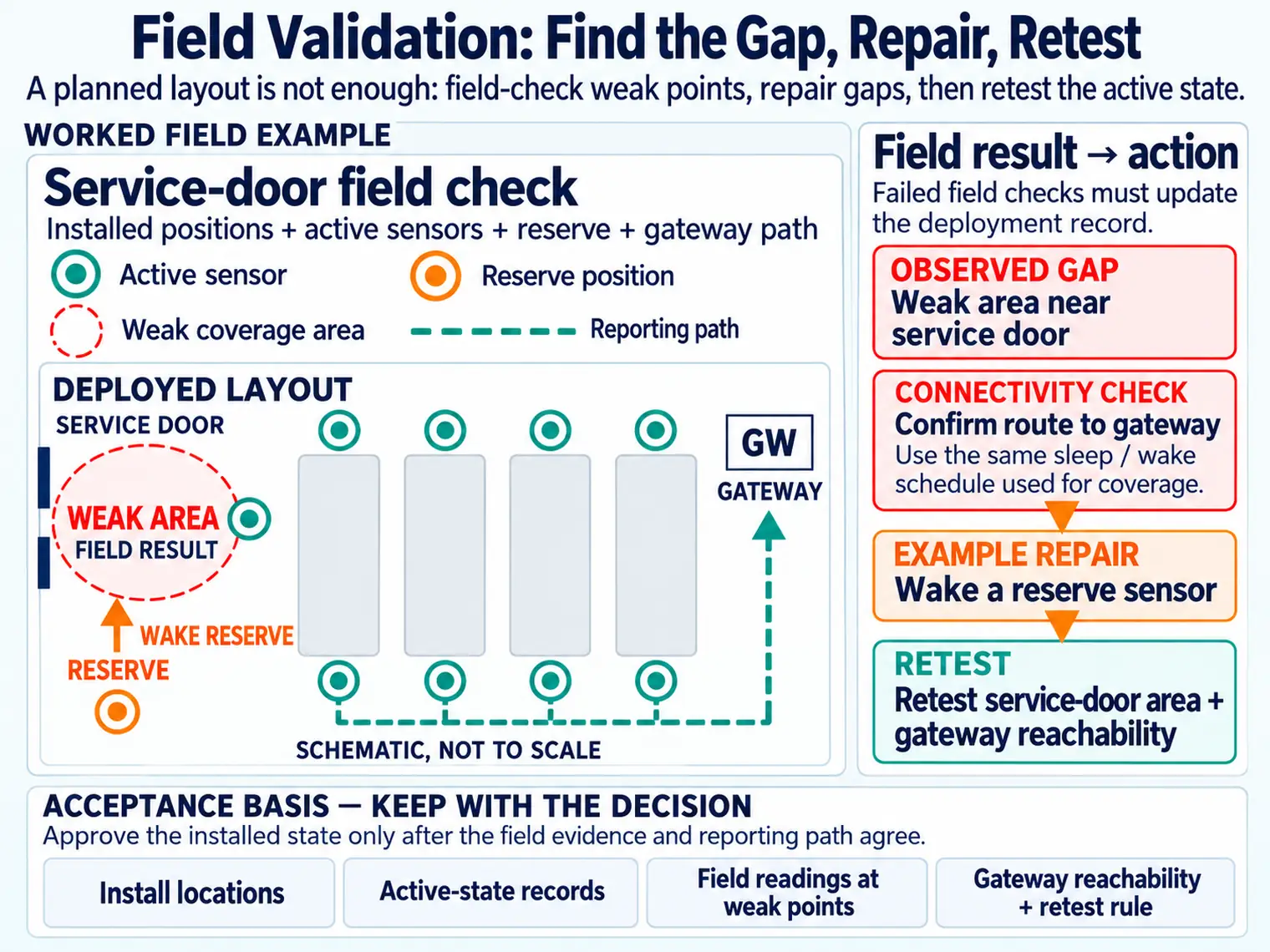

The chapter now moves from describing field validation loop to checking it. The diagram at Figure 31.2 is the checkpoint because it puts Planned Layout beside sensors, reserves, where an unsupported assumption becomes visible.

Wireless sensor network coverage implementation field validation loop linking planned layout, installation evidence, active-state coverage, connectivity proof, gap response, evidence update, decision owner, and retest trigger. — Figure 31.2: WSN coverage implementation field validation loop

Figure 31.2 anchors its argument at Planned Layout, where the diagram adds a distinct review condition. Follow the presented relationship to sensors, reserves (adds a distinct review condition) and finish with weak areas (fixes the spatial boundary). In other words, wireless sensor network coverage implementation field validation loop linking planned layout, installation evidence, active-state coverage, connectivity proof, gap response, evidence update, decision owner, and retest trigger. This closes the visual check required for field validation loop.

The loop matters because coverage can fail for several different reasons. A sensing gap, a sleeping sensor, a blocked route, and a missing maintenance record all require different fixes.

31.10 Implementation Workflow

Follow this workflow when turning coverage analysis into a deployed WSN plan.

1. Freeze the claim Write the coverage claim in reviewable language before choosing a placement pattern. Include the operating condition that the claim covers.

2. Survey constraints Record obstacles, mount points, terrain, power access, interference sources, gateway locations, safety limits, and areas that cannot host sensors.

3. Draft the layout Place sensors, reserves, gateways, and validation points. Mark likely weak areas instead of hiding them.

4. Select the active state Choose the sensors that are awake for the claim and identify standby sensors used for redundancy, rotation, or repair.

5. Check the reporting path Confirm that each active sensing area has a route to the sink or gateway under the same sleep and wake schedule used for coverage.

6. Validate in the field Run the chosen validation method after installation. Treat failed tests as design feedback, not as documentation issues.

7. Record the acceptance basis Store the claim, model, active set, validation results, known limits, owner, and retest trigger together.

8. Monitor for drift Reopen the review when maintenance, sensor behavior, layout, or network health changes enough to threaten the claim.

31.11 Worked Review: Cold Storage Zone

A cold storage operator wants temperature coverage across loading doors and product aisles. The first draft places sensors evenly across the room and marks the whole space as covered.

The implementation review should slow down before accepting that claim:

Coverage claim: Temperature excursions near doors and product aisles must be detected while the room is operating normally.

Key implementation risk: Doors, pallets, and metal shelving may make a simple range drawing too optimistic.

Better implementation: Keep the planned layout, add validation points near doors and aisle ends, define the active sensors that must be awake during loading, and keep one or more reserve positions for repair.

Acceptance evidence: The operator needs install locations, active-state records, field readings at weak points, gateway reachability checks, and a retest rule for layout changes or repeated alarm misses.

This review does not require a complicated algorithm. It requires a coverage claim that survives the actual operating environment.

31.12 Worked Review: Perimeter Detection

A perimeter monitoring system is concerned with movement across a boundary rather than full area coverage. A dense area-coverage layout may waste nodes, while a sparse boundary layout may miss gaps at gates, corners, or service paths.

Coverage claim: Movement across the protected boundary must be detected at approved crossing points and likely bypass paths.

Implementation pattern: Use barrier coverage as the primary pattern, then add point coverage at gates, corners, and service entrances.

Active-state check: A rotating or duty-cycled design must still keep the barrier active during the protected window.

Repair rule: If validation shows a weak crossing, the response is to add or wake a reserve sensor, change the mount point, adjust the claim, or add another validation method.

The strongest implementation record explains what the network is allowed to miss. If the answer is “nothing anywhere,” the design probably needs a sharper coverage claim.

31.13 Common Implementation Mistakes

Approving the drawing The diagram may show intended coverage, but acceptance should depend on the active state, installed position, validation result, and reporting path.

Forgetting sleeping sensors A coverage plan that works only when every sensor is awake is not the same as a duty-cycled coverage plan.

Separating coverage from connectivity Coverage without a reachable sink creates silent detection. Review the sensing path and reporting path together.

Using one sensing range everywhere Walls, weather, vegetation, mounting height, and target type can change effective sensing. Field validation should test the weak areas.

No repair owner Gap repair is slow when nobody owns the decision to wake a reserve node, move a sensor, add hardware, or narrow the accepted claim.

No retest trigger An accepted implementation can drift after maintenance, firmware updates, layout changes, battery aging, or repeated link problems.

31.14 Implementation Checklist

Before accepting a WSN coverage implementation, verify that the record answers these questions:

What exact coverage claim is being implemented? Which sensing model or field measurement supports the claim? Which sensors are active for the reviewed operating state? Which sensors are standby, rotating, failed, or out of scope? Can each active sensing area report to a sink or gateway? What evidence shows that the deployed layout works in the field? What known limitations remain after acceptance? Who owns gap repair and retesting? What event forces the claim to be reviewed again?

31.15 Knowledge Check: Active State

31.16 Knowledge Check: Gap Repair

31.17 Matching: Implementation Artifacts

31.18 Ordering: Coverage Implementation Review

31.19 Acceptance as State Invariant

The body checklist says to connect coverage, connectivity, energy, and retest evidence. The deeper implementation rule is stricter: acceptance must be true for a named network state, and the record must say which state is being approved. A plan that covers with all nodes awake is not the same artifact as a plan that covers while a duty-cycle schedule sleeps half the aisle nodes. A plan that detects a temperature excursion but routes through an overloaded relay is not an accepted coverage implementation either, because the detected event cannot reach the decision point.

To decide whether acceptance as state invariant is defensible, first locate places represented and Connectivity in the figure at Figure 31.3. They expose the two conditions that the surrounding argument must keep together.

WSN implementation record linking coverage, relay load, service margin, connectivity paths, power states, owner, gateway health, harvesting, and retest trigger. — Figure 31.3: WSN implementation deployment-energy record

Find places represented on Figure 31.3; it adds a distinct review condition. Now contrast Connectivity, which tests whether evidence can travel, with paths to gateway, which tests whether evidence can travel. That contrast is the visual’s teaching load: WSN implementation record linking coverage, relay load, service margin, connectivity paths, power states, owner, gateway health, harvesting, and retest trigger. The chapter can now use acceptance as state invariant without dropping the conditions shown here.

This matters most when optimization is successful. Energy-saving schedules, active-set selection, and rotation can make the network last longer, but they also create multiple valid-looking states. The reviewer should approve the weakest state that is actually used in operation, not the most flattering state shown in the planning diagram.

A quick way to test the invariant is to ask what would make the accepted row false. If a relay fails, the record should show which coverage claims lose their reporting path. If a battery policy changes, the record should show which active set needs retesting. If a gateway moves, the record should show which validation evidence is now stale. Those answers make acceptance maintainable.

31.20 Build the Active-Set Ledger

A practical implementation review should keep a small active-set ledger. The ledger is not a complete routing table and it is not a raw sensor inventory. It is the proof that each accepted coverage claim still has awake sensing, a reachable reporting path, and a named repair action in the operating state being reviewed. The row grain should be the claim unit: area, point list, route segment, barrier segment, or hybrid zone. That keeps the ledger short enough to maintain after field changes.

Ledger field	What it proves	Typical reject signal
Claim unit	The exact area, point, route, or boundary being accepted.	One row tries to cover several unrelated claims.
Active sensors	Nodes awake and calibrated for that claim during the reviewed window.	The row lists installed inventory instead of active responsibility.
Standby or reserve rule	How rotation, failure, or repair preserves the claim.	Reserve nodes exist, but no wake or ownership rule is recorded.
Gateway path	Detected readings can reach a sink under the same schedule.	Coverage is proven with a route that is asleep or overloaded.
Retest trigger	The condition that reopens the acceptance decision.	The record stays accepted after layout, firmware, battery, or gateway changes.

The useful habit is to write the ledger after validation, not before. Planning can propose the active set, but field validation should confirm the installed positions, weak locations, relay health, and power state. If validation finds a weak door, blocked aisle, relay hotspot, or battery mode mismatch, the ledger should change. The row should say repair, narrow, retest, or reject; it should not preserve an outdated accepted state just because the original map looked complete.

Keep one approved row per claim unit. If a row needs several different active schedules or repair owners, split it before acceptance.

31.21 Sleep Can Break Coverage Proofs

The subtle failure is that a correct local redundancy proof can become stale while the implementation is acting on it. Suppose two neighbouring nodes each decides it is redundant because the other node covers the same weak location. If both decisions are applied simultaneously, both nodes can sleep and open a hole that neither node saw in its own pre-sleep check. The failure is not bad geometry; it is stale coordination. The proof was true for the old active set and false for the new one.

That is why distributed sleep schedulers need a handoff rule. A node should advertise intent, wait through a randomized or ordered back-off, listen for neighbour status changes, and re-evaluate redundancy against the current active set before sleeping. A central controller can sequence the same idea explicitly, but the invariant is identical: every sleep action must leave a newly verified active set behind. The implementation record should capture the approved rule, not merely the existence of a duty cycle.

The same stale-proof problem appears after maintenance. Replacing a sensor, changing firmware, moving a gateway, or lowering a battery threshold can alter the active set or reporting path while leaving the old coverage drawing untouched. The retest trigger is therefore part of the technical proof, not paperwork. Without it, the implementation can keep carrying an acceptance decision that no longer describes the network state in the field.

For an auditable design, store the before-state, the change event, and the after-state evidence together. The review then shows whether the schedule preserved sensing, route reachability, and repair ownership across the transition instead of only proving that each node made a plausible local decision.

Before sleep Eligibility is checked against the current neighbours, weak areas, and reporting path.

During handoff Status changes are sequenced so two mutually redundant nodes do not disappear together.

After change The ledger is reopened when power, gateway, layout, firmware, or validation evidence changes.

31.22 Knowledge Check: Active-Set Handoff

31.23 Summary

WSN coverage implementation is the bridge between coverage analysis and field operation. It turns the claim into a plan for placement, active-state selection, rotation, connectivity, validation, gap repair, and retesting.

The main quality rule is simple: do not approve coverage from the drawing alone. Approve it from evidence tied to the actual operating state and the deployed environment.

31.24 Key Takeaway
