2  Why 6LoWPAN Exists

Keywords

6LoWPAN overview, IPv6 over IEEE 802.15.4, constrained IPv6 adaptation, 6LoWPAN border router, 6LoWPAN fit review

2.1 Start With the IPv6 Packet That Must Fit

Start with one sleepy constrained node that still needs IPv6 behavior. Why 6LoWPAN Exists is the place to ask how a packet is compressed, fragmented, routed, and handed to the border router without losing the design claim.

The start-simple move is to write the evidence record first: original packet, adapted frames, route or parent state, reassembly outcome, and the retest trigger when the link or payload changes.

2.2 In 60 Seconds

6LoWPAN is the adaptation layer that lets IPv6 operate over constrained low-power links such as IEEE 802.15.4. It does not make small radios behave like Ethernet. It gives IPv6 packets a way to cross a small-frame, low-power, lossy-link environment through compression, fragmentation when needed, and border-router custody.

The fit question is narrow: does this constrained network need IPv6 semantics, and can the design prove packet reconstruction, context management, route behavior, and border-router responsibilities for the tested workload?

Overview: 6LoWPAN Is IPv6 Adaptation, Not Magic

Sammy

One rule decides it: choose 6LoWPAN when the design needs constrained IPv6 and can prove compression, fragmentation, routing, and border-router custody for the actual workload.

6LoWPAN exists because IPv6 packet expectations and constrained IEEE 802.15.4-style frame budgets do not naturally fit. The adaptation layer compresses predictable IPv6 fields, carries fragments when one frame is not enough, and lets a border router restore the packet boundary for the wider IPv6 network.

The overview claim should stay bounded. 6LoWPAN can be a good fit when constrained devices need IPv6 addressing and small-message mesh behavior. It does not automatically prove range, battery life, security readiness, cloud reachability, interoperability, or deployment economics.

If you only need the intuition, use this rule: approve 6LoWPAN when the design needs constrained IPv6 and can prove compression, fragmentation, routing, border-router custody, and retest triggers for the actual workload.

Figure 2.1: 6LoWPAN overview fit path from IPv6 need through constrained-link adaptation, border-router custody, deeper evidence, and fit decision.

Core Pieces

Packet Mismatch

IPv6 headers and payloads can be larger than the constrained link can carry efficiently after MAC, security, and addressing overhead.

Header Compression

6LoWPAN can omit or shorten fields only when the receiver can reconstruct the intended IPv6 packet from flags, context, and link evidence.

Fragmentation

Packets that exceed the frame budget may be split and reassembled, which creates loss, buffering, timeout, and recovery evidence needs.

Border Router

The border router is the custody point for prefixes, contexts, routing visibility, packet restoration, and wider IPv6 handoff.

Beginner Fit Checks

• Does the constrained network actually need IPv6 semantics at the device or border-router boundary?
• Are messages small enough that fragmentation is rare, or is fragmentation reviewed as a first-class risk?
• Who owns compression context, prefix behavior, routing visibility, and border-router configuration?
• What packet trace, route record, recovery test, or failure case proves the claim?
• Which payload, security, firmware, route-depth, or border-router change should reopen review?

Practitioner: Build The 6LoWPAN Evidence Record

Gateway Gus

An evidence record is the difference between a demo that worked once and a network you can defend.

A practical 6LoWPAN record starts with the packet and boundary being approved. It should say what IPv6 behavior matters, how compression is reconstructed, when fragmentation occurs, what the routing path is, what the border router owns, and what evidence was observed.

Keep the record focused. A packet capture, simulation, or lab run can be useful, but it approves only the context it represents. A release review should replace broad claims with tested packet types, context ownership, fragment behavior, route changes, border-router recovery, and application success evidence.

Review Workflow

1. Name the IPv6 need. Record why IPv6 semantics are useful at the constrained network or border-router boundary.
2. Record the packet shape. Capture payload size, transport header, security overhead, addressing mode, and whether one frame is enough.
3. Check compression evidence. Record which fields are inline, elided, context-derived, or reconstructed from link-layer evidence.
4. Check fragmentation evidence. Record fragment tags, offsets, loss behavior, reassembly timeout, buffer pressure, and recovery handling.
5. Check routing and border-router custody. Record route-over or mesh-under assumptions, RPL or route evidence, prefixes, contexts, and ownership.
6. Write the boundary. State what is approved, what remains unproven, and what change requires retest.

Review Area

Evidence To Capture

Decision Question

Weak Claim To Reject

IPv6 fit

Application need, addressing need, transport behavior, gateway boundary, and why non-IP local behavior is insufficient.

Does IPv6 adaptation solve a real architecture need?

"The radio is low power, therefore 6LoWPAN is the right answer."

Compression

IPHC flags, address mode, context table, next-header case, reconstruction proof, and packet-capture evidence.

Can the receiver rebuild the intended IPv6 packet?

"Header compression always reaches the best-case size."

Fragmentation

Packet size, frame budget, fragment count, tag, offset, reassembly timeout, loss case, and buffer ownership.

Can the design tolerate fragments when the packet does not fit?

"Fragmentation is harmless because the packet eventually becomes IPv6 again."

Border router

Prefix, context, route, security boundary, packet restoration, diagnostics, backup, and recovery responsibility.

Who owns the constrained-to-IPv6 handoff?

"The border router is a generic gateway with no protocol custody."

Worked Review: Building Telemetry

A building telemetry network sends small temperature and occupancy reports through a local constrained mesh. 6LoWPAN may fit when IPv6 integration is useful, messages fit without frequent fragmentation, the border router owns prefix and context state, route recovery is observed, and the application receives fresh enough readings.

The approval should stay limited: accepted for the tested payloads, route depth, border-router configuration, security mode, and reporting interval. Reopen review when payloads grow, security wrapping changes, route depth changes, or border-router context changes.

Review Record Template

IPv6 need:
Packet and transport shape:
Frame budget and security overhead:
Compression context:
Fragmentation policy:
Routing evidence:
Border-router custody:
Application delivery evidence:
First failing or unproven boundary:
Decision and limitation:
Retest trigger:

Under The Hood: Adaptation Boundaries Create Failure Modes

Cloud Clara

The failure modes live at the boundaries: compression context, fragment reassembly, and the border router. Watch how each one earns its place in the release record.

Under the hood, 6LoWPAN works by preserving IPv6 meaning across a link that cannot naturally carry every IPv6 packet shape efficiently. The adaptation layer decides how much header state can be compressed, whether a packet must be fragmented, how reassembly is tracked, and where the restored IPv6 packet crosses into the wider network.

Those boundaries create specific failure modes. A missing compression context can make a packet unreconstructable. A lost fragment can invalidate the reassembled packet. A border-router configuration change can alter prefix and route behavior. A security or payload change can turn a one-frame message into a multi-fragment risk.

Context Failure

Stateful compression depends on shared context. If context is missing, stale, or misowned, the receiver may not reconstruct the intended packet.

Fragment Failure

Fragment tags, offsets, buffers, and timeouts are part of the evidence whenever packets exceed the frame budget.

Route Failure

Route-over designs, RPL behavior, parent changes, and border-router reachability affect whether constrained nodes remain useful.

Boundary Failure

The border router must preserve prefix, context, diagnostics, recovery, and handoff behavior instead of acting as an invisible black box.

Failure Patterns To Test

• Header context mismatch: compressed packets cannot be reconstructed after a context, prefix, firmware, or commissioning change.
• Fragment loss: one missing fragment prevents reassembly and hides the original application message.

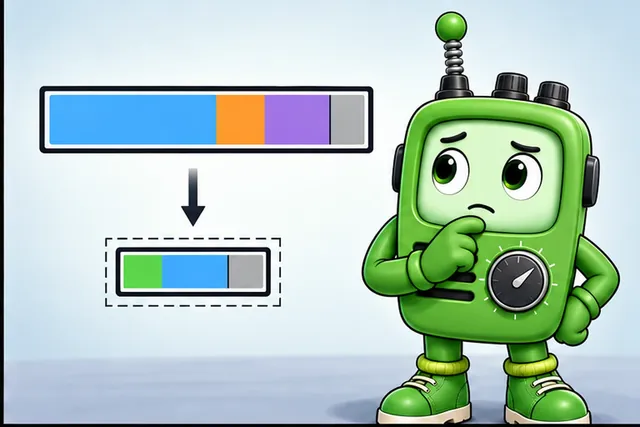

• Packet growth: security overhead, payload growth, or next-header changes push a packet over the one-frame boundary.
• Route or parent change: the packet can be encoded correctly but no longer reaches the border router reliably.
• Border-router drift: prefix, route, context, diagnostics, or recovery behavior changes without a new evidence record.

Acceptance Evidence

Acceptance evidence should include at least one normal small-packet case, one context reconstruction case, one packet-size boundary check, one border-router handoff record, and one retest trigger. Add fragmentation, route-recovery, security-overhead, sleepy-node, or failure-injection cases when those behaviors are part of the claim.

2.3 Summary

6LoWPAN is the constrained-IPv6 adaptation layer for small-frame low-power links. It is useful when IPv6 semantics matter and the design can prove packet compression, fragmentation boundaries, routing behavior, border-router custody, and retest triggers for the actual workload.

2.4 Key Takeaway

Treat 6LoWPAN as a bounded adaptation evidence claim: prove how IPv6 packets are compressed, fragmented, routed, reconstructed, and handed off before approving the deployment.

2.5 See Also

• 6LoWPAN Fundamentals and Architecture Evidence for deeper adaptation-layer architecture.
• 6LoWPAN Header Compression Evidence for IPHC, NHC, and reconstruction details.
• 6LoWPAN Fragmentation and Reassembly Evidence for fragment tags, reassembly, and loss behavior.
• 6LoWPAN RPL Routing Evidence for route-over routing and border-router path review.
