9 RFID Integration: Reader and Protocol Interfaces
9.1 Start With the Decision
An RFID reader must move tag events to a host without hiding time or status. The hardware and interface choice set that evidence path.
9.2 Route Overview
This is part 1 of 2. Continue with RFID Integration: Antennas and Event Pipelines.
9.3 Part Objectives
- Compare RFID reader hardware and host interfaces.
- Trace commands and tag events across the reader boundary.
9.4 Chapter Roadmap
- Start With the Story
- In 60 Seconds
- Phoebe’s Field Notes: Why The Antenna Zone Has An Edge At All
- Eddie’s Math Bridge: Shape a Portal Antenna Zone
- Quick Check: RFID Hardware Integration
- Integration Boundary
- Minimum Viable Understanding
- Reader Has Air and Host Contracts
- Air-Interface Encoding Shapes Read Reliability
- Reader Interface Choices
9.5 Start With the Story
Trace One Tag Read Past the Reader Board
Picture a cabinet tag that reads on the bench but disappears after the reader is mounted near metal. A lit power lamp proves almost nothing about the full path from radio event to software decision.
General purpose input output, or GPIO, means a configurable pin on a small computer board. Radio frequency means the rate of a radio wave. Radio frequency identification, or RFID, uses radio to identify a tag. The host interface carries reader events into software.
Read one known tag at marked positions. Change orientation, power, cable, mount, and nearby material. Remove the tag, repeat a read, restart the host, and record pin state, reader event, identity, time, filter, and application result.
This runway does not prove every antenna or site. The deeper sections explain interface choices, power, mounting, antenna coupling, event handling, noisy reads, and release evidence.
A reader module is not integrated when it powers on. It is integrated when its interface, antenna, shielding, mounting, power budget, event pipeline, and failure handling can be inspected by someone who was not at the bench.
This chapter turns hardware integration into a release record. Follow one read from physical coupling through the host interface and into software so the team can prove where the system accepts, rejects, retries, or escalates an observation.
The mathematical gist. Holding the chapter’s 35 dBm EIRP fixed, a 6 dBi panel needs 29 dBm or 0.794 W conducted and concentrates ideal full-strength radiation into 25.1% of a sphere. A 9 dBi panel needs 26 dBm or 0.398 W and narrows that fraction to 12.6%. The ideal boresight EIRP stays equal; the panel’s real pattern and installation decide cross reads.
9.6 Learning Objectives
By the end of this chapter, you should be able to:
- Define the boundary between RFID tag observation, reader hardware, host interface, middleware normalization, application policy, and release evidence.
- Choose reader interfaces such as GPIO, serial, USB, Ethernet, or fieldbus based on event contract, supervision, timing tolerance, and maintenance needs.
- Review antenna placement, shielding, cable routing, mounting surface, and power quality as first-class integration risks.
- Build validation traces that separate raw reader output, deduplication, filtering, business event creation, fallback, and audit fields.
- Test failure cases such as missed reads, duplicate reads, cross reads, noisy power, disconnected antennas, offline host links, and stale middleware mappings.
9.7 Quick Check: RFID Hardware Integration
9.8 Integration Boundary

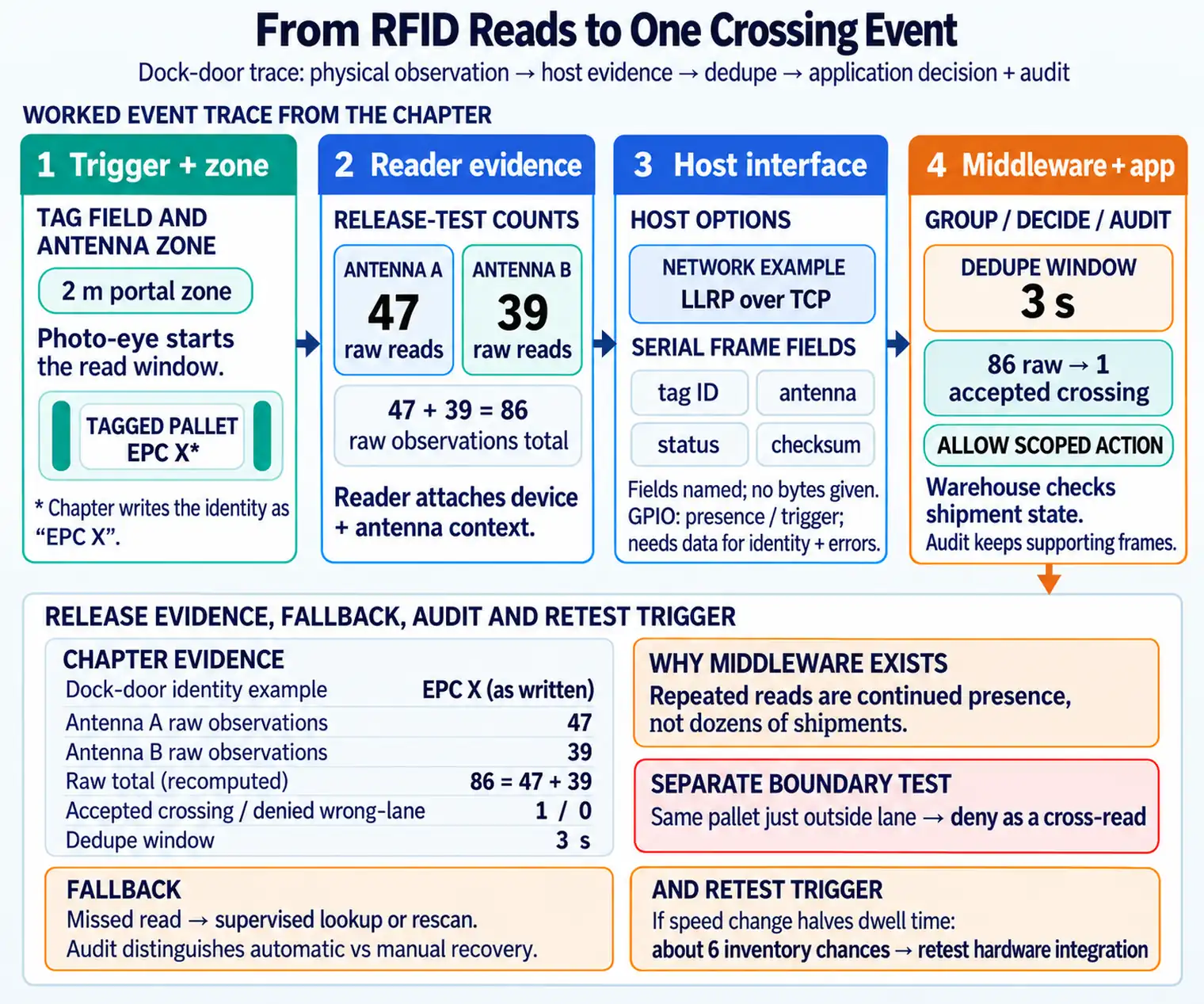

Before choosing an interface or reader setting, locate the boundary that the integration must control. Figure 9.1 puts the physical read, software interpretation, application decision, fallback, and evidence record on one path so that no handoff is treated as an invisible implementation detail.
Inspect Tag field and antenna zone and Allow scoped action in Figure 9.1 for integration boundary. While tracing integration boundary, keep both Tag field and antenna zone and Allow scoped action visible in it. The remaining question is and retest trigger.
Read Tag field and antenna zone with Allow scoped action in Figure 9.1 for integration boundary. Locate its roles by locating Tag field and antenna zone, assigning Allow scoped action, and ending at and retest trigger. Success at Tag field and antenna zone cannot prove the Allow scoped action boundary. For integration boundary, record the result beside and retest trigger.
Read Figure 9.1 from left to right. The tag field and antenna determine which observations are physically possible; the reader then attaches device and antenna context before the host link carries those observations to middleware. Middleware validates and groups them, but the application still owns the decision and side effect. The lower fallback and audit path matters just as much as the happy path because it preserves what happened when a read, link, or policy check failed. This end-to-end boundary is the running contract for every hardware choice that follows.
9.9 Minimum Viable Understanding
9.10 Reader Has Air and Host Contracts
Integrating an RFID reader means wiring up two different conversations. Downward, the reader talks to tags over the air interface: radio modulation and encoding defined by the tag protocol, such as EPC Gen2 for UHF systems. Upward, the reader talks to software over a host protocol, often LLRP, the Low Level Reader Protocol, over TCP. Confusing the two is the usual integration mistake. Air-interface settings such as power, encoding, and inventory behavior live on one side. Business logic, read windows, reports, deduplication, and audit fields live on the other.
Take a dock-door portal that should confirm when a tagged pallet crosses from staging into a truck. The integration boundary is not “reader saw EPC X.” It is: a photo-eye starts a read window, two antennas report raw EPC observations with antenna IDs, middleware groups repeated reads into one accepted crossing, the warehouse system checks the shipment state, and the audit log records which raw frames supported the business event. If a pallet pauses in the doorway, the reader may report the same EPC dozens of times. That is evidence of continued presence, not dozens of shipments.
A practical acceptance target might say: while a pallet is inside the 2 m portal zone, capture at least one accepted observation on the correct antenna pair and emit exactly one transition event. When the same pallet sits just outside the lane, the event must be denied as a cross-read. That turns hardware placement, read power, middleware dedupe, and application policy into one release contract instead of four disconnected settings.
The same contract also names fallback. If the portal misses a read, the operator should get a supervised lookup or rescan path, and the audit record should distinguish automatic portal evidence from manual recovery.
9.11 Air-Interface Encoding Shapes Read Reliability
The two air-interface directions use deliberately different schemes because the tag has almost no power budget.
| Direction | Scheme | Why it matters |
|---|---|---|
| Reader to tag, or downlink | PIE, Pulse Interval Encoding, on an amplitude-modulated carrier such as PR-ASK or DSB-ASK | The tag decodes bits from the timing of gaps in the carrier while still harvesting energy from it |
| Tag to reader, or uplink | Backscatter using baseband FM0 or a Miller-modulated subcarrier with M values such as 2, 4, or 8 | The tag only reflects; the subcarrier moves its weak reply away from the reader carrier so it can be heard |
To connect those encoding names to the physical exchange, inspect Figure 9.2 before comparing speed settings. It separates the energy-bearing reader transmission from the much weaker response that the reader must recover.
Inspect RF Power + Query and Reader energizes field in Figure 9.2 for air-interface encoding shapes read reliability. To test air-interface encoding shapes read reliability, compare RF Power + Query with Reader energizes field in it. The comparison reaches Reply.
Read RF Power + Query with Reader energizes field in Figure 9.2 for air-interface encoding shapes read reliability. Trace it starting at RF Power + Query, crossing Reader energizes field, and closing on Reply. That ordering makes Reply depend on RF Power + Query. Use that distinction when deciding air-interface encoding shapes read reliability.
Follow Figure 9.2 clockwise from the reader’s RF power and query. A passive tag first harvests enough energy to operate, its IC interprets the command, and then it changes its antenna load so that a modulated reflection returns to the reader. The outgoing carrier is therefore both power source and command path, whereas the return is a faint backscatter signal. That asymmetry explains why encoding, dwell time, antenna placement, and receiver conditions jointly determine whether a read becomes usable evidence.
The reader chooses many of these settings in the Query command: data-rate divide ratio, the Miller value, and pilot-tone settings. Faster encodings such as FM0 give higher throughput in clean RF. Slower Miller subcarriers are more robust and better in dense-reader or noisy environments. So the reliability-versus-speed tradeoff is partly an encoding setting pushed from the host, not a fixed property of the reader.
Do a timing budget before declaring the portal usable. If a forklift moves at 1.2 m/s through a 2 m read zone, the pallet is visible for about 2 / 1.2 = 1.67 s. If the reader configuration completes one useful inventory cycle every 120 ms after trigger and settling time, the portal has about 1.67 / 0.12 = 13 chances to see each tag. That may be enough for a sparse pallet, but a dense pallet, poor tag orientation, or slower robust encoding can consume those chances quickly.
The release test should therefore store both the raw read count and the accepted event. For example: 47 raw observations from antenna A, 39 from antenna B, 1 accepted crossing event, 0 denied wrong-lane events, and a dedupe window of 3 s. If a speed change halves dwell time, the same setup now has only about 6 inventory chances. That is a hardware-integration retest trigger, not a middleware-only change.
9.12 Reader Interface Choices
Select the host interface by the evidence it can carry and the maintenance pattern it supports. Figure 9.3 is a comparison path rather than a catalogue: begin with the simplest signal and move toward interfaces that expose richer identity, status, and supervision.
Inspect Pulse or state and another path for in Figure 9.3 for reader interface choices. At the decision point in reader interface choices, locate Pulse or state beside another path for on it. Framed events marks the next check.
Read Pulse or state with another path for in Figure 9.3 for reader interface choices. Compare it around the contrast between Pulse or state and another path for, then check Framed events. Neither Pulse or state nor another path for wins without Framed events. Preserve the Framed events condition in the handoff for reader interface choices.
In Figure 9.3, start with GPIO: it can signal presence or a trigger but cannot by itself explain which tag was seen or whether the reader is healthy. Serial and USB add structured identity and status while keeping a local host responsible for reconnection. Network readers can carry multi-antenna event streams and buffered reports, but they also introduce clock, queue, and replay behavior. A supervised controller link adds explicit heartbeat and acknowledgement where the safe state matters. The correct interface is the least complex one that still carries the evidence and failure semantics required by the integration boundary.
9.13 Continue to the Next Part
Carry this evidence into RFID Integration: Antennas and Event Pipelines, which begins with LLRP Carries Reader Operations and Reports.
