6 Hardware Prototyping: Board and Breadboard Bring-Up

6.5.1 Board Bring-Up Steps

The first firmware run should close a short evidence loop before external wiring begins. Figure 6.1 shows which identities and observations must agree for that baseline to be reusable.

1. Connect the board by USB or its documented power input.
2. Open the development tool and select the board family and communication port.
3. Load a known-good test program that toggles an onboard indicator or prints a serial message.
4. Upload the program and record whether the upload completes without error.
5. Confirm the visible or serial output matches the expected timing.
6. Save the board name, firmware file, tool version, and port in the prototype record.

Now inspect Figure 6.1 as a closed baseline: every step should either add one observed fact or send the build back to a named check before any external component is introduced.

In Figure 6.1, begin with the documented power or USB path, then match the selected board family and communication port to the hardware on the bench. Upload known-good firmware and compare its visible or serial timing with the expected result. The saved board, tool, port, and firmware fields make that result reproducible; a failure branches back to cable, boot, power, and selection checks instead of forward to more wiring. The loop establishes the known-good state that every later component change will use.

If this step fails, do not add hardware yet. Check cable, port, driver, board selection, boot mode, power, and serial settings before wiring external parts.

6.5.2 Read Board Labels Before Wiring

Development-board acronyms should be translated into a wiring record before the first jumper goes in. On a DragonBoard 410c-style single-board computer, the expansion headers expose pins and buses such as GPIO, MPP, I2C, SPI, UART, and PCM; the ports expose service paths such as HDMI, USB or MicroUSB, MicroSD, and DC input; and the board components include storage, RAM, Wi-Fi, GPS, and an ARM/RISC processor family. Those names are useful only after the record says which physical header, voltage domain, connector, storage path, or radio path the prototype actually uses.

Treat a 40-pin expansion header as a connector contract, not just a photograph. Number pins from the documented orientation, mark the repeated ground pins, keep power pins such as 1.8 V, 5 V, and SYS_DCIN separate from logic pins, and group multiplexed functions such as GPIO or MPP, I2C, SPI, UART, and PCM. Label each logic region with its voltage domain before wiring; for example, a DragonBoard-style pinout may put ordinary GPIO in a 1.8 V domain while an MPP or analog-capable region needs its own documented voltage note. The access method belongs in the record too: single jumper leads, a ribbon cable, a breadboard breakout, or a ribbon-cable breakout can all preserve or scramble the map depending on pin spacing, strain relief, and labeling.

Treat MPP as a multi-function pin family, not as a spare GPIO label. A DragonBoard-style MPP region may expose alternate roles, including analog I/O or board-specific peripheral functions, but it usually costs more reserved header space and more setup proof than a simple digital GPIO. Record the selected MPP function, voltage domain, pin number, and reason an ordinary GPIO, I2C, SPI, UART, or PCM path did not fit before wiring it into a prototype.

For Linux or Android-style single-board computers, GPIO access is also an operating-system boundary. A terminal or ADB recipe that exports pins under /sys/class/gpio, changes direction or value permissions, edits a boot script, or reboots the board is not just a command list; it is part of the prototype evidence. Record the OS image, SDK or shell route, privilege step, exported pin numbers, startup file changed, and final read/write check before treating the header pin as usable from Ubuntu commands or an Android app.

Programmatic GPIO access adds a second evidence layer. On an Android image, the boot-script change may run through adb root, remounting /system, an mksh shell, and an init.qcom.post_boot.sh edit that exports the needed pins and grants read, write, and execute access. After that, the application still has to prove how it reaches the pin: a GPIO library can make the code walkthrough clearer even if it is not efficient, a Gradle project gives the easier repeatable build path, and a manual import should be recorded as a time-consuming fallback. On Ubuntu or another Linux image, Python or another language can use the same verified GPIO library or file path, but the record should still name the build command, library version, pin map, and observed read/write result. For a beginner Python build, record whether the walkthrough used IDLE3, a shell, or another editor, show the import line that loads the GPIO library, keep the first program small enough to audit, and clean up or release the pin before claiming the example is repeatable.

Use the same habit for general bench vocabulary. An LED is an indicator load that still needs current limiting, a PCB is the fixed conductive path that a breadboard temporarily imitates, and an IC is the packaged circuit doing the real electrical work. IR and PIR should be recorded as sensing mechanisms, not vague “motion” claims. SDK, UI, and GUI should be recorded as software or user-facing boundaries. H-bridges, amplifiers, motors, and Bluetooth links should be treated as subsystems with their own driver, power, and evidence needs. If a legacy diagram uses master/slave wording, translate it in the record to controller/peripheral, central/peripheral, or controller/responder so ownership is clear without carrying the old label forward.

6.6.1 Breadboard Rules

Before placing a component, inspect the connection pattern that the plastic surface hides. Figure 6.2 makes the centre break and side rails visible so a hole is never mistaken for an isolated electrical node.

In Figure 6.2, look first at the central trench: it separates the two terminal-strip halves and lets an integrated circuit straddle unconnected rows. Then trace the short connected row groups on each side and the long power rails near the edges, checking whether those rails break partway along the board. That hidden metal pattern is part of the schematic. Mapping it before power preserves the chapter’s core discipline of knowing exactly which boundary changed.

Photo: Evan-Amos, Public domain.

A solderless breadboard is a cheap, modular circuit board for mockups and tests. It gives easy access to connection nodes, but it is not clean or efficient enough to prove large-project layout, connector reliability, or field durability. Treat its internal metal pattern as part of the wiring map: terminal rows usually connect short horizontal groups on each side of the center divider, not across the divider, while side bus strips usually carry vertical power or ground rails and may be split on some boards. Confirm row continuity, rail continuity, and divider breaks with the same seriousness as pin labels.

For a small amplifier build, choose the prototype form deliberately. A breadboard amplifier usually needs fewer tools, less time, and less experience, and it is easy to change resistor values, swap the op-amp channel, or move the signal path while the requirement is still moving. A PCB or perfboard amplifier is smaller, tidier, and more repeatable, but it costs more setup time and freezes mistakes in pinout, rail choice, feedback wiring, and part placement. Use the breadboard to get the parts ready, prove the circuit, place one part family at a time, and record the working state before moving the same amplifier to copper.

The breadboard layout becomes useful only when it is paired with a repeatable test sequence. Figure 6.3 turns the physical map into the same observe-and-record method used for the board baseline.

Follow Figure 6.3 from one new component through inspection, safe power, observation, and measurement. The rail and row check confirms the intended topology before energy is applied; the observation says what the circuit did, while rail and signal measurements say why that claim is credible. Recording the result closes the loop before another component is introduced. This prevents a later failure from erasing the last known working state.

6.6.2 First Input and Output Pattern

A useful first prototype often has one input, one output, and one observable firmware response:

First, Input: button, switch, light sensor, temperature sensor, or presence signal. Next, Output: indicator, display message, buzzer, relay command, or motor command through a driver. Then, Firmware response: read input, check threshold or state, update output, and print a short debug message. After that, Evidence: supply voltage, raw reading or input state, output state, and a note about whether the behavior matched the expectation.

6.7.1 Common First-Build Symptoms

6.8.1 Scenario Build Plan

6.8.2 First-Build Record

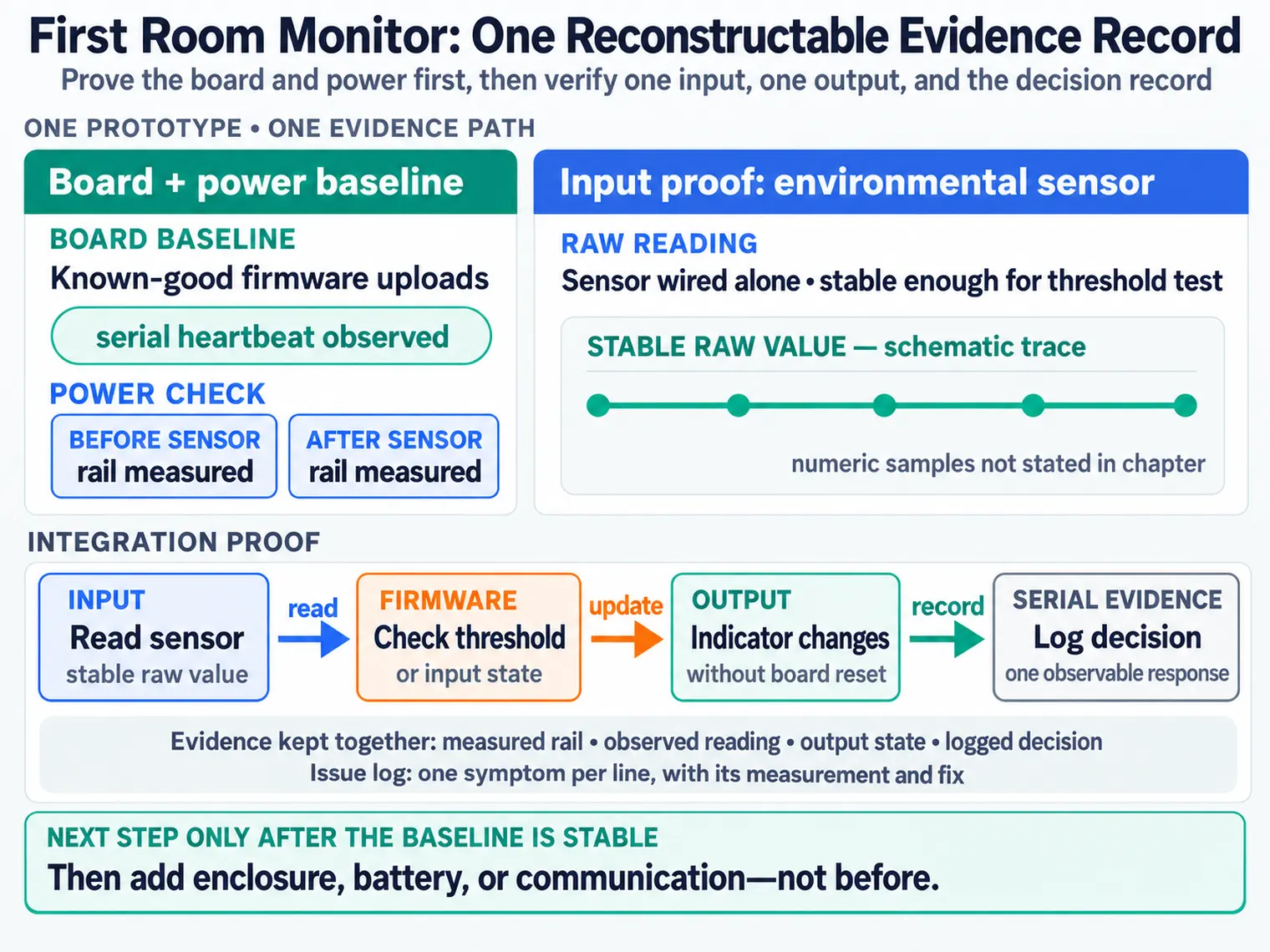

The worked room monitor is complete only when its separate proofs can be reconstructed. Inspect Figure 6.5 to assemble the board, power, input, output, and issue evidence into one handoff.

Read Figure 6.5 from purpose through next step. The board baseline fixes the known firmware state; the power check records the electrical conditions before and after wiring; input and output checks capture each boundary alone before the integrated behavior is judged. The issue log preserves failed observations and their fixes, while the next-step field prevents enclosure, battery, or network work from beginning on an unstable baseline. The record is the durable endpoint of the chapter’s one-change-at-a-time narrative.

Use this compact record:

prototype=first-room-monitor
purpose=prove one input, one output, and serial output
board_baseline=upload ok, heartbeat observed
power_check=rail measured before and after sensor wiring
input_check=raw reading stable enough for threshold test
output_check=indicator changes without board reset
issue_log=one symptom per line with measurement and fix
next_step=add enclosure, battery, or communication only after baseline is stable
