9  Defense in Depth Controls

9.1 Learning Objectives

By the end of this chapter, you should be able to:

• Differentiate the defense-in-depth security model from single-layer approaches and justify its importance for IoT
• Classify the eight layers of defense in IoT systems by function and scope
• Categorize security controls as preventive, detective, or corrective and select appropriate controls for given scenarios
• Design layered security architectures that protect against multiple attack vectors
• Evaluate the effectiveness of security controls at each layer of the IoT stack

Key Concepts

• Defense-in-depth: A security strategy applying multiple independent protective controls at each layer of a system so that an attacker must defeat several independent defences to compromise the whole system.
• Security layer: A discrete tier of the IoT stack (physical, network, transport, application, management) at which specific security controls are applied.
• Compensating control: A security measure that mitigates the risk of a missing or inadequate primary control — for example, network monitoring that compensates for a device that cannot run an agent.
• Attack path: A sequence of steps an attacker must successfully execute to achieve a goal; defense-in-depth forces the attacker to succeed at every step rather than just one.
• Security posture: The overall security effectiveness of an IoT deployment across all layers, assessed by the number, strength, and coverage of implemented security controls.
• Minimum viable security: The smallest set of security controls that adequately protects an IoT system for its risk level and operational context, balancing security cost against the value of assets protected.

In 60 Seconds

Defense-in-depth applies multiple independent security controls at each layer of the IoT stack so that compromising a single control does not compromise the entire system — the same principle used in castle design, where walls, moats, and guards each provide independent protection. For IoT, these layers span physical device security, network segmentation, authentication, encryption, and monitoring.

For Beginners: Understanding Defense in Depth

What is Defense in Depth? Defense in depth is a security strategy that uses multiple layers of protection, so if one layer fails, others still protect your system. Think of it like a medieval castle with walls, a moat, guards, and a keep - an attacker must bypass ALL defenses to succeed.

Why does it matter? No single security measure is perfect. Firewalls can be bypassed, passwords can be stolen, encryption keys can be compromised. By layering multiple independent security controls, you ensure that a single failure doesn’t result in complete compromise.

Key terms: | Term | Definition | |——|————| | Security Layer | An independent security control that provides protection at a specific level | | Preventive Control | Stops attacks before they happen (firewalls, encryption, access control) | | Detective Control | Identifies attacks in progress (IDS, logging, monitoring) | | Corrective Control | Fixes damage after an attack (backups, patches, incident response) |

Sensor Squad: The Castle of Many Walls!

“I just detected something sneaking toward us!” Sammy the Sensor announced, his detection circuits buzzing. “But do not worry – we have SEVEN more layers of protection between them and our data!”

Max the Microcontroller grinned. “That is what defense in depth is all about. Think of our IoT system like a medieval castle. Sammy is like the lookout in the tallest tower, spotting trouble early. But even if someone gets past him, they still have to cross the moat, climb the outer wall, get through the gate, sneak past the guards, break through the inner wall, pick the lock on the keep, and THEN crack the treasure chest.”

“I help with one of those layers!” Bella the Battery chimed in. “If a bad actor tries to mess with our power supply to cause a restart, I have backup energy stored so the security systems never go down. No power tricks getting past me!”

Lila the LED flashed her lights in a colorful pattern. “And I am part of the monitoring layer – the security camera of our castle! If anything suspicious happens at ANY layer, I light up and send an alert. The key idea is simple: no single wall is perfect, but having many walls means an attacker has to beat ALL of them. That is almost impossible!”

9.2 Prerequisites

Before diving into this chapter, you should be familiar with:

• Security and Privacy Overview: Foundational understanding of IoT security principles and the CIA triad
• Networking Basics: Understanding network protocols helps contextualize network-level security controls

9.3 Defense in Depth Architecture

Security is not a single layer but multiple concentric defenses working together. The defense-in-depth model implements security controls at every layer of the IoT stack. Consider encryption as just one example: as Figure 9.1 shows, encryption protects data in transit, but it is only one of eight layers needed for comprehensive protection.

Figure 9.1: Encryption as one layer of defense: even if an attacker intercepts network traffic, properly encrypted data remains unreadable. Source: University of Edinburgh IoT Security Course

The full defense-in-depth architecture combines encryption with seven other security layers, as shown in Figure 9.2.

Figure 9.2: Comprehensive defense in depth architecture showing eight hierarchical security layers in IoT systems

Key Principle: If an attacker breaches one layer (e.g., passes the firewall), they still face seven more layers of defense before reaching critical assets. Each layer detects, delays, or blocks attacks.

Minimum Viable Understanding: Defense in Depth

Core Concept: Defense in depth layers multiple independent security controls at different system levels so that failure of any single protection does not result in complete compromise. Why It Matters: IoT systems face attacks from multiple vectors simultaneously (network, physical, application); relying on a single strong control creates a single point of failure that determined attackers will eventually bypass. Key Takeaway: Always implement at least three overlapping security layers (e.g., network firewall + device authentication + data encryption) because attackers who bypass one control still face additional barriers before reaching critical assets.

9.3.1 The Eight Security Layers Explained

Layer	Purpose	Example Controls	Attack It Prevents
Physical Security	Prevent unauthorized physical access	Tamper-evident cases, locked enclosures, security cameras	Device theft, hardware tampering
Network Perimeter	Filter traffic at network boundary	Firewalls, IDS/IPS, VPN gateways	Network intrusion, unauthorized access
Network Segmentation	Isolate different network zones	VLANs, DMZ, microsegmentation	Lateral movement after breach
Device Authentication	Verify device identity	X.509 certificates, device tokens, mTLS	Device impersonation, rogue devices
Authorization	Control what authenticated entities can do	RBAC, ABAC, ACLs	Privilege escalation, unauthorized actions
Data Encryption	Protect data confidentiality	TLS/DTLS, AES, end-to-end encryption	Eavesdropping, data theft
Application Security	Secure application code	Input validation, secure coding, patches	SQL injection, buffer overflow
Monitoring & Response	Detect and respond to incidents	SIEM, anomaly detection, incident response	Undetected breaches, slow response

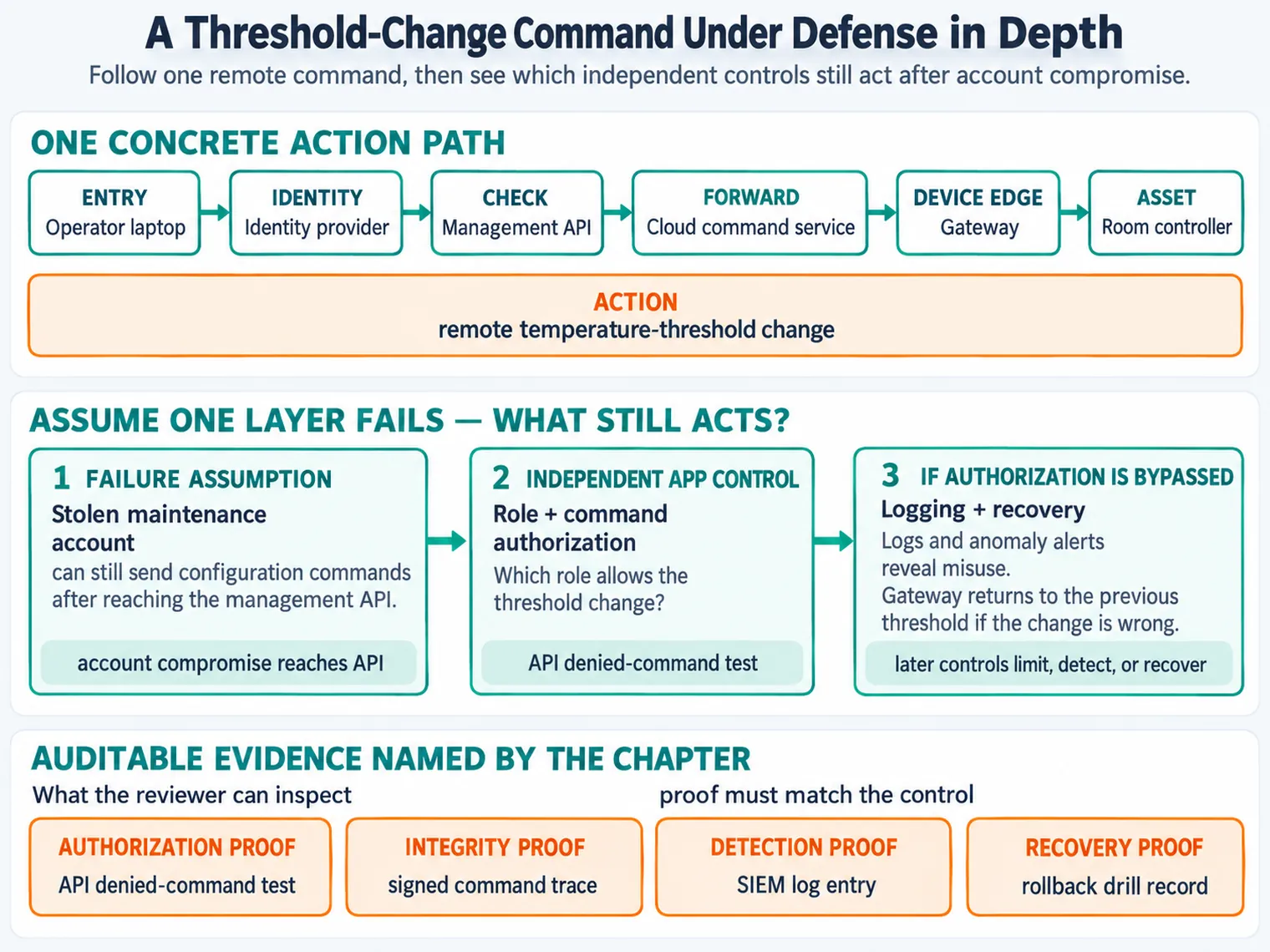

9.3.2 Real-World Example: Why One Layer Isn’t Enough

Imagine your smart home with ONLY one security method:

Only Using	What Happens When It Fails
Only encryption	Encryption key is hardcoded → attacker extracts it → game over
Only authentication	Password is phished → attacker logs in → full access
Only authorization	Account is hijacked → limited damage, but still compromised
Only monitoring	Attack detected, but no prevention → damage already done

Defense in Depth: Multiple layers working together

Figure 9.3: Defense in depth flowchart showing layered security model with multiple consecutive defensive barriers

Each layer provides a second chance if the previous layer fails.

Knowledge Check: Defense in Depth

Question: A smart factory’s firewall is compromised by an attacker. Which defense-in-depth principle explains why this single breach should NOT give the attacker full control of all industrial systems?

Click to reveal answer

Answer: Multiple independent security layers ensure attackers must bypass additional controls (authentication, encryption, monitoring) after passing the firewall.

Why? Defense in depth means each layer (network, device authentication, data encryption, access control, monitoring) operates independently. Even if the firewall fails, attackers still face device certificates, encrypted communications, role-based access control, and intrusion detection systems.

9.4 Security Controls Framework

Security controls are categorized by their function in the security lifecycle: preventing attacks before they occur, detecting attacks in progress, and correcting damage after attacks.

Figure 9.4: Security controls framework showing three complementary control types

9.4.1 Preventive Controls

Purpose: Stop attacks before they occur

Control Type	Description	IoT Example
Firewalls	Filter network traffic based on rules	Block all inbound traffic except port 8883 (MQTT)
Encryption	Protect data confidentiality	AES-256 encryption of sensor data
Access Control	Restrict who can do what	Only admins can change device configuration
Input Validation	Reject malicious input	Reject MQTT messages with invalid JSON
Secure Boot	Ensure only trusted code runs	Verify firmware signature before execution

9.4.2 Detective Controls

Purpose: Identify attacks in progress

Control Type	Description	IoT Example
Intrusion Detection (IDS)	Monitor for attack signatures	Alert on port scanning attempts
Logging	Record security events	Log all authentication attempts
Anomaly Detection	Identify unusual behavior	Flag sensor sending 100x normal data volume
SIEM	Correlate events across systems	Detect coordinated attack across multiple devices
File Integrity Monitoring	Detect unauthorized changes	Alert if firmware hash changes

9.4.3 Corrective Controls

Purpose: Fix damage after an attack

Control Type	Description	IoT Example
Backups	Restore data after loss	Restore device configuration from backup
Patches	Fix vulnerabilities	Deploy security update to all devices
Incident Response	Structured recovery process	Isolate compromised device, analyze, remediate
Rollback	Revert to known-good state	Restore previous firmware version
Quarantine	Isolate compromised systems	Move infected device to isolated VLAN

9.4.4 Security Controls by IoT Layer

Alternative View: Security Controls by Implementation Layer

This view maps security control types to specific IoT architecture layers:

Figure 9.5: Security controls mapped to IoT architecture layers

Complete IoT security requires all three control types (preventive, detective, corrective) at every architectural layer.

9.4.5 Example Scenario: SQL Injection Attack

An attacker attempts SQL injection on an IoT dashboard:

1. Preventive Control: Input validation rejects malicious SQL characters → Attack stopped
2. Detective Control: If bypassed, Web Application Firewall (WAF) logs unusual query patterns → Alert triggered
3. Corrective Control: Security team patches vulnerability, reviews logs, and restores any corrupted data

9.5 Real-World Security Failures

9.5.1 The Industrial Plant Attack (2014)

Location: German steel mill

What happened:

• Attackers used phishing to steal employee credentials (failed authentication)
• Once inside the network, attackers had full access to industrial controls (failed authorization)
• Attackers disabled safety systems and caused a blast furnace to malfunction
• Result: Massive physical damage to the plant

Which security methods failed?

Method	What Failed	What Should Have Been Done
Authentication	Simple password, no 2FA	Multi-factor authentication (password + hardware token)
Authorization	Employee account had admin access to everything	Least privilege (employees only access what they need)
Monitoring	No detection of abnormal commands	Intrusion detection system (alert on unusual commands)
Segmentation	Office network connected to industrial control network	Air gap or firewall between office and industrial networks

Lesson: Authentication alone is not enough. You need authorization, monitoring, and network segmentation too.

Academic Resource: NPTEL IoT Course (IIT Kharagpur) - Vehicular Security Protocol Stack

DSRC WAVE Protocol Stack with Security Layer

Source: NPTEL Internet of Things Course, IIT Kharagpur - This DSRC WAVE protocol stack illustrates a key security principle: security (IEEE 1609.2) is integrated as a vertical layer spanning all protocol layers, demonstrating defense-in-depth architecture where security is not bolted on but built into every communication layer.

Try It: Build a Multi-Layer Security Check

Objective: Implement a simplified defense-in-depth validation pipeline that applies multiple security checks in sequence, demonstrating how each layer catches different types of attacks.

import re
import time
from collections import defaultdict

# Defense-in-Depth Security Pipeline
class IoTSecurityPipeline:
    def __init__(self):
        self.allowed_ips = {"192.168.1.10", "192.168.1.20", "10.0.0.5"}
        self.valid_tokens = {"sensor_token_abc123", "gateway_token_xyz789"}
        self.allowed_commands = {"READ_TEMP", "READ_HUMIDITY", "STATUS", "RESET"}
        self.rate_limits = defaultdict(list)  # IP -> list of timestamps
        self.audit_log = []

    def check_network(self, source_ip):
        """Layer 1: Network perimeter - IP allowlisting"""
        if source_ip not in self.allowed_ips:
            return False, "BLOCKED: IP not in allowlist"
        return True, "PASS: IP allowed"

    def check_rate_limit(self, source_ip, max_per_minute=10):
        """Layer 2: DoS prevention - rate limiting"""
        now = time.time()
        self.rate_limits[source_ip] = [
            t for t in self.rate_limits[source_ip] if now - t < 60
        ]
        if len(self.rate_limits[source_ip]) >= max_per_minute:
            return False, f"BLOCKED: Rate limit exceeded ({max_per_minute}/min)"
        self.rate_limits[source_ip].append(now)
        return True, "PASS: Within rate limit"

    def check_authentication(self, token):
        """Layer 3: Device authentication"""
        if token not in self.valid_tokens:
            return False, "BLOCKED: Invalid authentication token"
        return True, "PASS: Authenticated"

    def check_authorization(self, command):
        """Layer 4: Command authorization (whitelist)"""
        if command not in self.allowed_commands:
            return False, f"BLOCKED: Command '{command}' not authorized"
        return True, "PASS: Command authorized"

    def check_input_validation(self, payload):
        """Layer 5: Input validation (injection prevention)"""
        dangerous_patterns = [r";\s*DROP", r"<script", r"\.\./\.\.", r"rm\s+-rf"]
        for pattern in dangerous_patterns:
            if re.search(pattern, payload, re.IGNORECASE):
                return False, f"BLOCKED: Malicious pattern detected"
        return True, "PASS: Input validated"

    def process_request(self, source_ip, token, command, payload=""):
        """Run request through all security layers"""
        print(f"\n{'='*50}")
        print(f"Request from {source_ip}: {command}")
        print(f"{'='*50}")

        layers = [
            ("Network Perimeter", lambda: self.check_network(source_ip)),
            ("Rate Limiting", lambda: self.check_rate_limit(source_ip)),
            ("Authentication", lambda: self.check_authentication(token)),
            ("Authorization", lambda: self.check_authorization(command)),
            ("Input Validation", lambda: self.check_input_validation(payload)),
        ]

        for layer_name, check_fn in layers:
            passed, message = check_fn()
            status = "PASS" if passed else "FAIL"
            print(f"  Layer [{layer_name}]: {message}")
            self.audit_log.append(f"{source_ip}|{layer_name}|{status}")
            if not passed:
                print(f"\n  REQUEST DENIED at {layer_name}")
                return False
        print(f"\n  REQUEST APPROVED - all 5 layers passed")
        return True

# Test the pipeline
pipeline = IoTSecurityPipeline()

# Test 1: Legitimate request (passes all layers)
pipeline.process_request("192.168.1.10", "sensor_token_abc123", "READ_TEMP")

# Test 2: Unknown IP (blocked at Layer 1)
pipeline.process_request("10.99.99.99", "sensor_token_abc123", "READ_TEMP")

# Test 3: Wrong token (blocked at Layer 3)
pipeline.process_request("192.168.1.10", "stolen_token", "READ_TEMP")

# Test 4: Unauthorized command (blocked at Layer 4)
pipeline.process_request("192.168.1.10", "sensor_token_abc123", "DELETE_ALL")

# Test 5: Injection attack (blocked at Layer 5)
pipeline.process_request("192.168.1.10", "sensor_token_abc123",
                         "READ_TEMP", "; DROP TABLE sensors")

print(f"\n\nAudit log entries: {len(pipeline.audit_log)}")

What to Observe:

1. Each layer independently catches different attack types
2. A legitimate request must pass ALL five layers
3. An attacker bypassing one layer (e.g., spoofing a valid IP) still faces four more barriers
4. Every check is logged for audit trails, whether it passes or fails

9.6 Worked Example: Quantifying the ROI of Layered Security

Scenario: A hospital network connects 2,000 IoT medical devices (infusion pumps, patient monitors, smart beds). The CISO must justify the budget for defense-in-depth to the board. Calculate the expected annual loss with and without layered security.

9.6.1 Single-Layer vs Multi-Layer Security Math

# Annualized Loss Expectancy (ALE) calculation
# ALE = Single Loss Expectancy (SLE) x Annual Rate of Occurrence (ARO)

# Hospital IoT breach costs (based on Ponemon/IBM data)
sle_patient_data = 2_500_000  # avg healthcare breach cost
sle_device_disruption = 500_000  # operational downtime
sle_regulatory_fine = 1_000_000  # HIPAA fine
sle_total = sle_patient_data + sle_device_disruption + sle_regulatory_fine

# Probability of successful attack per layer
# Each layer independently blocks some percentage of attacks
layer_bypass_probability = {
    "Network firewall": 0.30,        # 30% of attacks bypass firewall
    "Network segmentation": 0.20,    # 20% bypass segmentation
    "Device authentication": 0.10,   # 10% bypass device auth
    "Data encryption": 0.05,         # 5% bypass encryption
    "Monitoring/IDS": 0.15,          # 15% bypass detection
}

# Single-layer defense (firewall only)
single_layer_bypass = 0.30  # 30% of attacks succeed
aro_single = 2.5  # 2.5 serious attempts per year
ale_single = sle_total * single_layer_bypass * aro_single

# Multi-layer defense (all 5 layers)
# Attacker must bypass ALL layers (probabilities multiply)
multi_layer_bypass = 1.0
for layer, prob in layer_bypass_probability.items():
    multi_layer_bypass *= prob
    print(f"  After {layer}: {multi_layer_bypass:.6f} "
          f"({multi_layer_bypass*100:.4f}%)")

ale_multi = sle_total * multi_layer_bypass * aro_single

# Annual security investment
annual_security_cost = {
    "Next-gen firewall": 45_000,
    "Network segmentation (VLANs)": 25_000,
    "Device certificate management": 35_000,
    "Encryption infrastructure": 20_000,
    "SIEM + monitoring": 60_000,
    "Security staff (0.5 FTE)": 55_000,
}
total_investment = sum(annual_security_cost.values())

print(f"\n{'='*50}")
print(f"Single Loss Expectancy: ${sle_total:,.0f}")
print(f"Annual attack attempts: {aro_single}")
print(f"\nSingle-layer ALE: ${ale_single:,.0f}/year")
print(f"Multi-layer ALE:  ${ale_multi:,.0f}/year")
print(f"Risk reduction:   ${ale_single - ale_multi:,.0f}/year")
print(f"\nAnnual security investment: ${total_investment:,.0f}")
print(f"Net savings: ${ale_single - ale_multi - total_investment:,.0f}/year")
print(f"ROI: {((ale_single - ale_multi) / total_investment - 1)*100:.0f}%")

Result: Five independent security layers reduce the attack success probability from 30% to 0.00045% – a 66,667x reduction. The annual expected loss drops from $3M to under $1, while the security investment is $240K/year, yielding a net savings of ~$2.76M annually.

Real-World Case Study: Target Breach (2013) – Defense-in-Depth Failure Analysis

What happened: Attackers stole 40 million credit card numbers and 70 million customer records from Target Corporation. Total cost: $292 million.

Layer-by-layer failure analysis:

Defense Layer	Control Present?	What Failed
Network Perimeter	Yes (firewall)	HVAC vendor had VPN access to payment network
Network Segmentation	Partial	HVAC network not isolated from POS network
Authentication	Weak	Vendor credentials were phished (no MFA)
Authorization	Failed	HVAC vendor account had access to POS systems
Data Encryption	Missing	Credit card data in RAM was unencrypted
Application Security	Missing	No whitelisting on POS terminals
Monitoring	Present but ignored	FireEye IDS flagged the malware – alerts were dismissed

Key insight: Target had invested in a $1.6M FireEye intrusion detection system that correctly identified the malware. The monitoring layer worked. But the corrective control (incident response) failed because alerts were ignored by the security operations team.

Lesson: Defense in depth requires not just deploying controls but also ensuring operational processes act on the intelligence each layer produces. A detective control without a corrective response is just an expensive log.

Concept Relationships

Understanding how defense-in-depth concepts connect across security topics:

Defense Layer	Relates To	Connection
Physical Security	Tamper Detection	Hardware protections complement network controls
Network Perimeter	Firewall Policies	Filters traffic at boundary before internal access
Network Segmentation	Micro-Segmentation	VLANs limit lateral movement after perimeter breach
Authentication	Zero Trust Identity	Verifies device/user before any access granted
Authorization	Least Privilege	Limits actions even for authenticated entities
Data Encryption	CIA Triad	Protects confidentiality even if other layers fail
Application Security	Secure Coding	Input validation prevents exploitation
Monitoring & Response	SIEM/SOAR	Detects and responds to layer failures
Preventive Controls	NIST PROTECT Function	Stops attacks before they succeed
Detective Controls	NIST DETECT Function	Identifies attacks in progress
Corrective Controls	NIST RECOVER Function	Remediates damage after attacks

9.7 See Also

Explore related defense-in-depth topics and security layers:

Security Frameworks:

• NIST Framework - Five security functions
• Security Control Implementation - IDS and firewall deployment
• Zero Trust Fundamentals - Never trust, always verify

Layer-Specific Topics:

• Encryption Principles - Data protection layer
• Device Security - Physical and host security
• Threat Modelling - Identifying attack vectors

Attack Analysis:

• Threats and Vulnerabilities - Understanding attack vectors
• Network Segmentation - Isolation strategies
• Behavioral Analytics - Monitoring layer

Match: Defense Layers to Their Functions

Order: Implementing Defense in Depth from Outermost to Innermost

9.8 Chapter Summary

Defense in depth is the foundational security strategy for IoT systems, implementing multiple independent security controls at every layer of the architecture. The eight-layer model (physical, network perimeter, segmentation, authentication, authorization, encryption, application, monitoring) ensures that failure of any single control doesn’t result in complete system compromise.

Security controls fall into three categories: preventive controls that stop attacks before they occur, detective controls that identify attacks in progress, and corrective controls that remediate damage after attacks. Effective IoT security requires all three control types working together at every architectural layer.

Real-world incidents like the German steel mill attack demonstrate the consequences of relying on single security measures. Organizations that implement layered defenses with multiple overlapping controls significantly reduce their attack surface and improve their ability to detect, contain, and recover from security incidents.

9.8.1 Interactive: Defense in Depth Layer Calculator

Use the sliders below to adjust each security layer’s block rate and see how layered defenses multiply protection. Compare the breach probability with all layers active versus a single firewall.

viewof p1 = Inputs.range([0, 100], {value: 70, step: 1, label: "Layer 1 - Firewall block rate (%)"})

viewof p2 = Inputs.range([0, 100], {value: 65, step: 1, label: "Layer 2 - Network Segmentation block rate (%)"})

viewof p3 = Inputs.range([0, 100], {value: 85, step: 1, label: "Layer 3 - Device Authentication block rate (%)"})

viewof p4 = Inputs.range([0, 100], {value: 90, step: 1, label: "Layer 4 - Encryption block rate (%)"})

viewof p5 = Inputs.range([0, 100], {value: 75, step: 1, label: "Layer 5 - Behavioral Monitoring block rate (%)"})

viewof aro_input = Inputs.range([1, 50], {value: 12, step: 1, label: "Attack attempts per year (ARO)"})

viewof sle_input = Inputs.range([0.1, 20], {value: 3.2, step: 0.1, label: "Single breach cost (SLE, $M)"})

breach_prob = (1 - p1/100) * (1 - p2/100) * (1 - p3/100) * (1 - p4/100) * (1 - p5/100)
single_prob = (1 - p1/100)
ale_layered = breach_prob * aro_input * sle_input * 1000000
ale_single = single_prob * aro_input * sle_input * 1000000
reduction_factor = single_prob / breach_prob
risk_reduction = ale_single - ale_layered

html`<div style="background: var(--bs-light, #f8f9fa); padding: 1.2rem; border-radius: 8px; border-left: 4px solid #3498DB; margin-top: 0.5rem;">
<h4 style="margin-top: 0; color: #2C3E50;">Breach Probability Analysis</h4>
<table style="width: 100%; border-collapse: collapse; margin-bottom: 0.8rem;">
<tr style="border-bottom: 1px solid #ddd;">
  <td style="padding: 0.4rem;"><strong>Single-layer breach probability (firewall only)</strong></td>
  <td style="padding: 0.4rem; text-align: right;">${(single_prob * 100).toFixed(2)}%</td>
</tr>
<tr style="border-bottom: 1px solid #ddd;">
  <td style="padding: 0.4rem;"><strong>Multi-layer breach probability (all 5 layers)</strong></td>
  <td style="padding: 0.4rem; text-align: right;">${(breach_prob * 100).toFixed(4)}%</td>
</tr>
<tr style="border-bottom: 1px solid #ddd;">
  <td style="padding: 0.4rem;"><strong>Protection improvement factor</strong></td>
  <td style="padding: 0.4rem; text-align: right;">${reduction_factor.toFixed(0)}x</td>
</tr>
</table>
<h4 style="margin-top: 0.5rem; color: #2C3E50;">Annual Loss Expectancy</h4>
<table style="width: 100%; border-collapse: collapse;">
<tr style="border-bottom: 1px solid #ddd;">
  <td style="padding: 0.4rem;"><strong>ALE with single layer</strong></td>
  <td style="padding: 0.4rem; text-align: right;">$${ale_single.toLocaleString('en-US', {maximumFractionDigits: 0})}</td>
</tr>
<tr style="border-bottom: 1px solid #ddd;">
  <td style="padding: 0.4rem;"><strong>ALE with five layers</strong></td>
  <td style="padding: 0.4rem; text-align: right;">$${ale_layered.toLocaleString('en-US', {maximumFractionDigits: 0})}</td>
</tr>
<tr style="border-bottom: 1px solid #ddd; color: #16A085; font-weight: bold;">
  <td style="padding: 0.4rem;"><strong>Annual risk reduction</strong></td>
  <td style="padding: 0.4rem; text-align: right;">$${risk_reduction.toLocaleString('en-US', {maximumFractionDigits: 0})}</td>
</tr>
</table>
<p style="margin-top: 0.8rem; margin-bottom: 0; font-size: 0.9em; color: #7F8C8D;">
<em>Try setting all layers to 70% -- five moderate controls provide ${((1 - Math.pow(0.3, 5)) * 100).toFixed(2)}% protection, far better than a single 99% layer.</em>
</p>
</div>`

Putting Numbers to It: Defense in Depth Layer Effectiveness Probability

Probability of successful breach through \(n\) layers equals product of individual layer bypass probabilities (assuming independence).

Breach Probability with \(n\) Layers: \[P_{\text{breach}} = \prod_{i=1}^{n} (1 - p_i)\]

where \(p_i\) is probability that layer \(i\) blocks the attack.

Expected Annual Loss with Layered Defense: \[\text{ALE}_{\text{layered}} = P_{\text{breach}} \times \text{ARO} \times \text{SLE}\]

where ARO = Annual Rate of Occurrence, SLE = Single Loss Expectancy.

Working through an example:

Given: Hospital medical IoT network with 5 defensive layers - Layer 1 (Firewall): 70% block rate (\(p_1 = 0.70\)) - Layer 2 (Network Segmentation): 65% block rate (\(p_2 = 0.65\)) - Layer 3 (Device Authentication): 85% block rate (\(p_3 = 0.85\)) - Layer 4 (Encryption): 90% block rate (\(p_4 = 0.90\)) - Layer 5 (Behavioral Monitoring): 75% block rate (\(p_5 = 0.75\)) - Attack attempts per year: ARO = 12 - Single breach cost: SLE = $3.2M

Step 1: Calculate breach probability (all layers bypassed) \[P_{\text{breach}} = (1 - 0.70) \times (1 - 0.65) \times (1 - 0.85) \times (1 - 0.90) \times (1 - 0.75)\] \[= 0.30 \times 0.35 \times 0.15 \times 0.10 \times 0.25 = 0.0003938 = 0.039\%\]

Step 2: Calculate expected annual loss \[\text{ALE}_{\text{layered}} = 0.0003938 \times 12 \times 3.2M = \$15,122\]

Step 3: Compare to single-layer defense (firewall only) \[P_{\text{single}} = (1 - 0.70) = 0.30 = 30\%\] \[\text{ALE}_{\text{single}} = 0.30 \times 12 \times 3.2M = \$11,520,000\]

Result: Five layers reduce breach probability from 30% to 0.039% (762× reduction). Expected annual loss drops from $11.52M to $15K—$11.5M risk reduction. Each additional layer multiplies protection.

In practice: Defense-in-depth effectiveness is multiplicative, not additive. Five 70% effective layers provide 99.76% protection (bypass probability = 0.30^5 = 0.00243), which is better than a single 99% layer. This quantifies why “one strong firewall” fails but “five moderate controls” succeeds.

9.9 Knowledge Check

Quiz: Defense in Depth Controls

Label the Diagram

9.10 What’s Next

With the defense-in-depth framework established, the next chapter examines Cryptography for IoT where you’ll learn the specific cryptographic techniques (AES, RSA, ECC, hashing) that implement encryption at various security layers.

Continue to Cryptography for IoT →

---

← Cyber Security Methods

Cryptography for IoT →

Common Pitfalls

1. Implementing defense-in-depth as checkbox compliance

Adding a firewall, TLS encryption, and basic authentication and calling the system ‘defense-in-depth’ misses the point. Each layer must provide genuine, independent protection with validated configurations — not superficial controls that give a false sense of security.

2. Concentrating all security controls at one layer

A system protected only by a strong perimeter firewall is vulnerable the moment a device inside the perimeter is compromised. Distribute controls across all layers, including device-level authentication and application-level authorisation.

3. Ignoring the human layer in defense-in-depth

Technical controls fail when operators choose weak passwords, click phishing links, or misconfigure systems. Include security awareness training, procedural controls, and audit logging as explicit layers in the defense-in-depth model.

4. Not testing each layer independently

Defense-in-depth requires each layer to provide real protection, not rely on other layers to compensate. Penetration test each layer in isolation to verify its effectiveness before relying on the layered effect.

💻 Code Challenge
