By the end of this chapter, you will be able to:
Privacy and compliance for IoT are about protecting people’s personal information and following the laws that govern data collection. Think of it like the rules a doctor follows to keep medical records confidential. IoT devices in homes, workplaces, and public spaces collect sensitive data about people’s lives, and there are strict requirements about how this data must be handled.
“Privacy leaks are like leaky water pipes,” Sammy the Sensor explained. “Data flows out of your device through tiny cracks you cannot see. Leak detection tools help you find and fix those cracks!”
Max the Microcontroller described the methods. “Static analysis looks at an app’s code WITHOUT running it – like reading a blueprint to find design flaws. Dynamic analysis runs the app and watches what data it actually sends – like turning on the faucet and checking for drips. Both are needed because some leaks only happen when the app is running.”
“Taint analysis is particularly clever,” Lila the LED said. “It ‘colors’ sensitive data – like your phone number or location – with an invisible marker. Then it tracks where that colored data flows. If your phone number ends up in a network packet heading to an advertising server, the taint tracker catches it red-handed!”
“Network traffic analysis watches everything going in and out of your phone,” Bella the Battery added. “Tools like packet sniffers capture all the data your apps send. You would be surprised how much personal information flows to servers you have never heard of. Regular leak checks should be part of every IoT app’s testing process!”
Before diving into this chapter, you should be familiar with:
Simulations Hub: Try the TaintDroid simulation to see real-time taint tracking in action. Experiment with different data flows from sources (GPS, contacts) to sinks (network, SMS) and observe how taint labels propagate through variables and method calls.
Videos Hub: Watch curated videos on Android permission models, data flow analysis techniques, and real-world privacy breach case studies. See demonstrations of static analysis tools (FlowDroid, LeakMiner) and dynamic analysis with TaintDroid.
Even when users grant app permissions, they expect their data to be used for the app’s stated purpose. Privacy leak detection identifies when apps violate this trust by sending sensitive data to unauthorized destinations. This chapter covers the techniques used to detect these violations.
Objective: Monitor app behavior to detect when privacy-sensitive information leaves the device without user consent.
Methodology:
Data Flow Analysis identifies privacy leaks by tracing how sensitive information moves through an app from collection to transmission. Here’s the complete process:
Step 1: Source Identification The analyzer scans the app’s code for privacy-sensitive APIs: getLastLocation() (GPS), getContacts() (contacts list), getDeviceId() (IMEI), getExternalStorage() (files). Each source is tagged with a sensitivity label (LOCATION, CONTACTS, DEVICE_ID).
Step 2: Sink Identification Next, the analyzer finds data exit points: HttpURLConnection.connect() (network transmission), sendTextMessage() (SMS), FileOutputStream to external storage, ContentProvider.insert() to shared databases.
Step 3: Path Tracing The analyzer builds a control flow graph showing all possible execution paths from each source to each sink. For example: getLastLocation() → Variable loc → JSONObject.put("location", loc) → httpPost.setEntity(json) → httpClient.execute(httpPost).
Step 4: Consent Verification For each source-to-sink path, check if user consent was obtained. If the path getContacts() → httpClient.execute() exists but no consent dialog appears in the code flow, the analyzer flags it as a privacy leak.
Step 5: Reporting Generate a report listing all detected leaks with: source API, sink destination, data type, consent status, and code line numbers for manual verification.
Why This Matters: Apps can request permissions legitimately (for weather, show my location) but then secretly exfiltrate that data to advertising networks. DFA catches these violations by analyzing actual data flows, not just permission requests.
Privacy Leak: Any path from source to sink without user consent.
This view maps the complete attack surface for mobile IoT companion apps, showing how attackers can extract user data:
Defense Priority: Focus on app-level defenses first (permission minimization, secure SDK selection), then network security (certificate pinning, encrypted protocols), then on-device protections (secure storage, anti-tampering).
Explicit Capability Leak: Malicious app hijacks permissions granted to other trusted apps.
Mechanism:
sharedUserIdNote:
sharedUserIdwas deprecated in Android 10 (API level 29) but remains relevant for legacy apps and educational understanding of capability leak attacks.
Example:
TaintDroid is a modified Android OS that tracks sensitive data flows in real-time.
Key Features:
Advantages over Dynamic Analysis:
Disadvantages:
| Aspect | Static Analysis | Dynamic Analysis (TaintDroid) |
|---|---|---|
| Coverage | All code paths | Only executed paths |
| Runtime overhead | None | 10-30% CPU |
| False positives | Higher | Lower |
| Dynamic code | Cannot analyze | Fully tracked |
| When to use | Pre-deployment review | Runtime monitoring |
This Python implementation demonstrates the core taint-tracking concept from TaintDroid. It labels sensitive data at sources, propagates labels through operations, and detects unauthorized flows to network sinks:
class TaintTracker:
"""Simplified taint tracking for IoT app privacy analysis."""
def __init__(self):
self.variables = {} # {name: {"value": ..., "taint": set()}}
self.allowed_sinks = {} # {sink: set of allowed labels}
self.leaks = []
def source(self, var_name, value, label):
self.variables[var_name] = {"value": value, "taint": {label}}
def combine(self, dest, var_a, var_b):
"""Taint union -- key TaintDroid insight."""
a = self.variables.get(var_a, {"value": None, "taint": set()})
b = self.variables.get(var_b, {"value": None, "taint": set()})
self.variables[dest] = {
"value": f"{a['value']}|{b['value']}",
"taint": a["taint"] | b["taint"],
}
def send_to_sink(self, sink_name, var_name):
var = self.variables.get(var_name)
unauthorized = var["taint"] - self.allowed_sinks.get(sink_name, set())
if unauthorized:
self.leaks.append({"sink": sink_name, "unauthorized": unauthorized})
return ("LEAK" if unauthorized else "OK"), unauthorized
# Weather app with hidden ad tracking
tracker = TaintTracker()
tracker.allowed_sinks = {"weather-api.com": {"LOCATION"}, "ad-network.com": set()}
tracker.source("gps_loc", "37.7749,-122.4194", "LOCATION")
tracker.source("device_id", "353456789012345", "IMEI")
print(tracker.send_to_sink("weather-api.com", "gps_loc")) # ('OK', set())
tracker.combine("ad_payload", "gps_loc", "device_id") # Union: LOCATION + IMEI
print(tracker.send_to_sink("ad-network.com", "ad_payload")) # ('LEAK', {'LOCATION','IMEI'})The taint union in combine() is the key insight: when the app concatenates IMEI and location into one payload, the result inherits both labels. Even if the IMEI alone seems harmless, combining it with location creates a persistent tracking profile – exactly the pattern TaintDroid was designed to catch.
Scenario: A smart home company launches “HomeGuard,” an Android companion app for their security camera and door lock products. Before the v2.0 release, the security team must audit the app for privacy leaks. The app requests 8 permissions: camera, microphone, location, contacts, storage, phone state, Bluetooth, and Wi-Fi state.
Step 1: Permission Necessity Audit
Evaluate whether each permission is actually needed for the app’s stated functionality:
| Permission | Stated Purpose | Audit Finding | Verdict |
|---|---|---|---|
| Camera | QR code scanning for device setup | Used once during setup, then continuously by analytics SDK | Over-retained |
| Microphone | Two-way audio with camera | Legitimate, used only during live view | Necessary |
| Location | “Improve service” (vague) | Sent to 3 ad SDKs every 15 minutes even when app is backgrounded | Privacy leak |
| Contacts | Not disclosed | Read by analytics SDK, hashed and uploaded for “social graph” | Undisclosed leak |
| Storage | Save video clips | Legitimate | Necessary |
| Phone state (IMEI) | “Device identification” | IMEI sent to 4 different analytics endpoints | Over-collection |
| Bluetooth | Device discovery | Legitimate, scoped to setup flow | Necessary |
| Wi-Fi state | Network detection | Legitimate for local device communication | Necessary |
Step 2: Static Analysis with FlowDroid
Run FlowDroid on the decompiled APK (42,000 methods across app code + 6 third-party SDKs):
| Source | Sink | SDK Responsible | Consent Given? | Classification |
|---|---|---|---|---|
getLastLocation() |
HttpURLConnection to ads.tracker.com |
AdMob SDK | No explicit consent | Privacy leak |
getLastLocation() |
HttpURLConnection to analytics.mix.com |
Mixpanel SDK | No explicit consent | Privacy leak |
getDeviceId() (IMEI) |
HttpURLConnection to graph.facebook.com |
Facebook SDK | Buried in ToS page 23 | Privacy leak |
getContacts() |
HttpURLConnection to analytics.mix.com |
Mixpanel SDK | Not disclosed anywhere | Privacy leak |
getContacts() |
Local SQLite | App code | N/A (local storage) | Not a leak |
| Camera frames | HttpURLConnection to api.homeguard.com |
App code | User-initiated (live view) | Legitimate |
FlowDroid found 12 source-to-sink paths, of which 4 are confirmed privacy leaks, 2 are legitimate app functionality, and 6 are false positives (paths that exist in code but are unreachable at runtime).
Step 3: Dynamic Analysis with Network Traffic Capture
Run the app for 24 hours with a MITM proxy (mitmproxy with SSL unpinning via Frida) while simulating normal usage:
| Destination | Data Sent | Frequency | Encrypted? | User Aware? |
|---|---|---|---|---|
api.homeguard.com |
Camera stream, device status | On user action | TLS 1.3 | Yes |
ads.tracker.com |
GPS lat/lng, device model, Android ID | Every 15 min | TLS 1.2 | No |
analytics.mix.com |
IMEI hash, contact count, app events | Every 5 min | TLS 1.2 | No |
graph.facebook.com |
IMEI, installed apps list, Wi-Fi SSID | Every 30 min | TLS 1.3 | No |
crashes.google.com |
Stack traces (may contain user data) | On crash | TLS 1.3 | Partial |
Key finding: Over 24 hours, the app made 287 requests to third-party analytics servers versus 34 requests to the company’s own API. The device transmitted the user’s GPS location 96 times to advertising networks without any in-app disclosure.
Step 4: Taint Analysis Summary
Combining static and dynamic results:
| Data Type | Sources | Unauthorized Sinks | Risk Level | GDPR Impact |
|---|---|---|---|---|
| GPS location | getLastLocation() |
2 ad networks | Critical | Article 6 violation (no legal basis) |
| Contacts | getContacts() |
1 analytics SDK | Critical | Article 9 violation (social graph) |
| IMEI | getDeviceId() |
4 analytics endpoints | High | Article 5(1)(c) violation (minimization) |
| Camera access | Camera API | 1 analytics SDK (background) | High | Article 5(1)(b) violation (purpose limitation) |
Step 5: Remediation
| Issue | Fix | Time | Risk Reduction |
|---|---|---|---|
| Remove contacts permission | Delete Mixpanel social graph feature | 2 hours | Eliminates contacts leak entirely |
| Replace IMEI with instance ID | Use UUID.randomUUID() per install |
4 hours | Eliminates cross-app tracking |
| Add consent dialog for analytics | GDPR-compliant opt-in before SDK init | 3 days | Enables legal basis for analytics |
| Remove location from ad SDK | Set AdMob.setLocationEnabled(false) |
1 hour | Stops 96 daily location transmissions |
| Audit all 6 SDKs quarterly | Integrate Exodus Privacy into CI/CD | 2 days | Catches new leaks from SDK updates |
Outcome: The v2.0 release shipped with 3 permissions removed (location, contacts, phone state), a GDPR-compliant consent dialog, and instance-based IDs replacing IMEI. Third-party network requests dropped from 287/day to 41/day. The app passed an independent privacy audit, enabling EU market distribution.
Choose the right analysis approach based on development stage, resource constraints, and threat model:
| Analysis Type | When to Use | Strengths | Limitations | Best For |
|---|---|---|---|---|
| Static Analysis | Pre-deployment, code review | Examines ALL code paths (100% coverage), no runtime overhead, finds leaks in error handlers and rarely-executed code | False positives (~20-40%), cannot analyze dynamic code loading, obfuscation defeats analysis | Security audit before release, regulatory compliance review, developer training |
| Dynamic Analysis | Runtime monitoring, post-deployment | No false positives (only real leaks), handles dynamic code, analyzes third-party libraries, detects actual network exfiltration | Only tests executed paths (~40-60% coverage), runtime overhead (10-30% CPU), requires representative test scenarios | Production monitoring, incident response, user-reported privacy concerns, third-party SDK verification |
| Hybrid | Comprehensive security review | Combines static path discovery with dynamic validation, reduces false positives, achieves higher coverage | Requires both toolchains, longer analysis time, more complex setup | Pre-release security certification, government/military deployments, medical device validation |
Decision Tree:
START: Which analysis approach should I use?
1. Do I have access to source code?
NO → Must use dynamic analysis (TaintDroid, network capture)
YES → Continue
2. What is my development stage?
PRE-ALPHA (design) → Static analysis (find architectural flaws)
BETA (testing) → Hybrid (static + targeted dynamic tests)
PRODUCTION (live) → Dynamic analysis (real-world monitoring)
3. What is my threat model?
MALICIOUS THIRD-PARTY SDK → Dynamic analysis (network traffic)
DEVELOPER ERROR → Static analysis (code review)
SOPHISTICATED ATTACKER → Hybrid (comprehensive)
4. What are my resource constraints?
LOW (startup) → Static analysis (one-time setup, free tools)
MEDIUM (growing company) → Hybrid (automated CI/CD integration)
HIGH (enterprise) → Continuous dynamic monitoring
5. What is my risk tolerance?
VERY LOW (medical, finance) → Hybrid + manual review
MODERATE (consumer apps) → Static OR dynamic (pick one)
HIGH (internal tools) → Lightweight static scan onlyTool Selection Guide:
| Tool | Type | Cost | Platform | Coverage | Best Use Case |
|---|---|---|---|---|---|
| FlowDroid | Static | Free (academic) | Android | 95% precision | Pre-deployment audit, finds all potential leaks |
| TaintDroid | Dynamic | Free (research OS) | Android | 100% accuracy, 40-60% coverage | Research, proof-of-concept leak demonstration |
| Frida | Dynamic | Free | Android/iOS | Depends on hooks | Runtime monitoring, SDK behavior analysis |
| mitmproxy | Network | Free | Any | Network-only | Third-party data exfiltration detection |
| Exodus Privacy | Static | Free (web) | Android | Known trackers only | Quick SDK tracker scan (37+ known SDKs) |
| AppSweep | Static | Free | Android | Medium precision | Continuous Integration (CI) integration |
| Guardsquare | Static | Commercial | Android/iOS | High precision | Enterprise-grade pre-deployment scanning |
Combining Static and Dynamic Analysis:
Optimal workflow for comprehensive privacy assurance:
PHASE 1: Pre-Development (Architecture)
├─ Static analysis on architecture docs
├─ Threat modeling (STRIDE/LINDDUN)
└─ Privacy-by-design review
PHASE 2: Development (Code Review)
├─ Static analysis in CI/CD pipeline (every commit)
├─ Developer training on identified patterns
└─ Automated blocking of high-severity findings
PHASE 3: Testing (Validation)
├─ Dynamic analysis on beta builds (1 week monitoring)
├─ Network traffic baseline establishment
├─ Third-party SDK behavior verification
└─ Cross-reference static findings with dynamic results
PHASE 4: Pre-Release (Certification)
├─ Hybrid analysis (static paths + dynamic validation)
├─ External security audit (independent review)
├─ Penetration testing (adversarial scenarios)
└─ Privacy Impact Assessment (PIA) documentation
PHASE 5: Production (Monitoring)
├─ Dynamic analysis on production builds (sampling 1% users)
├─ Anomaly detection (unexpected network destinations)
├─ User-reported privacy complaint investigation
└─ Quarterly re-audit (static analysis on major updates)Cost-Benefit Analysis:
| Scenario | Static Only | Dynamic Only | Hybrid | Cost | Risk Reduction |
|---|---|---|---|---|---|
| Startup (limited budget) | ✓ | $0-500 | 60% of leaks found | ||
| Consumer app (moderate risk) | ✓ | $0-2,000 | 50% of leaks found (only tested paths) | ||
| Enterprise IoT (high stakes) | ✓ | $5,000-20,000 | 85-95% of leaks found | ||
| Medical device (critical) | ✓ + Manual | $50,000+ | 95%+ (regulatory requirement) |
Key Insight: No single analysis technique provides complete coverage. Static analysis finds all potential paths but has false positives. Dynamic analysis finds only real leaks but misses untested paths. For production IoT apps, use static analysis pre-deployment and dynamic monitoring in production for comprehensive leak detection across the entire app lifecycle.
The Mistake: Developers assume that Android/iOS permission models provide sufficient privacy protection, and that users granting permission implies consent for all uses of that data.
Why It Fails:
Real-World Example:
Why Permissions Are Insufficient:
| Permission | What User Thinks | What Apps Can Do | Actual Privacy Risk |
|---|---|---|---|
| Location (Always) | “App knows where I am when using it” | Continuous background tracking, 17,280 samples/day, exact home/work addresses, 95% de-anonymization with 4 points | CRITICAL |
| Contacts | “App can see my friends to add them” | Hash entire contact list, upload to server, infer social graph, cross-reference with other datasets | HIGH |
| Microphone | “App can use voice commands” | Record 24/7, send audio to third parties, infer sensitive conversations, enable eavesdropping | CRITICAL |
| Motion Sensors | NO PERMISSION REQUIRED | 70-80% keystroke inference (PINs, passwords), activity tracking, gait-based identity fingerprinting | MEDIUM |
| Storage | “App can save my photos” | Read ALL files, including other apps’ data, sensitive documents, personal photos | HIGH |
What Users Don’t Know After Granting Permission:
Correct Approach:
Purpose Limitation:
// WRONG: Generic permission request
requestPermissions(new String[]{Manifest.permission.CAMERA}, REQUEST_CAMERA);
// RIGHT: Explain specific purpose in dialog
new AlertDialog.Builder(context)
.setTitle("Camera Permission")
.setMessage("This app needs camera access to scan QR codes for device setup. Your camera will NOT be used for any other purpose.")
.setPositiveButton("Allow", (dialog, which) -> requestCameraPermission())
.setNegativeButton("Deny", null)
.show();Granular Consent:
// Separate toggles for each purpose
data class PrivacyConsent(
val allowLocationForMaps: Boolean = false,
val allowLocationForWeather: Boolean = false,
val allowLocationForAdvertising: Boolean = false, // Likely stays false
val allowContactsForFriends: Boolean = false,
val allowContactsForMarketing: Boolean = false // Likely stays false
)Runtime Purpose Verification:
fun useCamera(purpose: CameraPurpose) {
when (purpose) {
CameraPurpose.QR_SCAN -> {
if (!consentManager.hasConsent(Purpose.CAMERA_QR)) {
throw SecurityException("No consent for QR scanning")
}
// Proceed with QR scan
}
CameraPurpose.ANALYTICS -> {
// Analytics SDK tries to use camera
throw SecurityException("Analytics cannot access camera")
}
}
}Audit Third-Party SDK Access:
# Use Frida to hook permission use and log which library called it
frida -U -f com.example.app -l hook-permissions.js --no-pause
# Output: "Analytics SDK (com.thirdparty.analytics) accessed Location at 14:23:05"Key Insight: Permissions are a necessary but insufficient privacy control. They establish that an app CAN access data, but not WHEN, WHY, or WHO receives it. Robust privacy requires: granular purpose-specific consent, runtime access control, third-party SDK restrictions, and continuous monitoring. Treat permissions as the first layer of defense, not the only layer.
| Concept | Builds On | Enables | Contrasts With |
|---|---|---|---|
| Data Flow Analysis | Control flow graphs, taint propagation | Privacy leak detection, GDPR compliance verification | Permission-based access control (DFA tracks actual usage) |
| TaintDroid | Variable-level taint tracking, Dalvik VM modification | Runtime privacy monitoring, third-party SDK auditing | Static analysis (TaintDroid sees actual execution paths) |
| Static Analysis | Abstract syntax trees, symbolic execution | Pre-deployment security review, finding all potential paths | Dynamic analysis (static covers unexecuted code) |
| Capability Leaks | Android permission model, sharedUserID | Privilege escalation attacks, permission bypasses | Normal permission grants (capability leaks are implicit grants) |
Key Insight: DFA, TaintDroid, and static analysis are complementary techniques that address different phases of the app lifecycle—design, runtime, and deployment—working together to provide comprehensive privacy leak detection.
Information leakage quantifies how much sensitive information flows from sources to sinks, measured in bits of entropy reduction.
\[L = H(S) - H(S|O)\]
where \(L\) is the information leakage, \(H(S)\) is the entropy of the sensitive data source, and \(H(S|O)\) is the conditional entropy after observing the output.
Working through an example: Given: A mobile app accesses GPS location (latitude, longitude with 6 decimal places = ~0.1 meter precision). The location is transmitted to an advertising network.
Step 1: Calculate source entropy - GPS coordinate space: Earth surface area ≈ \(5.1 \times 10^{14}\) m² - Precision: 0.1m × 0.1m = 0.01 m² per coordinate - Possible locations: \(5.1 \times 10^{14} / 0.01 = 5.1 \times 10^{16}\) - Source entropy: \(H(S) = \log_2(5.1 \times 10^{16}) \approx 55.5\) bits
Step 2: Calculate leakage with perfect transmission - If GPS coordinates transmitted exactly: \(H(S|O) = 0\) bits - Information leakage: \(L = 55.5 - 0 = 55.5\) bits
Step 3: Calculate leakage with coarse location (city-level) - If only city name is transmitted (e.g., “San Francisco”): - Number of cities worldwide: ~10,000 major cities - Remaining entropy after observing city: \(H(S|O) = \log_2(5.1 \times 10^{16} / 10000) \approx 55.5 - 13.3 = 42.2\) bits (uncertainty within the city) - Information leakage: \(L = 55.5 - 42.2 = 13.3\) bits (knowing the city)
Result: Transmitting precise GPS coordinates leaks 55.5 bits of location information – enough to pinpoint a user to within 0.1 meters. Even city-level coarsening still leaks 13.3 bits (which city you are in). To limit leakage to <5 bits, you would need continental-level granularity.
In practice: TaintDroid tracks data from sources (GPS, microphone) to sinks (network). The information leakage rate helps quantify privacy risk: higher leakage = greater ability to de-anonymize users. Data flow analysis combined with entropy calculations reveals which app behaviors pose the highest re-identification risk, enabling prioritized remediation.
Experiment with different precision levels and coarsening strategies to see how information leakage changes.
Privacy leak detection mechanisms identify unauthorized data exfiltration:
Data Flow Analysis:
TaintDroid (Dynamic Analysis):
Static Analysis:
Key Takeaway: Use static analysis for comprehensive pre-deployment review, dynamic analysis (TaintDroid) for runtime monitoring. Neither alone is sufficient—combine both for robust privacy protection.

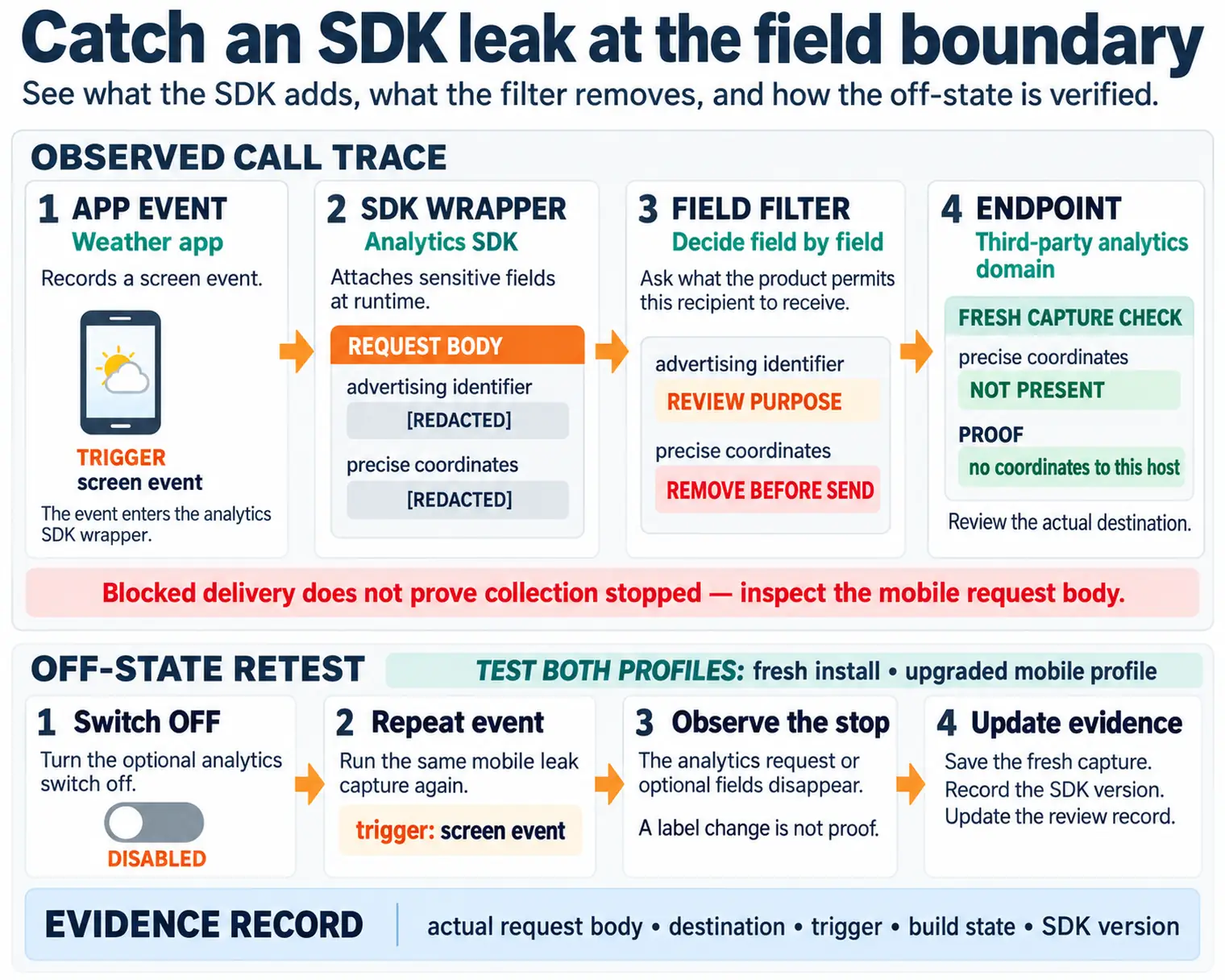

Embedded SDKs (analytics, crash reporting, advertising) collect and transmit data independently of the primary application code. Teams often don’t audit what third-party SDKs collect. Review privacy policies and network behavior of every embedded SDK before including it in IoT applications.
Debug logs capturing device IDs, location coordinates, or user behavior are commonly left in production builds. These logs may be readable by other apps (on Android), uploaded to crash reporting services, or stored in cloud log aggregation. Implement log redaction for production builds.
Teams who check for “using HTTPS” believe their traffic is private. But HTTPS encryption doesn’t prevent the destination from receiving and misusing data. Traffic analysis must check both that transport is encrypted AND that the destination is appropriate for the data being sent.
Privacy leak testing performed once at development doesn’t catch leaks introduced by SDK updates, backend changes, or new feature additions. Implement automated privacy traffic analysis as part of CI/CD pipelines to continuously detect privacy regression.
Now that you can detect privacy leaks, the next chapter explores Location Privacy Leaks where you’ll understand why location data is especially dangerous and how de-anonymization attacks work even on “anonymized” datasets.
Continue to Location Privacy Leaks →
| ← Mobile Data Collection | Location Privacy → |
