9 Cloud Security: Control Records and Failure Modes

9.1 Start With the Decision

This section: Start With the Decision — A cold-store alert is useful only when a reviewer can trace the security control behind it.

A cold-store alert is useful only when a reviewer can trace the security control behind it. A control is a rule or safeguard for the message path. Its owner is the person or team responsible for it; proof is evidence such as test results or audit logs showing it worked. The record also needs a safe failure state: what the system does if the control or cloud path fails.

9.2 Route Overview

This section: Route Overview — This is part 2 of 2.

This is part 2 of 2. Review Cloud Security: Identity and Monitoring Controls for the preceding evidence.

9.3 Learning Objectives

This section: Learning Objectives

• Document cloud controls in a reviewable security record.
• Identify shared-key and logging failures in an IoT design.

9.4 Chapter Roadmap

This section: Chapter Roadmap

• Scenario: Cold-Storage Security Check
• Security Control Record
• Common Pitfalls
• 1. Using Long-Term Shared Credentials
• 2. Granting Broad Topic Permissions
• Encryption Is Not a Data Plan
• 4. Missing Audit Logs During Incidents
• 5. Leaving Break-Glass Access Unchecked
• Security as Blast-Radius Control
• Security Control Record
• Prevention Needs Revocation
• Summary
• Key Takeaway
• See Also

9.5 Scenario: Cold-Storage Security Check

This section: Scenario: Cold-Storage Security Check — A cold-storage operator connects gateways at many facilities.

A cold-storage operator connects gateways at many facilities. Gateways collect temperature, door, power, compressor, and alarm events. Operators can acknowledge alarms, schedule maintenance, and send limited configuration changes.

9.6 Security Control Record

This section: Security Control Record — A security control record makes the design auditable and repeatable.

A security control record makes the design auditable and repeatable. It should be updated when device classes, message families, operator roles, data classes, or cloud paths change.

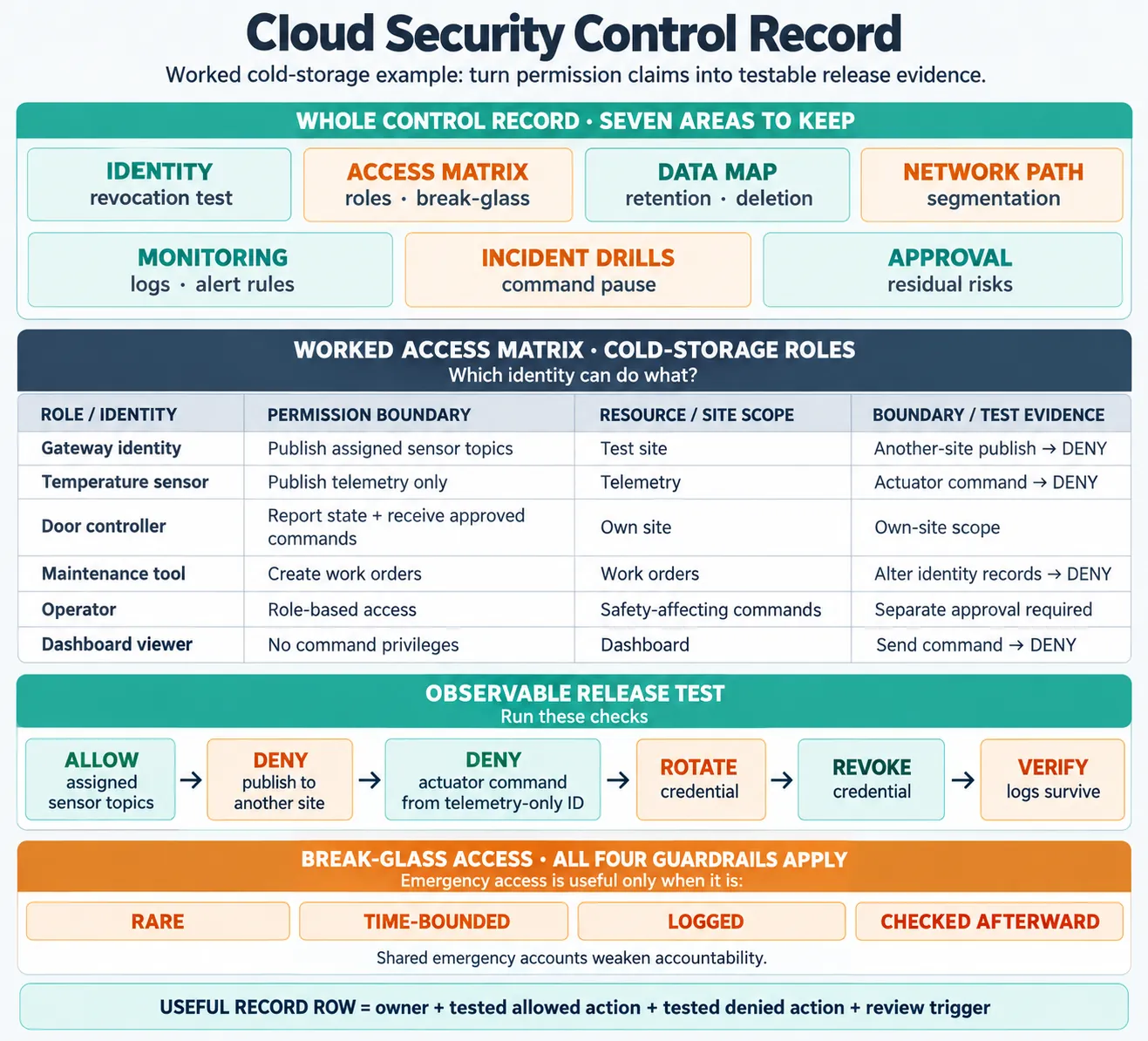

Figure 9.1 connects cloud security controls to owners and repeatable checks.

+

Identity records cover enrollment, credential type, rotation, revocation, and retirement. An access matrix distinguishes device, gateway, application, and operator roles. It also covers emergency access. The data map identifies sensitive classes, storage, key ownership, retention, and deletion. The network path records approved endpoints and segmentation. Monitoring adds logs, alert rules, dashboards, retention, and an owner. Incident drills then test whether a compromised credential or other fault can be found and handled. Fill the record from tested paths and named responsibilities so a later reviewer can repeat the control check rather than infer protection from a service label.

Include:

• Identity records: enrollment process, credential type, rotation plan, revocation test, and retirement process.
• Access matrix: device roles, gateway roles, application roles, operator roles, command permissions, and break-glass path.
• Data map: data classes, sensitivity, storage location, key ownership, retention, deletion, and sharing rules.
• Network path: approved endpoints, firewall assumptions, gateway segmentation, admin access path, and fallback behavior.
• Monitoring: required logs, alert rules, dashboard links, record retention, and control owner.
• Incident drills: credential compromise, site isolation, command pause, policy rollback, and record recovery.
• Approval: security owner, operations owner, product owner, residual risks, and next check date.

9.7 Common Pitfalls

This section: Common Pitfalls

9.8 Security as Blast-Radius Control

This section: Security as Blast-Radius Control — IoT cloud security is strongest when one failure stays small.

IoT cloud security is strongest when one failure stays small. A copied device, over-broad topic rule, exposed operator account, or broken gateway should not become a fleet-wide incident. The architecture must bound identity, permissions, data, network paths, monitoring, and response ownership.

+

The rings in Figure 9.2 show how one failure can be kept local. A gateway identity tied to a site should have a narrow topic and network path, so a copied credential cannot command the fleet. Data classes and keys bound what that identity can read; operator roles prevent a viewer from inheriting command access. Monitoring and logging keep denied messages, policy changes, and operator actions visible. A response owner can then revoke the device, pause a site route, and preserve records. Read these boundaries around the cloud workload as separate checks, because a strong login does not compensate for a broad topic rule or an absent recovery owner.

Mobile summary: Cloud security is release-ready when identity, permissions, data, network paths, operators, monitoring, and incident response are bounded, tested, and owned.

The first security question is not "which cloud feature is enabled?" The first question is "what can this identity do, what records can it reach, and how quickly can the team contain it when it fails?"

For a cold-storage fleet, blast-radius control starts before the first gateway ships. Each gateway can carry its own X.509 client certificate or equivalent device credential, tied to a site, model, firmware stream, and permitted MQTT topic family. A door sensor may publish state and battery health, while a compressor controller may receive only approved configuration for its own room. If one returned gateway exposes its private key, the operator should be able to revoke that identity, block command delivery for the affected site, keep unrelated facilities online, and preserve the logs needed to explain what happened.

The same pattern applies to cloud operators and support tools. A dashboard viewer should not inherit command privileges, a maintenance account should not be able to alter identity records, and analytics exports should not bypass retention or data-class rules. Security therefore becomes a set of small, testable boundaries: device identity, message authorization, data access, network admission, operator role, logging path, and recovery owner. The control record is useful only when those boundaries are specific enough to test.

That is why a release review should include at least one negative path. Try a revoked certificate, an expired token, a publish to another site's topic, a command from a telemetry-only identity, and a dashboard export by a read-only role. The design is safer when these attempts fail clearly and leave useful audit events.

9.9 Security Control Record

This section: Security Control Record — Write the security control record as a release artifact.

Write the security control record as a release artifact. It should say what is allowed, how the permission was tested, who owns the control, and what event forces a new review. Avoid vague lines such as "secured by cloud provider" or "encrypted by default."

In practice, build the record from observable tests. Create one gateway identity for a test site, allow it to publish only its assigned sensor topics, deny a publish to another site, deny an actuator command from a telemetry-only identity, rotate the credential, revoke it, and confirm the logs survive the sequence. For data, pick one sensitive class such as location, alarm history, or door-state records and show its transport protection, storage zone, key owner, retention window, query role, export rule, and deletion or archive path. For operators, prove that a viewer cannot send commands and that break-glass access is time-bounded and logged.

A useful control record is boring in the best way: every row has an owner, a tested allowed action, a tested denied action, and a condition that requires review. If a new firmware release adds a command, if a gateway moves to another site, or if an analytics job starts using a new data field, the record tells the team which permission, data, and monitoring checks must be repeated before production traffic depends on the change.

9.10 Prevention Needs Revocation

This section: Prevention Needs Revocation — Most controls are incomplete until the failure path is rehearsed.

Most controls are incomplete until the failure path is rehearsed. A device credential that cannot be revoked precisely, a command path that cannot be paused safely, or logs that disappear during recovery will turn a preventable incident into a reconstruction exercise.

Credential revocation works only when identity checks sit on the actual message path. With mutual TLS, for example, the broker or gateway endpoint must reject a revoked certificate before accepting telemetry or commands; with token-based access, the token issuer, expiry window, audience, and policy checks must stop stale authorization from surviving too long. Topic authorization then has to be evaluated after identity, not assumed from a successful encrypted session. A copied gateway credential that can still publish to another site's topic is not contained, even if the TLS handshake is technically valid.

Command pause is a separate control. Many IoT incidents are not solved by turning the cloud off; local safety behavior may need to continue while cloud-originated commands are stopped. A refrigeration controller can keep local alarms and compressor protection active while the cloud command route for that site is disabled. The cloud side should mark outstanding commands as held or expired, prevent replay after recovery, and require a fresh authorization decision before normal command delivery resumes.

Record preservation is the third part of the mechanism. Identity logs, policy versions, command requests, operator approvals, denied-topic events, credential rotation events, and gateway replacement notes should be retained through the response. If containment deletes the evidence, the team cannot tell whether the credential was copied, whether the wrong topic policy was used, or whether an operator account widened access during the incident. Durable logs and versioned policies make recovery narrow rather than improvisational.

9.11 Summary

This section: Summary — Cloud security for IoT is strongest when the architecture limits blast radius and records controls.

Cloud security for IoT is strongest when the architecture limits blast radius and records controls. Production security requires unique device identity, least-privilege message paths, protected data lifecycle, bounded network access, actionable monitoring, and rehearsed incident response. The control check is complete only when the team can show how credentials rotate, how one device is revoked, how unsafe commands are paused, how records are preserved, and who owns each follow-up action.

9.12 Key Takeaway

This section: Key Takeaway — Cloud security checks must prove bounded identity, least-privilege permissions, protected records, monitored failure paths, precise revocation, and rehearsed recovery before workloads move to production.

Cloud security checks must prove bounded identity, least-privilege permissions, protected records, monitored failure paths, precise revocation, and rehearsed recovery before workloads move to production.

9.13 See Also

This section: See Also

9.14 Continue Your Route

This section: Continue Your Route — This is the last part of this chapter.

This is the last part of this chapter. Return to Cloud Security: Identity and Monitoring Controls or continue from the cloud-sdn-production module index.
