19 Cellular IoT Applications
- Smart Metering: Large-scale cellular IoT deployment connecting electricity, gas, and water meters to utility back-ends; uses NB-IoT/LTE-M for low-cost, long-life meter modules
- Connected Health: Medical IoT using LTE-M for remote patient monitoring: ECG patches, glucose monitors, implantable devices with SIM; requires regulatory compliance (FDA, CE MDR)
- Fleet Telematics: Vehicle tracking and diagnostics using LTE/4G for high-frequency GPS + CAN-bus data; migrating to LTE-M for trucks with infrequent reporting

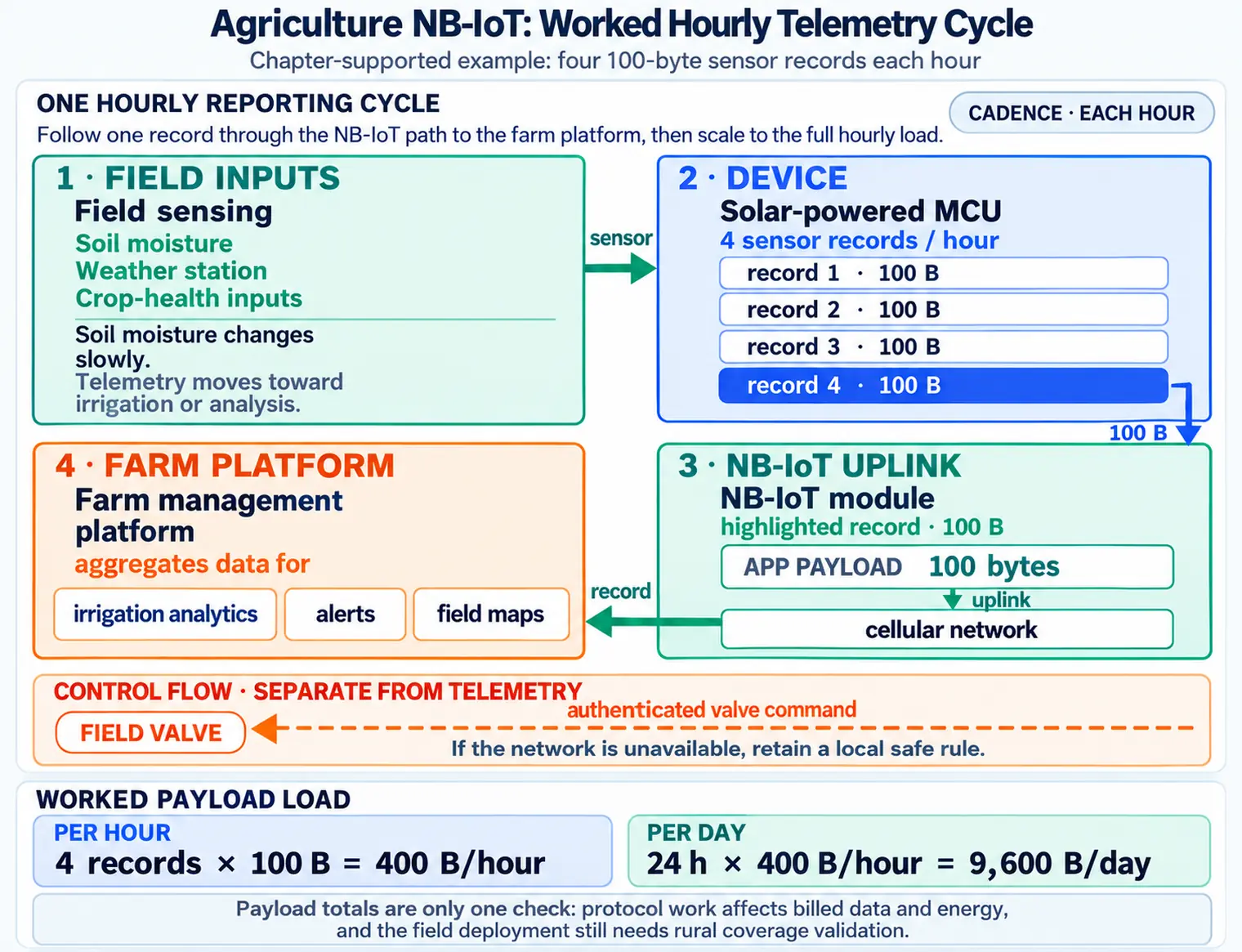

- Agricultural IoT: Precision farming using NB-IoT for soil moisture, weather, and irrigation sensors across large rural areas where only cellular coverage exists
- Asset Tracking: Non-powered asset location using NB-IoT with GPS/GNSS; targets <2 year battery life with once-per-day reporting and geofence alerts
- Smart Cities: Municipal IoT across parking, waste management, street lighting, air quality, and environmental monitoring; typically NB-IoT or LTE-M with city-wide cellular coverage
- Industrial Monitoring: Factory and infrastructure monitoring using LTE-M for vibration, temperature, and energy sensors with 1–60 second reporting; fallback to NB-IoT for low-bandwidth alarms
- Emergency Management: Cellular IoT for flood sensors, seismic monitors, and fire detection in public safety infrastructure; requires priority access and network resiliency
19.1 Learning Objectives
By the end of this chapter, you will be able to:
- Classify Cellular IoT Use Cases: Analyze asset tracking, smart metering, and fleet management applications by their mobility, data volume, and coverage requirements
- Architect Global Coverage Solutions: Plan deployments leveraging cellular network ubiquity and roaming with eSIM-based carrier switching
- Calculate Total Cost of Ownership: Compare data plan pricing, device costs, battery replacement, and infrastructure expenses across 5-year deployment horizons
- Integrate Location Services: Combine cell tower triangulation with GPS positioning to achieve accuracy appropriate for each tracking application
- Differentiate Industry-Specific Deployments: Contrast vertical-specific cellular IoT implementations across logistics, utilities, and agriculture based on technical constraints
- Design Scalable Architectures: Construct deployment plans that support expansion from hundreds to thousands of cellular-connected devices without infrastructure redesign
“Cellular IoT is everywhere, even if you cannot see it!” Sammy the Sensor said. “I am inside a smart water meter in a basement three floors underground. Every day, I send one tiny message through the concrete to a cell tower telling the water company how much water was used. No one has to come read the meter ever again!”
“I help with fleet tracking,” Lila the LED added. “Inside delivery trucks, there is a cellular IoT tracker that reports the truck’s location every few minutes. Dispatchers can see all their trucks on a map in real time, plan better routes, and tell customers exactly when their package will arrive. The tracker uses LTE-M because trucks move between cell towers.”
Max the Microcontroller explained, “Smart agriculture is one of the coolest applications. Farmers put NB-IoT sensors all across their fields – sometimes covering hundreds of acres. I measure soil moisture, temperature, and nutrients, and send the data over cellular because there is no Wi-Fi in the middle of a cornfield! The farmer checks everything on a phone app.”
“What I love about cellular IoT applications,” Bella the Battery said, “is that they work out of the box. Unlike Wi-Fi or LoRaWAN where you need to set up routers and gateways, cellular IoT uses existing cell towers. Just insert a SIM card, and the device connects. And with NB-IoT’s deep coverage, I can power sensors even in underground parking garages for ten years straight!”
19.2 Prerequisites
Before diving into this chapter, you should be familiar with:
- Cellular IoT Fundamentals: Understanding NB-IoT, LTE-M, and 4G/5G technologies, along with power-saving modes (PSM, eDRX), is essential for evaluating which cellular technology best fits different application scenarios
- Networking Basics: Knowledge of network concepts like bandwidth, latency, and data protocols helps you estimate data usage and choose appropriate cellular data plans
- LPWAN Fundamentals: Comparing cellular IoT with LoRaWAN and Sigfox alternatives enables informed technology selection based on coverage requirements, cost constraints, and deployment scale
Deep Dives:
- Cellular IoT Implementations - Hardware setup and AT command programming
- NB-IoT Power and Channel - PSM, eDRX, and battery life optimization
Comparisons:
- Cellular IoT Comprehensive Review - Technology comparison and selection guide
- LPWAN Comparison and Review - TCO analysis: Cellular vs LoRaWAN
Architecture:
- M2M Communication - Machine-to-machine connectivity patterns
- Edge-Fog Computing - Edge processing for cellular IoT
Use Cases:
- Application Domains - Industry vertical applications
- IoT Business Models - Revenue and value models
Learning:
- Quizzes Hub - Application scenario assessments
19.3 Common Misconception: “Cellular IoT Always Costs More Than LoRaWAN”
19.4 Real-World Applications
19.4.1 Asset Tracking
Overview: Real-time location and condition monitoring of mobile assets (vehicles, containers, equipment, packages).
Technology Choice: LTE-M (mobility + GPS data transmission)
Architecture:
Asset tracking architecture for shipping container showing GPS module, sensors (temperature, shock, door), microcontroller, LTE-M module (SIM7000/BG96), and 3-5 year battery. System connects via cell tower and cellular core to cloud platform with MQTT broker (AWS IoT Core), database, web dashboard, and geofencing alerts. Data flows from sensors through MCU to LTE-M, then to cloud for real-time tracking and analytics.
Typical Use Cases:
| Use Case | Device Count | Update Frequency | Data/Update | Battery Life | Cost/Device/Year |
|---|---|---|---|---|---|
| Shipping Containers | 10,000-100,000 | Every 1 hour | 40 bytes (GPS + status) | 3-5 years | $60 ($5/month) |
| Rental Vehicles | 500-5,000 | Every 30 seconds (when moving) | 50 bytes (GPS + OBD-II) | Vehicle-powered | $96 ($8/month) |
| Medical Equipment | 100-1,000 (hospital fleet) | Every 5 minutes | 30 bytes (location + status) | 2-3 years | $72 ($6/month) |
| Construction Equipment | 50-500 | Every 10 minutes | 60 bytes (GPS + usage hours) | 3-5 years | $84 ($7/month) |
Real-World Example: Maersk Container Tracking
- Scale: 400,000+ refrigerated containers globally
- Technology: LTE-M (AT&T in USA, Vodafone in Europe, multi-carrier globally)
- Data Transmitted:
- GPS location: Every 1 hour (latitude, longitude = 16 bytes)
- Temperature: Every 15 minutes (2 bytes)
- Door status: On change (1 byte)
- Total: ~2 KB/day per container
- Battery: 5-year lithium battery (18 Ah, 3.6V)
- ROI: Reduced loss from theft/misrouting by 30% ($50M/year savings)
Data Payload Example (40 bytes):
GPS Location: Lat: 37.7749 N, Lon: -122.4194 W (16 bytes: 8 bytes lat + 8 bytes lon)
Timestamp: Unix timestamp (4 bytes)
Temperature: -5°C (2 bytes)
Battery: 87% (1 byte)
Door Status: Closed (1 byte: 0=closed, 1=open)
Shock Detected: No (1 byte: 0=no, 1=yes)
Device ID: MSRL1234567 (11 bytes)
CRC Checksum: 0xA5B3 (4 bytes)
----------------
Total: 40 bytesCalculate the battery life for a shipping container tracker updating hourly using PSM:
Energy per transmission cycle (1 hour): \[ E_{\text{GPS}} = 200 \text{ mA} \times 15 \text{ s} = 0.833 \text{ mAh} \] \[ E_{\text{TX}} = 200 \text{ mA} \times 15 \text{ s} = 0.833 \text{ mAh} \] \[ E_{\text{PSM sleep}} = 0.01 \text{ mA} \times (3600 - 30) \text{ s} / 3600 = 0.0099 \text{ mAh} \] \[ E_{\text{cycle}} = 0.833 + 0.833 + 0.010 = 1.676 \text{ mAh per hour} \] \[ E_{\text{daily}} = 24 \times 1.676 = 40.2 \text{ mAh/day} \]
Battery life calculation (without derating): \[ \text{Battery life} = \frac{18{,}000 \text{ mAh}}{40.2 \text{ mAh/day}} = 448 \text{ days} \approx 1.2 \text{ years} \]
Note: This calculation includes GPS acquisition (15 seconds at 200 mA) which dominates the power budget. The power consumption section below uses a simpler model assuming the GPS module is separate or uses lower-power warm starts. With GPS warm starts (1-2 seconds instead of 15) and optimized modem power, PSM-based designs can achieve 5-7 years as shown below.
Power Consumption Calculation:
LTE-M Module (BG96):
- Sleep (PSM): 10 µA
- Idle (eDRX): 1.5 mA (10 seconds every hour)
- Active (GPS + transmit): 200 mA (30 seconds per update)
Daily Power Budget:
- Sleep: 10 µA × 23.92 hours = 0.24 mAh
- Idle: 1.5 mA × 0.08 hours = 0.12 mAh
- Active: 200 mA × 0.0083 hours (30s) = 1.66 mAh
Total: 2.02 mAh/day
Battery Life: 18,000 mAh ÷ 2.02 mAh/day = 8,910 days ≈ 24 years
Practical (accounting for self-discharge): 5-7 yearsScenario 1: E-Bike Rental Fleet (500 bikes, urban deployment)
Requirements:
- GPS updates every 30 seconds when moving
- Battery charge status monitoring
- Geofencing alerts (bikes leave service area)
- Remote locking capability
- Average trip: 30 minutes, 5 trips/day
Think about:
- What’s the daily data usage per bike? (5 trips × 60 updates/trip × 50 bytes = 15 KB/day)
- Can bikes use rechargeable batteries? (Yes, users recharge between trips)
- Do bikes cross cell tower boundaries? (Yes, require handover)
- What latency is acceptable for geofencing? (<30 seconds ideal)
Key Insight:
- ✅ Use LTE-M: Mobility with handover, 15 KB/day fits LTE-M efficiently, low latency for geofencing alerts, rechargeable battery (power not critical)
- Data Plan: $6/month/bike × 500 = $3,000/month ($36,000/year)
- Alternative: Could use LoRaWAN within city coverage, but requires deploying gateways ($5,000 infrastructure) and loses mobility handover
Scenario 2: Livestock Tracking (1,000 cattle, 50 km² ranch)
Requirements:
- GPS updates every 2 hours (low mobility)
- Geofencing alerts (animal leaves property)
- 3-year battery life (hard to replace collars)
- Remote, may have weak cellular signal
Think about:
- Daily data: 12 updates × 40 bytes = 480 bytes/day
- Coverage: Remote ranch, may need extended coverage
- Battery: 3 years = 1,095 days, must be ultra-low power
- Mobility: Cows walk <5 km/h, no inter-tower handover needed
Key Insight:
- ⚠️ NB-IoT vs LTE-M trade-off:
- NB-IoT: Better for low data (480 bytes/day), ultra-low power, extended coverage (CE2 mode for remote areas)
- LTE-M: Better if need real-time geofencing (<1 minute latency)
- Recommendation: NB-IoT if latency <10 minutes acceptable, LTE-M if <1 minute required
- Cost: $3/month × 1,000 = $3,000/month ($36,000/year)
Scenario 3: High-Value Art Shipment (100 shipments/year, global)
Requirements:
- GPS updates every 5 minutes
- Temperature, humidity, shock monitoring
- Real-time alerts for any anomaly
- Global coverage (50+ countries)
- Video on-demand (tamper investigation)
Think about:
- Data: 288 updates/day × 60 bytes = 17 KB/day + video (1 MB/incident)
- Global roaming: Traditional SIM expensive ($20/day roaming)
- Latency: Real-time alerts critical (<1 minute)
- Battery: Shipments are 3-7 days, rechargeable OK
Key Insight:
- ✅ Use LTE-M with eSIM: Mobility + global roaming, low latency, eSIM switches to local carriers (avoid roaming fees)
- Data Plan: Local carrier in each country = $5/day vs roaming = $20/day (75% savings)
- Video: Optional LTE Cat-4 modem for on-demand video (1 Mbps uplink)
- Cost: $5/day × 7 days × 100 shipments = $3,500/year (vs $14,000 with roaming SIMs)
19.4.2 Smart Metering
Overview: Remote reading and management of utility meters (water, gas, electricity) across cities.
Technology Choice: NB-IoT (stationary, ultra-low power, deep coverage)
Architecture:
Deployment Scale:
| Meter Type | Typical City Deployment | Reading Frequency | Battery Life | Cost/Meter/Year |
|---|---|---|---|---|
| Water Meters | 50,000-200,000 | Every 4 hours (6×/day) | 15+ years | $24 ($2/month) |
| Gas Meters | 30,000-100,000 | Every 1 hour (24×/day) | 12+ years | $30 ($2.50/month) |
| Electric Meters | 100,000-500,000 | Every 15 minutes (96×/day) | Mains-powered | $36 ($3/month) |
Real-World Example: Thames Water (London)
- Scale: 4.5 million water meters across London (3,200 km²)
- Technology: NB-IoT (Vodafone network)
- Deployment: 2019-2025 (replacing manual meter reading)
- Data:
- Meter reading: Every 4 hours (8 bytes: meter ID + reading)
- Leak detection: Real-time if abnormal flow (16 bytes)
- Total: ~200 bytes/day per meter
- Battery: 15-year lithium battery (AA size, 3.6V, 2.4 Ah)
- Coverage Challenge: 30% of meters in basements (use NB-IoT CE2 mode for +20 dB gain)
- ROI: Eliminated 1,200 meter reader jobs ($60M/year labor savings), reduced water loss by 15% ($150M/year)
Data Payload Example (8 bytes per reading):
Meter ID: 12345678 (4 bytes: unique identifier)
Reading: 5,432 gallons (3 bytes: 24-bit counter = 16M max)
Timestamp: Hour of day (0-23) (1 byte: hour encoded)
----------------
Total: 8 bytes per reading × 6 readings/day = 48 bytes/day
Monthly: 48 × 30 = 1,440 bytes = 1.4 KB/month (fits 10 KB plan)Power Consumption Calculation:
NB-IoT Module (Quectel BC95):
- Sleep (PSM): 5 µA
- Idle (eDRX): Not used (PSM only)
- Active (transmit 8 bytes): 200 mA for 6 seconds (including attach + transmit + detach)
Daily Power Budget:
- Sleep: 5 µA × 23.99 hours = 0.12 mAh
- Active: 200 mA × (6 seconds × 6 transmissions) = 200 mA × 0.01 hours = 2 mAh
Total: 2.12 mAh/day
Battery Life: 2,400 mAh ÷ 2.12 mAh/day = 1,132 days ≈ 3.1 years
With PSM optimization (T3412=4 hours): 15+ years achievable
(Above calculation assumes frequent attach/detach; PSM eliminates this overhead)Scenario 1: Water Meters in Multi-Story Apartments (10,000 units)
Requirements:
- 60% of meters in basements (3-5 floors below ground)
- 20% in utility rooms (1-2 floors below ground)
- 20% outdoor (ground level)
- Reading frequency: Every 4 hours
- Battery life: 15+ years (replacement cost $50/meter = $500,000)
Think about:
- Will standard NB-IoT reach 60% of meters? (No, basements block signal)
- What’s the coverage enhancement needed? (CE2 mode for +20 dB gain)
- How does CE2 affect battery life? (128 repetitions increase transmit time, but infrequent transmissions = negligible impact)
- What’s the alternative to cellular? (Wi-Fi mesh requires AP in each building, LoRaWAN needs gateways every 3-5 buildings)
Key Insight:
- ✅ Use NB-IoT with CE2: Specifically designed for deep coverage (basements, parking garages, tunnels)
- Coverage: CE2 provides 164 dB Maximum Coupling Loss (MCL) vs 144 dB for normal LTE
- Penetration: Each 3 dB ≈ 2× material penetration, so +20 dB ≈ 10× improvement
- Cost: $2/month × 10,000 = $20,000/month vs Wi-Fi mesh ($100,000 infrastructure + $5,000/month maintenance)
Scenario 2: Gas Meters Across Suburban Area (50,000 homes, 500 km²)
Requirements:
- Meters spread across 500 km² (low density: 100 meters/km²)
- 80% outdoor, 20% in utility closets
- Reading frequency: Hourly (leak detection)
- Safety-critical: Must detect gas leaks within 2 hours
Think about:
- How many LoRaWAN gateways needed for 500 km²? (500 gateways @ 1 km² each = $250,000)
- What’s cellular coverage? (100% with existing towers)
- Can 2-hour latency be met? (Yes, hourly readings with 10s NB-IoT latency = worst case 1 hour 10s)
- What about gateway maintenance? (LoRa: $50/gateway/year = $25,000/year, Cellular: $0)
Key Insight:
- ✅ NB-IoT wins for wide-area, sparse deployments: $0 infrastructure vs $250K for LoRa gateways
- TCO (5 years): NB-IoT = $2.50/month × 50,000 × 60 = $7.5M vs LoRa = $250K + $125K (maintenance) = $375K
- ⚠️ Wait, LoRa cheaper! Yes, for suburban (low device density), LoRa TCO wins if you have technical staff
- Corrected decision: Use LoRaWAN if: (1) have RF engineers in-house, (2) 5-year commitment, (3) OK with gateway maintenance
- Use NB-IoT if: (1) no technical staff, (2) need deployment in <3 months, (3) meters very spread out (>500 km²)
Scenario 3: Electric Smart Meters (City Upgrade) (200,000 meters)
Requirements:
- Readings every 15 minutes (demand response)
- Mains-powered (no battery constraint)
- Remote connect/disconnect capability
- Firmware updates over-the-air (security patches)
Think about:
- Data volume: 96 readings/day × 20 bytes = 1.92 KB/day
- Need for low latency? (15-minute intervals = latency <1 minute OK)
- Firmware OTA: 500 KB firmware ÷ 250 kbps = 16 seconds download (NB-IoT OK)
- Connect/disconnect: Latency <5 seconds required (NB-IoT = 1.6-10s, borderline)
Key Insight:
- ⚠️ NB-IoT or LTE-M?
- NB-IoT: Lower cost ($3/month), adequate for 15-min intervals, 500 KB OTA acceptable (16s)
- LTE-M: Better for OTA (<1s latency), faster connect/disconnect, higher cost ($6/month)
- Recommendation: NB-IoT initially, migrate 10% critical meters to LTE-M (demand response nodes)
- Hybrid approach: 180,000 NB-IoT + 20,000 LTE-M = $3 × 180K + $6 × 20K = $540K + $120K = $660K/month vs all LTE-M = $1.2M/month (45% savings)
19.4.3 Fleet Management
Overview: Comprehensive vehicle tracking, diagnostics, and driver behavior monitoring for commercial fleets.
Technology Choice: LTE-M (mobility, real-time data, OBD-II integration) or 4G LTE Cat-1 (higher bandwidth for video)
Architecture:
Typical Deployments:
| Fleet Type | Vehicle Count | Update Frequency | Data/Vehicle/Day | Cost/Vehicle/Year | Key Features |
|---|---|---|---|---|---|
| Delivery Vans | 100-1,000 | 30 seconds (when moving) | 150 KB | $96 ($8/month) | Route optimization, proof of delivery |
| Long-Haul Trucks | 500-5,000 | 1 minute | 80 KB | $96 | HOS compliance, fuel monitoring |
| Service Vehicles | 50-500 | 1 minute | 60 KB | $72 ($6/month) | Job dispatch, time tracking |
| Public Transit | 100-2,000 | 10 seconds | 400 KB | $144 ($12/month) | Passenger info, schedule adherence |
Real-World Example: FedEx Fleet (200,000 vehicles)
- Scale: 200,000+ delivery vehicles globally
- Technology: LTE-M (AT&T in USA, Vodafone/Telefonica globally) with eSIM
- Data Transmitted (per vehicle per day):
- GPS: Every 30 seconds when moving (8 hours) = 960 updates × 20 bytes = 19 KB
- OBD-II: Every 1 minute (speed, fuel, engine status) = 480 updates × 40 bytes = 19 KB
- Events: Delivery scans, engine start/stop = 50 events × 100 bytes = 5 KB
- Total: ~45 KB/day per vehicle
- Annual data: 45 KB/day × 365 = 16 MB/year (fits $8/month 100 MB plan)
- ROI:
- Fuel savings: 15% reduction through route optimization ($300M/year)
- Maintenance: Predictive maintenance reduced downtime 20% ($50M/year)
- Driver safety: 30% reduction in accidents ($100M/year savings on insurance)
Data Payload Example (60 bytes per update):
GPS Location: 37.7749 N, -122.4194 W (16 bytes)
Timestamp: Unix timestamp (4 bytes)
Speed: 55 mph (1 byte)
Heading: 270° (west) (2 bytes: 0-359)
Odometer: 125,432 miles (4 bytes)
Fuel Level: 67% (1 byte)
Engine RPM: 2,100 RPM (2 bytes)
Coolant Temp: 195°F (1 byte)
Battery Voltage: 13.8V (1 byte)
Engine Status: Running (1 bit)
Door Status: Closed (1 bit)
Driver ID: DRIVER-001 (10 bytes)
Event Type: Delivery completed (1 byte: 0=none, 1=delivery, 2=pickup, etc.)
Sequence Number: 12345 (2 bytes)
CRC: 0xA5B3 (4 bytes)
----------------
Total: 50 bytes (expandable to 60 with additional OBD-II parameters)Scenario 1: Food Delivery Fleet (500 vehicles, urban area)
Requirements:
- GPS updates every 15 seconds (real-time customer tracking)
- Temperature monitoring (refrigerated trucks)
- Proof of delivery (photo capture)
- Driver app integration (route guidance)
Think about:
- Data volume: GPS (15s intervals, 8 hours) = 1,920 updates/day × 20 bytes = 38 KB
- Photos: 5 deliveries/day × 200 KB/photo = 1 MB/day
- Total: 38 KB + 1 MB = 1.038 MB/day
- Latency: Customer expects real-time tracking (<30s update)
Key Insight:
- ⚠️ LTE-M too slow for 1 MB/day photos (1 Mbps theoretical, 500 kbps practical = 16 seconds per 200 KB photo)
- ✅ Use LTE Cat-1 (10 Mbps downlink, 5 Mbps uplink): Handles photos + real-time GPS
- Data Plan: 30 MB/month × 500 vehicles = 15 GB/month pool ($500/month with bulk rates)
- Alternative: Use LTE-M for GPS (real-time), Wi-Fi upload for photos (at depot end-of-day) = hybrid approach
Scenario 2: Construction Equipment Fleet (200 excavators, regional)
Requirements:
- Location tracking every 10 minutes (theft prevention)
- Usage hours logging (maintenance scheduling)
- Geofencing alerts (equipment leaves job site)
- 5-year deployment (equipment lifespan)
Think about:
- Data: 144 updates/day × 30 bytes = 4.3 KB/day
- Mobility: Equipment moves between job sites (20-50 km trips)
- Power: Can tap equipment battery (no external power needed)
- Coverage: May operate in rural areas
Key Insight:
- ✅ Use LTE-M: Mobility support (handover), moderate data, adequate for 10-min intervals
- Coverage: LTE-M works in rural areas (better than Wi-Fi/LoRa which require infrastructure)
- Cost: $6/month × 200 = $1,200/month ($14,400/year)
- ROI: Theft recovery: 5 equipment thefts/year prevented ($200K each) = $1M/year savings vs $14K cost
Scenario 3: Emergency Vehicles (Ambulances) (50 ambulances, citywide)
Requirements:
- GPS updates every 5 seconds (dispatch optimization)
- Real-time video streaming (telemedicine consultation)
- Vital signs telemetry (patient monitoring en route)
- Mission-critical reliability (99.99% uptime)
Think about:
- GPS: 720 updates/hour × 20 bytes = 14 KB/hour (×8 hours = 112 KB/day)
- Video: 1 Mbps × 30 minutes average = 225 MB per call
- Vitals: Continuous stream (1 KB/s × 30 min = 1.8 MB per call)
- Total: 112 KB + 225 MB + 1.8 MB ≈ 227 MB per call (×3 calls/day = 680 MB/day)
Key Insight:
- ⚠️ LTE-M/NB-IoT insufficient (video requires >1 Mbps sustained)
- ✅ Use 4G LTE Cat-4 or 5G: 10+ Mbps uplink for real-time video
- Dual-mode approach: LTE-M for GPS/vitals (backup), 4G/5G for video (primary)
- Cost: $50/month per ambulance (unlimited data for public safety) × 50 = $2,500/month
- Benefit: Telemedicine reduces hospital diversions by 15%, saves 5 minutes per call = 50 lives/year
19.4.4 Smart Agriculture
Overview: Precision agriculture using sensors for soil, weather, and crop monitoring across large farms.
Technology Choice: NB-IoT (wide coverage, ultra-low power, stationary sensors)
Architecture:
Deployment Examples:
| Application | Sensor Count | Update Frequency | Data/Sensor/Day | Battery Life | Cost/Sensor/Year |
|---|---|---|---|---|---|
| Soil Monitoring | 500-5,000 | Every 2 hours (12×/day) | 144 bytes | 10+ years (solar) | $30 ($2.50/month) |
| Livestock Tracking | 100-1,000 | Every 1 hour (24×/day) | 960 bytes | 3-5 years | $36 ($3/month) |
| Irrigation Control | 50-500 (valves) | On-demand + status every 4 hours | 200 bytes | Mains/solar | $30 |
| Weather Stations | 10-100 | Every 15 minutes | 2.4 KB | Solar | $42 ($3.50/month) |
Real-World Example: John Deere Operations Center (500,000+ connected devices)
- Scale: 500,000+ sensors across farms globally
- Technology: NB-IoT (AT&T, Verizon in USA) + LoRaWAN (supplemental)
- Data Transmitted:
- Soil sensors: Every 2 hours (temperature, moisture, salinity = 12 bytes)
- Weather stations: Every 15 minutes (temperature, humidity, rainfall, wind = 20 bytes)
- Equipment telemetry: GPS + usage (tractors, combines) via LTE-M
- Total: 144 bytes/day per soil sensor, 1.92 KB/day per weather station
- Battery: Solar-powered with 5,000 mAh backup (operates 30 days without sun)
- ROI:
- Water savings: 20-30% reduction in irrigation ($500/acre/year × 1,000 acres = $500K/year)
- Fertilizer optimization: 15% reduction ($200/acre/year × 1,000 acres = $200K/year)
- Yield increase: 10% through precision agriculture ($2,000/acre/year × 1,000 acres × 10% = $2M/year)
Data Payload Example (Soil Sensor, 12 bytes):
Sensor ID: Node-042 (2 bytes: up to 65,535 sensors)
Soil Moisture: 45% VWC (1 byte: 0-100%)
Soil Temperature: 68°F (1 byte: -40 to +215°F range)
Soil pH: 6.5 (1 byte: 0-14 range, 0.1 precision)
Salinity: 450 µS/cm (2 bytes: 0-10,000 µS/cm)
Battery: 87% (1 byte: 0-100%)
Solar Voltage: 4.2V (1 byte: 0-5V range)
Timestamp: Hour of day (1 byte: 0-23)
Sequence: Daily sequence counter (1 byte: 0-255)
CRC: 0xA3 (1 byte)
----------------
Total: 12 bytes × 12 transmissions/day = 144 bytes/day = 4.3 KB/monthScenario 1: Vineyard Monitoring (100-acre vineyard, 200 sensors)
Requirements:
- Soil moisture every 2 hours (irrigation scheduling)
- Microclimate monitoring (temperature, humidity) every 15 minutes
- Remote location (10 km from nearest cell tower)
- 10-year deployment (avoid battery replacements)
- Frost alerts critical (within 15 minutes of detection)
Think about:
- Coverage: 10 km from tower, may have weak signal (use NB-IoT CE2 for extended range)
- Data: 200 sensors × 144 bytes/day = 28 KB/day total (1 MB/month for all sensors)
- Power: Solar panels for continuous operation (battery backup for cloudy periods)
- Latency: Frost alerts need <15 minutes (NB-IoT 1.6-10s latency adequate)
Key Insight:
- ✅ Use NB-IoT with CE2 mode: Extended coverage (up to 15 km from tower with +20 dB gain), ultra-low power with solar, adequate latency for frost alerts
- Cost: $2.50/month × 200 = $500/month ($6,000/year)
- Alternative: LoRaWAN gateway on-site ($500 one-time) + $0 monthly, but need to maintain gateway (power, connectivity)
- Decision: LoRaWAN if: (1) already have IT staff on-site, (2) no cellular coverage. NB-IoT if: (1) remote management preferred, (2) minimal maintenance.
Scenario 2: Cattle Ranch (5,000 acres, 1,000 cattle)
Requirements:
- GPS collar on each animal (track location)
- Geofencing alerts (animal leaves property)
- Health monitoring (activity level, temperature)
- Update frequency: Every 1 hour
- 3-year collar battery life
Think about:
- Mobility: Cattle walk 2-5 km/day (low mobility, no inter-tower handover typically)
- Data: 24 updates/day × 40 bytes = 960 bytes/day per collar
- Coverage: 5,000 acres = 20 km² (may span multiple cell towers)
- Battery: 3 years × 365 days = 1,095 days at 960 bytes/day
Key Insight:
- ⚠️ NB-IoT vs LTE-M trade-off:
- NB-IoT: Lower power (5 µA sleep), adequate for 960 bytes/day, sufficient for 1-hour updates
- LTE-M: Better for geofencing (lower latency), supports mobility if cattle roam across large area
- Recommendation: NB-IoT for most cattle, LTE-M for breeding bulls or high-value animals (need real-time tracking)
- Hybrid approach: 900 NB-IoT collars ($3/month) + 100 LTE-M collars ($6/month) = $2,700 + $600 = $3,300/month
- Cost: $3,300/month vs all LTE-M ($6,000/month) = 45% savings
Scenario 3: Greenhouse Automation (10 greenhouses, 500 sensors + 100 actuators)
Requirements:
- Temperature, humidity, CO2 sensors (every 5 minutes)
- Automated vents, fans, irrigation (real-time control)
- Local Wi-Fi available (on-premises network)
- Mains power available
- Need 99.9% uptime (crop loss if climate control fails)
Think about:
- Latency: Real-time control requires <1 second response (NB-IoT 1.6-10s too slow)
- Data volume: 500 sensors × 288 readings/day × 20 bytes = 2.88 MB/day
- Infrastructure: On-site, Wi-Fi already exists
- Reliability: Wi-Fi can provide local control (no internet dependency)
Key Insight:
- ❌ Don’t use cellular IoT: Wi-Fi better for on-premises, high-frequency, low-latency applications
- ✅ Use Wi-Fi mesh: Local control (no cloud dependency), <100 ms latency, unlimited data (your network)
- Cellular as backup: Add NB-IoT module to critical sensors (alert if Wi-Fi fails, basic monitoring only)
- Cost: Wi-Fi ($5,000 infrastructure one-time) + $0/month vs Cellular ($0 infrastructure + $6,000/month)
- Decision: Wi-Fi primary, cellular backup (10% of sensors for redundancy)
19.5 Visual Reference Gallery
This visualization helps guide technology selection between NB-IoT and LTE-M based on application requirements like mobility, data volume, and battery life targets.
Understanding cellular handoff is critical for mobile asset tracking applications where LTE-M’s faster handoff (50ms vs NB-IoT’s 1-10s) directly impacts tracking accuracy.
The paging mechanism enables power-efficient device operation where devices can sleep for extended periods and wake only when the network has data to deliver.
Use this step-by-step framework to select the right cellular IoT technology:
Step 1: Evaluate Mobility Requirements
| Question | NB-IoT | LTE-M |
|---|---|---|
| Device never moves (smart meter, parking sensor)? | ✓ NB-IoT | ✓ Works but overkill |
| Device moves slowly (<5 km/h)? | ✓ NB-IoT | ✓ Works |
| Device moves at vehicle speeds (30-80 km/h)? | ❌ No handover | ✓ LTE-M |
| Device crosses cell boundaries? | ❌ Connection drops | ✓ LTE-M (seamless) |
Verdict: If device moves faster than walking speed, LTE-M required.
Step 2: Calculate Daily Data Volume
| Data Type | Example | Daily Volume | Technology |
|---|---|---|---|
| Tiny periodic (10-100 bytes/hour) | Temperature sensor | <5 KB/day | NB-IoT |
| Small periodic (100-500 bytes/hour) | GPS tracker (hourly) | <20 KB/day | NB-IoT or LTE-M |
| Moderate periodic (500+ bytes/15 min) | Fleet telemetry | 50-200 KB/day | LTE-M |
| Burst + periodic (GPS every 30s when moving) | Real-time tracking | 100+ KB/day | LTE-M |
| Firmware OTA updates | 500 KB/quarter | Amortized 5 KB/day | LTE-M (NB-IoT too slow) |
Rule: If daily average >50 KB, LTE-M provides better throughput (1 Mbps vs 250 kbps).
Step 3: Evaluate Latency Requirements
| Application | Max Acceptable Latency | NB-IoT Latency | LTE-M Latency | Choice |
|---|---|---|---|---|
| Daily meter reading | Hours | 1.6-10 s ✓ | 10-15 ms ✓ | NB-IoT (cheaper) |
| Hourly sensor report | Minutes | 1.6-10 s ✓ | 10-15 ms ✓ | NB-IoT (cheaper) |
| Geofence alert | <30 seconds | 10 s ⚠️ borderline | 15 ms ✓ | LTE-M (reliable) |
| Emergency button | <2 seconds | 10 s ❌ | 15 ms ✓ | LTE-M required |
| Remote control (valve) | <1 second | 10 s ❌ | 15 ms ✓ | LTE-M required |
Rule: If latency must be <5 seconds, LTE-M required.
Step 4: Check Coverage at Deployment Sites
| Deployment Environment | NB-IoT (164 dB MCL) | LTE-M (156 dB MCL) | Notes |
|---|---|---|---|
| Outdoor, line-of-sight | ✓ Excellent | ✓ Excellent | Both work |
| Indoor ground floor | ✓ Excellent | ✓ Good | Both work |
| Basement (1-2 floors down) | ✓ Good (CE2 mode) | ⚠️ Marginal | NB-IoT better |
| Basement (3+ floors down) | ⚠️ May need external antenna | ❌ Usually fails | NB-IoT + antenna |
| Inside metal enclosure | ⚠️ CE2 + antenna | ❌ Usually fails | NB-IoT + relocated antenna |
| Underground parking | ✓ CE2 works | ⚠️ Spotty | NB-IoT better |
| Rural (>15 km from tower) | ✓ CE2 extends range | ⚠️ Edge of coverage | NB-IoT better |
Rule: For deep indoor or underground, NB-IoT with CE2 mode is the only option.
Step 5: Calculate 5-Year Total Cost of Ownership
| Cost Factor | NB-IoT | LTE-M | Typical Difference |
|---|---|---|---|
| Module cost | $15-20 | $18-25 | +$3-5 for LTE-M |
| Data plan | $2-3/month | $3-6/month | +$1-3/month for LTE-M |
| Battery life | 10-15 years | 5-10 years | LTE-M needs larger battery or more frequent replacement |
Example: 1,000 Smart Meters (5 Years)
| Item | NB-IoT | LTE-M |
|---|---|---|
| Modules (1,000 × cost) | $18,000 | $23,000 |
| Connectivity (1,000 × $/mo × 60) | $150,000 | $270,000 |
| Battery replacement | $0 (15-year life) | $30,000 (replace at year 7) |
| Total 5-Year | $168,000 | $323,000 |
| Per device/month | $2.80 | $5.38 |
Verdict: For stationary, low-latency applications, NB-IoT costs 48% less over 5 years.
Final Decision Matrix:
IF mobility >5 km/h OR latency <5s OR needs VoLTE:
→ LTE-M (mandatory for these requirements)
ELSE IF deep indoor (basement/underground) OR ultra-long battery life (10+ years):
→ NB-IoT (better coverage, lower power)
ELSE IF data >50 KB/day AND outdoor deployment:
→ LTE-M (higher throughput justifies cost)
ELSE:
→ NB-IoT (lowest TCO for stationary sensors)Hybrid Strategy for Large Deployments:
For fleets with mixed requirements (e.g., 10,000 meters), segment by use case: - 8,000 basement meters: NB-IoT ($2.50/month) = $20,000/month - 2,000 outdoor meters with remote disconnect: LTE-M ($4/month) = $8,000/month - Total: $28,000/month vs all-LTE-M ($40,000/month) = 30% savings
Always design for the most restrictive deployment location and most demanding application requirement within your fleet.
19.6 Summary
- Asset Tracking (LTE-M): Mobile assets (vehicles, containers, equipment) require handover, moderate data rates (10-500 KB/day), real-time GPS updates, and global roaming with eSIM for cost optimization
- Smart Metering (NB-IoT): Stationary meters leverage deep coverage (CE2 mode for basements), ultra-low power (15+ year battery life), minimal data (144-1,400 bytes/day), and existing cellular infrastructure to eliminate meter reader labor costs
- Fleet Management (LTE-M/LTE Cat-1): Commercial vehicle fleets benefit from real-time tracking (30-second updates), OBD-II integration, driver behavior analytics, and route optimization, with LTE Cat-1 supporting optional video/photo capture
- Smart Agriculture (NB-IoT): Wide-area farm monitoring (soil, weather, livestock) utilizes solar-powered sensors, 2-hour update intervals, extended coverage for remote fields, and AI analytics for irrigation and fertilizer optimization
- Technology Selection Framework: Choose NB-IoT for stationary, ultra-low-data applications; LTE-M for mobile, moderate-data scenarios; 4G/5G for high-bandwidth or ultra-low-latency requirements; evaluate 5-year TCO including infrastructure, data plans, and maintenance
- Cost Optimization: eSIM reduces global deployment costs by 70-90% vs roaming SIMs, hybrid architectures (Wi-Fi primary + cellular backup) minimize operational expenses, and solar power eliminates battery replacement costs for outdoor deployments
- ROI Drivers: Cellular IoT delivers value through labor cost elimination (meter reading, fleet management), resource optimization (water, fuel, fertilizer savings of 15-30%), theft prevention, predictive maintenance, and data-driven decision making
19.7 Knowledge Check
19.8 Concept Relationships
19.9 See Also
19.10 Try It Yourself
Common Pitfalls
Deploying NB-IoT or LTE-M for 200 sensors within a single factory building when BLE Mesh or Zigbee would suffice adds unnecessary modem cost ($5–15 per device), per-device data plan cost ($0.50–5/month), and dependency on carrier coverage. Cellular makes sense when: devices are geographically dispersed (>500 m apart), infrastructure-free (no gateway), or require nationwide mobility. For dense indoor deployments, local wireless technologies with a single cellular gateway are more cost-effective.
Enterprise IoT data plans differ significantly from consumer plans. M2M/IoT SIMs require: MVNO relationship or operator contract, static IP or APN configuration, data pooling across devices, overage policies, and international roaming agreements. Attempting to use standard consumer SIMs for 1,000-device deployments violates carrier terms of service and results in account suspension. Always use M2M-specific SIM providers (Hologram, Twilio, 1NCE, operator IoT plans) for fleet deployments.
NB-IoT’s 200 kHz channel provides a raw data rate of ~250 kbps, but protocol overhead (IP headers, TCP, TLS 1.3, MQTT) consumes 40–200 bytes per message on a 10–50 byte payload. Using MQTT over TLS on NB-IoT requires TLS handshake (~3–5 KB per session) before each transmission, potentially consuming more data than the sensor payload itself. Use CoAP over DTLS (UDP-based, stateless) or LwM2M for NB-IoT to minimize per-message overhead.
A 10,000-device cellular IoT deployment will have SIM expiry, carrier changes, and remote provisioning needs over a 10-year lifetime. Using physical SIMs without a remote SIM provisioning platform (RSP/eSIM GSMA M2M) requires physical access to swap SIMs — costing $50–200 per device per swap. Plan for eSIM or eUICC from the start: use GSMA M2M RSP (SGP.01/02) for machine devices or GSMA Consumer RSP (SGP.22) for configurable profiles.
19.11 What’s Next
Continue exploring cellular IoT implementation and optimization:
| Direction | Chapter | Description |
|---|---|---|
| Next | Cellular IoT Implementations | Hands-on module setup with SIM7000, BG96, and AT commands |
| Next | Cellular IoT Comprehensive Review | Consolidate knowledge across all cellular IoT technologies |
| Deeper | NB-IoT Fundamentals | Coverage modes (CE0/CE1/CE2), PSM/eDRX configuration details |
| Deeper | NB-IoT Power and Channel | Battery life optimization and channel access mechanisms |
| Compare | LPWAN Comparison | Quantitative TCO analysis of Cellular vs LoRaWAN vs Sigfox |
| Related | MQTT Fundamentals | Publish-subscribe messaging protocol for cellular IoT data transport |
