21 IoT Deployment Failures: Connectivity

21.1 Overview

This first route establishes the post-mortem method and applies it to early connectivity failures.

This is part 1 of 2. Continue with IoT Deployment Failures: Power and Recovery for the second focused route.

21.2 Start With the Assumption That Broke

Turn Each Failure Into the Next Test

Picture a cold-room monitor that worked for weeks in the lab but missed warnings after it was placed behind metal shelves. The fault is costly. The useful lesson is not “wireless is unreliable.” It is that a hidden belief about the real site was never tested.

The review team should rebuild the event in order. Write what the team expected, what changed, the first bad sign, and the final harm. Keep measured facts separate from guesses. Find the earliest check that could have exposed the weak belief before release.

Turn that check into a repeatable control. Give it an owner, a pass limit, and a rule for when it must run again. Test both the repair and the failure response, because a warning that cannot reach anyone is still unsafe.

Ask what would have made the weak belief visible. It might be a field walk, a power measure, a failed-login drill, or a load test. Choose the earliest affordable check. A later alarm is useful, but a release check can prevent the harm.

Share the case without blaming one person. Show the conditions that made the mistake easy and the control that now makes it harder. Check that a new team member can run the control and understand the pass result.

Keep the story short enough to use. One page can hold the promise, event line, first bad sign, cause path, repair, new control, owner, and retest date. Link deeper logs rather than hiding the lesson inside them.

Review old cases before a similar release. Mark which controls still apply and which system changes make them weak. A case earns its place when it changes a design choice or test, not when it only proves that failure once happened.

One story rarely proves a single cause. Practitioner shows how to collect incident evidence. Under the Hood follows linked causes, timing, and system-wide failure paths.

Read each case as a trail from assumption to symptom to control. The useful question is not only what failed, but which belief, measurement, handoff, or recovery plan made the failure possible and how that control should be checked next time.

21.3 Learning Objectives

After completing this chapter, you will be able to:

• Analyze root causes of IoT project failures across connectivity, power, security, scaling, and integration domains
• Apply prevention checklists to avoid common deployment mistakes before they occur
• Explain why testing in actual deployment conditions is critical for connectivity and power budget validation
• Evaluate security design decisions using lessons learned from known breach patterns

21.4 Read Failures as Evidence

A failure case is useful when it shows the chain from assumption to symptom to control. In IoT, that chain often crosses hardware, radio links, firmware, cloud services, mobile apps, support operations, and user behavior. A battery story is not just about a cell. It can include firmware wakeups, retransmission policy, GPS fix timing, sleep current, service outages, and the support plan for replacing devices. A radio story is not just about distance. It can include antenna placement, gateway backhaul, vegetation, duty-cycle policy, downlink scarcity, provisioning errors, and a dashboard that hides missing data behind stale totals.

Read each case as an evidence packet rather than a warning label. Start with the assumption that failed, then identify the first observable signal, the symptom noticed by users or operators, the causal chain between them, the control that would have limited the damage, the owner of that control, and the recheck trigger that would reopen the design decision. This structure keeps the lesson transferable. A LoRaWAN farm case may teach seasonal coverage testing; a Wi-Fi asset-tag case may teach roam testing and AP-channel review; an MQTT broker overload may teach load testing, session-state limits, and queue-depth alerts. The technology names matter, but the repeated discipline is to connect evidence to a design control.

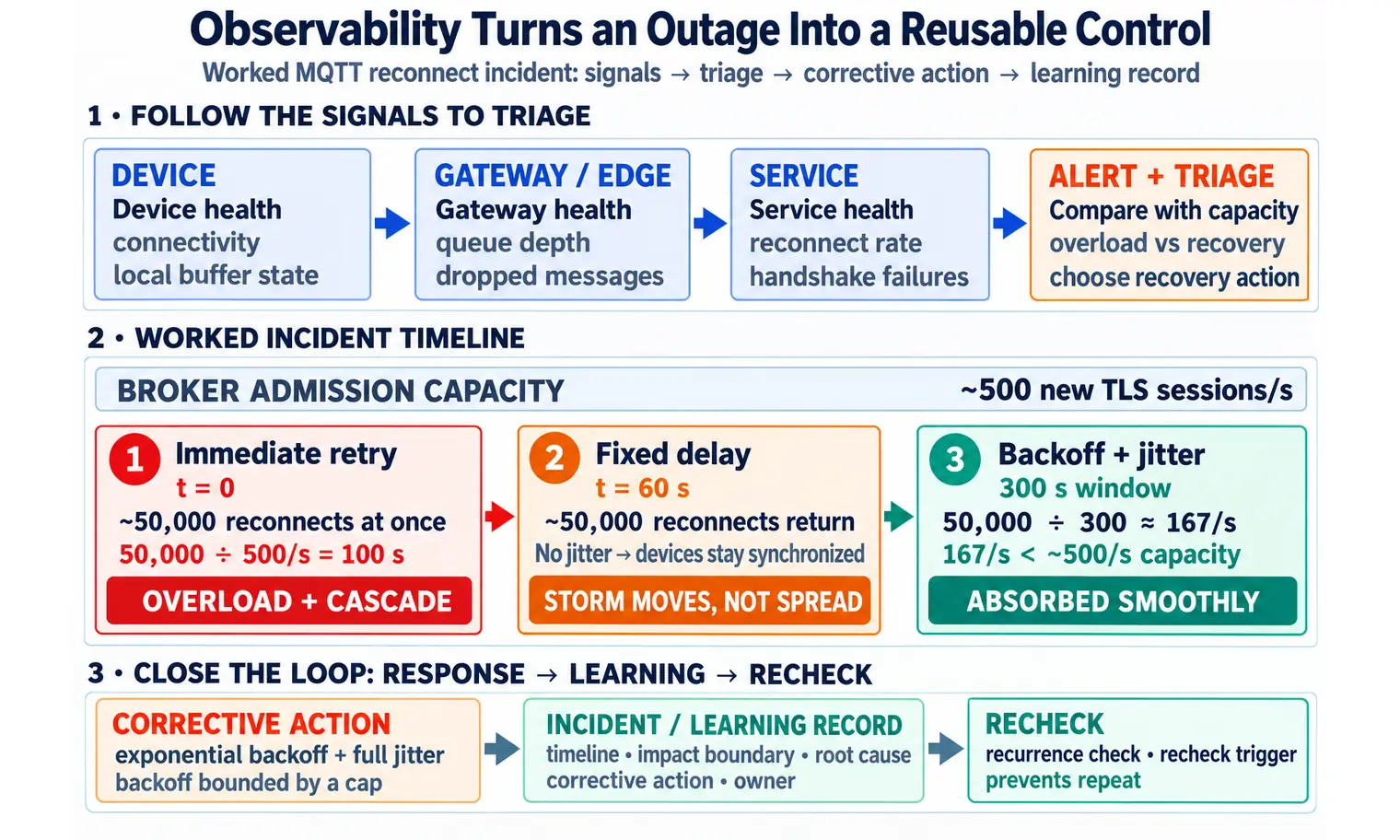

Inspect Figure 21.1 to see the loop a case study should close: signals move from the device, gateway, and service into alerting, triage, incident review, corrective action, and a learning record. If a story stops at “the devices failed,” it has not yet become engineering knowledge.

Read Figure 21.1 from device, gateway, and service signals into alerting and triage. Incident review then connects those observations to a causal chain; corrective action changes a control; and the learning record preserves the decision and recheck trigger for the next design. A missing link matters: without signals there is no early warning, and without the learning record the same assumption can return. This loop is the structure used to interpret every case that follows.

Good case reviews avoid simple blame. Mirai is not only a story about malware; it is also a story about weak/default credentials, exposed management services, absent fleet update paths, and the blast radius created when many devices share the same poor assumptions. A battery recall is not only a procurement mistake; it may reveal missing sleep-current measurement, no pilot under production firmware, no threshold alert, and no operational plan for field replacement. The reusable lesson is the relationship between the failed assumption, the missing signal, and the prevention control.

Read the evidence packet in decision order. Begin with the failure pattern: the repeated shape, such as RF coverage loss, power-budget drift, default credentials, broker overload, or API churn. Then identify the observable signal in measurements such as RSSI/SNR, packet loss, retry count, sleep current, battery voltage, authentication failure, queue depth, or support-ticket trend. Finish with the prevention control—a field survey, load test, staged rollout, unique credentials, OTA path, rollback plan, capacity model, or vendor-contract check. That sequence turns the story into a control the next project can actually run.

21.5 Convert Stories Into Controls

Do not stop at “test more.” Name the concrete boundary. For LoRaWAN, inspect link budget, spreading factor, ADR behavior, duty-cycle limits, gateway placement, antenna height, vegetation, terrain, and backhaul. For Wi-Fi tags, inspect AP density, channel plan, 2.4 GHz interference, roaming behavior, DHCP lease churn, and MQTT reconnect timing. For battery-powered devices, measure current with the production firmware, not just a datasheet estimate. For cloud-connected products, inspect the broker, database, dashboard, mobile application, and support workflow together, because the customer experiences them as one system.

Run the review with a timeline. Mark when the assumption entered the project, when the first weak signal appeared, when the symptom became visible, when the team understood the cause, and when the control was added. Collect signals from the device, gateway, cloud service, application logs, monitoring system, and support channel. A useful packet might include RSSI/SNR by location, MQTT reconnect counts, Mosquitto or EMQX session growth, retained-message behavior, InfluxDB write failures, Grafana panel freshness, TLS certificate age, firmware version distribution, mobile crash logs, and ticket wording from affected users. The goal is to separate cause, contributing factor, detection gap, and recovery gap.

A practical failure review should produce a small control that can be run before the next deployment. Examples include a LoRaWAN coverage walk with packet delivery and SNR logs, a Mosquitto or EMQX load test with retained-message and session-state checks, an InfluxDB write-retention check, a Grafana freshness panel, a credential uniqueness test, and a staged rollout gate that stops a firmware update when error rates rise. For vendor-dependent integrations, add an API contract review, certificate expiry monitor, webhook retry test, and fallback behavior for rate limits or schema changes. For security-sensitive fleets, add unique credentials, disabled debug services, secure update verification, and a documented revocation path.

The output should be reviewable by someone who was not in the incident meeting. Write the assumption, evidence, root cause, rejected alternatives, corrective action, owner, due date, and recheck trigger in one short record. Then convert it into a gate, checklist item, simulation input, lab step, monitoring alert, or architecture decision note. If the review cannot name where the control will live, it will probably be forgotten before the next project pressure arrives.

Apply the review in three connected moves. First, state the assumption, such as “the gateway can hear all field nodes during crop growth.” Next, name the measured signal: packet delivery ratio, RSSI, SNR, retry count, and join failure rate by field zone. Finally, choose the control, such as a seasonal RF survey, second gateway, ADR review, antenna repositioning, and an alert when delivery drops below the project threshold. Each move depends on the previous one, so the final control addresses measured evidence rather than a vague recollection of failure.

21.6 Small State Errors Cause Incidents

Large IoT failures rarely come from one isolated bug. They usually appear when several state models disagree: device state, network state, cloud state, user state, and operations state. A device may think it has published a reading, while the broker has dropped the session, the database has rejected a field name, the dashboard is showing stale time windows, and support has no device-version context. The incident is the moment those mismatches become visible to a user, but the conditions often existed earlier.

Trace the state transitions explicitly. A battery sensor wakes, samples, timestamps, encrypts, queues, transmits, waits for acknowledgement, sleeps, and later receives an OTA update. The gateway buffers, forwards, reconnects, and may translate protocols. The MQTT broker tracks client identifiers, session persistence, subscriptions, retained messages, ACLs, Last Will and Testament, and queue limits. The database accepts or rejects schema changes, retention policies, and timestamps. The dashboard aggregates by time window and may silently hide missing devices. A mobile app retries requests and caches stale values. A support tool maps a customer complaint to a device model, firmware version, location, and ownership record. Any unobserved transition can become the place where the failure hides.

Known incidents such as Mirai show why a small device-level choice can become an Internet-scale failure when weak/default credentials, open management ports, exposed services, and absent update paths line up. The same systems thinking applies to less dramatic projects: one hardcoded MQTT topic, one missing TLS certificate renewal path, one unbounded retry loop, or one unsupported vendor API can turn into a fleet problem. Retries can create load, load can delay acknowledgements, delayed acknowledgements can trigger more retries, and a dashboard without freshness checks can make the fleet appear healthier than it is.

The deeper lesson is to review interfaces and state transitions, not just components. Check authentication, authorization, firmware version, certificate expiry, payload schema, timestamp source, retry/backoff policy, data retention, queue depth, dashboard freshness, and rollback readiness as linked parts of one operating system. Also check blast radius. A design with idempotent commands, bounded queues, canary rollout, replay protection, rollback, per-tenant limits, and clear ownership can still fail, but it is less likely to turn a local defect into a fleet-wide incident. The best case study therefore explains not only what broke, but why the break propagated as far as it did.

21.7 IoT Failure Case Studies

21.8 Turn Failures Into Controls

Turn a failure into a reusable control in a deliberate sequence: Identify the failed assumption. Translate a dramatic symptom into a specific assumption such as “SF7 reaches every sensor,” “sleep current stays near the datasheet value,” “every device has unique credentials,” or “the vendor API will remain compatible.”. Tie it to a signal. Choose a measurable signal such as packet delivery ratio, RSSI/SNR, retry count, sleep current, battery voltage, certificate expiry, broker queue depth, API error rate, or dashboard freshness. Add a pre-deployment control. Convert the lesson into a field test, load test, credential check, staged rollout gate, rollback plan, or vendor-contract checkpoint that a future team can actually run.

21.9 Failure Analysis Examples

Beginner Example: A classroom LoRaWAN demo works across one hallway but fails behind two concrete walls. The failed assumption is clear line-of-sight. The signal is packet delivery ratio plus RSSI/SNR by location. The control is a site walk before promising coverage.

Intermediate Example: A battery sensor meets the spreadsheet budget but dies early in a pilot. The failed assumption is that production firmware sleeps like the datasheet example. The signal is measured sleep current, wake frequency, transmit current, and retry count. The control is a current trace with the release firmware.

Advanced Example: A building platform works with one vendor but slips when five vendor APIs change independently. The failed assumption is stable integration semantics. The signal is version drift, authentication failures, rate-limit responses, and contract-test failures. The control is a contract-first integration harness plus staged rollout by building.

21.10 Case Study Categories

21.11 Connectivity Failures

Week 1-2: All sensors reporting ✓
Week 3: 40% of sensors offline
Week 4: 70% of sensors offline
Week 6: System abandoned

# WRONG: Hardcoded spreading factor
lora.set_spreading_factor(7)
lora.send(data)

# RIGHT: Adaptive spreading factor with retry
def send_with_retry(data, max_attempts=3):
    for sf in [7, 9, 11, 12]:
        for attempt in range(max_attempts):
            lora.set_spreading_factor(sf)
            if lora.send_and_confirm(data):
                return True
    return False

21.12 Continue to Part 2

Continue with IoT Deployment Failures: Power and Recovery.
