Explain the unique constraints and challenges of CI/CD for embedded IoT systems
Identify the key differences between web application CI/CD and IoT firmware CI/CD
Design firmware update contracts based on risk class and recovery requirements
Implement automated build pipelines for cross-platform firmware development
Apply static analysis and compliance checking to embedded code
Structure automated testing stages from unit tests to hardware-in-the-loop validation
In 60 Seconds
CI/CD (Continuous Integration/Continuous Deployment) for IoT automates the pipeline from code commit to device firmware deployment, enabling reliable, reproducible builds and reducing manual error in the delivery process. IoT CI/CD extends traditional software CI/CD with firmware compilation, hardware-in-the-loop testing, and OTA (Over-the-Air) delivery stages. Automated pipelines detect regressions early, enforce code quality standards, and enable confident daily deployments to production fleets.
19.2 Introduction
Tesla pushes over-the-air (OTA) updates to millions of vehicles worldwide. One bad update could brick cars on highways, disable safety systems, or worse. In 2020, Tesla avoided a costly recall of 135,000 vehicles by deploying an OTA fix instead. This is why IoT CI/CD isn’t just DevOps—it’s safety-critical DevOps.
Traditional web application CI/CD operates in a forgiving environment: servers can be easily rolled back, users refresh browsers, and infrastructure is centralized. IoT systems operate under drastically different constraints: devices are geographically distributed, hardware is heterogeneous, network connectivity is unreliable, and failed updates can brick expensive equipment or compromise safety.
This chapter explores how to adapt continuous integration and continuous delivery practices to the unique challenges of IoT systems, from automated firmware testing to secure OTA update architectures.
For Beginners: What is CI/CD?
CI/CD is like a quality control assembly line for software. Every time a developer makes a change to code, it automatically gets tested (CI = Continuous Integration). If the tests pass, it can be automatically delivered to devices (CD = Continuous Deployment).
Think of it like car manufacturing: every component is tested before assembly, the assembled car is tested, and only passing vehicles reach customers. CI/CD catches bugs before they reach your customers, reducing the cost and embarrassment of field failures.
In IoT, this is especially important because you can’t easily recall thousands of deployed sensors or medical devices. That’s why IoT deployments use staged rollouts (testing on a few devices first, then gradually expanding) with automatic rollback if problems are detected.
For Kids: Meet the Sensor Squad!
Deploying and maintaining IoT devices is like being a responsible pet owner - you don’t just get a puppy and forget about it. You feed it, take it to the vet, and help it learn new tricks throughout its whole life!
19.2.1 The Sensor Squad Adventure: The Great Update Mission
The Sensor Squad had been working happily in weather stations all across the country for six months. Then one day, their creators at Mission Control had exciting news: “We’ve taught you a new skill - you can now predict rain three hours early instead of just one hour!”
“Hooray!” cheered Sammy the Temperature Sensor. “But wait… how do we learn this new skill? We’re spread out in a thousand different weather stations!”
Mission Control’s Update Robot explained the careful process. “We don’t teach everyone at once - that would be too risky! First, we send the new instructions to just 10 weather stations to make sure everything works perfectly.” The Update Robot showed a map with 10 stations blinking green. “See? These 10 are our ‘test pilots.’ If anything goes wrong, we can quickly help just 10 stations instead of a thousand!”
Lux the Light Sensor in Test Station #3 received the update first. “Downloading new skills now…” she announced. But something was wrong! After the update, Lux got confused and started measuring light at night when she should have been sleeping. “Oops! Help! I’m doing things backwards!”
Mission Control noticed immediately because they were watching the test stations closely. “Good thing we only updated 10 stations!” They quickly sent Lux her OLD instructions back - this is called a “rollback.” Within minutes, Lux was back to normal. “Phew! Crisis avoided!”
The engineers fixed the bug in the new instructions and tried again with the 10 test stations. This time, everything worked perfectly! Motio the Motion Detector in Test Station #7 reported: “I can predict rain three hours early now! And I’m not confused at all!”
Only then did Mission Control update the other 990 stations - first 100, then 500, then the rest. Pressi the Pressure Sensor in Station #847 smiled as the update arrived. “I love that the humans are so careful with us. They make sure updates are safe before sending them to everyone!”
19.2.2 Key Words for Kids
Word
What It Means
Update
New instructions sent to a device to teach it new skills or fix problems - like downloading a new version of a game
Rollback
Going back to the old instructions if something goes wrong - like using the “undo” button
Deployment
Sending updates or new software to devices in the real world - like mailing packages to different houses
Maintenance
Taking care of devices over time by fixing problems and adding improvements - like taking your bike in for tune-ups
Canary Release
Testing an update on just a few devices first before sending it to everyone - named after canaries that miners used to check if air was safe!
19.2.3 Try This at Home!
The Careful Update Game
Imagine you’re in charge of updating 100 robot helpers that clean different rooms in a school. Practice careful updating with this activity:
Draw 100 small circles on paper (or use 100 small objects like coins or LEGO pieces) - these are your robots
Color 5 circles green - these are your “test robots” that will get the update first
Pretend to send an update: Roll a die. If you get a 1, the update has a bug! Color those 5 circles red (broken robots). Otherwise, color them blue (successful update).
If the test failed (red robots): Fix the bug (wait one turn), then try again with 5 NEW test robots
If the test succeeded (blue robots): Now update 20 more robots the same way
Keep going: 50 robots, then all 100
Notice how if something goes wrong early, only a few robots are affected! This is exactly how real companies update millions of IoT devices safely. Would you rather fix 5 broken robots or 100 broken robots?
19.3 CI/CD Challenges for IoT
–> ~15 min | Intermediate | P13.C09.U01
19.3.1 Unique Constraints
IoT systems differ fundamentally from traditional web applications in ways that complicate CI/CD:
Hardware Diversity: A single IoT product line might support: - Multiple microcontroller families (ARM Cortex-M, RISC-V, ESP32) - Different sensor configurations - Varied communication modules (Wi-Fi, LTE, LoRaWAN) - Regional variants (different radio frequencies, certifications)
Resource Limitations:
Limited storage for dual boot partitions
Constrained RAM preventing in-place updates
Power constraints during lengthy update processes
Putting Numbers to It: CI/CD Pipeline Cost Calculator
CI/CD Pipeline Execution Time for Multi-Platform IoT: Build pipeline for 6 hardware variants:
Sequential builds (one at a time):\[T_{\text{sequential}} = 6 \text{ builds} \times 8\,\text{min/build} = 48\,\text{min}\]
Sequential: \(\$0\) extra (free tier), 48 min wait
Parallel: \(6 \times \$0.008/\text{min} \times 8\,\text{min} = \$0.384\) per pipeline run
For 20 daily commits: \(20 \times \$0.384 = \$7.68/\text{day}\) saves \(48\,\text{min} - 8\,\text{min} = 40\,\text{min/commit} \times 20 = 800\,\text{min/day}\) (13.3 hours) of developer wait time. At \(\$75/\text{hr}\), the productivity gain is worth \(800\,\text{min} \div 60 \times \$75 = \$1,000/\text{day}\). Parallel CI pays for itself when team makes >2 commits/day.
Key Insight: Parallel CI becomes cost-effective when the time savings (developer productivity) exceed the infrastructure costs. For most teams making more than 2-3 commits per day, parallel builds pay for themselves many times over.
Processing overhead of cryptographic verification
Deployment Complexity:
Devices in remote locations (oil rigs, farms, oceans)
Irreversible updates (no physical access for recovery)
Long validation cycles (environmental testing, certification)
Safety and Reliability Requirements:
Medical devices requiring FDA validation
Industrial controllers with safety certifications (IEC 61508)
Automotive systems (ISO 26262)
Can’t afford “move fast and break things” philosophy
19.3.3 The Firmware Update Paradox
Every firmware update represents a paradox:
Updates are essential: They fix security vulnerabilities, add features, and resolve bugs
Updates are risky: Each update is a potential brick event, introducing new bugs or incompatibilities
Consider a smart thermostat controlling heating in Minnesota in winter. A failed update during a -20 F night could result in frozen pipes and thousands of dollars in damage. The risk-benefit calculation is far different from updating a mobile app.
Comparison flowchart showing two parallel CI/CD pipelines: Web app pipeline flows from Git Push through Automated Tests, Deploy to Cloud, Users Auto-Refresh, to Issues decision point leading to either Instant Rollback or Success. IoT pipeline flows from Git Push through Cross-Compile for 10 Targets, Simulation Tests, HIL Tests, Certification, Staged OTA Rollout, to Issues decision point leading to either Complex Rollback/Brick Risk or Success After Weeks. The IoT pipeline demonstrates significantly more steps, longer duration, and higher risk compared to the simpler web app deployment process, highlighting challenges of firmware updates across diverse hardware platforms with safety-critical requirements.
Figure 19.1: Web app CI/CD versus IoT CI/CD comparison showing the dramatic difference in complexity, duration, and risk profiles between traditional web deployments and IoT firmware updates.
Alternative View:
OTA Update Risk Assessment Matrix
This matrix variant helps teams assess update risk based on device criticality and rollback capability, guiding OTA deployment strategy decisions.
Figure 19.2: Risk assessment matrix helping teams choose appropriate OTA deployment strategies based on device criticality and rollback capability.
19.3.4 Decision Framework: Design the OTA Contract
Before you automate anything, decide the update contract your device must satisfy:
Risk class: What happens if an update fails? (annoyance vs safety/security impact)
Recovery path: How does the device get back to a known-good state? (rollback, safe mode, service path)
Connectivity model: Always connected vs intermittent, and what data/energy budget can you afford?
Storage budget: Can you store two images plus metadata (version, signature, health state)?
Common OTA trade-offs
Design choice
Choose this when
Trade-off
A/B (dual-slot) firmware + verified boot
You need reliable rollback and you can afford extra flash
~2x firmware storage + more bootloader complexity
Single-slot firmware + robust bootloader
Flash is tight and you have a service recovery path (USB/JTAG/dealer)
Higher brick risk if power/network fails mid-update
Delta updates
Cellular data, long downloads, or update energy are expensive
More tooling and version management (needs base image assumptions)
Full image updates
You want the simplest, most robust update format
Larger payloads and longer download/flash time
Canary / rings rollout
Large fleets, safety/security impact, or unknown field diversity
Slower release velocity; requires telemetry and stop conditions
All-at-once rollout
Tiny fleets and low consequence of failure
High blast radius if something goes wrong
Common IoT CI/CD Pitfalls
Treating “downloaded successfully” as success (you need post-reboot health checks)
Shipping OTA without a rollback story (no A/B, no safe mode, no service path)
Rolling out without pause criteria (no canary metrics, no stop thresholds)
Ignoring update energy cost (battery devices can die mid-flash and brick)
19.3.5 CI/CD Pipeline Visualizations
The following AI-generated diagrams illustrate modern CI/CD and DevOps practices adapted for IoT development workflows.
CI/CD IoT Pipeline
Figure 19.3: A comprehensive IoT CI/CD pipeline spans from developer commit to production deployment. Unlike web applications that deploy in minutes, IoT pipelines often take days due to hardware testing requirements and staged rollout protocols that prevent fleet-wide failures.
General CI/CD Pipeline Architecture
Figure 19.4: CI/CD pipeline architecture emphasizes the continuous nature of modern software delivery. Each commit triggers automated validation, and monitoring data flows back to inform development priorities - creating a feedback loop that accelerates quality improvements.
Continuous Integration Workflow
Figure 19.5: Continuous Integration enables multiple developers to work on IoT firmware simultaneously without integration conflicts. Automated builds and tests run within minutes of each commit, catching errors before they compound.
DevOps IoT Pipeline
Figure 19.6: DevOps practices adapted for IoT incorporate unique challenges like OTA updates, device telemetry, and fleet management. The operations side emphasizes remote monitoring and update delivery capabilities that traditional DevOps workflows don’t address.
DevOps Workflow Stages
Figure 19.7: DevOps workflow emphasizes collaboration between development and operations teams through shared tooling, metrics, and cultural practices. For IoT, this includes joint ownership of device reliability and update success rates.
DevSecOps for IoT
Figure 19.8: DevSecOps extends DevOps by integrating security at every stage. For IoT, this means secure boot verification, firmware signing, encrypted OTA channels, and continuous vulnerability scanning of embedded code and third-party libraries.
Agile IoT Development
Figure 19.9: Agile methodologies adapt to IoT by synchronizing hardware and software development tracks. Sprint demos include physical device testing, and retrospectives address both firmware bugs and manufacturing constraints.
Agile IoT Development Process
Figure 19.10: Agile IoT development balances rapid iteration with hardware constraints. While firmware can iterate quickly, hardware changes require longer lead times - successful teams plan hardware sprints 2-3 cycles ahead while firmware adapts to current hardware capabilities.
19.4 Continuous Integration for Firmware
19.4.1 Build Automation
Effective IoT CI starts with automated builds for all target hardware configurations:
Cross-Compilation Strategy:
Maintain build scripts for each hardware variant
Use Docker containers for reproducible toolchains
Version control toolchain dependencies (GCC version, libraries)
Generate build matrices for all combinations
Toolchain Management:
Open Source: GCC ARM Embedded, LLVM/Clang, PlatformIO
Commercial: IAR Embedded Workbench, Keil MDK, Green Hills
Automated code quality checks catch bugs before they reach hardware:
Code Quality Tools:
Cppcheck: Free C/C++ static analyzer
PC-lint/FlexeLint: Commercial deep analysis
Clang Static Analyzer: Open source LLVM-based
Coverity: Commercial security-focused analysis
Compliance Checking:
MISRA C: Safety-critical automotive standard
CERT C: Secure coding standard
ISO 26262: Automotive functional safety
IEC 62304: Medical device software
Security Scanning:
CodeQL: GitHub’s semantic code analysis
Snyk: Dependency vulnerability scanning
Bandit: Python security linter
Semgrep: Lightweight pattern matching

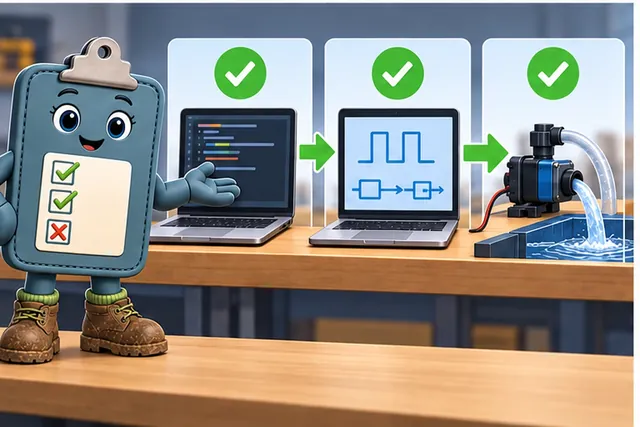

19.4.3 Automated Testing Stages
IoT testing progresses through stages of increasing realism and cost:
Unit Tests: Test individual functions in isolation (host machine)
Integration Tests: Test component interactions (simulator)
Simulation Tests: Run firmware in QEMU or vendor simulators
Hardware-in-the-Loop (HIL): Test on real hardware with automated test rigs
Field Tests: Beta deployments to real-world environments

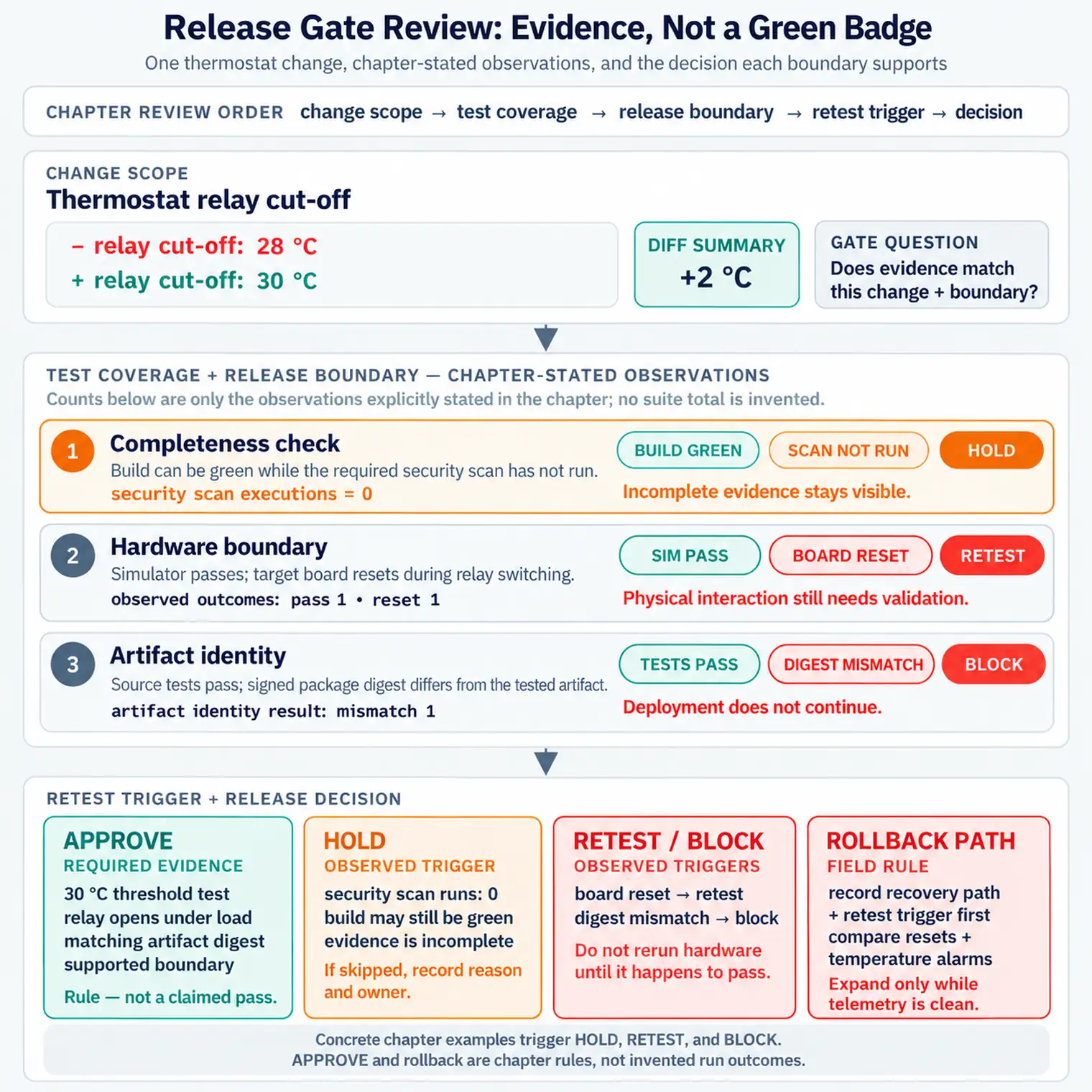

Vertical flowchart showing IoT continuous integration pipeline with quality gates: Code Commit flows to Build for All Targets, then Build Success decision (No routes to Notify Developers, Yes continues), Unit Tests on Host with Pass decision (No to Notify Developers, Yes continues), Static Analysis with Clean decision (No to Notify Developers, Yes continues), Simulation Tests with Pass decision (No to Notify Developers, Yes continues), HIL Tests with Pass decision (No to Notify Developers, Yes continues), finally reaching Generate Signed Artifacts and Staging Environment. All failure paths converge on developer notification, while successful progression proceeds through increasingly realistic test environments from host-based unit tests to hardware-in-the-loop validation before generating production artifacts.
Figure 19.11: Continuous integration pipeline for IoT firmware showing five progressive testing stages from code commit through hardware-in-the-loop tests, with developer notification gates at each failure point.
Alternative View:
CI Pipeline as Testing Pyramid
This layered variant visualizes the same CI pipeline as a testing pyramid, showing the relationship between test quantity, speed, and cost at each level.
Figure 19.12: Pyramid view showing that 70% of bugs should be caught at the fast, cheap unit test level, with progressively fewer bugs found at each expensive upper tier.
Worked Example: Building a CI/CD Pipeline for ESP32 Firmware
Scenario: A startup develops environmental sensors using ESP32 with firmware written in C++ using ESP-IDF. They need a CI/CD pipeline that catches bugs before field deployment.
Requirements:
3 hardware variants (ESP32, ESP32-S2, ESP32-C3)
Firmware must pass MISRA C compliance (safety-critical application)
Time to staging: 20 minutes (from commit to 10 devices updated)
Time to production: 3 days (including canary and monitoring windows)
Bugs caught before production: 14 in first 3 months (8 by unit tests, 4 by static analysis, 2 by staging soak)
Key Takeaway: The 24-hour staging soak period caught 2 critical bugs that passed all automated tests but manifested only after hours of operation (memory leaks). Without this gate, those bugs would have affected 5,000 devices.
Decision Framework: Choosing OTA Update Architecture
Question: Which OTA architecture should you implement for your IoT device?
Key Insight: A/B partitioning doubles flash requirements but provides automatic rollback, making it essential for production devices where failures have significant consequences.
If firmware exceeds 1.8 MB → can’t use A/B without larger flash chip
YES → Use A/B partitioning (gold standard) NO → Continue to step 2
2. Does your device have reliable network connectivity?
YES → Single partition + recovery mode (can re-download if update fails) NO → You MUST use A/B or delta with A/B fallback (no second chances)
3. Are you bandwidth-constrained?
Cellular data cost calculation: - Full firmware: 512 KB - Delta update: 50 KB (10% changed) - Cellular cost: $0.50/MB - Per-device cost: Full = $0.26, Delta = $0.025 (10× savings) - Fleet of 10,000: Full = $2,600, Delta = $250
If savings > cost of delta tooling → Use delta updates
4. What is the consequence of a bricked device?
Medical device: Lives at risk → A/B mandatory
Industrial sensor: Costly service call → A/B mandatory
Smart home device: Customer frustration → A/B strongly recommended
Development prototype: Just reflash → Single partition acceptable
Recommended Architectures by Device Type:
Device Type
Architecture
Reasoning
Insulin pump
A/B + verified boot
Safety-critical, bricking unacceptable
Smart meter
A/B + delta
Remote, hard to service, cellular data cost
Home thermostat
A/B
Customer can’t reflash, but has Wi-Fi for recovery
Industrial gateway
A/B + recovery
Expensive service call, critical infrastructure
Dev kit / Prototype
Single partition
Easy USB reflash during development
Cost-Benefit Analysis:
Cost of A/B partitioning:
- Flash upgrade: $0.50 per device (2 MB → 4 MB)
- Bootloader development: $10,000 (one-time)
Cost of bricked device:
- Service call: $100-500
- Customer goodwill: $50-200
- Regulatory investigation (medical): $100,000+
Break-even: 10,000 / 0.50 = 20 bricked devices
If >20 devices would brick without A/B → A/B pays for itself
Rule of Thumb: Unless you’re prototyping, use A/B partitioning. The cost is trivial compared to the risk of bricked devices.
Common Mistake: Treating “Download Complete” as “Update Successful”
The Problem: Your OTA system considers an update successful when the firmware file downloads completely, but many devices fail silently after the “successful” update.
Why This Is Wrong:
A complete download does NOT mean: 1. The firmware booted successfully 2. The device passed health checks 3. Network connectivity still works 4. Sensors are readable 5. The application logic functions correctly
What Goes Wrong:
# WRONG approach (many production systems do this!)def ota_update(): download_firmware() # Download completes flash_to_partition() mark_update_successful() # ❌ Too early! reboot()# If device doesn't boot, we think update succeeded# After reboot, device is bricked but marked "updated"# Dashboard shows 100% success rate while 5% are actually offline
Real-World Example:
Smart lock manufacturer pushed OTA update to 50,000 devices
Reality: 2,800 devices (5.6%) bricked due to incompatible bootloader version
The 1.6% that dashboard showed as “failed” were devices that lost power during download
The 5.6% that actually failed completed download but failed to boot
Result: 2,800 customers locked out of their homes, PR disaster
The Right Approach: Post-Boot Health Checks
# Firmware side (new partition)def main(): boot_count = get_boot_count()if boot_count ==0:# First boot after update run_health_checks()if health_checks_pass(): mark_firmware_good() # Tell bootloader to commit report_success_to_cloud()else:# Bootloader will rollback on next reset trigger_rollback()else:# Normal operation run_application()def run_health_checks():# Must pass ALL checksassert can_read_sensors()assert can_connect_to_wifi()assert memory_usage_reasonable()assert app_logic_functional()
Mark update successful only AFTER device boots and passes health checks
Monitor for 24-48 hours before considering update “complete”
Set automatic rollback triggers (crash rate, connectivity loss)
Report intermediate states to cloud (downloading, flashing, booting, healthy)
Dashboard should show devices in “unknown” state prominently (rebooted but not checked in)
The Rule: An OTA update isn’t successful until the device proves it works with the new firmware, not when the download completes.
Matching Exercise: Key Concepts
Order the Steps
Label the Diagram
💻 Code Challenge
19.5 Summary
Continuous integration and delivery for IoT firmware requires adapting web development practices to the unique constraints of embedded systems. Key takeaways from this chapter:
IoT CI/CD operates under fundamentally different constraints than web application CI/CD, including hardware diversity, resource limitations, deployment complexity, and safety requirements
The firmware update paradox balances the necessity of updates (security fixes, features) against the risks (bricking devices, introducing bugs)
Design the OTA contract first by defining risk class, recovery path, connectivity model, and storage budget before automating anything
Build automation must handle cross-compilation for multiple targets, reproducible toolchains, and proper artifact management
Static analysis and compliance checking catch bugs early and ensure regulatory compliance (MISRA, CERT, ISO 26262)
The testing pyramid structures automated testing from fast unit tests through expensive field tests, with each layer catching different categories of bugs
Related Chapters
OTA Update Architecture: Deep dive into update mechanisms, security, and delivery strategies
Understanding CI/CD for IoT connects to several critical embedded systems concepts:
OTA Update Architecture implements the delivery mechanism - while CI/CD handles build, test, and artifact generation, OTA architecture handles secure delivery, A/B partitioning, and rollback; both are required for complete deployment pipelines
Rollback and Staged Rollout provides safety nets - CI/CD validates firmware before release, staged rollouts validate firmware in production at increasing scale with automatic pause triggers
Device Management Platforms execute deployments - platforms like Mender and Balena consume CI/CD artifacts and manage fleet-scale updates with monitoring and rollback
Programming Paradigms influences testing strategies - event-driven firmware requires different test approaches than synchronous embedded code
Network Design and Simulation enables integration testing - simulating mesh networks or IoT protocols in CI catches protocol bugs before hardware testing
CI/CD for IoT differs fundamentally from web CI/CD - longer pipelines (minutes vs seconds), hardware-in-the-loop testing required, and immutable deployments (can’t easily rollback bricked devices).
1. Running CI/CD Pipeline Without Hardware-in-the-Loop Testing
Software-only CI/CD pipelines for IoT firmware that test only unit tests and static analysis miss hardware-specific bugs: timing-dependent race conditions, peripheral driver issues, interrupt priority conflicts, and power management failures. Include at minimum one HIL (Hardware-in-the-Loop) test stage with representative production hardware. Connect a test device to the CI runner and run hardware validation tests on every pull request merge, not just periodic nightly builds.
2. Not Versioning Firmware Binaries with Build Metadata
Deploying firmware to 10,000 devices without embedding: build commit SHA, timestamp, build number, and CI job ID into the binary makes it impossible to diagnose issues in the field. “Which firmware version is this device running?” requires a reproducible answer. Embed version info in a dedicated firmware version structure accessible via AT command or GATT characteristic, and tie each binary artifact to its exact CI job and git commit.
3. Treating IoT CI/CD as Identical to Web Service CI/CD
Web service CI/CD deploys to servers where rollback takes 30 seconds. IoT firmware CI/CD deploys to devices where rollback requires: OTA update delivery (minutes to hours), reboot, boot verification, and potential field service if update fails. Design IoT CI/CD pipelines with: mandatory pre-production staging on a device subset, blue/green deployment (two firmware slots), automatic rollback on boot failure, and health check validation before marking deployment successful.
4. Ignoring Binary Size Constraints in CI Pipeline
IoT firmware has fixed flash size limits (e.g., 1 MB partition). CI pipelines that only check compilation success without checking binary size may allow gradual size creep until a build suddenly fails to fit. Add a binary size check step: assert firmware.bin < MAX_FIRMWARE_SIZE; track binary size per commit in the CI artifact; alert when size exceeds 80% of available flash to give time to optimize before hitting the ceiling.
19.8 What’s Next
In the next chapter, OTA Update Architecture, we explore the detailed mechanisms of over-the-air firmware updates, including A/B partitioning, delta updates, secure boot chains, code signing, and update delivery strategies. You’ll learn how to design OTA systems that are both reliable and secure.
