21 5G URLLC: Capabilities and Roadmap
21.1 Start With the Decision
A 5G label does not promise a one-millisecond service at every site. Radio, core, edge, and application delay must all fit the claim.
21.2 Route Overview
This is part 1 of 2. Continue with 5G URLLC: Latency Evidence and Deployment.
21.3 Part Objectives
- Separate URLLC targets from deployed 5G capability.
- Trace latency and reliability across radio, core, and edge.
21.4 Start With the Story
Packet loss means that a sent message does not arrive. An actuator is a part that makes a physical change. Latency is the time a message and response take. QoS means rules that give some traffic a stated level of service.
Picture a robot that must stop when a guard opens. Start with the whole stop-time limit, not the name of the mobile service. Split that time across sensing, radio, network work, local control, and the actuator.
Then check rare delay and failure. A quick average can hide the slow event that causes harm. Extra copies or reserved service can reduce risk, but they use more radio time, energy, and system capacity.
This robot story does not prove that any 5G site meets the stop claim. It cannot turn future 6G goals into current product features. The exact site, load, device, and safety path need direct tests.
Use the Practitioner sections to build the control budget and site record. Use Under the Hood for scheduling, reliability, power, and future-roadmap limits. The deeper work narrows the claim; it does not replace end-to-end proof.
Walk one stop request. The guard opens. The sensor sees it. The device forms a message. The radio waits for service. The site receives it. Local control reads it. The robot gets the command. The brake takes hold. A clock marks each step. The slowest safe case matters. Test a busy cell. Test a weak corner. Test a moving device. Test a lost message. Test a failed local server. Keep the safe local stop. Record each rare delay. Do not hide the tail. Do not call a road map live. Use the site result.
URLLC and future 6G ideas matter when a device cannot wait or guess. A robot, protection relay, or remote controller needs latency, reliability, and coordination evidence before the word critical is justified.
Start simple: separate today’s deployable cellular IoT needs from future low-latency promises that still require proof.
21.5 In 60 Seconds
URLLC (Ultra-Reliable Low-Latency Communications) is a 5G service design for applications where delay and packet loss can create physical risk or major operational loss. It does not make every 5G link ultra-low-latency end to end; it combines radio scheduling, QoS, redundancy, local edge processing, and validated site design to meet a specific latency and reliability budget. For future planning, 6G/IMT-2030 points toward integrated sensing, AI-assisted networks, sustainability, and higher performance, but those capabilities are still being standardized and should be treated as roadmap inputs rather than deployable 2026 features.
- Start With the Story
- In 60 Seconds
- Key Concepts
- URLLC and 6G: Mission-Critical IoT and the Future
- Prerequisites
- Related Chapters
- Key Takeaway
- Phoebe’s Field Notes: Why A Truck At 70 mph Breaks A Stationary-Tuned Handover
- For Beginners: Understanding URLLC
- What Makes URLLC Different from Regular 5G?
- For Beginners: URLLC Is a Control-Loop Design
- Checkpoint: From Marketing Claim to Control Budget
- URLLC for Critical IoT
- 5G Power Saving for IoT
- Quick Check: Power Saving Modes
- Checkpoint: Power Saving Is a Different Design Question
- 6G Vision for IoT
- Knowledge Check
- Knowledge Check
- Auto-Gradable Quick Check
- Worked Example: LTE-M Handover Optimization for Fleet Tracking
- Worked Example: Reducing GPS Gaps During Handover
21.6 Key Concepts
Start with URLLC (Ultra-Reliable Low-Latency Communications): 5G service family for low-latency, high-reliability traffic where the application budget justifies specialized radio, core, and edge design. Then HARQ (Hybrid Automatic Repeat Request): Retransmission scheme combining error detection (ARQ) with forward error correction (FEC); useful for reliability, but retransmission time must be budgeted. Next Mini-Slot: 5G NR transmission granularity smaller than a normal slot; 2-7 OFDM symbols can allow faster scheduling opportunities for low-latency traffic. After that Preemption: 5G NR mechanism that lets urgent traffic take resources from lower-priority traffic under configured conditions; it improves prioritization but still needs radio planning. Continue by TSN (Time-Sensitive Networking): IEEE 802.1 standard suite for time-aware Ethernet; 5G-TSN integration lets a 5G system interwork with factory TSN domains. Continue by 5G-TSN Bridge: Architecture where a 5G network appears as an IEEE 802.1 TSN bridge to factory automation systems, providing IEEE 802.1Qbv time-aware scheduling over 5G. Continue by Industrial IoT Latency Requirements: Requirements vary widely: monitoring may tolerate seconds, process automation often tolerates tens of milliseconds, while some motion-control and safety-adjacent paths need single-digit milliseconds. Finally O-RAN (Open RAN): Architecture that disaggregates RAN hardware and software and can expose optimization hooks through RAN Intelligent Controllers; production URLLC still depends on vendor support and validation.
21.7 URLLC and 6G: Mission-Critical IoT and the Future
21.8 Learning Objectives
By the end of this chapter, you will be able to:
- Analyze URLLC (Ultra-Reliable Low-Latency Communications) latency budgets and reliability requirements for mission-critical IoT
- Design end-to-end URLLC connectivity for safety-critical applications using mini-slots, grant-free transmission, and MEC
- Configure 5G power saving features (PSM, eDRX, WUS) for battery-powered IoT devices
- Evaluate 6G capabilities and timeline to assess their impact on future IoT planning
- Diagnose LTE-M handover failures and apply parameter tuning for mobile IoT applications
- Justify whether URLLC is cost-effective compared to alternatives using break-even analysis
21.9 Prerequisites
Before diving into this chapter, you should be familiar with:
- 5G Device Categories: NB-IoT to 5G NR selection
- 5G Network Slicing: Virtual networks for IoT
- 5G-Advanced Overview: 5G evolution timeline
5G Deep Dives:
- 5G-Advanced Overview - Evolution timeline
- 5G Device Categories - NB-IoT to 5G NR
- 5G Network Slicing - Virtual networks
Critical IoT:
- Cellular IoT Applications - Use cases
- Private 5G Networks - Enterprise deployment
In one sentence: URLLC is an engineered low-latency, high-reliability 5G design for mission-critical IoT, while 6G/IMT-2030 is the future roadmap for sensing, AI-assisted operation, sustainability, and higher-performance networks.
Remember this: URLLC is not a faster default data plan. Use it only when the application has a measured latency budget, a credible failure consequence, an edge architecture, and a test plan that proves the service under load.
The mathematical gist. At 70 mph and an illustrative 850 MHz carrier, maximum Doppler shift is 88.7 Hz and the Clarke coherence-time estimate is 4.77 ms. An 18 s handover spans about 3770 such intervals; an 8 s handover spans about 1680. At the chapter’s illustrative 300 mW connected-state midpoint, the shorter interval changes 5.40 J to 2.40 J. These are scale estimates, not guarantees of independent fades, handover success, or battery savings.
21.10 For Beginners: Understanding URLLC
Regular mobile networks are designed for broad coverage and efficient shared capacity. They usually deliver data quickly, but delay can vary with radio conditions, routing, congestion, and handoff.
URLLC (Ultra-Reliable Low-Latency Communications) changes the design goal:
- Latency: The application budget is engineered from sensor to actuator, not just the radio hop.
- Reliability: The service is designed for very low packet-loss probability, with redundancy and validation where needed.
Why This Matters:
| Application | Regular 5G Problem | URLLC Solution |
|---|---|---|
| Factory robot | Delay variation can break coordination | Local edge path and validated scheduling |
| AGV/forklift | Handoff delay can affect stopping distance | Bounded control path plus safety logic |
| Grid protection | Slow fault isolation can damage equipment | Prioritized low-latency service and local processing |
Analogy: Think of emergency services:
- Regular 5G = Shared traffic that is usually fast but can vary
- URLLC = A planned emergency route with reserved priority and tested intersections
Cost Trade-off: URLLC-style service costs more because it consumes radio capacity, edge infrastructure, design effort, and operational monitoring. Only use it when failure has serious consequences.
Start with the control loop, not the marketing number.
- Measure the time allowed from event to safe response.
- Subtract sensor sampling, local processing, actuator response, and safety margin.
- The remaining time is the network budget.
- Choose the lowest-risk connectivity design that meets that budget under realistic load.
If a warehouse vehicle has 250 ms to stop, and sensing plus braking already consume 160 ms, the network does not need to be “as fast as possible.” It needs to stay below the remaining budget with margin. URLLC becomes attractive when ordinary cellular, Wi-Fi, or wired options cannot meet that budget reliably enough for the safety case.
Checkpoint: From Marketing Claim to Control Budget
You now know:
- URLLC is useful only when the application consequence justifies bounded latency and high reliability.
- Mini-slots, configured uplink, preemption, MEC, and redundancy each improve one part of the path.
- The control-loop budget must subtract sensing, processing, actuation, and margin before assigning network time.
21.11 URLLC for Critical IoT
21.11.1 URLLC Requirements
| Requirement | Engineering Target | Design Note |
|---|---|---|
| Radio latency | Low single-digit ms or better for selected service profiles | Air-interface latency is only one part of the application loop |
| Reliability | Very low packet-loss probability for the configured service | Depends on link budget, redundancy, load, and packet size |
| Availability | Contracted service availability for the site or slice | Must include power, backhaul, edge, and operations |
| Jitter | Bounded enough for the control loop | Validate under peak traffic and handoff conditions |
21.11.2 URLLC Enabling Technologies
URLLC is an end-to-end claim, so inspect Figure 21.1 before attributing latency or reliability to the radio alone. The stack shows which radio, transport, compute, synchronization, and operational controls must cooperate for a bounded service.
Read Figure 21.1 from radio scheduling and reliability mechanisms into the core’s QoS treatment, then continue to edge placement and any TSN interworking near the controlled process. Finish at validation and operations, where timing, failure, and change evidence are retained. The order connects the technology list to the chapter’s central rule: a fast air interface cannot rescue distant compute, uncontrolled queues, broken synchronization, or an untested recovery path.
21.11.3 How URLLC Achieves Low Latency
| Technology | Mechanism | Practical Effect |
|---|---|---|
| Mini-slots | Transmit with fewer OFDM symbols than a normal slot | More scheduling opportunities for urgent traffic |
| Configured/grant-free uplink | Let selected devices transmit without a fresh scheduling request | Reduces access delay for small predictable payloads |
| Preemption | Give urgent traffic priority over lower-priority traffic | Protects control traffic when capacity is constrained |
| MEC | Process at local edge instead of distant cloud | Removes wide-area internet round-trip delay |
| Dual connectivity/redundancy | Use multiple radio paths or duplicated packets where justified | Improves resilience during fades or mobility events |
21.11.4 URLLC Use Cases
| Application | Typical Network Budget | Reliability Concern | Example |
|---|---|---|---|
| Factory automation | Single-digit to tens of ms, depending on loop | Missed coordination or unsafe stop | Robot coordination, AGVs |
| Vehicle guidance | Low-latency local safety messages | Handoff and congestion during movement | V2X or site vehicle control |
| Medical robotics | Strictly bounded local loop; remote operation needs additional safeguards | Delay, jitter, and fail-safe behavior | Assisted robotic control |
| Power grid | Fast local protection path | Fault isolation before equipment damage | Protection relays |
21.11.5 URLLC vs Other Slice Types
| Factor | URLLC-Style Service | eMBB | mMTC |
|---|---|---|---|
| Optimized for | Low latency plus high reliability | Throughput | Device density |
| Typical latency focus | Bounded control-loop delay | 10-50 ms class user experience | 100 ms to seconds is often acceptable |
| Reliability focus | Low packet-loss probability under engineered conditions | Good user data service | Efficient low-rate telemetry |
| Cost driver | Reserved capacity, edge, redundancy, validation | Bandwidth and data volume | Device count and coverage |
| Use when | Physical safety or major asset loss is plausible | High bandwidth is needed | Many simple sensors report small payloads |
21.12 5G Power Saving for IoT
21.12.1 Power Saving Features
| Feature | Description | Benefit |
|---|---|---|
| eDRX | Extended discontinuous receive cycles | Sleep between paging windows while remaining periodically reachable |
| PSM | Power Saving Mode with long tracking-area update timers | Ultra-low standby for device-initiated reporting |
| WUS | Wake-Up Signal support in compatible networks/devices | Reduces unnecessary wakeups around paging |
| RRC Inactive | Suspended state with retained context | Faster resume than full reconnect with lower power than connected mode |
21.12.2 Power Consumption by Category

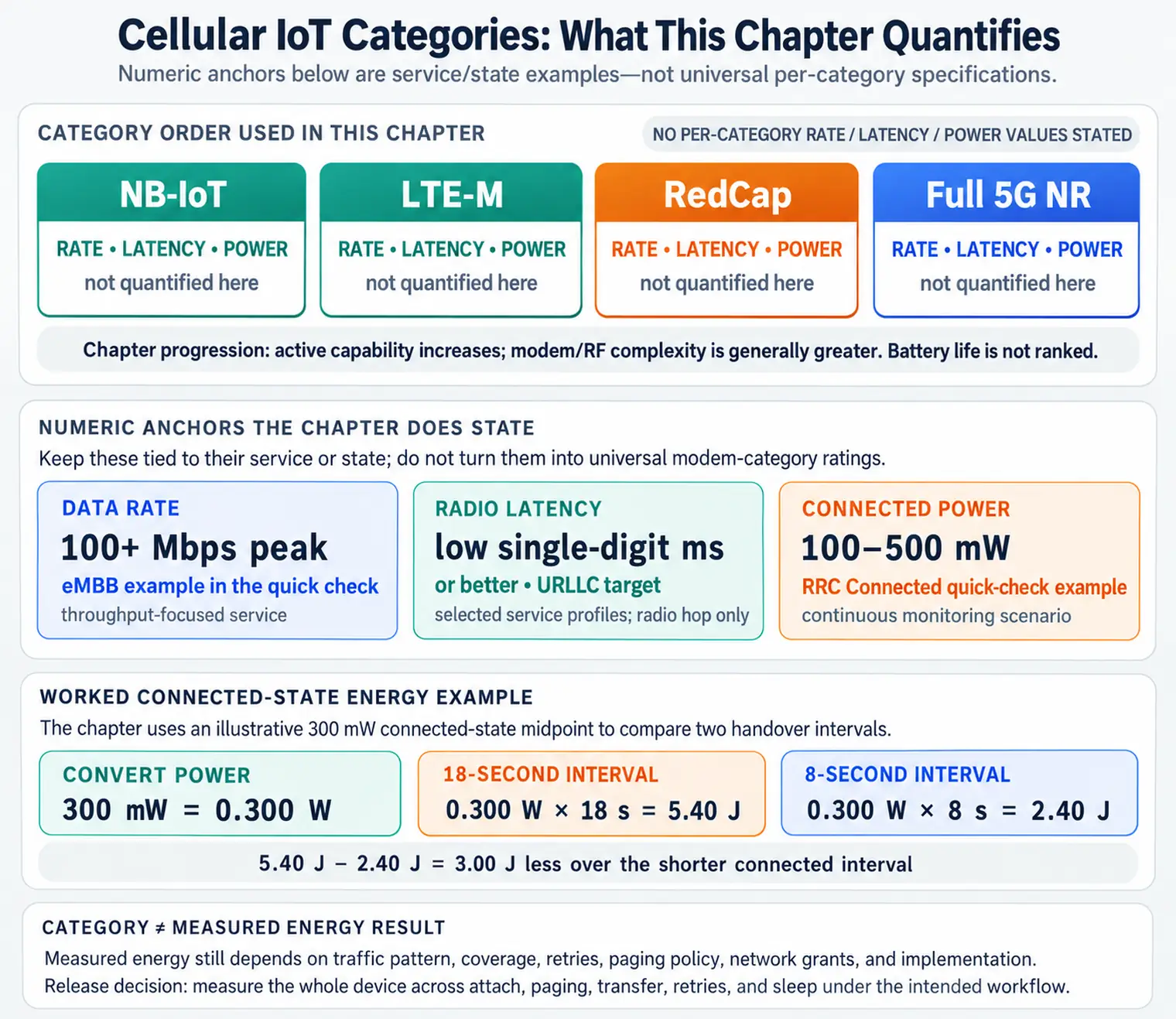

Future capability is useful only when its energy profile fits the device. Inspect Figure 21.2 to compare the relative direction of travel from narrowband cellular IoT to richer 5G categories before selecting a modem by headline features.
Read Figure 21.2 from NB-IoT through LTE-M and RedCap to full 5G NR. The progression reflects increasing active capability and generally greater modem and RF complexity, not a universal battery-life number. Traffic pattern, coverage, retries, paging policy, network grants, and implementation still determine measured energy. This comparison therefore narrows the candidate category; the release decision still comes from a whole-device current trace under the intended service workflow.
21.12.3 PSM and eDRX Configuration
Treat PSM and eDRX as reachability choices before treating them as battery features. In PSM, the device is normally unreachable until it wakes or performs its update, so the product must tolerate delayed commands and keep a safe local state. eDRX opens periodic paging windows, trading more standby energy for bounded opportunities to receive downlink. Compare the required response delay with the timer values the network actually grants, not just those requested by firmware. Then measure the complete board across attach, paging, transfer, retries, and sleep under representative radio conditions. Operator configuration, subscription, modem firmware, reporting cadence, or coverage changes reopen both the reachability and energy decision.
| Parameter | PSM | eDRX |
|---|---|---|
| Wake pattern | Mostly device-initiated | Periodic paging windows |
| Best for | Infrequent uploads, long battery life | Devices that need periodic downlink reachability |
| Battery impact | Lowest standby power | Moderate standby power |
| Reachability | Only when the device wakes or performs tracking-area update | During configured paging windows |
| Deployment note | Timer limits depend on device, network, and subscription | Cycle support depends on operator configuration |
Checkpoint: Power Saving Is a Different Design Question
You now know:
- PSM, eDRX, WUS, and RRC Inactive solve standby and reachability problems, not critical control latency by themselves.
- Low-power telemetry can tolerate seconds or minutes when the application only needs periodic reporting.
- A battery device that needs downlink commands must balance reachability windows against battery life.
21.13 6G Vision for IoT
21.13.1 6G Timeline
6G is best treated as an IMT-2030 planning horizon, not a product you can buy today. ITU-R has defined the IMT-2030 framework and usage scenarios, while detailed radio specifications and commercial deployment plans remain future work.
| Milestone | Year | Description |
|---|---|---|
| 5G-Advanced | 2024-2026 | Release 18/19 era enhancements, including RedCap evolution, NTN, positioning, AI/ML support, and industrial features |
| IMT-2030 framework | 2023 onward | ITU-R framework for 6G usage scenarios and capability families |
| 6G study and specification work | Late 2020s | Research, requirements, candidate technologies, and standards work |
| Early commercial 6G | Around 2030 and beyond | Expected first deployments; scope and performance will vary by region and operator |
21.13.2 6G Performance Targets
| Capability Family | 5G Design Focus | IMT-2030 Direction | IoT Meaning |
|---|---|---|---|
| Throughput | Enhanced mobile broadband | Higher peak and user-experienced data rates | Richer video, sensing data, and digital twins |
| Latency/reliability | URLLC and industrial profiles | More capable low-latency, high-reliability services | More demanding control and coordination use cases |
| Connection density | Massive machine-type communication | Even denser device populations | Larger sensor swarms and asset tags |
| Sensing | Mostly separate from communications | Integrated sensing and communication | Networks may help localize or detect objects |
| Sustainability | Power-saving modes and efficient radios | Energy efficiency and low-power/ambient IoT | Longer-lived sensors and lower site energy cost |
| AI-assisted operation | Early AI/ML support | AI-native or AI-assisted network operation | Better prediction, optimization, and fault handling |
21.13.3 6G New Capabilities
Treat 6G and IMT-2030 material as a roadmap, not a product specification. Inspect Figure 21.3 to group the capability themes and ask which future IoT problem each theme is intended to address without inventing deployment dates or guaranteed performance.
Read Figure 21.3 across integrated sensing, AI-assisted operation, sustainability, broader coverage, and high-capacity links. These are related research and standardization directions rather than one indivisible feature bundle. The map connects the future-facing section to the same evidence discipline used for 5G: state the application need first, distinguish targets from implemented releases, and recheck device, network, spectrum, energy, security, and operational evidence when concrete standards and products exist.
21.13.4 6G IoT Use Cases
| Capability | IoT Application | Example |
|---|---|---|
| Integrated sensing | Communication infrastructure assists with localization or object detection | Factory zones that track moving assets with radio reflections |
| AI-assisted networks | Prediction, optimization, and anomaly handling in the network | Slices that adapt before a congestion or mobility event |
| High-capacity links | Richer sensing/video data from machines | Industrial inspection with high-resolution feeds |
| Ambient/low-power IoT | Lower-energy tags and sensors | Environmental tags powered by energy harvesting where feasible |
| Non-terrestrial and coverage extensions | Wider-area IoT reach | Remote monitoring beyond dense terrestrial coverage |
21.14 Knowledge Check
Scenario: You’re designing connectivity for an autonomous forklift in a warehouse. The forklift must stop within 100 ms of detecting an obstacle. At maximum speed (10 km/h), this gives 28 cm of stopping distance.
Questions:
- What is the maximum acceptable network latency?
- Should you use URLLC or eMBB?
- What reliability level is needed?
21.15 Worked Example: LTE-M Handover Optimization for Fleet Tracking
Scenario: A logistics company has 500 trucks with LTE-M GPS trackers. Drivers report 15-30 second gaps in location tracking during highway driving at 70 mph. The target is gaps under 5 seconds.
Given:
- Fleet: 500 trucks with certified LTE-M modules
- Carrier: LTE-M operator with mobility support
- Current handover failure rate: 8%
- Target: <5 second gaps, <2% failure rate
Analysis:
-
Current Handover Timeline:
::: {.table-responsive .iot-stack-table-wrap}
Time Event T=0 s Device connected to Cell A (RSRP: -95 dBm) T=6 s Cell A weakening, Cell B strengthening T=9 s A3 event triggered because neighbor is 4 dB better T=10 s Handover command received T=15 s Handover complete T=18 s Data bearer re-established ::: Problem: 18 seconds from trigger to usable data. At 70 mph, the vehicle travels about 0.35 miles during the gap.
-
Root Causes:
- A3 hysteresis too high (4 dB), causing a late trigger
- TimeToTrigger too long (480 ms), causing a slow reaction
- Data bearer re-setup adds 3-5 seconds
-
Optimized Parameters:
::: {.table-responsive .iot-stack-table-wrap}
Parameter Before After Effect A3 offset 4 dB 2 dB Earlier trigger Hysteresis 2 dB 1 dB Less conservative handover TimeToTrigger 480 ms 160 ms Faster reaction ::: -
Application-Level Buffering:
// Buffer GPS during handover void on_gps_fix(gps_position_t pos) { if (is_connected()) { flush_buffer(); // Send buffered first send_position(pos); } else { buffer_position(pos); // Store during gap } }
Result:
| Metric | Before | After | Improvement |
|---|---|---|---|
| Handover duration | 18 s | 8 s | 56% faster |
| Failure rate | 8% | 1.5% | 81% reduction |
| Visible gap | 15-30 s | 0 s | 100% (buffered) |
21.16 Continue to the Next Part
Carry this evidence into 5G URLLC: Latency Evidence and Deployment, which begins with Putting Numbers to It.
