12.1 Start With the Decision

This section: Start With the Decision — Current moves through a conductor but stops at an insulator.

Current moves through a conductor but stops at an insulator. A semiconductor lets a circuit control that flow.

12.2 Route Overview

This section: Route Overview — This is part 1 of 3.

This is part 1 of 3. Continue with Component Architecture: Capacitors and Selection.

12.3 Part Objectives

This section: Part Objectives

Relate conductor, insulator, and semiconductor behaviour to circuit roles.
Identify component limits from material and electrical evidence.

12.4 Choose the Board Materials

This section: Choose the Board Materials — Imagine a board must carry power to a motor while keeping a touch surface safe.

Imagine a board must carry power to a motor while keeping a touch surface safe. The designer must choose where charge should flow, where it should stop, and where it should be controlled. The motor’s power path and the touch surface have different electrical jobs. A conductor carries the needed current; an insulator blocks unwanted contact; a semiconductor can control current. Choose a real component only after checking its voltage, heat, spacing, and load in the assembled board.

12.4.1 Trace Current and Isolation

Where must current flow to drive the motor?
Which surfaces must isolate a person’s touch from that path?
What voltage, load, and heat can the chosen parts withstand?
How will a loaded test expose a weak connection or insulation gap?

Mark the current path on the schematic and match every symbol to a rated physical part. Record the part data and observed heat under load, especially where the motor path approaches the touch surface.

12.4.2 When a Material Label Is Not Enough

Material labels narrow the search but do not certify a part in heat, water, dirt, or wear. The Practitioner depth checks component values and the built circuit.

12.4.3 Before Approving the Motor Board

Follow charge from the supply through the motor driver and back, then inspect every barrier to the touch surface. A part that fits the schematic can still overheat or fail under the actual load. Use measured current and temperature before approving the board.

12.5 Start Simple

This section: Start Simple — Imagine touching a probe to copper, plastic, and silicon on the same board.

Imagine touching a probe to copper, plastic, and silicon on the same board. Copper carries charge easily, plastic blocks it, and silicon can be controlled so it sometimes acts like either one. Start by asking which material should conduct, which should isolate, and what temperature, voltage, or doping changes that answer.

12.6 Learning Objectives

This section: Learning Objectives

Classify materials as conductors, insulators, or semiconductors based on their electrical properties and explain why semiconductors are essential to IoT electronics
Identify passive and active electronic components and describe their roles in common IoT circuit patterns
Select appropriate resistors, capacitors, and transistors for IoT applications using datasheet specifications and rating guidelines
Design basic IoT interface circuits including voltage dividers, pull-up resistors, current-limiting circuits, and decoupling networks

In 60 Seconds

All materials fall into three categories based on electrical conductivity: conductors (copper wires), insulators (plastic casings), and semiconductors (silicon chips). Semiconductors are the foundation of all IoT electronics because their conductivity can be controlled, enabling transistors, diodes, and integrated circuits.

12.7 Why This Chapter Matters

This section: Why This Chapter Matters — Follow these connections in order: Students often want to skip material classification because it looks too basic, but this chapter is what makes later component choices understandable instead of arbitrary.

Follow these connections in order: Students often want to skip material classification because it looks too basic, but this chapter is what makes later component choices understandable instead of arbitrary. Real IoT design depends on knowing why copper is used for traces, why plastic and solder mask isolate circuits, and why silicon can become a controllable switch instead of just another material. This chapter also introduces the component families you will repeatedly meet on schematics, breakout boards, and datasheets.

12.8 How To Use This Chapter

This section: How To Use This Chapter

On a first pass, focus on three questions: what carries current easily, what blocks it, and what can be controlled.
Use the taxonomy and quick-reference sections as a map of the parts ecosystem, not as something to memorize line by line.
If you are handling real boards while reading, stop and identify examples of passive components, active components, and integrated circuits around you.

Chapter Roadmap

Choose the Board Materials
Start Simple
In 60 Seconds
Why This Chapter Matters
How To Use This Chapter
Conductors and Semiconductors
Component Quick Reference
Deep dive: Putting Numbers to It
Knowledge Check: Quick Component Calculations
Checkpoint: Component Calculations

12.9 Conductors and Semiconductors

This section: Conductors and Semiconductors — Materials behave differently when it comes to conducting electricity.

~15 min | Foundational | P06.C05.U01

Materials behave differently when it comes to conducting electricity. Before exploring material properties, let’s first understand how electronic components are classified in IoT systems.

Start with the parts ecosystem. If you can tell which parts only store or dissipate energy and which parts control current, the later material categories will feel less abstract.

12.9.1 Electronic Components Taxonomy

Use the diagram in Figure 12.1 to ground electronic components taxonomy: it shows electronic components taxonomy showing passive components (resistors, capacitors, inductors) that cannot amplify signals, active components (diodes, transistors, thyristors) that can control and amplify current, and integrated circuits that combine thousands to billions of components into complete systems like sensors, microcontrollers, and wireless modules rather than leaving the relationship implicit.

Electronic components taxonomy diagram showing passive components (resistors, capacitors, inductors) that cannot amplify signals, active components (diodes, transistors, thyristors) that can control and amplify current, and integrated circuits combining components into sensors, microcontrollers, and wireless modules — Figure 12.1: Electronic components taxonomy showing passive components (resistors, capacitors, inductors) that cannot amplify signals, active components (diodes, transistors, thyristors) that can control and amplify current, and integrated circuits that combine thousands to billions of components into complete systems like sensors, microcontrollers, and wireless modules

At Electronic Components Taxonomy for IoT, Figure 12.1 states one side of the design; Passive Components introduces the next state or component, and Resistors names the consequence. The visual shows electronic components taxonomy showing passive components (resistors, capacitors, inductors) that cannot amplify signals, active components (diodes, transistors, thyristors) that can control and amplify current, and integrated circuits that combine thousands to billions of components into complete systems like sensors, microcontrollers, and wireless modules. The running electronic components taxonomy narrative uses that consequence to decide what is safe and measurable.

Selection Workflow: Passive RCL Reference

The three passive components—resistors, capacitors, and inductors—behave differently in circuits. Understanding their properties is essential for IoT design.

Property	Resistor (R)	Capacitor (C)	Inductor (L)
Circuit Symbol	⏛ (zigzag)	⏥ (parallel plates)	⏚ (coil)
I-V Relationship	V = R·I	I = C·dV/dt	V = L·dI/dt
Unit	Ohm (Ω)	Farad (F) = C/V	Henry (H) = V·s/A
Impedance Z	Z = R	Z = 1/(j2πfC)	Z = j2πfL
Power Loss	P = I²R = V²/R	0 (ideal)	0 (ideal)
Energy Storage	0 (dissipates heat)	W = ½CV²	W = ½LI²
Frequency Response	Constant	Passes high freq, blocks DC	Passes DC, blocks high freq

Why This Matters for IoT:

Component	IoT Application	Example
Resistor	Current limiting, voltage dividers, pull-ups	LED current limiting (220Ω), sensor pull-up (4.7kΩ)
Capacitor	Power filtering, decoupling, timing	100nF decoupling on MCU VCC, 1000µF bulk capacitor
Inductor	EMI filtering, DC-DC conversion, antennas	Switching regulator, PCB antenna matching

Key Formulas for IoT Design:

RC Time Constant: τ = R × C (seconds)
- Used for: Button debouncing, ADC sample timing
- Example: 10kΩ × 100nF = 1 ms
LC Resonant Frequency: f = 1/(2π√(LC))
- Used for: RF tuning, antenna matching
- Example: 1µH × 10pF → 50MHz
Capacitor Energy: W = ½CV²
- Used for: Backup power calculations
- Example: ½ × 1000µF × (3.3V)² = 5.4mJ (total energy at 3.3V; usable brownout hold-up depends on the minimum operating voltage and load current)

Component Quick Reference

12.9.2 Selection Workflow: Schematic Symbol to Real Component Guide

Learning to read schematics requires mapping symbols to physical components:

Component	Symbol Description	Physical Appearance	Key Specs to Know
Resistor	Zigzag line or rectangle	Cylinder with color bands	Ohms (Ω), Power rating (W)
Capacitor	Two parallel lines	Cylinder or disc	Capacitance (µF), Voltage rating
LED	Triangle with arrow + light rays	Clear/colored dome	Forward voltage (Vf), Max current
Transistor	Circle with 3 leads (NPN/PNP)	TO-92 or SMD package	hFE (gain), Vce max
Diode	Triangle pointing to line	Glass cylinder with stripe	Forward voltage, Max current
Inductor	Coiled line	Wire-wound cylinder	Inductance (µH/mH)

Reading color codes (resistors):

Black=0, Brown=1, Red=2, Orange=3, Yellow=4
Green=5, Blue=6, Violet=7, Gray=8, White=9
Gold=5% tolerance, Silver=10%

Example: Brown-Black-Red = 10 × 10² = 1000Ω = 1kΩ

Deep dive: Putting Numbers to It

RC time constant determines how fast a capacitor charges through a resistor — critical for debouncing buttons and timing circuits:

$\tau = R \times C$

Example: Button debounce circuit with 10kΩ pull-up and 100nF capacitor:

$\tau = 10,000\Omega \times 0.0000001F = 0.001s = 1ms$

The capacitor charges to 63% of final voltage in 1 ms; whether this filters switch bounce depends on the switch’s measured bounce and input threshold.

After 5τ (5 ms), voltage reaches 99.3% of final value — eliminating false triggers.

LC resonant frequency determines antenna and RF filter design:

$f = \frac{1}{2\pi\sqrt{LC}}$

Example: 433 MHz LoRa antenna matching network:

$f = 433 \times 10^6 \text{ Hz}$

$LC = \frac{1}{(2\pi f)^2} = \frac{1}{(2\pi \times 433 \times 10^6)^2} = 1.35 \times 10^{-19}$

Using L = 10nH: $C = \frac{1.35 \times 10^{-19}}{10 \times 10^{-9}} = 13.5pF$ ← typical antenna tuning capacitor value.

12.9.3 IoT Component Reference

A practical reference for selecting and using electronic components in IoT projects, with specifications and real-world use cases. Consider a typical IoT sensor module like the ultrasonic distance sensor below — it combines passive components (resistors, capacitors for signal conditioning), active components (transistors, op-amps for amplification), and an integrated circuit for digital output.

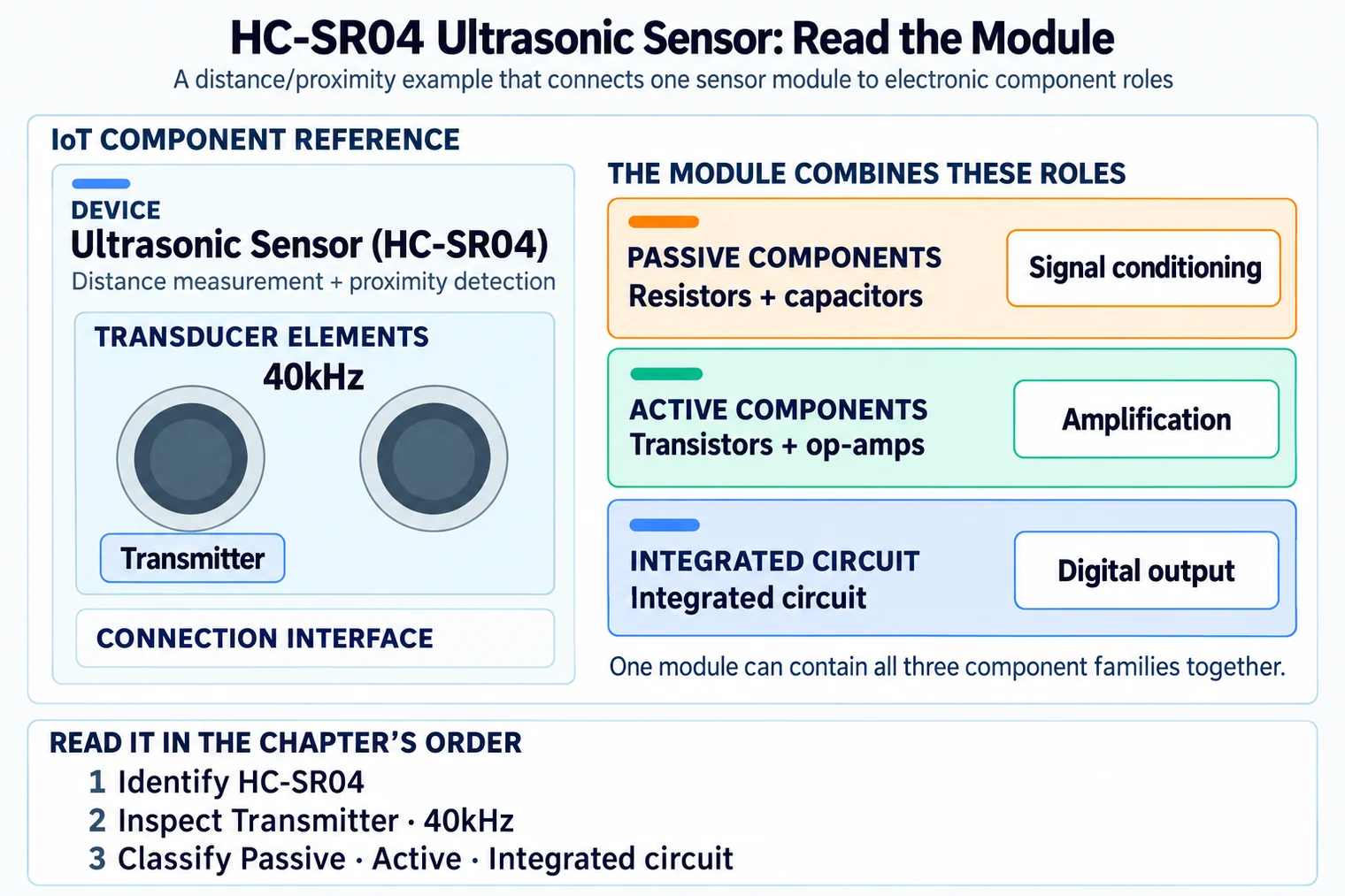

Inspect the labelled evidence in Figure 12.2 as the entry point to iot component reference. The visual is specifically about ultrasonic sensor module used in IoT distance measurement and proximity detection.

Ultrasonic sensor module showing transducer elements, signal conditioning circuitry, and connection interface commonly used in IoT distance measurement applications — Figure 12.2: Ultrasonic sensor module used in IoT distance measurement and proximity detection

First identify Ultrasonic Sensor (HC-SR04) in Figure 12.2, then contrast it with Transmitter and test the claim beside 40kHz. These visible labels explain ultrasonic sensor module used in IoT distance measurement and proximity detection. They keep iot component reference tied to evidence that can be inspected on the schematic, part, or trace.

12.9.3.1 Selection Workflow: Essential Passive Components

Component	Symbol	Function	IoT Use Case	Typical Values
Resistor	`─/\/\/─`	Limits current flow	LED current limiting	220Ω-10kΩ
Capacitor	`─ǁ─`	Stores electrical charge	Power supply smoothing	100nF-1000µF
Inductor	`─∿∿∿─`	Stores magnetic energy	Switching regulators, EMI filtering	10µH-100mH
Diode	`─▷│─`	One-way current flow	Reverse polarity protection	1N4001, 1N4148
LED	`─▷│─` (light)	Light output	Status indicators, displays	Red: 1.8-2.2V, Blue: 3.0-3.4V

Passive Component Selection Rules:

Resistors: Always check power rating (P = I² × R). Common: 1/8W, 1/4W, 1/2W
Capacitors: Voltage rating must be ≥ 2× operating voltage for reliability
Inductors: Saturation current must exceed maximum expected current
Diodes: Forward voltage (Vf) affects efficiency; Schottky diodes have lower Vf (0.3V vs 0.7V)
LEDs: Always use current-limiting resistor. Formula: R = (Vsupply - Vf) / Iled

12.9.3.2 Essential Active Components

Component	Function	IoT Use Case	Popular Parts	Key Specs
Transistor (NPN)	Switch/amplify small signals	Driving motors, relays	2N2222, BC547	Ic=800mA, hFE=100-300
Transistor (PNP)	High-side switching	Load switching	2N2907, BC557	Ic=600mA, hFE=100-300
MOSFET (N-channel)	High-current power switching	Motors, LED strips, solenoids	IRF540, AO3400	Id=10-30A, RDS(on)=0.01-0.1Ω
MOSFET (P-channel)	High-side load control	Reverse polarity protection	IRF9540, AO3401	Id=10-20A, higher RDS(on)
Op-Amp	Signal conditioning	Sensor amplification, filtering	LM358, MCP6002	Low power; MCP6002 is rail-to-rail
Voltage Regulator (Linear)	Stable DC voltage	3.3 V/5 V from battery	AMS1117, LM7805	Dropout is part-specific; onsemi MC7805 lists about 2.0 V at 1 A and 25 °C; efficiency depends on Vin and Vout
Voltage Regulator (Switching)	Efficient power conversion	Battery-powered IoT nodes	TPS62130, LM2596	Efficiency varies with Vin and load; LM2596 3.3 V lists 73% at 12 V input, 3 A output

Active Component Selection Rules:

BJT vs MOSFET: Use BJT for <1A, MOSFET for >1A (lower switching losses)
Logic-Level MOSFETs: Required for 3.3V/5V GPIO control (Vgs(th) < 2.5V)
Op-Amp Power: Choose rail-to-rail for single-supply IoT applications
Linear vs Switching Regulator: Linear for low noise (<100mA), Switching for efficiency (>100mA)

Inspect this evidence before proceeding: the running circuit argument reaches Figure 12.3, where capacitors store electrical charge and are essential for power supply filtering, signal coupling, and timing circuits. Ceramic capacitors offer compact size for high-frequency bypass, while electrolytic capacitors provide large capacitance values for voltage stabilization in IoT power circuits can be inspected directly before essential active components proceeds.

Capacitor reference chart showing fixed, polarized, and variable circuit symbols above a comparison table for electrolytic, ceramic, film, and other capacitor types, with range, characteristics, and use cases such as power filtering and decoupling — Figure 12.3: Capacitors store electrical charge and are essential for power supply filtering, signal coupling, and timing circuits. Ceramic capacitors offer compact size for high-frequency bypass, while electrolytic capacitors provide large capacitance values for voltage stabilization in IoT power circuits.

The diagram makes the reading specific: start Figure 12.3 with Capacitor Types and Symbols, move to Fixed, and finish by checking Variable. The labelled progression means capacitors store electrical charge and are essential for power supply filtering, signal coupling, and timing circuits. Ceramic capacitors offer compact size for high-frequency bypass, while electrolytic capacitors provide large capacitance values for voltage stabilization in IoT power circuits. For essential active components, that order identifies what to measure or calculate before accepting the hardware choice.

Inspect Figure 12.4 and ask which rating can disqualify each passive component even when its nominal value is correct.

Passive-component comparison showing each part’s circuit role, IoT use, typical value range, and required power, voltage, or saturation-current check. — Figure 12.4: Resistors, capacitors, and inductors must be selected by circuit job, nominal value, and the rating that limits safe operation.

Read Figure 12.4 from resistor to capacitor and inductor. A resistor limits current, but its $I^2R$ loss must stay below the package power rating. A smoothing capacitor stores charge and needs voltage margin. The shown two-times rule gives $2\times3.3\ \text{V}=6.6\ \text{V}$ for a 3.3 V rail. An inductor stores field energy, so its current limit must exceed the largest expected current. These parts fail for different reasons. Start with the circuit job and value, then reject any part whose power, voltage, or current rating cannot cover the real case.

Inspect Figure 12.5 with Iron Core and Variable in mind. Look at how it presents inductors store energy in magnetic fields and are critical for switching power supplies, EMI filtering, and sensor signal conditioning. The core material and geometry determine frequency response and saturation characteristics important for IoT power management before applying essential active components.

Inductor types include air, iron and ferrite cores plus a variable inductor. A table compares inductance, applications and frequency, followed by the inductance formula. — Figure 12.5: Inductors store energy in magnetic fields and are critical for switching power supplies, EMI filtering, and sensor signal conditioning. The core material and geometry determine frequency response and saturation characteristics important for IoT power management.

Trace Figure 12.5 by comparing Inductor Types with the Iron Core branch, then use Variable to separate an adjustable part from a fixed winding. The IEC Symbol is the schematic counterpart to those physical forms. Core material and geometry change frequency response and saturation, so the drawing leads into a datasheet check for inductance, current rating, loss, and adjustment range rather than a choice based on the coil’s appearance.

Bring the visual evidence in Figure 12.6 into essential active components. Its purpose is to reveal understanding resistor schematic symbols enables quick circuit reading. Standard fixed resistors use the zigzag symbol, while variable resistors show an arrow. Temperature-sensitive thermistors and light-sensitive photoresistors have distinctive markings indicating their sensor functionality before a design claim is accepted.

Resistor symbols compare fixed IEC and IEEE forms, variable potentiometer and rheostat forms, and a light-dependent resistor. A legend distinguishes standards and connection leads. — Figure 12.6: Resistor symbols compare fixed IEC and IEEE forms, variable potentiometer and rheostat forms, and a light-dependent resistor.

In Figure 12.6, Resistor Symbols establishes the first electrical role, while IEC Symbol marks the contrasting role and Variable supplies the operating detail. Those labels show understanding resistor schematic symbols enables quick circuit reading. Standard fixed resistors use the zigzag symbol, while variable resistors show an arrow. Temperature-sensitive thermistors and light-sensitive photoresistors have distinctive markings indicating their sensor functionality. This connects the visual to essential active components by making the relevant component behaviour part of the design check.

Inspect this evidence before proceeding: Figure 12.7 deserves inspection now because essential active components depends on its concrete account of different resistor types suit various IoT applications. Carbon film resistors offer low cost for general use, metal film provides better precision for sensor circuits, surface mount enables compact PCB designs, and wirewound resistors handle high-power applications like current sensing.

Geometric comparison of resistor package types showing carbon film axial resistor with color bands, metal film precision resistor, surface mount chip resistor with size codes, and high-power wirewound resistor for current sensing applications — Figure 12.7: Different resistor types suit various IoT applications. Carbon film resistors offer low cost for general use, metal film provides better precision for sensor circuits, surface mount enables compact PCB designs, and wirewound resistors handle high-power applications like current sensing.

The diagram in Figure 12.7 starts with Types of Resistors, but the useful split is between Color bands indicate resistance value and Power Resistors. Colour bands help identify a through-hole value; the power-resistor branch warns that value alone does not establish safe dissipation. That distinction carries the component survey into two separate checks: resistance and tolerance for signal paths, then package and wattage for current-sensing or load duties.

12.9.3.3 Common IoT Circuit Patterns

These circuit patterns address many common IoT interface challenges:

Circuit Pattern	Purpose	When to Use	Formula/Notes
Voltage Divider	Scale voltage down	Sensor output > ADC range, 5V→3.3V level shift	Vout = Vin × (R2 / (R1 + R2))
Pull-up Resistor	Ensure defined logic HIGH	I2C, open-drain outputs, buttons	4.7kΩ-10kΩ typical, lower for faster switching
Pull-down Resistor	Ensure defined logic LOW	GPIO floating inputs, reset pins	10kΩ-100kΩ typical
Decoupling Capacitor	Reduce power supply noise	Every IC power pin	100nF ceramic + 10µF electrolytic
Level Shifter	Bidirectional 3.3V ↔ 5V	I2C, SPI, UART voltage mismatch	Use BSS138 MOSFET or TXS0108E IC
Current Limiting (LED)	Prevent LED burnout	All LED circuits	R = (Vsupply - Vf) / Iled
Flyback Diode	Suppress inductive kickback	Motors, relays, solenoids	1N4001-1N4007 across coil
RC Low-Pass Filter	Remove high-frequency noise	Analog sensor inputs	fc = 1 / (2π × R × C)

12.9.3.4 Quick IoT Component Selection Guide

For Beginners - Start Here:

Goal	Component Combo	Example Circuit
Status indicator	LED + Resistor	GPIO → 220Ω resistor → LED → GND
Speed control	Transistor + Motor	GPIO → 1kΩ → NPN base, Motor between Vcc and collector
Stable power	Capacitor + Regulator	Battery → AMS1117-3.3 → 10µF cap → ESP32
Sensor interface	Voltage divider	5V sensor → 10kΩ → ADC pin → 10kΩ → GND
High-current load	MOSFET + Gate resistor	GPIO → 100Ω → MOSFET gate, Load between Vcc and drain

12.9.3.5 Selection Workflow: Component Rating Guidelines

Critical Safety Rules - Prevent Component Damage:

Parameter	Selection Rule	Example	Why It Matters
Voltage Rating	Choose ≥ 2× expected voltage	12V supply → use 25V+ capacitor	Voltage spikes can exceed nominal
Current Rating	Choose ≥ 1.5× expected current	1A motor → use 1.5A+ transistor	Prevent overheating and failure
Power Rating (Watts)	Must exceed P = I² × R or P = V × I	5V, 20mA LED → R=150Ω → P=0.06W → use 1/8W (0.125W) resistor	Insufficient rating → burnout
Temperature Rating	Match environment	Outdoor sensor: -40°C to +85°C rated components	Consumer-grade (0-70°C) fails in harsh conditions
Package Size	Consider PCB design	0402, 0805 (SMD) or through-hole	Smaller = harder to hand-solder

Real-World Temperature Derating:

Commercial: 0°C to 70°C (indoor IoT devices)
Industrial: -40°C to 85°C (outdoor sensors, automotive)
Military: -55°C to 125°C (extreme environments)

Common Mistakes to Avoid:

Wrong: “Any resistor will work.” Fix: calculate exact value and power rating.
Wrong: using a 5V sensor with a 3.3V ADC directly. Fix: add a voltage divider or level shifter.
Wrong: connecting a motor directly to GPIO. Fix: use a transistor/MOSFET switch.
Wrong: forgetting the flyback diode on a relay. Fix: add a 1N4007 across the coil.
Wrong: no decoupling capacitor on an MCU. Fix: add 100nF at each Vcc pin.

12.9.3.6 Quick Component Calculations

Use the calculations as three different interface checks. For the LED, subtract the diode’s forward voltage before choosing a resistor, round to an available value that stays within GPIO and LED current limits, and verify dissipation. For the divider, solve the ratio but also check source impedance, ADC loading, tolerance, and transient overvoltage before calling 3.31 V safe. For decoupling, the charge estimate links current, event duration, and allowed droop, but layout, capacitor impedance, regulator response, and a measured rail transient decide the practical value. Carry units through every step and record the operating state; a neat nominal answer is not evidence that the installed circuit meets its electrical contract.

LED Current Limiting:

Step	Calculation
Given	ESP32 GPIO = 3.3V, red LED Vf = 2.0V, desired current = 10mA
Resistor	R = (Vsupply - Vf) / I = (3.3 - 2.0) / 0.010 = 130Ω
Standard value	Use 150Ω
Power	P = I² × R = (0.01)² × 150 = 0.015W, so a 1/8W resistor is sufficient

Voltage Divider for 5V→3.3V:

Step	Calculation
Given	5V sensor output, 3.3V maximum ADC input
Formula	Vout = Vin × (R2 / (R1 + R2))
Target	3.3 = 5 × (R2 / (R1 + R2))
Choose values	R2 = 10kΩ, R1 = 5.15kΩ, use 5.1kΩ standard value
Verify	5 × (10k / (5.1k + 10k)) = 3.31V

Decoupling Capacitor Value:

Step	Calculation
Rule of thumb	C = I × t / ΔV
Example	MCU draws 100mA for a 10ns switching transient, allow 0.1V droop
Result	C = 0.1 × 10×10⁻⁹ / 0.1 = 10nF
Practical choice	Use 100nF for safety margin

Knowledge Check: Quick Component Calculations

Before applying the specification, inspect Figure 12.9 as a real cable and conductor installation below.

Real photograph of wire / cable (conductor types) — Figure 12.9: This real example (Wire cable tray01) shows a physical form of wire / cable (conductor types). Use the visible package, interfaces, scale, mounting, and surrounding context as evidence; a catalogue label alone does not establish deployment fit. Photo: Leotard; Public domain

Read Figure 12.9 from the individual conductors to the supported cable route. Insulation keeps neighbouring current paths separate, while the tray controls bend, weight, access, and physical protection across the installation. The photograph cannot establish conductor area, insulation rating, shielding, temperature class, or allowable fill, so those claims still come from markings, drawings, and product data. Its engineering value is contextual: it reminds the component discussion that a wire choice becomes an installed system with terminations, grouping, heat, maintenance access, and environmental exposure. The selected conductor and insulation must satisfy that whole route, not merely carry a bench current.

Voltage Vera, Electronics measurement and prototyping expert

Checkpoint: Component Calculations

You now know:

A 10kΩ pull-up with a 100nF capacitor gives a 1 ms time constant, and 5τ reaches 99.3% after 5 ms.
The 5V to 3.3V divider example uses 10kΩ and 5.1kΩ and verifies about 3.31V.
The LED example chooses 150Ω and dissipates 0.015W, so a 1/8W resistor is sufficient.

12.9.3.7 Interactive Component Calculators

Use the sliders below to calculate LED resistor values, voltage divider outputs, and RC time constants in real time.

LED Current-Limiting Resistor Calculator:

Voltage Divider Calculator:

RC Time Constant Calculator:

Component Selection Summary Table:

Scenario	Recommended Components	Key Specs	Notes
Low-current indicator (<20mA)	Standard LED + resistor	220Ω-1kΩ, 1/8W	Simple and reliable
Medium current load (100mA-1A)	NPN transistor (2N2222)	Ic=800mA, hFE>100	Add base resistor
High current load (>1A)	Logic-level N-MOSFET	RDS(on)<0.1Ω, Vgs(th)<2.5V	IRF540, IRLZ44N
Inductive load (motor, relay)	MOSFET + flyback diode	1N4007 diode	Prevents voltage spikes
3.3V from battery (low noise)	Linear LDO regulator	AMS1117-3.3, 1A max	Simple, low noise
3.3 V from battery (efficient)	Buck converter	TPS62130; check its efficiency curve at the chosen input voltage and load	Potentially longer battery life
Sensor signal amplification	Low-power op-amp	LM358 (general), MCP6002 (rail-to-rail)	Single supply compatible
5V↔3.3V bidirectional	Logic level shifter IC	TXS0108E, BSS138	I2C, SPI safe conversion

Pro Tips for Component Selection:

Start with reference designs: Most sensor/module datasheets include recommended circuits
Use standard values: Resistors (E12 series: 10, 12, 15, 18, 22, 27, 33, 39, 47, 56, 68, 82)
Buy assortment kits: Get common values (resistors, capacitors, transistors) for prototyping
Check package availability: Through-hole for breadboarding, SMD for final PCB
Read the datasheet: Absolute maximum ratings, recommended operating conditions, typical circuits

Generic IoT Device Architecture

Every IoT device follows a similar block architecture, regardless of whether it’s a simple sensor node or complex gateway:

Use Figure 12.8 as the checkpoint for this section: it shows the six subsystems of a generic IoT device before the components inside them are discussed.

Figure 12.8: IoT device subsystem reference chart showing Wireless Transceiver, Energy Management, Microcontroller, Memory, Mixed-Signal, and Sensors/Actuators roles and examples

Read Figure 12.8 as a map of a generic IoT device: the wireless transceiver with its antenna and RF front end, energy management with its battery and solar input, the microcontroller, memory, the mixed-signal stage, and the sensors and actuators. Conductor traces on the board connect these subsystems, which is why every component choice in the rest of this section is tied back to one of these six blocks.

Subsystem Functions:

Subsystem	Function	Power Consumption	Example Components
Wireless Transceiver	RF communication	10-100mA (TX), 5-20mA (RX)	ESP32 Wi-Fi, SX1276 LoRa, nRF52 BLE
Microcontroller	Program execution, logic	1-50mA (active), 1-50µA (sleep)	ARM Cortex-M0/M4, ESP32, ATmega
Memory	Code and data storage	Included in MCU	Flash (program), SRAM (data)
Energy Management	Voltage regulation, charging	1-10µA overhead	LDO, DC-DC converter, PMIC
Mixed-Signal	ADC, DAC, comparators	10-100µA per channel	Built into MCU or external ICs
Sensors/Actuators	Physical world interface	1µA - 100mA (varies widely)	BME280, DHT22, motors, LEDs

Real Numbers - Ultra-Low-Power Design:

With a 1000mAh battery and 11.4µA average sleep current:

Battery Life = 1000mAh / 0.0114mA = 87,719 hours = 10 years

This is achievable when:

Sleep mode 99.9% of time
Wake briefly (100 ms) every 15 minutes
Transmit data once per hour

12.10 Continue to the Next Part

This section: Continue to the Next Part — Carry this evidence into Component Architecture: Capacitors and Selection, which begins with Checkpoint: Architecture and Power.

Carry this evidence into Component Architecture: Capacitors and Selection, which begins with Checkpoint: Architecture and Power.

Find help

Search reviewed answers

3 reviewed answers.

Where should I start in a module?

Open the module page from the sidebar to see its chapters in order. Use the module map to return to a topic you need.

Modules and paths

Reviewed 2026-10-16

What can I try when a project does not work?

Check the symptom, then work through the diagnostic steps. Keep the error message and the smallest example that reproduces it.

When you are stuck

Reviewed 2026-10-16

How do interactive examples work?

Use the interactive guide to check how examples and simulations work before changing your project.

Interactive examples guide

Reviewed 2026-10-16
