Classify supplied synthetic device traffic patterns

Tune a transparent camera-candidate classifier on synthetic packet metadata and score unseen traces with false positives visible.

Radio Remi, your practice guide

Radio Remi
Radio Remi: predict first, inspect every intermediate value, and keep the claim inside the evidence.
Predict the reading, then compare it with the measurement.

Python 3 in your browser (JupyterLite)

Python · no install

Tier 2 · Web · paste-in setup · No account

Last tested September 2026.

Open the notebook in your browser and run each Python cell; no install or account is needed.

Three ways to run: use JupyterLite here with no install; run main.py locally from the downloadable lab folder; or open the same notebook in Google Colab.

Open in your browser (new tab)

Steps

The tool may have moved on since the screenshots were taken — the text steps are the contract.

  1. 1 Step 1

    Do
    In the JupyterLite notebook, run the Step 1 cell to predict how a camera, phone, and smart plug might differ.
    You will see

    Run the cell. You should see:

    • seed=437; classes=camera, phone, smart-plug
    • 32 synthetic packets per trace; 8 traces per class
    • No live packets, payloads, MAC addresses, or target network.
    Why it matters
    Expected: the seeded fixture creates three metadata classes with eight traces each. The code run reports seed 437 and 32 packets per trace. This fixes a reproducible synthetic comparison before classification. Limit: there are no live packets or device identities.
    Code for step 1
    import platform
    import pyodide
    print(f"Runtime: Python {platform.python_version()} / Pyodide {pyodide.__version__}")

    """Classify generated packet metadata; no payload, address, or live network capture."""

    import argparse

    import random

    import statistics

    SEED = 437

    CLASSES = ('camera', 'phone', 'smart-plug')

    def make_trace(kind, seed):
        rng = random.Random(seed)
        count = 32
        if kind == 'camera':
            sizes = [max(64, int(rng.gauss(1050, 120))) for _ in range(count)]
            gaps = [max(0.01, rng.gauss(0.12, 0.025)) for _ in range(count)]
            uplink = [rng.random() < 0.9 for _ in range(count)]
        elif kind == 'phone':
            sizes = [max(64, int(rng.gauss(600 if i % 5 else 1100, 270))) for i in range(count)]
            gaps = [rng.uniform(0.05, 0.8) for _ in range(count)]
            uplink = [rng.random() < 0.55 for _ in range(count)]
        else:
            sizes = [max(40, int(rng.gauss(115, 25))) for _ in range(count)]
            gaps = [max(0.1, rng.gauss(3.0, 0.3)) for _ in range(count)]
            uplink = [rng.random() < 0.65 for _ in range(count)]
        return {'kind': kind, 'sizes': sizes, 'gaps': gaps, 'uplink': uplink}

    def features(trace):
        return (statistics.median(trace['sizes']), statistics.pstdev(trace['gaps']) / statistics.mean(trace['gaps']), sum(trace['uplink']) / len(trace['uplink']))

    def classify(trace, size_floor=800, uplink_floor=0.75):
        size, gap_cv, uplink = features(trace)
        if size < 250:
            return 'smart-plug'
        if size >= size_floor and uplink >= uplink_floor and gap_cv < 0.5:
            return 'camera'
        return 'phone'

    def fixtures(offset=0):
        return [make_trace(kind, SEED + offset + row * 37 + class_index * 1000) for class_index, kind in enumerate(CLASSES) for row in range(8)]

    def score(rows, floor=800):
        predictions = [(row['kind'], classify(row, size_floor=floor)) for row in rows]
        tp = sum(actual == predicted == 'camera' for actual, predicted in predictions)
        fp = sum(actual != 'camera' and predicted == 'camera' for actual, predicted in predictions)
        fn = sum(actual == 'camera' and predicted != 'camera' for actual, predicted in predictions)
        return tp, fp, fn, tp / (tp + fp or 1), tp / (tp + fn or 1)

    def step_1():
        return ['STEP 1 | predict before classification', 'Predict: streaming camera has larger regular uplink bursts.', f'seed={SEED}; classes={", ".join(CLASSES)}', '32 synthetic packets per trace; 8 traces per class', 'No live packets, payloads, MAC addresses, or target network.']

    lines = step_1()
    assert 4 <= len(lines) <= 15
    print("\n".join(lines))

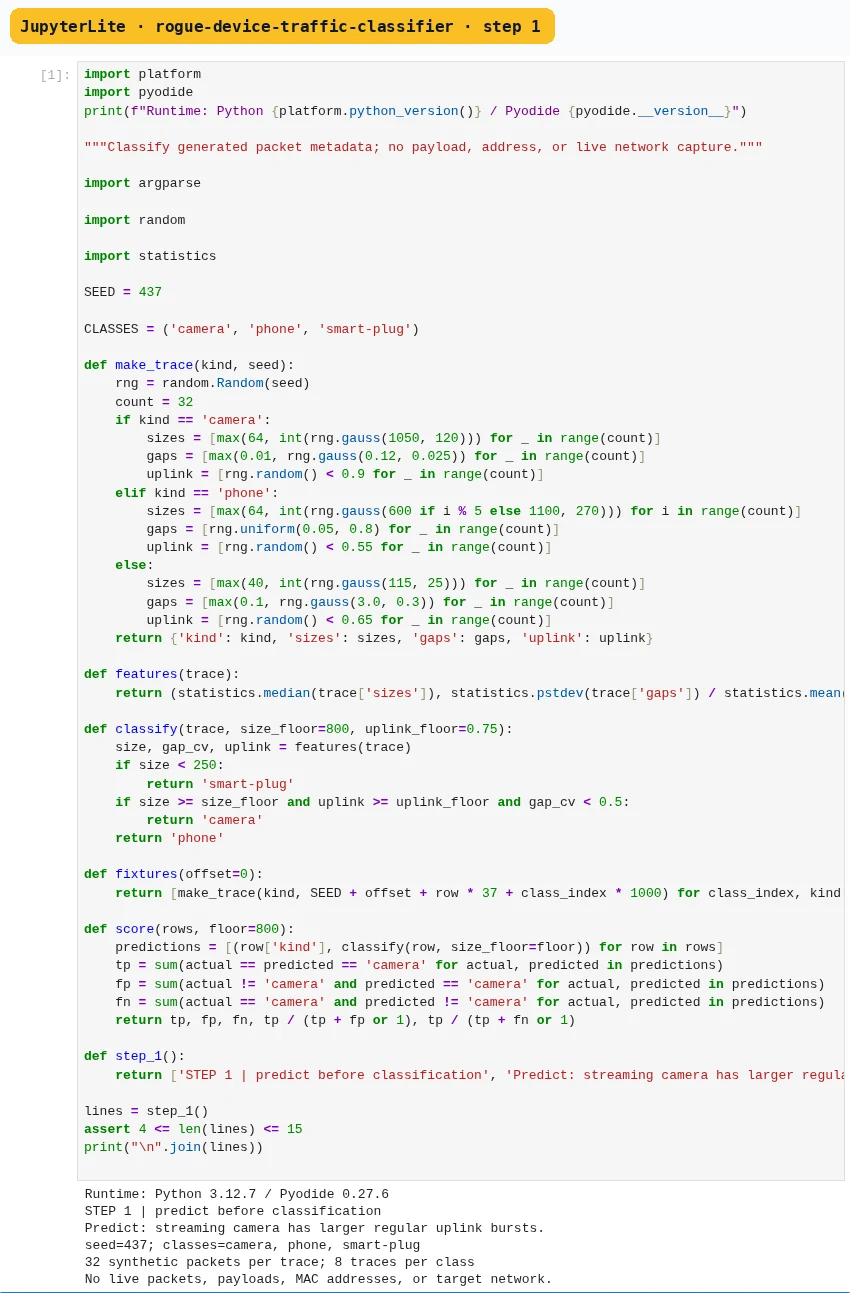

    JupyterLite rogue-device-traffic-classifier step 1: its executed cell and printed evidence.
    Step 1 · Python 3 in your browser (JupyterLite); numbered callout added to a real capture.
  2. 2 Step 2

    Do
    In the JupyterLite notebook, run the Step 2 cell to generate packet sizes and time gaps for each class.
    You will see

    Run the cell. You should see:

    • camera [996, 1039, 1068] [0.11, 0.15, 0.15]
    • phone [1197, 1059, 203] [0.51, 0.73, 0.68]
    • smart-plug [71, 113, 85] [2.76, 3.6, 3.15]
    Why it matters
    Expected: generated classes have distinct packet-size and timing patterns. These first three sizes and gaps are the exact seed-437 run output. The displayed cues are available from metadata alone in this fixture. Limit: generated distributions do not establish real device behavior.
    Code for step 2
    def step_2():
        rows = []
        for i, kind in enumerate(CLASSES):
            sample = make_trace(kind, SEED + i * 1000)
            rows.append(f'{kind:<10} {str(sample["sizes"][:3]):<22} {[round(x, 2) for x in sample["gaps"][:3]]}')
        return ['STEP 2 | generate the metadata', 'class      first sizes (bytes)    first gaps (seconds)', *rows, 'Values are generated with stated class-specific distributions.']

    lines = step_2()
    assert 4 <= len(lines) <= 15
    print("\n".join(lines))

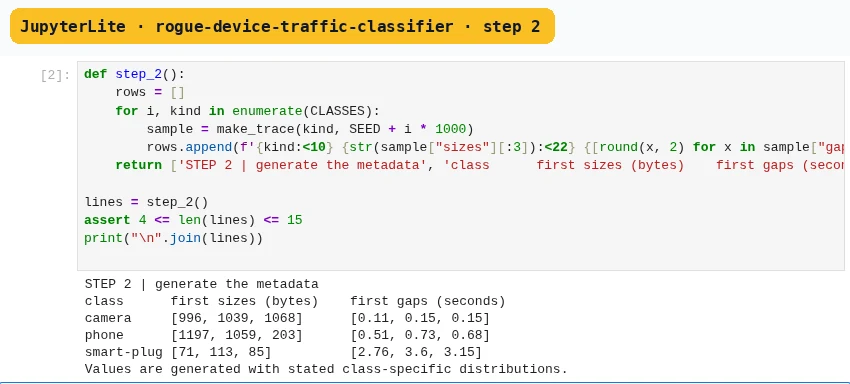

    JupyterLite rogue-device-traffic-classifier step 2: its executed cell and printed evidence.
    Step 2 · Python 3 in your browser (JupyterLite); numbered callout added to a real capture.
  3. 3 Step 3

    Do
    In the JupyterLite notebook, run the Step 3 cell to calculate median size, gap variation, and uplink share.
    You will see

    Run the cell. You should see:

    • camera 1019 0.19 0.94
    • phone 664 0.53 0.59
    • smart-plug 111 0.09 0.62
    Why it matters
    Expected: camera, phone, and smart-plug fixtures differ in median size, gap CV, and uplink share. The run printed the three feature rows shown at left. These are transparent decision inputs for the later threshold rule. Limit: feature separation here is not a device fingerprint guarantee.
    Code for step 3
    def step_3():
        return ['STEP 3 | compute transparent features', 'class      median bytes  gap CV   uplink share', *[f'{kind:<10} {features(make_trace(kind,SEED+i*1000))[0]:>7.0f}       {features(make_trace(kind,SEED+i*1000))[1]:.2f}      {features(make_trace(kind,SEED+i*1000))[2]:.2f}' for i, kind in enumerate(CLASSES)], 'CV = standard deviation of gaps / mean gap.']

    lines = step_3()
    assert 4 <= len(lines) <= 15
    print("\n".join(lines))

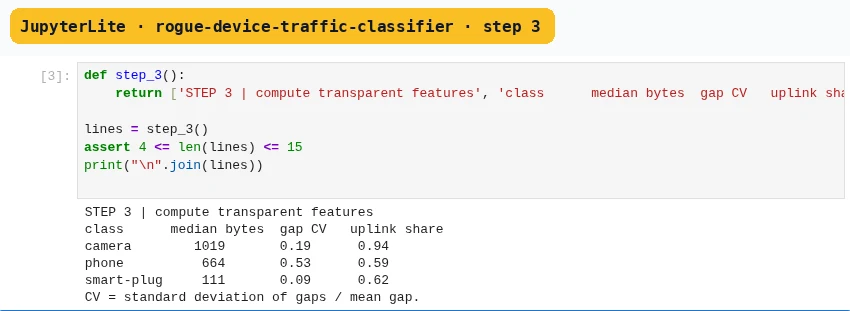

    JupyterLite rogue-device-traffic-classifier step 3: its executed cell and printed evidence.
    Step 3 · Python 3 in your browser (JupyterLite); numbered callout added to a real capture.
  4. 4 Step 4

    Do
    In the JupyterLite notebook, run the Step 4 cell to tune one size threshold using training traces only.
    You will see

    Run the cell. You should see:

    • floor=650 bytes: TP=8 FP=0 FN=0
    • floor=800 bytes: TP=8 FP=0 FN=0
    • floor=950 bytes: TP=8 FP=0 FN=0
    Why it matters
    Expected: training fixtures show the trade-off for each tested size floor. All three floors classify 8 camera traces with zero training FP or FN. The notebook chooses 800 bytes before opening the held-out fixture. Limit: tuning and scoring still use synthetic generated traces.
    Code for step 4
    def step_4():
        train = fixtures()
        return ['STEP 4 | tune one camera threshold on training traces', 'rule: median size ≥ floor, uplink share ≥ 0.75, gap CV < 0.50', *[f'floor={floor} bytes: TP={score(train,floor)[0]} FP={score(train,floor)[1]} FN={score(train,floor)[2]}' for floor in (650, 800, 950)], 'Choose 800 bytes before opening the held-out fixture.']

    lines = step_4()
    assert 4 <= len(lines) <= 15
    print("\n".join(lines))

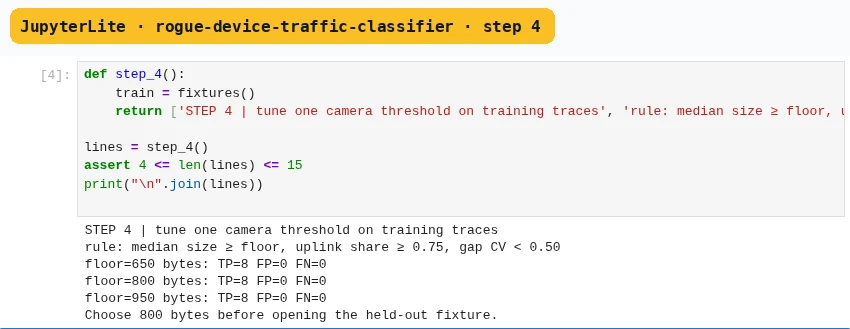

    JupyterLite rogue-device-traffic-classifier step 4: its executed cell and printed evidence.
    Step 4 · Python 3 in your browser (JupyterLite); numbered callout added to a real capture.
  5. 5 Step 5

    Do
    In the JupyterLite notebook, run the Step 5 cell to score the chosen rule on held-out synthetic traces.
    You will see

    Run the cell. You should see:

    • camera TP=8; FP=0; FN=0
    • precision=1.000; recall=1.000
    • held-out traces=24; seed offset=90000
    Why it matters
    Expected: the held-out fixture contains 24 traces and prints its classification counts. The run reports eight true positives and no FP or FN. Precision and recall are both 1.000 for these generated traces. Limit: this score is not real-room device identification.
    Code for step 5
    def step_5():
        tp, fp, fn, precision, recall = score(fixtures(90_000))
        return ['STEP 5 | score unseen synthetic traces', f'camera TP={tp}; FP={fp}; FN={fn}', f'precision={precision:.3f}; recall={recall:.3f}', f'held-out traces={len(fixtures(90_000))}; seed offset=90000', 'A fixture score is not device identification in a real room.']

    lines = step_5()
    assert 4 <= len(lines) <= 15
    print("\n".join(lines))

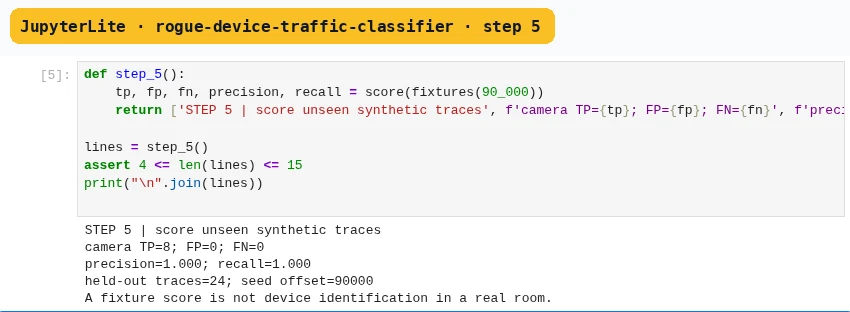

    JupyterLite rogue-device-traffic-classifier step 5: its executed cell and printed evidence.
    Step 5 · Python 3 in your browser (JupyterLite); numbered callout added to a real capture.
  6. 6 Step 6

    Do
    In the JupyterLite notebook, run the Step 6 cell to stress an upload-heavy phone case.
    You will see

    Run the cell. You should see:

    • altered median=1209 bytes
    • altered uplink share=1.00
    • prediction=camera; true class=phone
    Why it matters
    Expected: upload-heavy phone metadata may cross the camera thresholds. The stress case predicts camera for the altered phone fixture. This demonstrates a false-positive mode under shifted traffic. Limit: any real decision needs independent authorized checks.
    Code for step 6
    def step_6():
        altered = make_trace('phone', SEED + 55000)
        altered['sizes'] = [size + 500 for size in altered['sizes']]
        altered['gaps'] = [0.12 + 0.01 * (i % 3) for i in range(len(altered['gaps']))]
        altered['uplink'] = [True] * len(altered['uplink'])
        return ['STEP 6 | stress an upload-heavy phone', f'altered median={features(altered)[0]:.0f} bytes', f'altered uplink share={features(altered)[2]:.2f}', f'prediction={classify(altered)}; true class=phone', 'False positives need independent authorised checks.']

    lines = step_6()
    assert 4 <= len(lines) <= 15
    print("\n".join(lines))

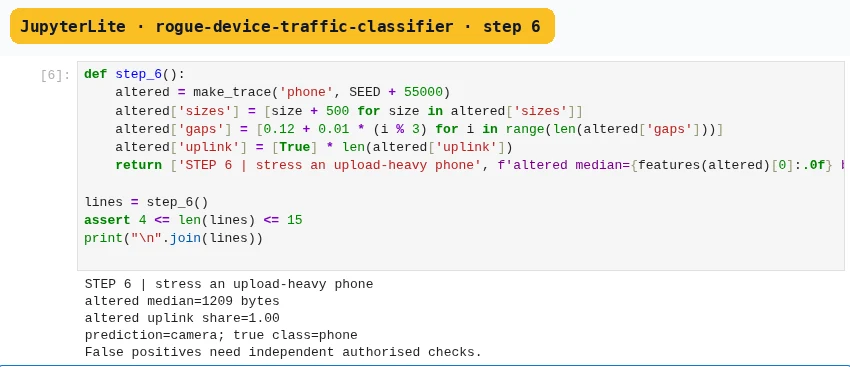

    JupyterLite rogue-device-traffic-classifier step 6: its executed cell and printed evidence.
    Step 6 · Python 3 in your browser (JupyterLite); numbered callout added to a real capture.
  7. 7 Step 7

    Do
    In the JupyterLite notebook, run the Step 7 cell to write a candidate and lawful-use result card.
    You will see

    Run the cell. You should see:

    • method=size + gap CV + uplink thresholds; held-out precision=1.00
    • held-out recall=1.00; false positives=0; false negatives=0
    • decision=record candidate and seek independent authorised confirmation
    Why it matters
    Expected: the result card summarizes the fixture metrics and its boundary. The executed score is perfect on this held-out synthetic set. The result supports a candidate pattern for further authorized review. Limit: no real device or lawful capture was tested.
    Code for step 7
    def step_7():
        tp, fp, fn, precision, recall = score(fixtures(90_000))
        return ['STEP 7 | RESULT CARD', f'method=size + gap CV + uplink thresholds; held-out precision={precision:.2f}', f'held-out recall={recall:.2f}; false positives={fp}; false negatives={fn}', 'stress=upload-heavy phone can look camera-like', 'boundary=synthetic metadata; no real device or lawful capture tested', 'decision=record candidate and seek independent authorised confirmation']

    lines = step_7()
    assert 4 <= len(lines) <= 15
    print("\n".join(lines))

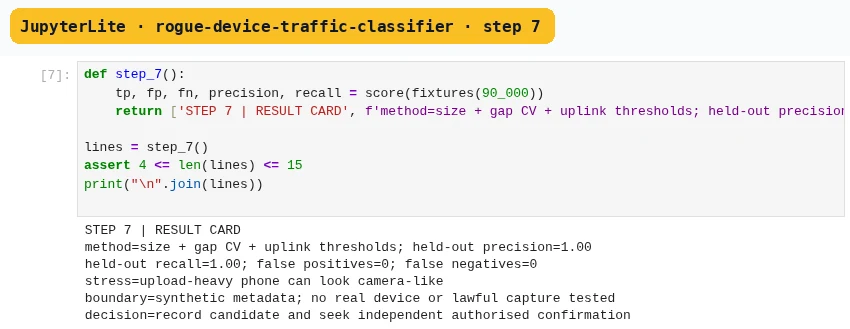

    JupyterLite rogue-device-traffic-classifier step 7: its executed cell and printed evidence.
    Step 7 · Python 3 in your browser (JupyterLite); numbered callout added to a real capture.

Chapter checks

These questions refer to the chapter’s examples. Use the return links to review their answers.

  1. What does a camera-like traffic classification establish?

    Return to the chapter’s knowledge check
  2. Why combine RF and optical checks during an authorised inspection?

    Return to the chapter’s knowledge check

Caution

Before you start

Read this before you start.

These generated fixtures prove calculations only. Reopen the prepared notebook if screens change; measured hardware, consent, and site evidence are required for a deployment claim.

Technical details
Version tested
Version tested: Python 3.12.7 / Pyodide 0.27.6 in JupyterLite 0.6.4; captureSource playwright:jupyterlite. Date: 2026-09-22.
Fixture and seed
  • Each notebook step runs with its stated deterministic fixture.
QR code that opens the Classify supplied synthetic device traffic patterns lab page
Open this lab online: https://iotclass.org/labs/rogue-device-traffic-classifier.html
