Review a synthetic HIL-style test log

Review a synthetic HIL-style log and distinguish its verdict counts from the evidence needed for a real hardware-in-the-loop release decision.

Record the input, rule, output and unresolved evidence before making a release or site decision., your practice guide

Record the input, rule, output and unresolved evidence before making a release or site decision.
Predict the reading, then compare it with the measurement.

Python 3 in your browser (JupyterLite)

Python · no install

Review a synthetic HIL-style log and distinguish its verdict counts from the evidence needed for a real hardware-in-the-loop release decision.

Tier 2 · Web · paste-in setup · No account

Version tested: Python 3.12.7 / Pyodide 0.27.6 in JupyterLite 0.6.4; Chromium 148.0.7778.96; captureSource playwright:jupyterlite. Date: 2026-10-08.

Open the notebook in your browser and run each Python cell; no install or account is needed.

Three ways to run: use JupyterLite here with no install; run main.py locally from the downloadable lab folder; or open the same notebook in Google Colab.

Open in your browser (new tab)

Steps

Screens captured against Python 3 in your browser (JupyterLite) Python 3.12.7 / Pyodide 0.27.6 in JupyterLite 0.6.4; Chromium 148.0.7778.96; captureSource playwright:jupyterlite on 2026-10-08; the tool may have moved on — the text steps are the contract.

  1. Step 1

    Do

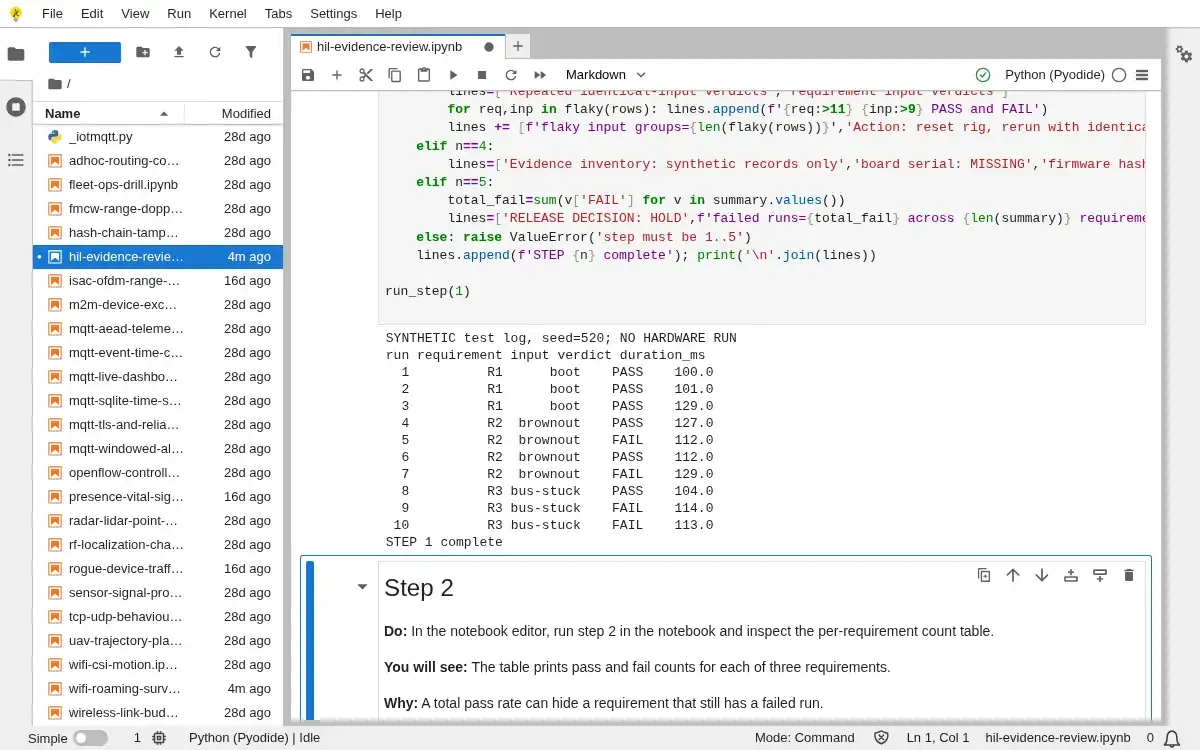

    In the notebook editor, run step 1 in the notebook and inspect the labelled synthetic test log.
    You will see
    The log shows requirement, input, verdict and duration for 10 seeded entries.
    Why it matters
    Requirement and input identifiers are necessary before a pass or fail rate can be interpreted.

  2. Step 2

    Do

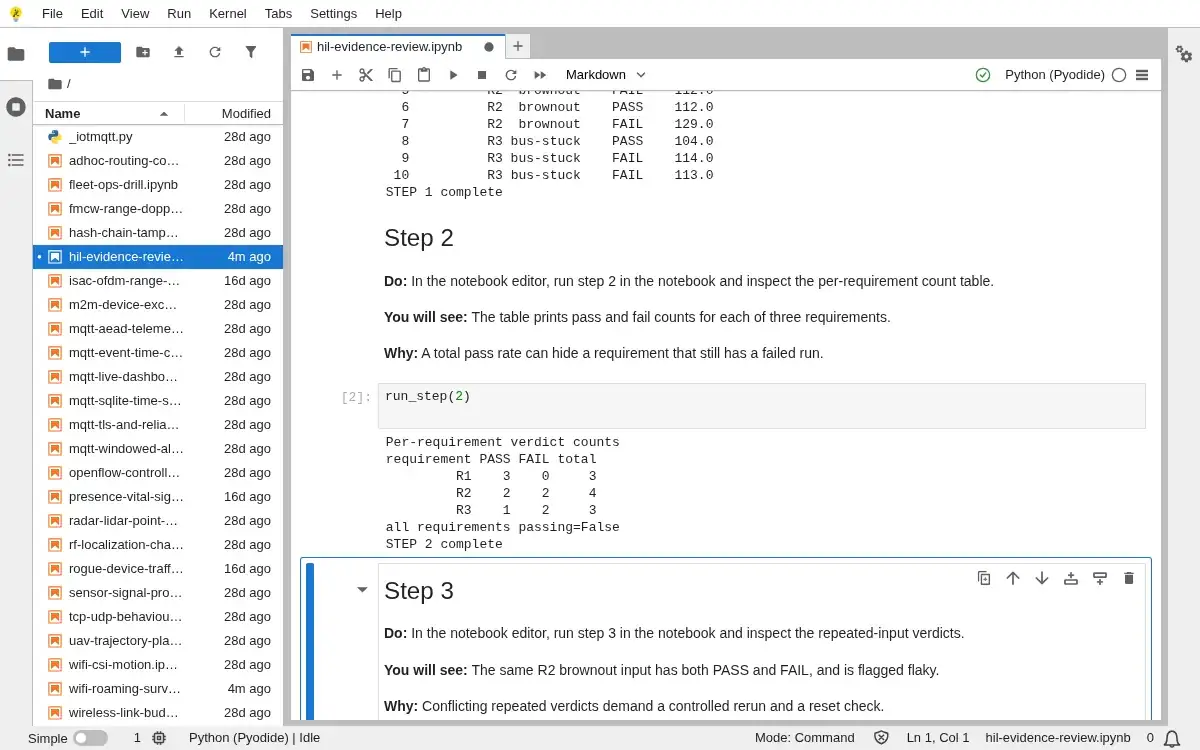

    In the notebook editor, run step 2 in the notebook and inspect the per-requirement count table.
    You will see
    The table prints pass and fail counts for each of three requirements.
    Why it matters
    A total pass rate can hide a requirement that still has a failed run.

  3. Step 3

    Do

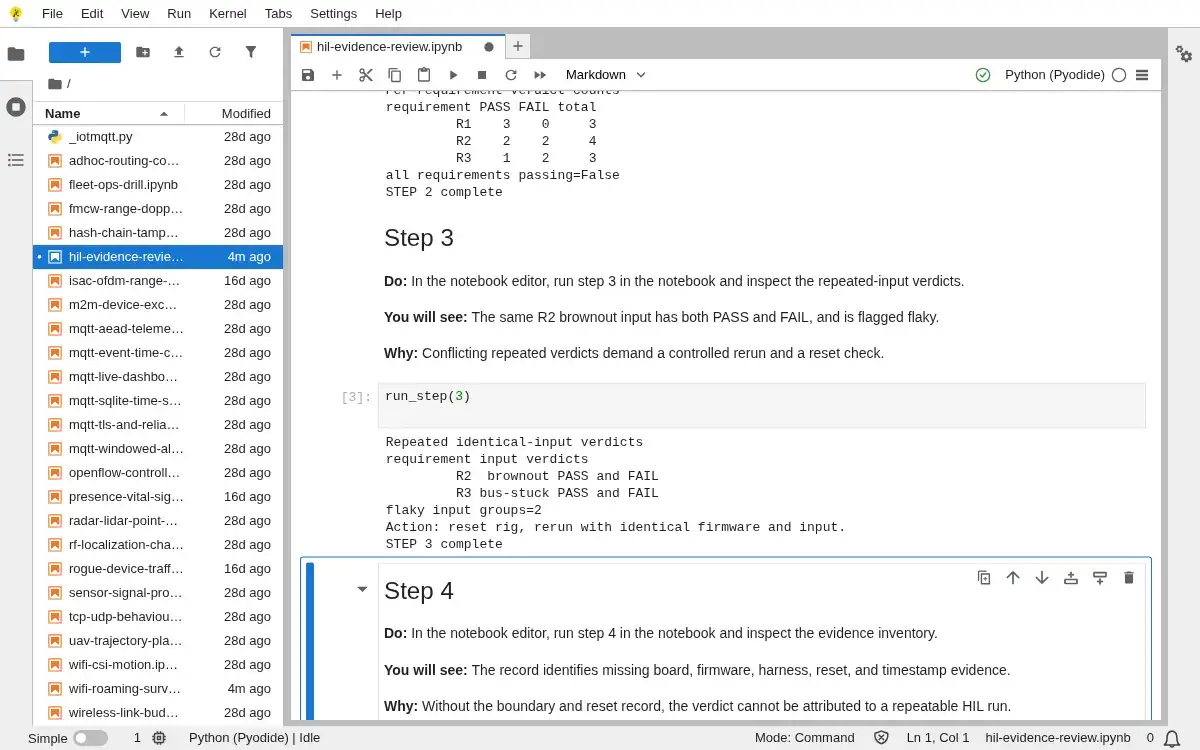

    In the notebook editor, run step 3 in the notebook and inspect the repeated-input verdicts.
    You will see
    The same R2 brownout input has both PASS and FAIL, and is flagged flaky.
    Why it matters
    Conflicting repeated verdicts demand a controlled rerun and a reset check.

  4. Step 4

    Do

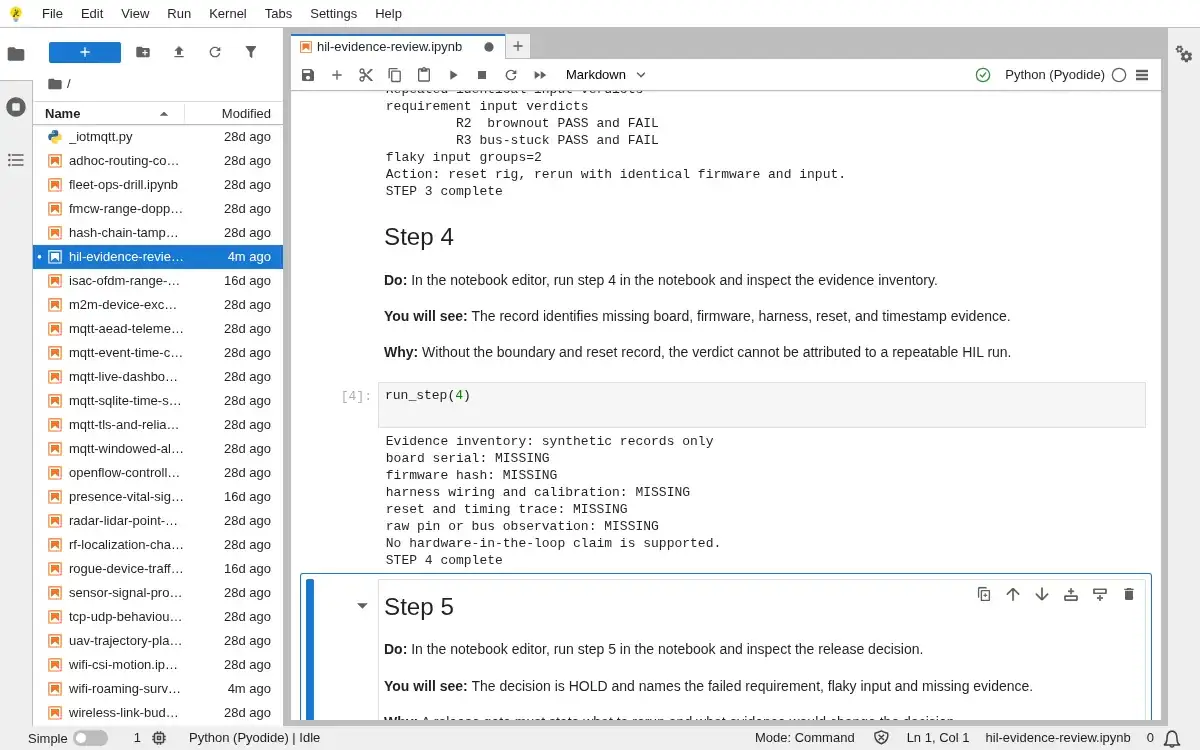

    In the notebook editor, run step 4 in the notebook and inspect the evidence inventory.
    You will see
    The record identifies missing board, firmware, harness, reset, and timestamp evidence.
    Why it matters
    Without the boundary and reset record, the verdict cannot be attributed to a repeatable HIL run.

  5. Step 5

    Do

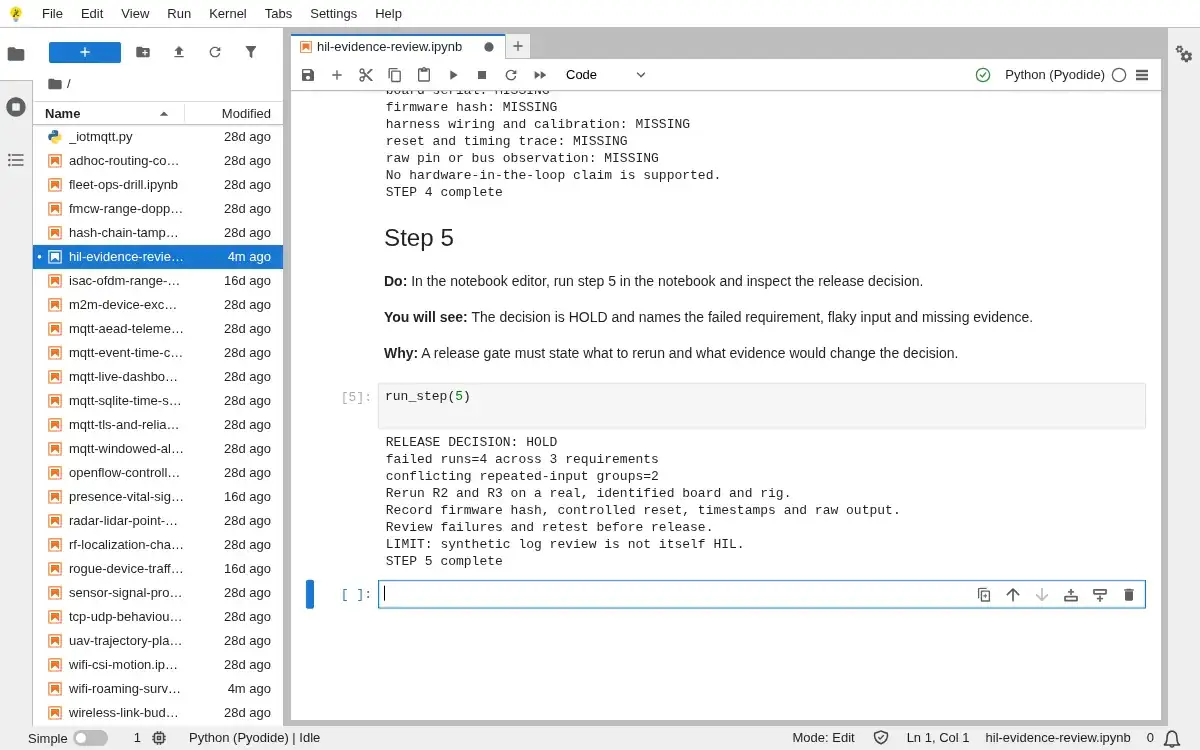

    In the notebook editor, run step 5 in the notebook and inspect the release decision.
    You will see
    The decision is HOLD and names the failed requirement, flaky input and missing evidence.
    Why it matters
    A release gate must state what to rerun and what evidence would change the decision.

Chapter checks

These questions refer to the chapter’s examples. Use the return links to review their answers.

  1. What distinguishes hardware-in-the-loop testing from running the firmware as a program on a developer's host machine?

    Return to the chapter’s knowledge check

  2. A HIL test reports that recovery after an interrupted operation works, but the rig cannot reliably return the device to a known state between runs. How should you treat the result?

    Return to the chapter’s knowledge check

Return to Hardware-in-the-Loop IoT Tests · Browse Labs
