Compare four domain requirement profiles

Use one workspace to compare consequence, latency, power, coverage, and governance needs across four IoT domains.

Packet Pete, your practice guide

Packet Pete
Predict the reading, then compare it with the measurement.

Cisco Packet Tracer

Desktop lab

Tier 3 · Install required · Cisco account required

Version tested: Cisco Packet Tracer 9.0.1 on Ubuntu 22.04 (Apptainer/Xvfb); project saved and reopened 2026-09-10. Date: 2026-09-10.

Install the tool; build from the steps. No file yet.

Download the Packet Tracer file

Need the app? Get Packet Tracer free from Cisco Networking Academy (free NetAcad login required).

Steps

Screens captured against Cisco Packet Tracer Cisco Packet Tracer 9.0.1 on Ubuntu 22.04 (Apptainer/Xvfb); project saved and reopened 2026-09-10 on 2026-09-10; the tool may have moved on — the text steps are the contract.

  1. Step 1

    Do

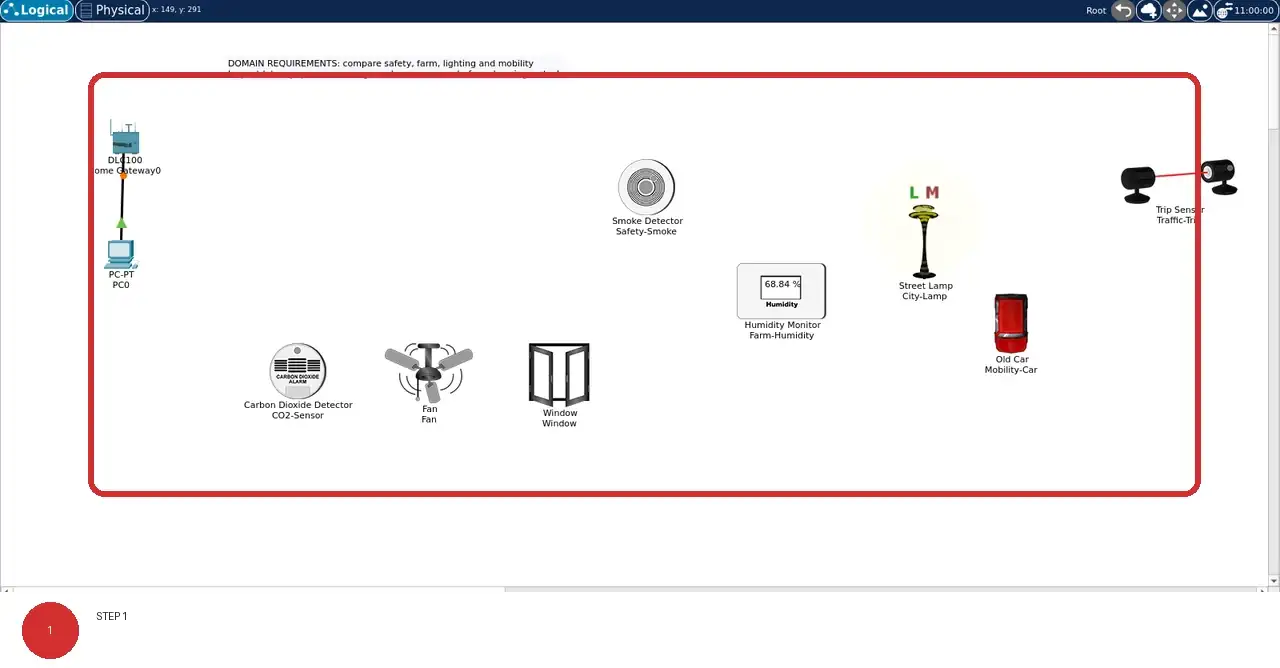

    Open lab.pkt in Packet Tracer and inspect the named Things in the Logical workspace.
    You will see
    Safety-Smoke, Farm-Humidity, City-Lamp, Mobility-Car, and Traffic-Trip represent four different jobs.
    Why it matters
    Naming each sensor, dependency, action, and evidence source makes the test boundary reproducible.

  2. Step 2

    Do

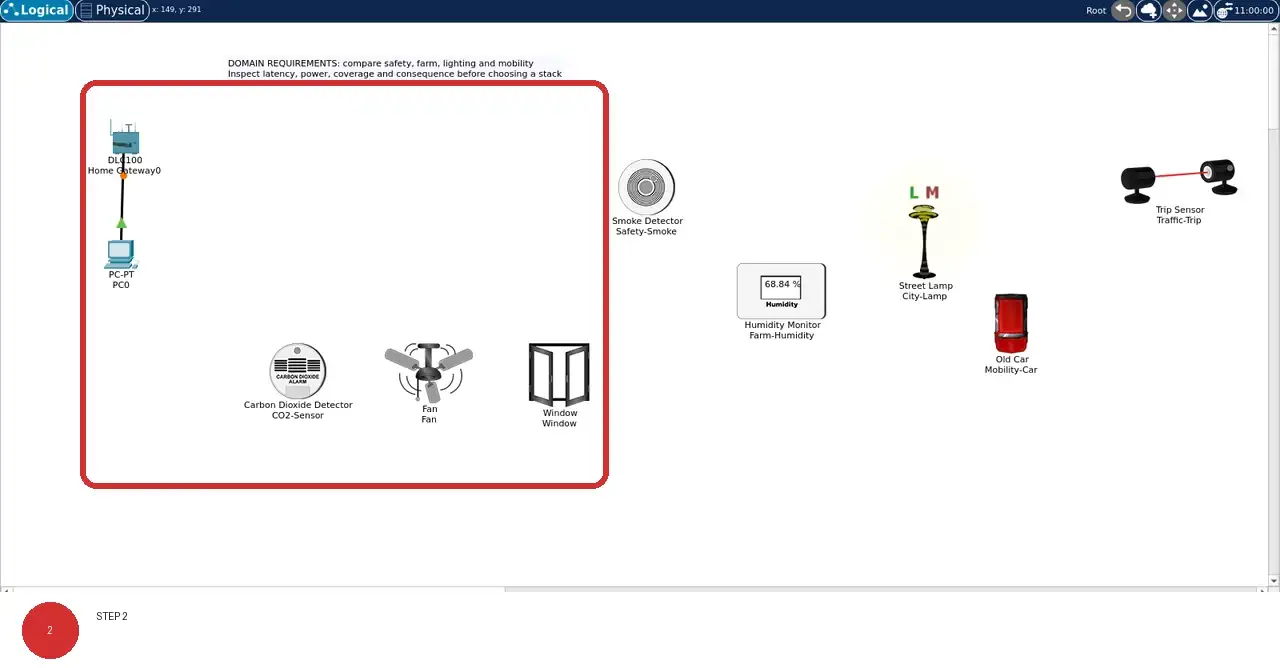

    On the Logical canvas, read the chapter-specific names beneath the devices and compare their roles.
    You will see
    The Logical canvas shows safety, agriculture, lighting, and mobility Things in this lab's named workspace.
    Why it matters
    Different physical jobs can share a network while still requiring different thresholds, safe states, and operating evidence.

  3. Step 3

    Do

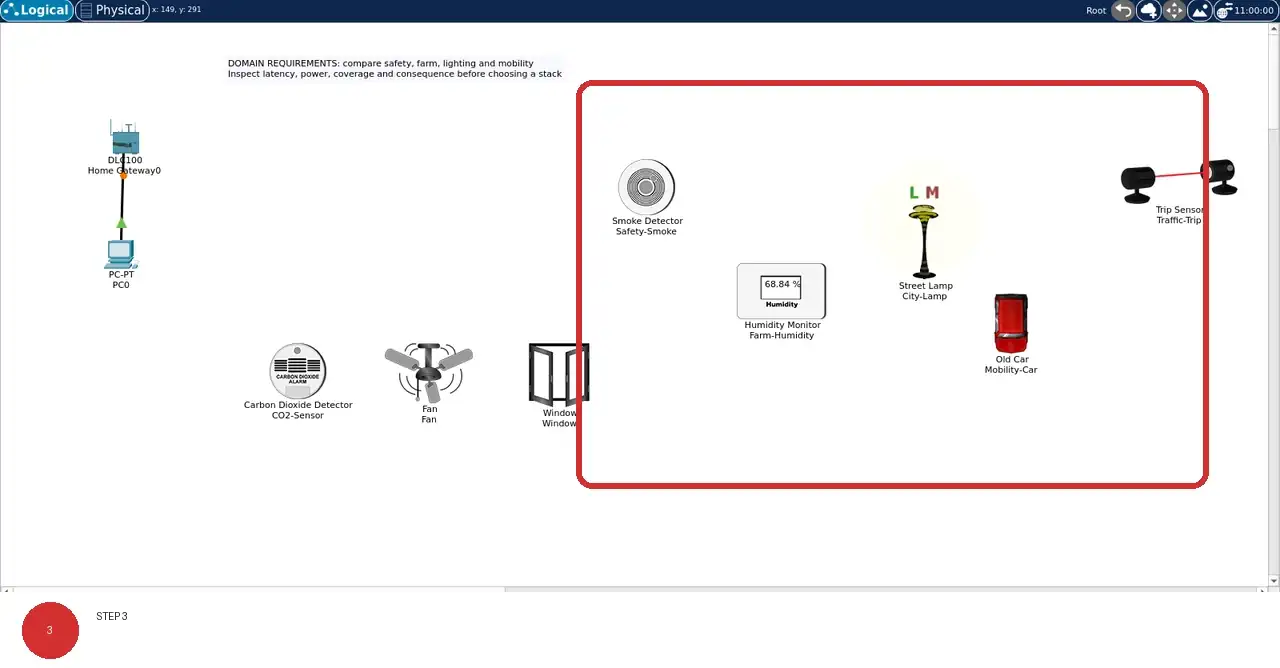

    On the Logical canvas, trace the solid PC0 cable and any visible dotted wireless associations back to Home Gateway0.
    You will see
    The solid black line connects PC0 to Home Gateway0; where dotted lines are visible, they mark wireless associations.
    Why it matters
    A visible association is evidence of topology, not by itself proof of authentication, registration, or delivery.

  4. Step 4

    Do

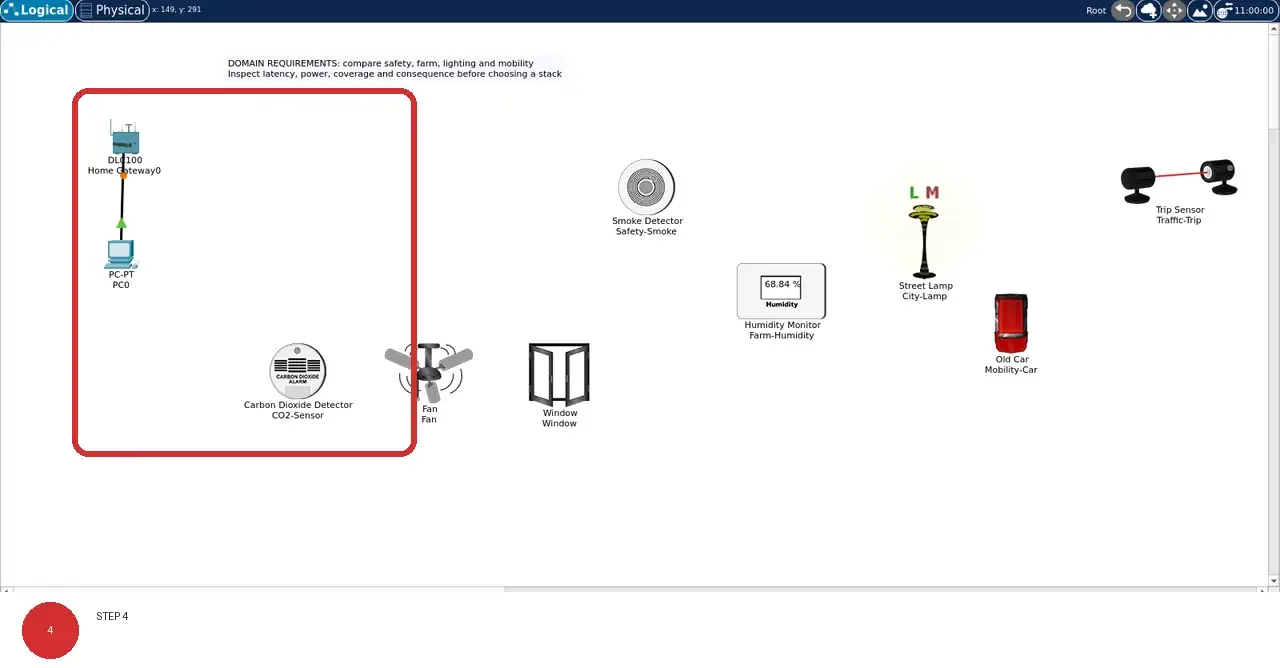

    On the Logical canvas, identify each object that has no visible gateway line; do not count it as registered evidence.
    You will see
    Objects without a line to Home Gateway0 remain visibly outside the registered control path.
    Why it matters
    Packet Tracer physical objects are not automatically network endpoints, so an absent line must remain explicit.

  5. Step 5

    Do

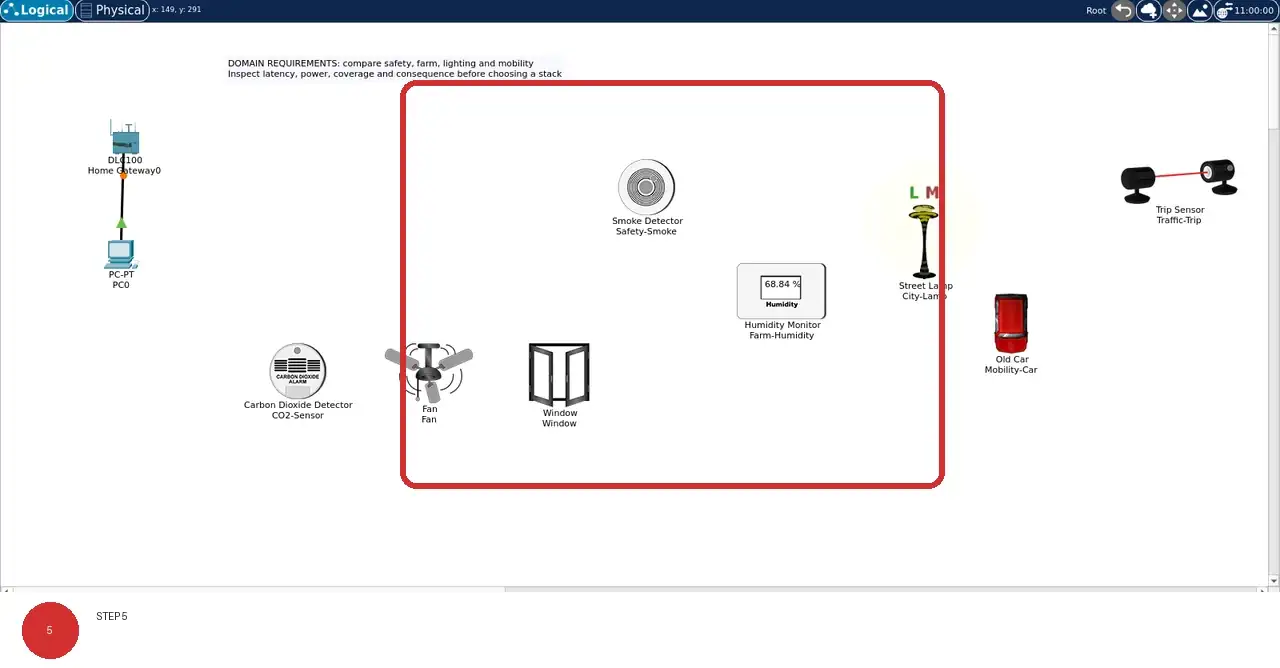

    On the Logical canvas, use the model captions and names to separate sensing, actuation, service, and physical-context roles.
    You will see
    The device names and model captions distinguish sensors, actuators, service endpoints, and physical context.
    Why it matters
    Role labels keep a plausible diagram from being mistaken for measured control-loop behavior.

  6. Step 6

    Do

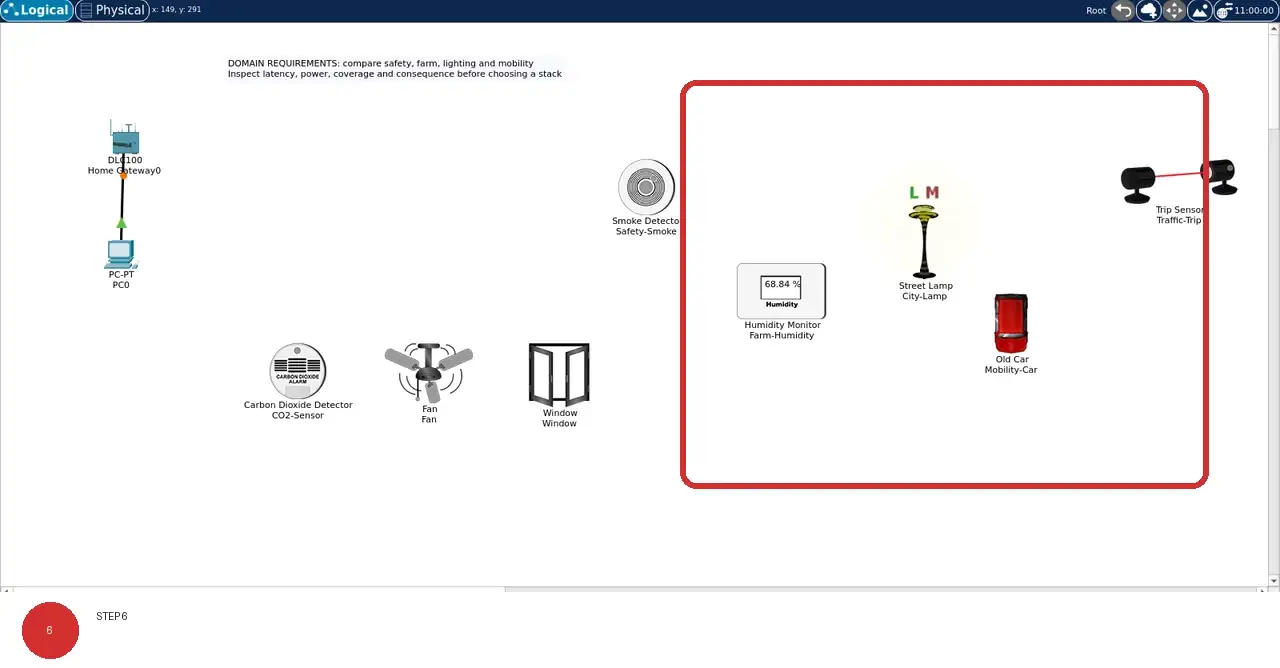

    Close and reopen lab.pkt, then compare the restored Logical workspace with this evidence image.
    You will see
    After reopening the saved project, the same lab-specific names, positions, and connection lines remain visible.
    Why it matters
    A reopen check proves persistence of the saved topology without inventing runtime readings or protocol semantics.

Chapter checks

These questions refer to the chapter’s examples. Use the return links to review their answers.

  1. Client A's autonomous collision-avoidance control loop has a specified 10 ms response budget; Client B's city parking-occupancy report can arrive minutes later. Which technical requirement most clearly separates these stated applications?

    Return to the chapter’s knowledge check

  2. A city manager asks: 'We have $200,000 for IoT. Should we deploy smart parking OR smart waste management first?' Based on the chapter's domain taxonomy, what is the BEST reasoning for choosing one over the other?

    Return to the chapter’s knowledge check
