Audit ordered ACL decisions

Steps

Screens captured against Python 3 in your browser (JupyterLite) Python 3.12.7 / Pyodide 0.27.6 in JupyterLite 0.6.4; Chromium 148.0.7778.96; synthetic classroom fixtures on 2026-10-08; the tool may have moved on — the text steps are the contract.

1. 1 Step 1

   Do

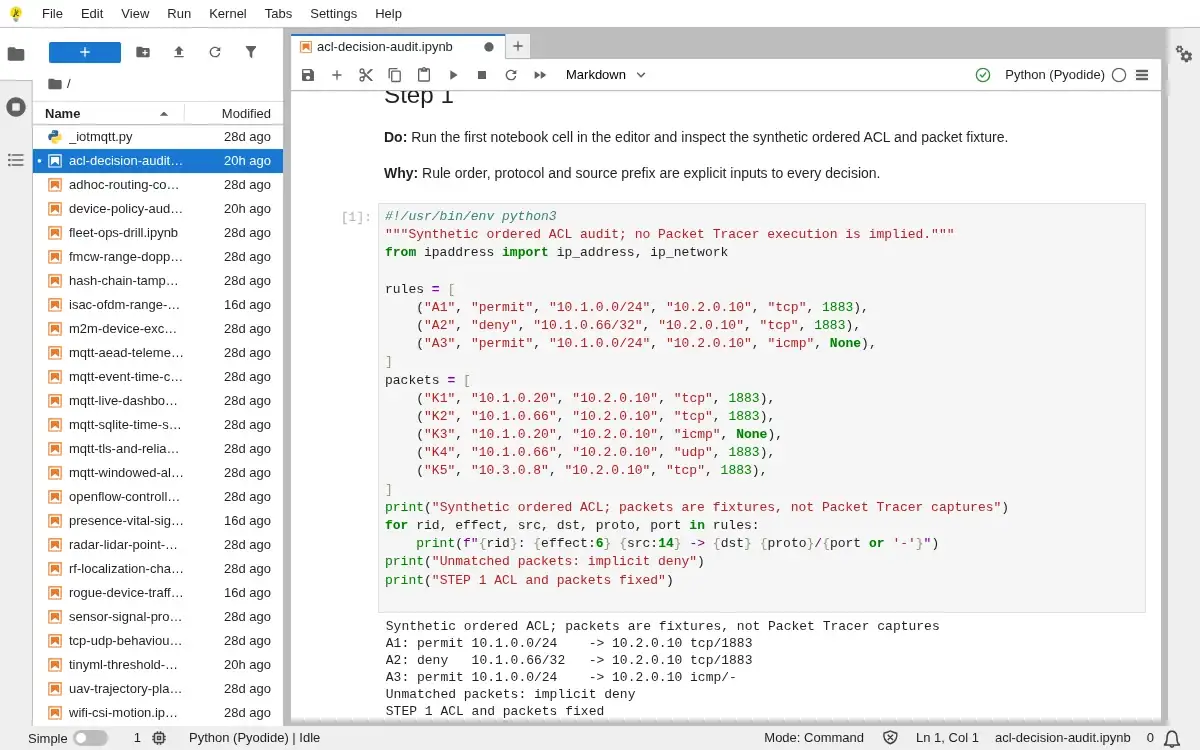

   Run the first notebook cell in the editor and inspect the synthetic ordered ACL and packet fixture.

   You will see

   Synthetic ordered ACL; packets are fixtures, not Packet Tracer captures A1: permit 10.1.0.0/24 -> 10.2.0.10 tcp/1883 A2: deny 10.1.0.66/32 -> 10.2.0.10 tcp/1883 A3: permit 10.1.0.0/24 -> 10.2.0.10 icmp/- Unmatched packets: implicit deny STEP 1 ACL and packets fixed

   Why it matters

   Rule order, protocol and source prefix are explicit inputs to every decision.

2. 2 Step 2

   Do

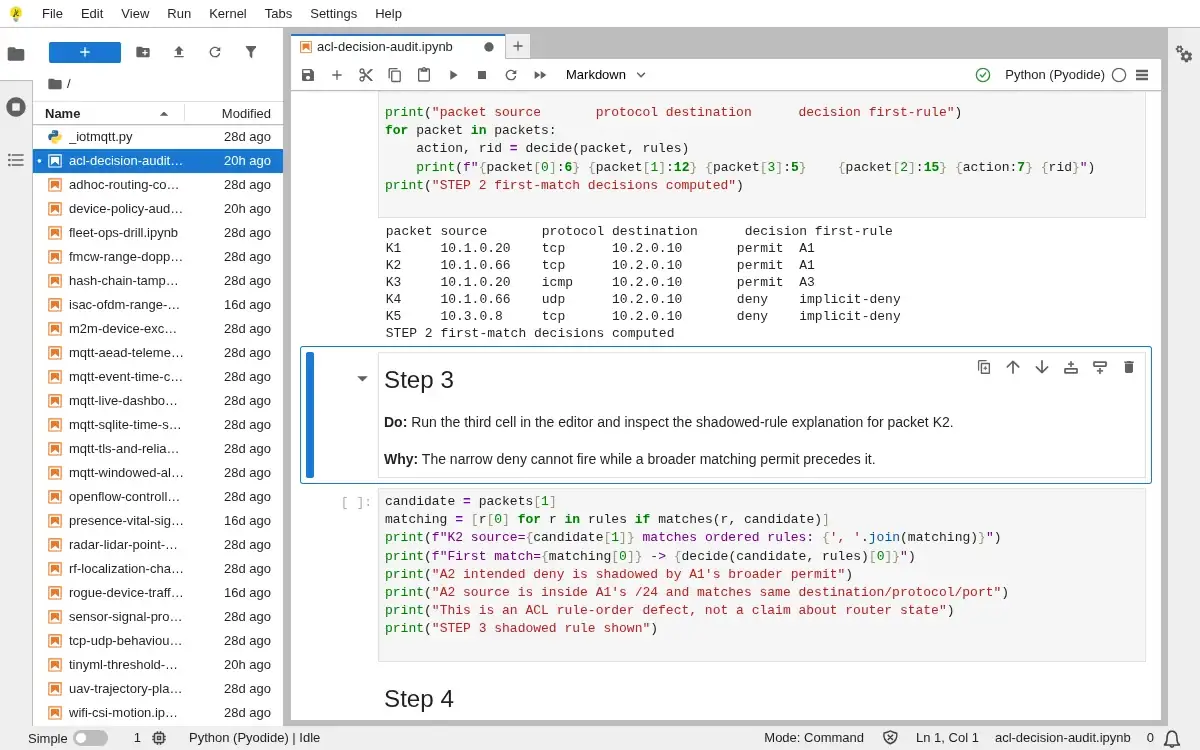

   Run the second cell in the editor and inspect first-match packet decisions in the output table.

   You will see

   packet source protocol destination decision first-rule K1 10.1.0.20 tcp 10.2.0.10 permit A1 K2 10.1.0.66 tcp 10.2.0.10 permit A1 K3 10.1.0.20 icmp 10.2.0.10 permit A3 K4 10.1.0.66 udp 10.2.0.10 deny implicit-deny K5 10.3.0.8 tcp 10.2.0.10 deny implicit-deny STEP 2 first-match decisions computed

   Why it matters

   First match determines the action; unmatched packets meet the implicit deny.

3. 3 Step 3

   Do

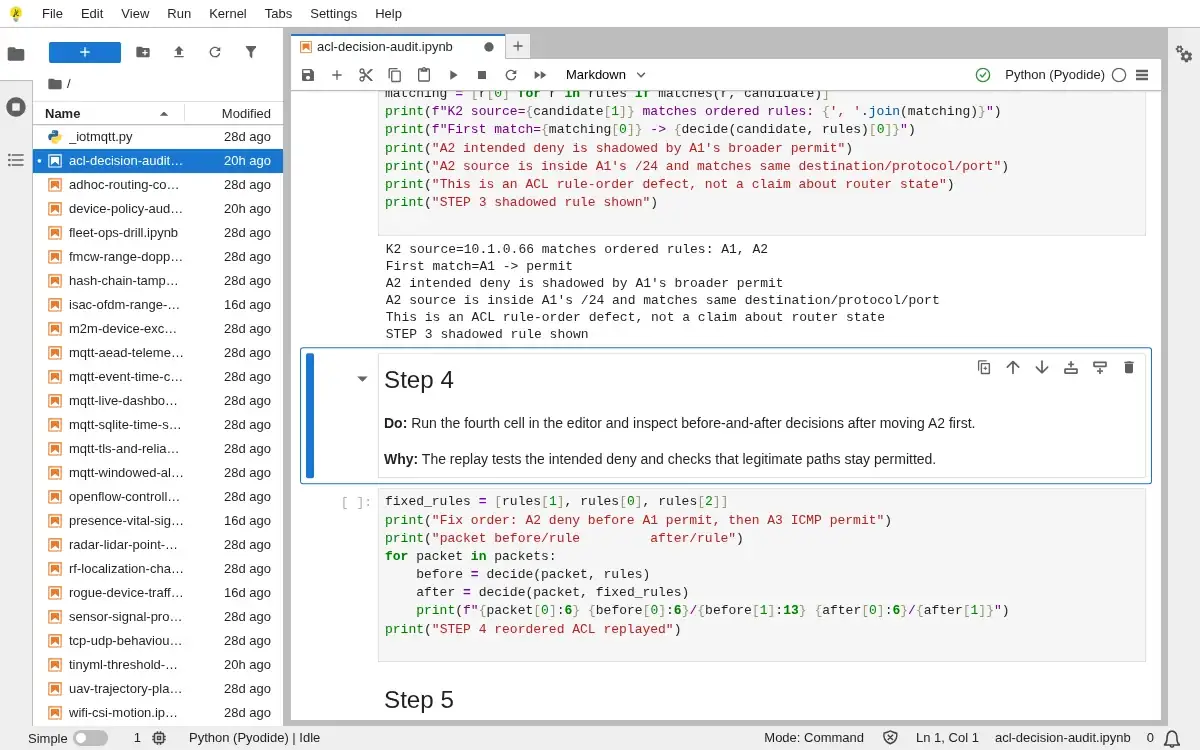

   Run the third cell in the editor and inspect the shadowed-rule explanation for packet K2.

   You will see

   K2 source=10.1.0.66 matches ordered rules: A1, A2 First match=A1 -> permit A2 intended deny is shadowed by A1's broader permit A2 source is inside A1's /24 and matches same destination/protocol/port This is an ACL rule-order defect, not a claim about router state STEP 3 shadowed rule shown

   Why it matters

   The narrow deny cannot fire while a broader matching permit precedes it.

4. 4 Step 4

   Do

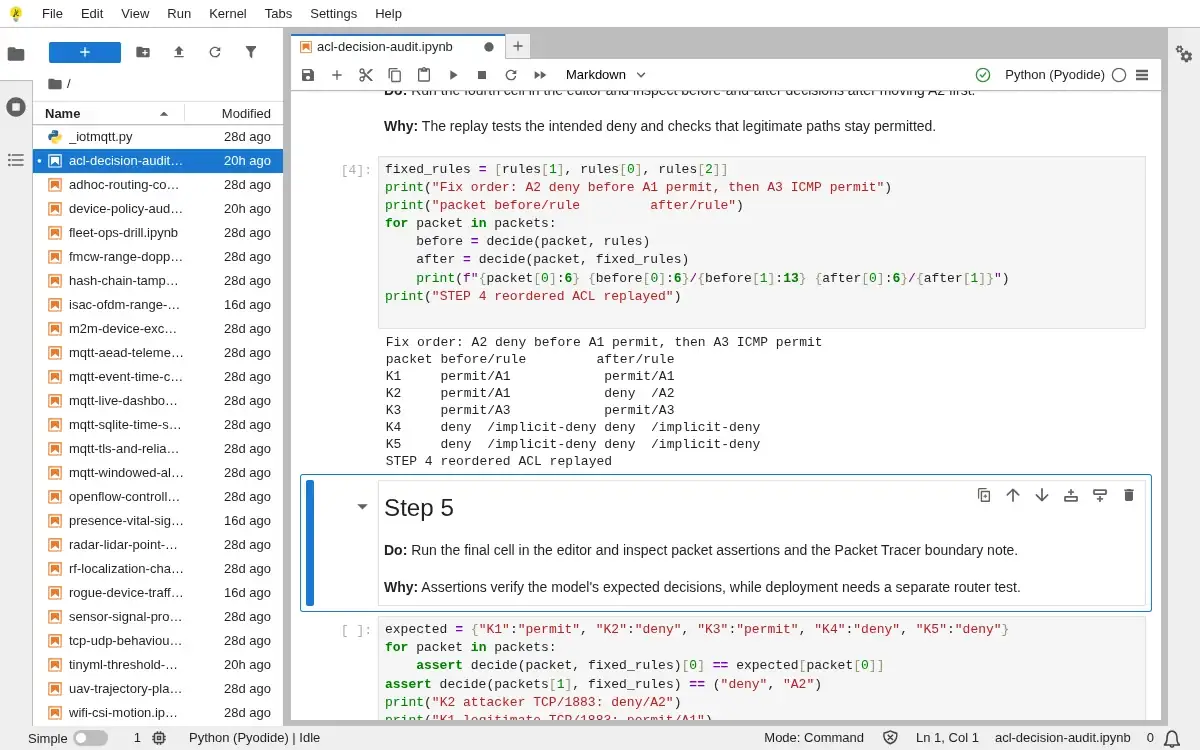

   Run the fourth cell in the editor and inspect before-and-after decisions after moving A2 first.

   You will see

   Fix order: A2 deny before A1 permit, then A3 ICMP permit packet before/rule after/rule K1 permit/A1 permit/A1 K2 permit/A1 deny /A2 K3 permit/A3 permit/A3 K4 deny /implicit-deny deny /implicit-deny K5 deny /implicit-deny deny /implicit-deny STEP 4 reordered ACL replayed

   Why it matters

   The replay tests the intended deny and checks that legitimate paths stay permitted.

5. 5 Step 5

   Do

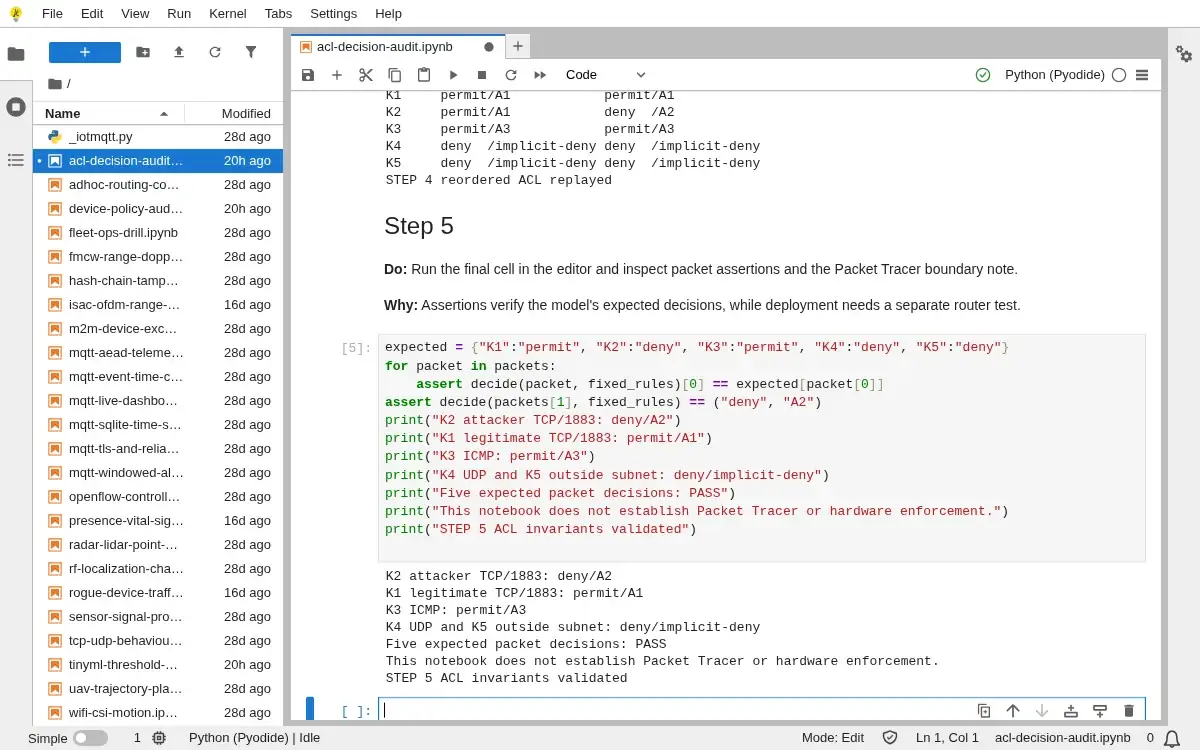

   Run the final cell in the editor and inspect packet assertions and the Packet Tracer boundary note.

   You will see

   K2 attacker TCP/1883: deny/A2 K1 legitimate TCP/1883: permit/A1 K3 ICMP: permit/A3 K4 UDP and K5 outside subnet: deny/implicit-deny Five expected packet decisions: PASS This notebook does not establish Packet Tracer or hardware enforcement. STEP 5 ACL invariants validated

   Why it matters

   Assertions verify the model's expected decisions, while deployment needs a separate router test.
