IoT Requirements: Definition and Value Flow

An IoT product joins a physical thing, local code, and an internet path.

Blueprint Bina is your guide for this deck.

requirements

Blueprint Bina, the module guide, in a scene from this chapter.

After studying this chapter

Learning objectives

You will be able to:

Test what is internet of things (iot) with a concrete scenario and pass criteria.
Validate iot connectivity tco with a concrete scenario and pass criteria.
test what is internet of things (iot) with a concrete scenario and pass criteria
validate iot connectivity tco with a concrete scenario and pass criteria

Major section

Key Concepts

Three Ingredients Test: Simple filter for deciding whether a product qualifies as IoT: physical thing, embedded computation, and internet reach.

Gateway Distinction: Local wireless is not the same as internet connectivity; many products remain merely connected unless a gateway gives them remote reach.
Five-Layer Architecture: Teaching model that separates physical devices, edge logic, connectivity, cloud functions, and applications.
Characteristic Prioritization: The eleven qualities of strong IoT systems are design goals that must be weighted differently by domain.

Major section

Definition

The Internet of Things (IoT) is the concept of connecting everyday physical objects to the internet.

These objects can range from household appliances to industrial machinery, enabling them to collect, exchange, and act upon data.
Simple Definition:: At its core, the Internet of Things refers to the interconnection of physical devices with the internet.

IoT ecosystem framework adapted from the Edinburgh Design Course.

Major section

Examples of IoT Devices

Microwave:: A connected microwave can be programmed via a smartphone.

Washing machine:: A smart washing machine monitors energy use and sends notifications when cycles are complete.
Coffee machine:: A coffee machine can be scheduled to brew automatically at specific times.
Truck:: A connected truck uses sensors to track location, fuel efficiency, and maintenance needs.

Everyday objects that can become IoT devices.

Major section

Complete IoT Architecture Layers

Example: Wi-Fi sends a reading to the cloud.

Application layer:: Mobile apps, dashboards, automation rules, alerts, and reports deliver user value.
Example: an app shows energy savings.

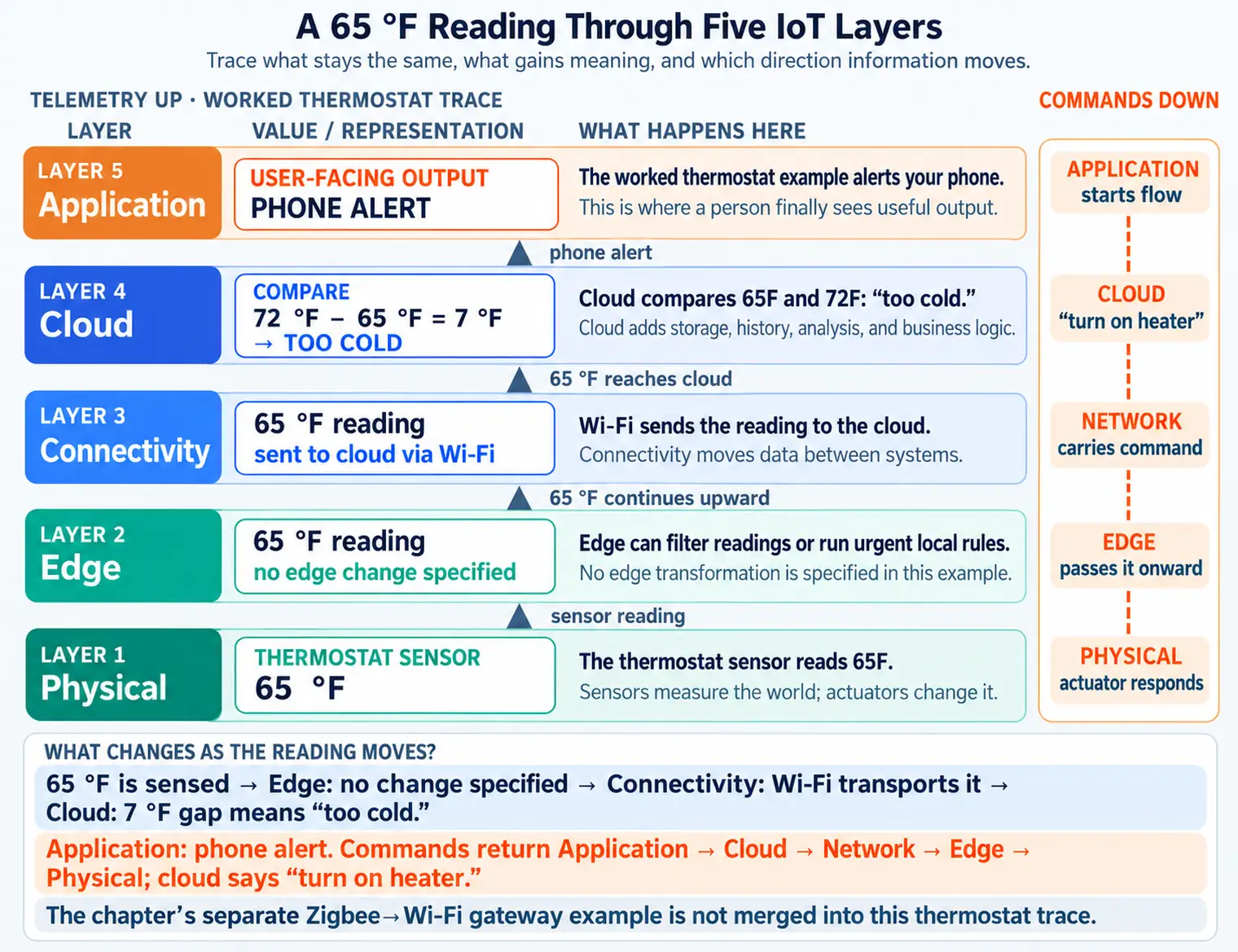

Five-layer IoT architecture stack from physical devices to user-facing applications.

Major section

Minimum Requirements of IoT

These components ensure the object can perform smart functions and communicate effectively within an IoT ecosystem.

These objects are made "smart" by adding computational and connectivity features.
Computation:: Objects must be enhanced with computational capabilities to process data, execute tasks, and enable intelligent behavior.
Internet Connectivity:: Connectivity is the defining feature of IoT devices.

Major section

Device Classification Decision Tree

Its diagram makes Classify Before You Call It IoT and: YES means continue downward explicit within decision tree for classifying software, embedded, connected, and iot products.

That labelled check bounds decision tree for classifying software, embedded, connected, and iot products.

Decision tree for classifying software, embedded, connected, and IoT products.

Major section

Warehouse Tech Selection Check

Scenario:: Your logistics company wants to monitor temperature and humidity in 50 warehouses (200,000+ sq ft each) across the country to protect sensitive pharmaceutical inventory worth $2.5B annually.

FDA compliance requires documented temperature control.
Approach A (Wi-Fi): $50 sensors, $10/month/warehouse, 30-second updates, requires Wi-Fi infrastructure Approach B (LoRaWAN): $80 sensors + $200 gateway, $5/month/warehouse, 10-minute updates, 10-year battery.
Key Insight:: IoT technology selection depends on application requirements, not "newest" or "fastest" technology.

Deck summary

Key takeaways

Three Ingredients Test: Simple filter for deciding whether a product qualifies as IoT: physical thing, embedded computation, and internet reach.

The Internet of Things (IoT) is the concept of connecting everyday physical objects to the internet.
Microwave:: A connected microwave can be programmed via a smartphone.
Example: Wi-Fi sends a reading to the cloud.
These components ensure the object can perform smart functions and communicate effectively within an IoT ecosystem.

Retrieval practice

Recall check 1 of 3

Blueprint Bina says: answer from memory, then check your reasoning.

Q1A smart irrigation valve has a soil moisture sensor, a microcontroller to open/close the valve, and LoRaWAN connectivity to a cloud platform that schedules watering based on weather forecasts. Which of the Three Minimum Requirements does the LoRaWAN radio fulfill?

AThe Thing requirement -- LoRaWAN is the physical radio hardware

BThe Computation requirement -- the radio processes data before transmitting

CThe Internet Connectivity requirement -- LoRaWAN provides the link to the cloud platform

DNone -- LoRaWAN is not a true internet protocol

Show answer

Answer: C LoRaWAN provides the Internet Connectivity ingredient by connecting the sensor node to a gateway that bridges to the internet.

Retrieval practice

Recall check 2 of 3

Blueprint Bina says: answer from memory, then check your reasoning.

Q2A traditional coffee maker with a timer that you program by pressing buttons on the device itself is:

AAn IoT device because it has computation (timer chip)

BA connected device because it can be scheduled

CAn embedded device because it lacks internet connectivity

DA smart device because it makes coffee automatically

ESense - the sensors analyze the data

FConnect - the network routes decisions

Show answer

Answer: Review the source

Q3In the IoT data flow cycle (Sense -> Connect -> Process -> Act), which step is responsible for making intelligent decisions?

ASense - the sensors analyze the data

BConnect - the network routes decisions

CProcess - the cloud/edge analyzes data and determines actions

DAct - the actuators decide what to do

EIt uses sensors

FIt has all three ingredients: thing, computation, and internet connectivity

Show answer

Answer: Review the source

Retrieval practice

Recall check 3 of 3

Blueprint Bina says: answer from memory, then check your reasoning.

Q4A smart recycling bin with fill-level sensors that sends data to optimize collection routes is an example of IoT because:

AIt uses sensors

BIt has all three ingredients: thing, computation, and internet connectivity

CIt saves money on waste collection

DIt's a physical object

Show answer

Answer: Review the source

Print reference

Answers

Answer key.

C · LoRaWAN provides the Internet Connectivity ingredient by connecting the sensor node to a gateway that bridges to the internet.
Review the source
Review the source
Review the source
