GPS Location: Architecture and Error Control
A receiver can see four satellites and still produce a poor fix.
UX Uma is your guide for this deck.
After studying this chapter
Learning objectives
You will be able to:
- Explain: In practice, modern receivers process signals from 10-12 satellites simultaneously; additional usable satellites can improve geometry and redundancy, depending on measurement quality, and help detect anomalies.
- Explain: The system's genius is treating the receiver's cheap clock offset as a solvable unknown rather than requiring expensive atomic clocks in every device.
- Explain: Temperature Terry knew the answer. "GPS uses a basic 24-slot plan and normally has extra satellites in orbit, about 20,200 kilometers up!
- Explain: And the satellites are so far away that their signals are incredibly weak when they reach us.
Major section
Satellite Synchronization
The clocks in Figure: How are satellites synced show why GPS timing and receiver timing must be treated separately.
- Each satellite carries an atomic clock so transmitted times share a precise reference.
- A phone does not carry that clock; it uses incoming satellite signals while estimating its own clock offset.
- All satellites share time reference.
Major section
Satellite Synchronization (continued)
Special Relativity: Satellite clocks run slower due to velocity (~7 μs/day slower).
- Treating the phone clock as already synchronized would hide a core unknown in the range calculation.
- A range measurement therefore needs orbit information for the signal's transmission time as well as the measured arrival time.
- Net Effect: ~38 μs/day faster → must be corrected! (NIST).
Major section
GPS Position Calculation
For each satellite, the receiver knows a position from orbit data and measures a range that includes clock error.
- The model adds true distance, receiver clock offset, and any error left over.
- Four separate satellite equations can solve three position values and one clock offset.
- Yet a solution can still be poor.
Major section
Position from Satellite Signals
You need to understand how position is derived from raw timing measurements.
- If the receiver clock is 50 nanoseconds fast, every pseudorange is 15 meters too long.
- The fourth satellite lets us solve for this offset.
- In practice, modern receivers process signals from 10-12 satellites simultaneously; additional usable satellites can improve geometry and redundancy, depending on measurement quality, and help detect anomalies.
Major section
Key Takeaway
GPS is an inverted TDoA system where satellites broadcast synchronized time signals and receivers calculate position from pseudoranges.
- Four satellites are the minimum (3 position unknowns + 1 clock offset), while additional usable satellites can improve geometry and redundancy depending on measurement quality.
- The system's genius is treating the receiver's cheap clock offset as a solvable unknown rather than requiring expensive atomic clocks in every device.

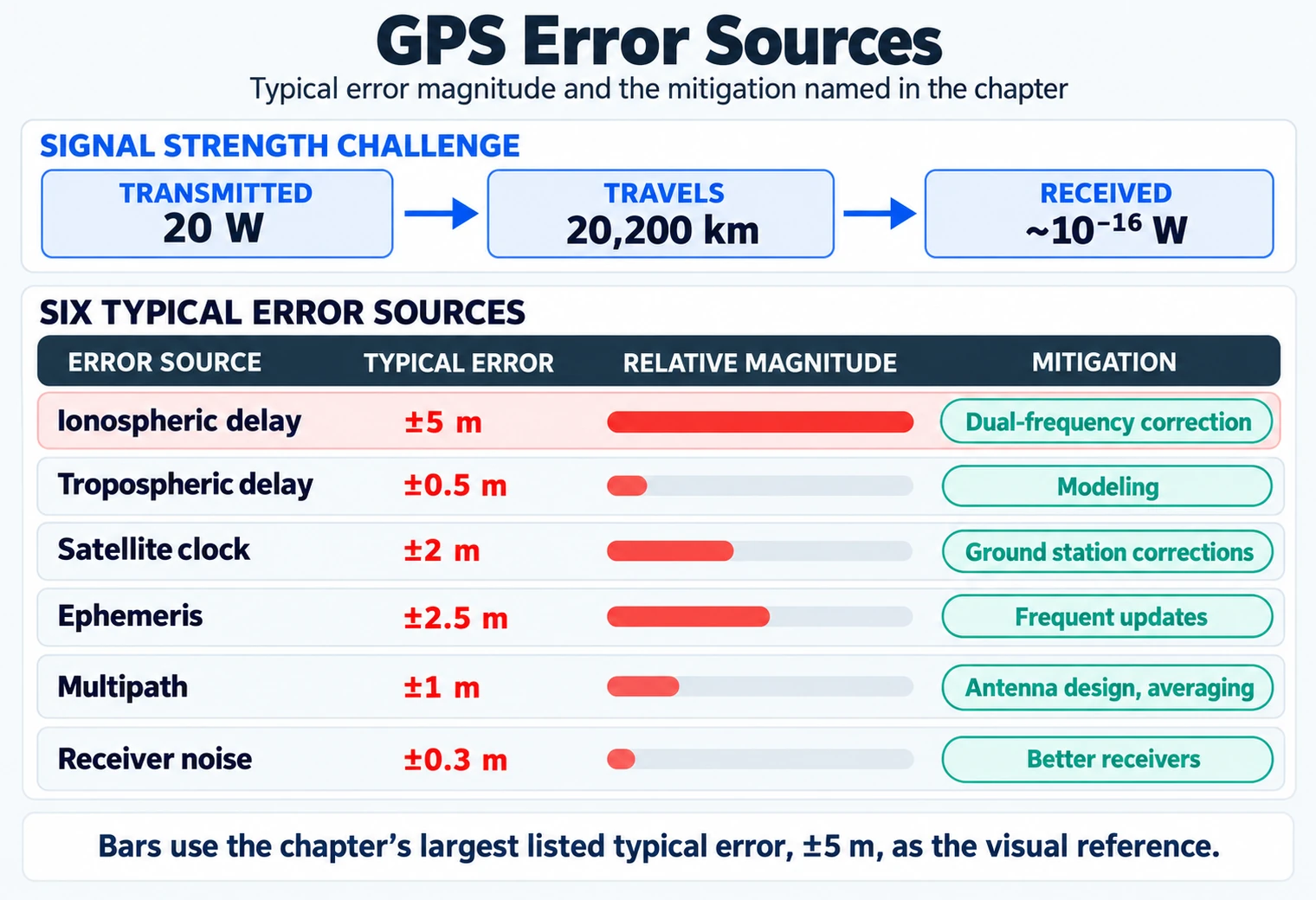

- The biggest practical limitations are multipath (signal reflections in cities) and weak satellite signals that are often blocked or degraded indoors.
Major section
For Kids: Meet the Sensor Squad!
"But how does that help?" asked Lila.
- GPS is like playing Marco Polo with satellites in SPACE!
- "How does my phone know where I am?" asked the LED one day, staring at the blue dot on a map.
- "So GPS is really about TIME, not just PLACE!" realized Lila.
Major section
For Kids: Meet the Sensor Squad! (continued)
Temperature Terry knew the answer. "GPS uses a basic 24-slot plan and normally has extra satellites in orbit, about 20,200 kilometers up!
- Each one is basically shouting 'I'M HERE and the time is 3:00:00.000000!'".
- "That's TRILATERATION!" cheered the battery. "GPS works the same way, but instead of friends shouting, it's satellites sending time signals.
- Your phone calculates how far each satellite signal traveled by how long it took to arrive.".
- And the satellites are so far away that their signals are incredibly weak when they reach us.
Major section
Concept Relationships
Contrasts with: Indoor Positioning which requires entirely different technologies where satellite signals fail.
- Atomic clocks: Satellite Synchronization explains why GPS provides an authoritative time source for distributed IoT systems.
- Multipath: Wireless Fading and Interference explains why signal reflection affects all RF systems, not just GPS.
- Case study: Urban IoT Challenges Manhattan multipath problem affects all outdoor location services.
Deck summary
Key takeaways
The clocks in Figure: How are satellites synced show why GPS timing and receiver timing must be treated separately.
- Special Relativity: Satellite clocks run slower due to velocity (~7 μs/day slower).
- For each satellite, the receiver knows a position from orbit data and measures a range that includes clock error.
- You need to understand how position is derived from raw timing measurements.
- GPS is an inverted TDoA system where satellites broadcast synchronized time signals and receivers calculate position from pseudoranges.
Retrieval practice
Recall check 1 of 4
UX Uma says: answer from memory, then check your reasoning.
Q1Why does GPS require at least 4 satellites to calculate a position?
Show answer
Answer: B GPS position calculation involves 4 unknowns: the receiver's 3D position (x, y, z) plus the receiver's clock offset from GPS time.
Retrieval practice
Recall check 2 of 4
UX Uma says: answer from memory, then check your reasoning.
Q2What is a "pseudorange" in GPS terminology?
Show answer
Answer: A A pseudorange is the measured distance to a satellite, which includes the actual geometric distance plus an error term caused by the receiver's clock offset from GPS time.
Retrieval practice
Recall check 3 of 4
UX Uma says: answer from memory, then check your reasoning.
Q3Why does 1 microsecond of GPS receiver-clock error add about 300 metres to a pseudorange measurement?
Show answer
Answer: A GPS positioning uses time-of-flight ranging where distance = speed of light × time.
Q4What tells a map user about uncertainty and supplies a safe fallback when a GPS fix is inexact?
Show answer
Answer: B The experience must communicate uncertainty and preserve a safe fallback instead of treating every fix as exact.
Retrieval practice
Recall check 4 of 4
UX Uma says: answer from memory, then check your reasoning.
Q5Complete the form validation for IoT device configuration:
Show answer
Answer: A querySelector() with attribute selectors finds form fields.
Q6A receiver sees enough satellites, but its fix worsens beside tall buildings. Which evidence should the team inspect?
Show answer
Answer: D Poor geometry and multipath can degrade a fix even with enough signals.
Print reference
Answers 1 of 2
Answer key.
- B · GPS position calculation involves 4 unknowns: the receiver's 3D position (x, y, z) plus the receiver's clock offset from GPS time.
- A · A pseudorange is the measured distance to a satellite, which includes the actual geometric distance plus an error term caused by the receiver's clock offset from GPS time.
- A · GPS positioning uses time-of-flight ranging where distance = speed of light × time.
Print reference
Answers 2 of 2
Answer key.
- B · The experience must communicate uncertainty and preserve a safe fallback instead of treating every fix as exact.
- A · querySelector() with attribute selectors finds form fields.
- D · Poor geometry and multipath can degrade a fix even with enough signals.
