RPL trace analysis from Cooja logs

Reconstruct DODAG parent choices and count DIO and DAO messages from a saved Cooja trace.

Packet Pete: inspect the input, calculation and observed output before choosing a route., your practice guide

Packet Pete: inspect the input, calculation and observed output before choosing a route.
Predict the reading, then compare it with the measurement.

Python 3 in your browser (JupyterLite)

Python · no install

Reconstruct DODAG parent choices and count DIO and DAO messages from a saved Cooja trace.

Tier 2 · Web · paste-in setup · No account

Version tested: Python 3.12.7 / Pyodide 0.27.6 in JupyterLite 0.6.4; Chromium 148.0.7778.96; captureSource playwright:jupyterlite. Date: 2026-10-08.

Open the notebook in your browser and run each Python cell; no install or account is needed.

Three ways to run: use JupyterLite here with no install; run main.py locally from the downloadable lab folder; or open the same notebook in Google Colab.

Open in your browser (new tab)

Steps

Screens captured against Python 3 in your browser (JupyterLite) Python 3.12.7 / Pyodide 0.27.6 in JupyterLite 0.6.4; Chromium 148.0.7778.96; captureSource playwright:jupyterlite on 2026-10-08; the tool may have moved on — the text steps are the contract.

  1. Step 1

    Do

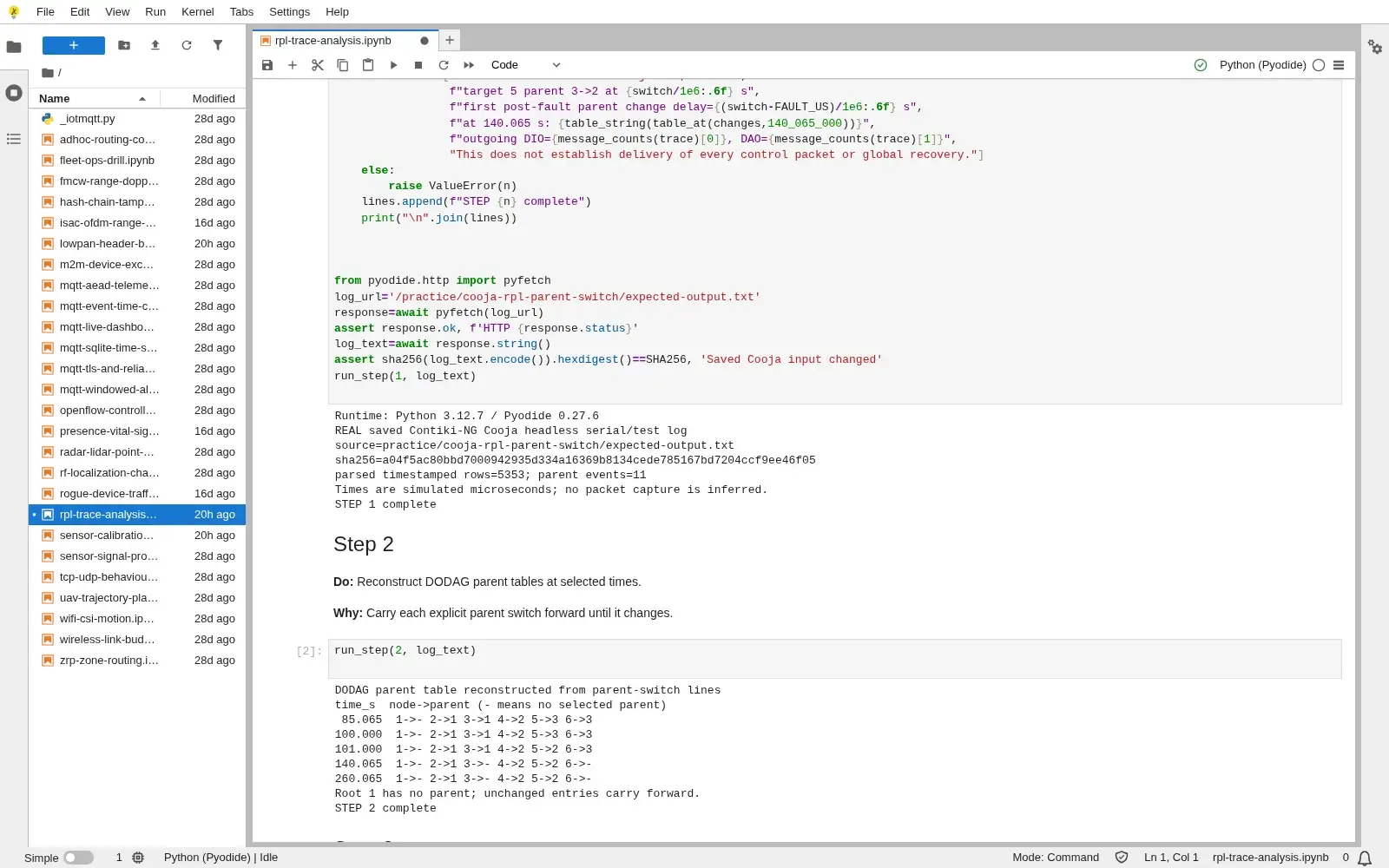

    In the JupyterLite notebook, run step 1 to verify the saved Cooja log hash and parse timestamped rows.
    You will see
    REAL saved Contiki-NG Cooja headless serial/test log; source=practice/cooja-rpl-parent-switch/expected-output.txt; sha256=a04f5ac80bbd7000942935d334a16369b8134cede785167bd7204ccf9ee46f05
    Why it matters
    The hash ties the analysis to the saved real simulator run.

  2. Step 2

    Do

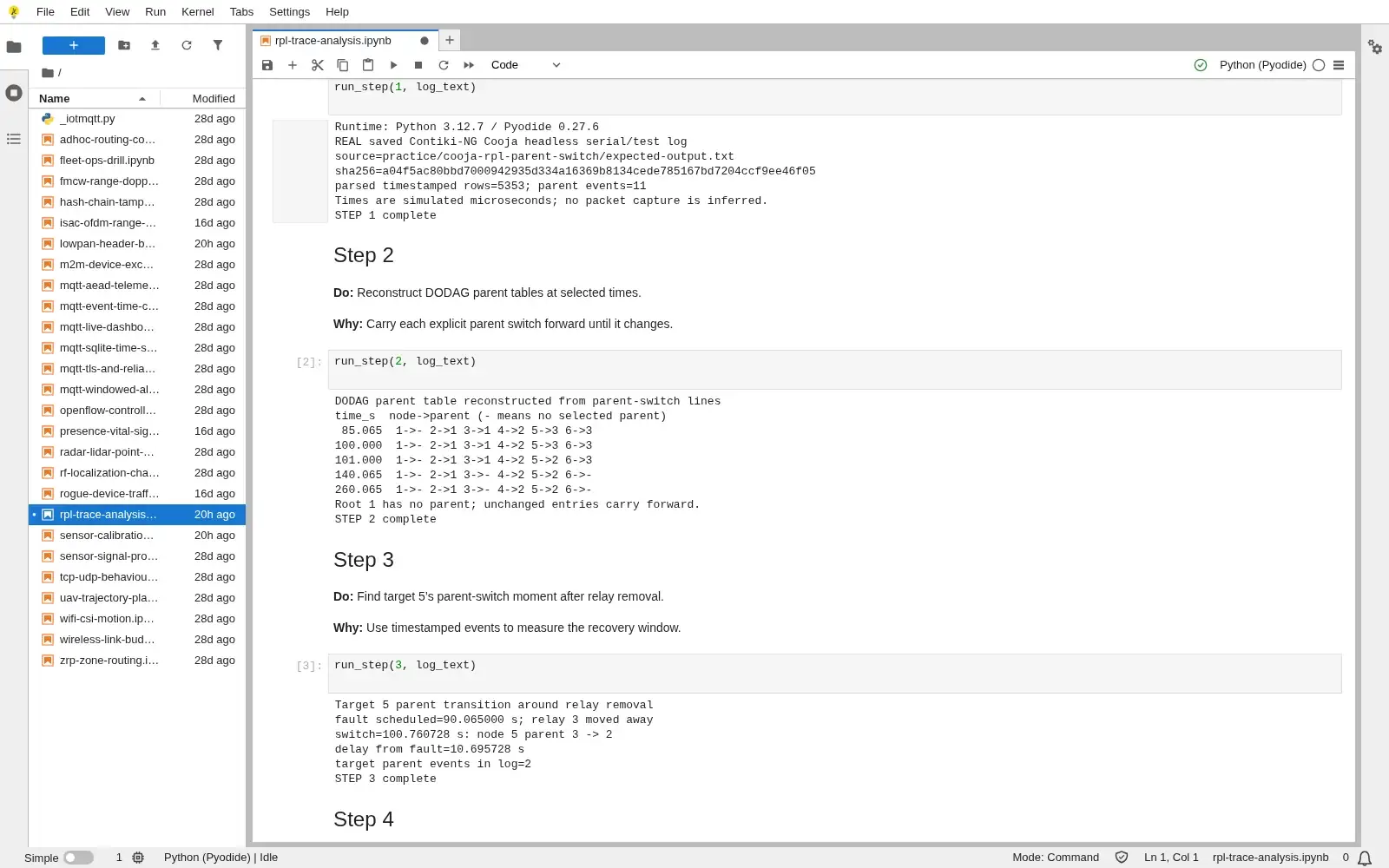

    In the JupyterLite notebook, run step 2 to rebuild the parent table over time.
    You will see
    DODAG parent table reconstructed from parent-switch lines; time_s node->parent (- means no selected parent); 85.065 1->- 2->1 3->1 4->2 5->3 6->3
    Why it matters
    Explicit switch events provide a reproducible parent timeline.

  3. Step 3

    Do

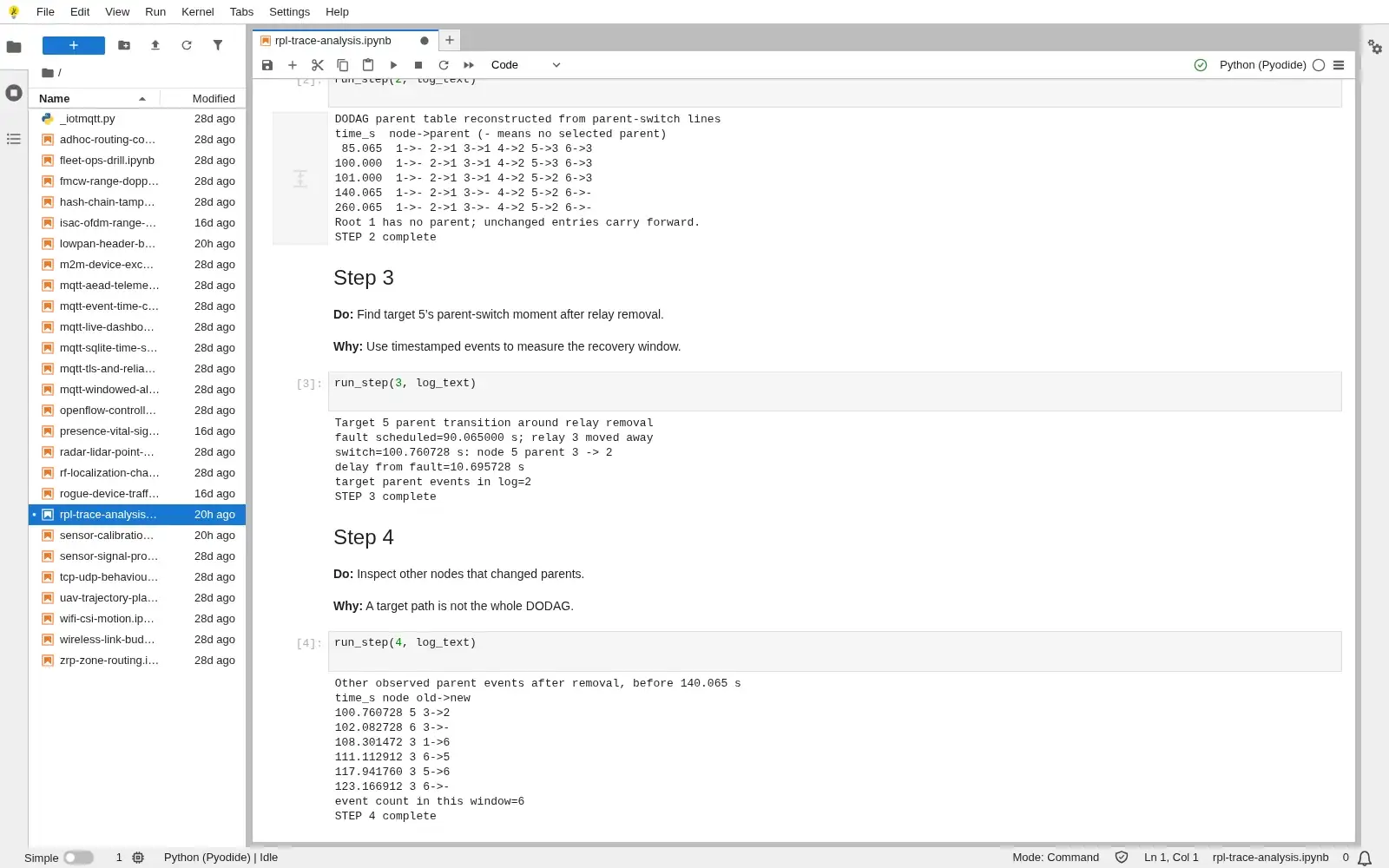

    In the JupyterLite notebook, run step 3 to locate target 5’s parent switch after relay removal.
    You will see
    Target 5 parent transition around relay removal; fault scheduled=90.065000 s; relay 3 moved away; switch=100.760728 s: node 5 parent 3 -> 2
    Why it matters
    The timestamp difference measures observed parent-change delay.

  4. Step 4

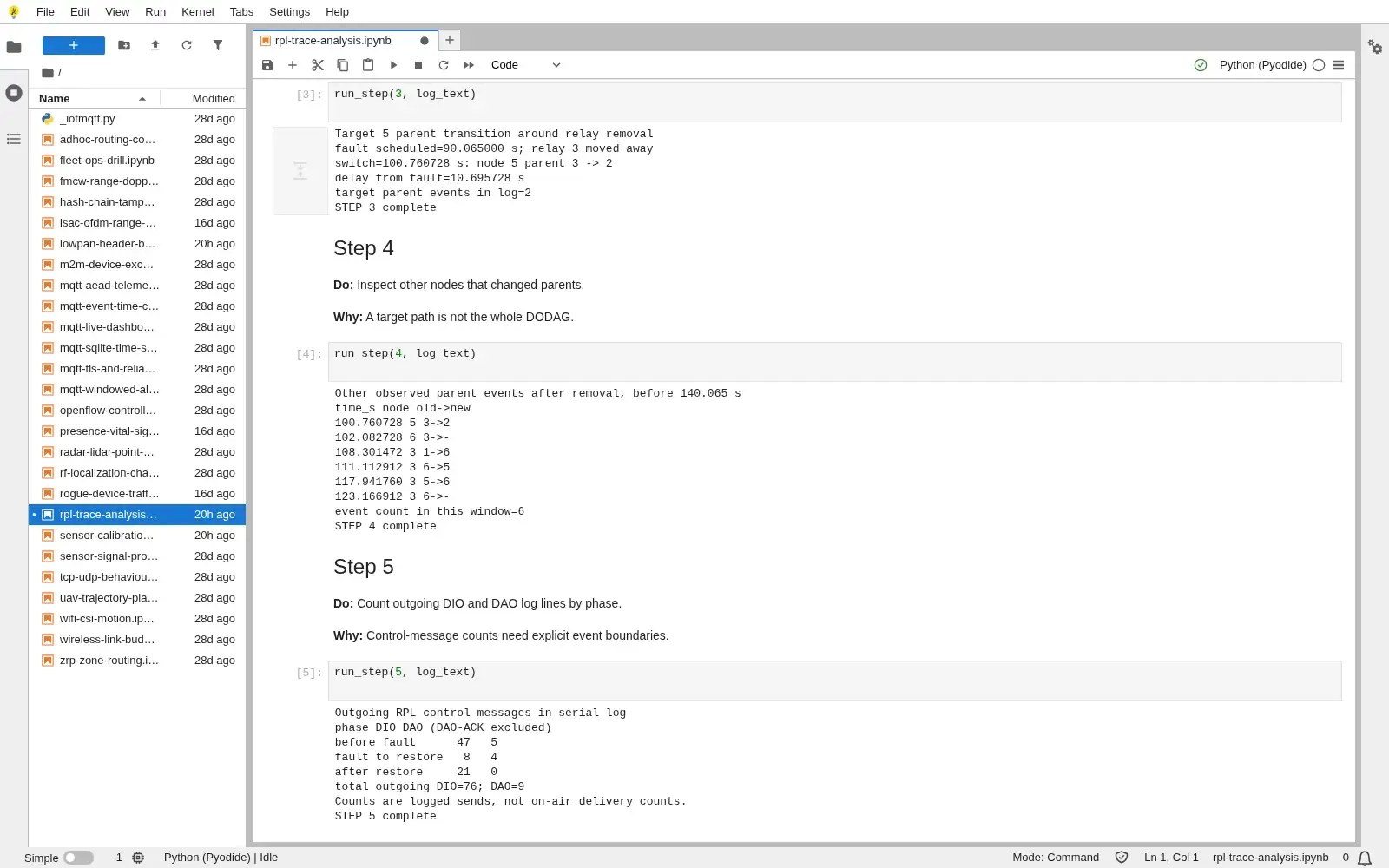

    Do
    In the JupyterLite notebook, run step 4 to inspect other parent changes.
    You will see
    Other observed parent events after removal, before 140.065 s; time_s node old->new; 100.760728 5 3->2
    Why it matters
    The rest of the DODAG may behave differently from target 5.

  5. Step 5

    Do

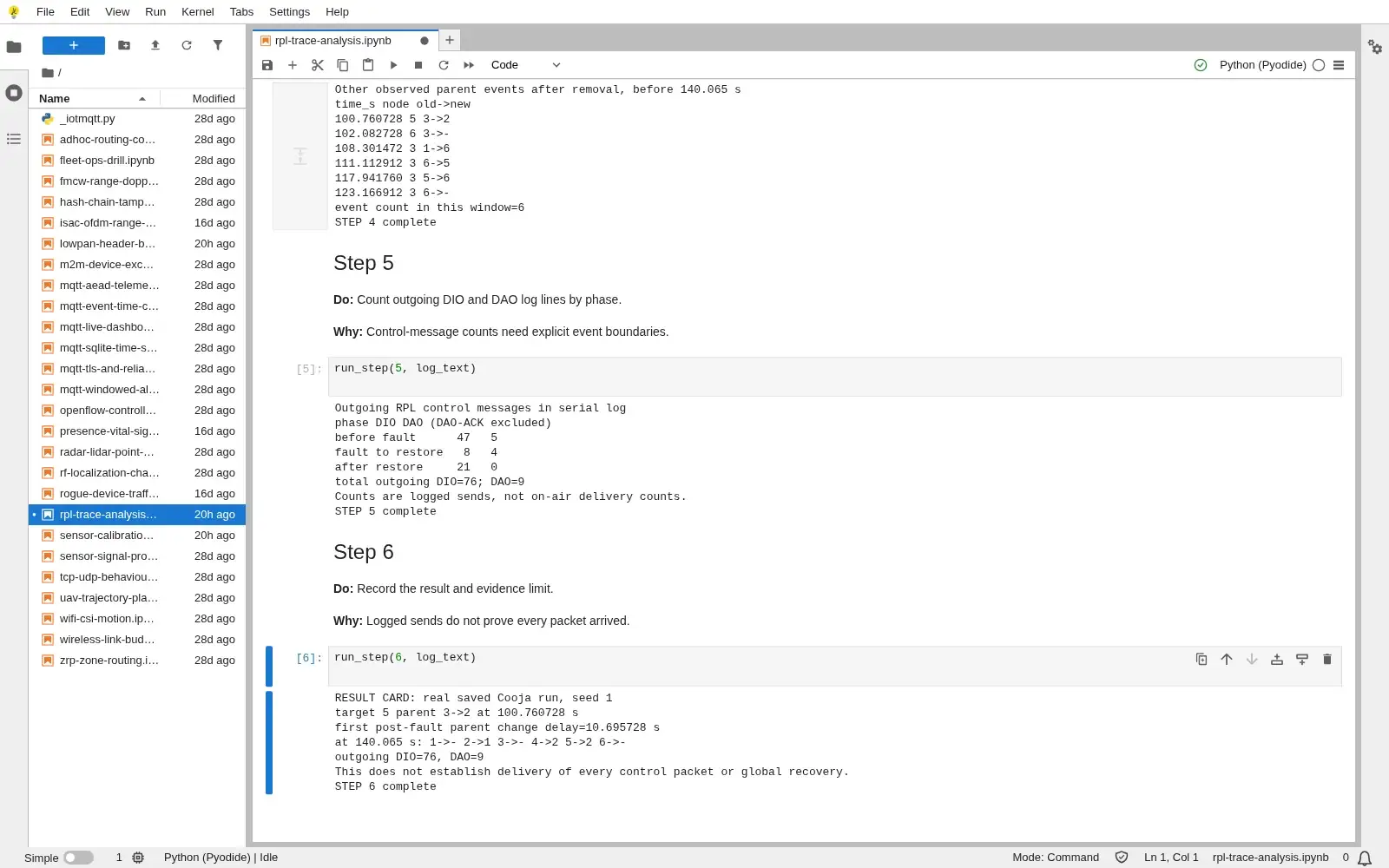

    In the JupyterLite notebook, run step 5 to count outgoing DIO and DAO lines.
    You will see
    Outgoing RPL control messages in serial log; phase DIO DAO (DAO-ACK excluded); before fault 47 5
    Why it matters
    Logged sends are countable without assuming delivery.

  6. Step 6

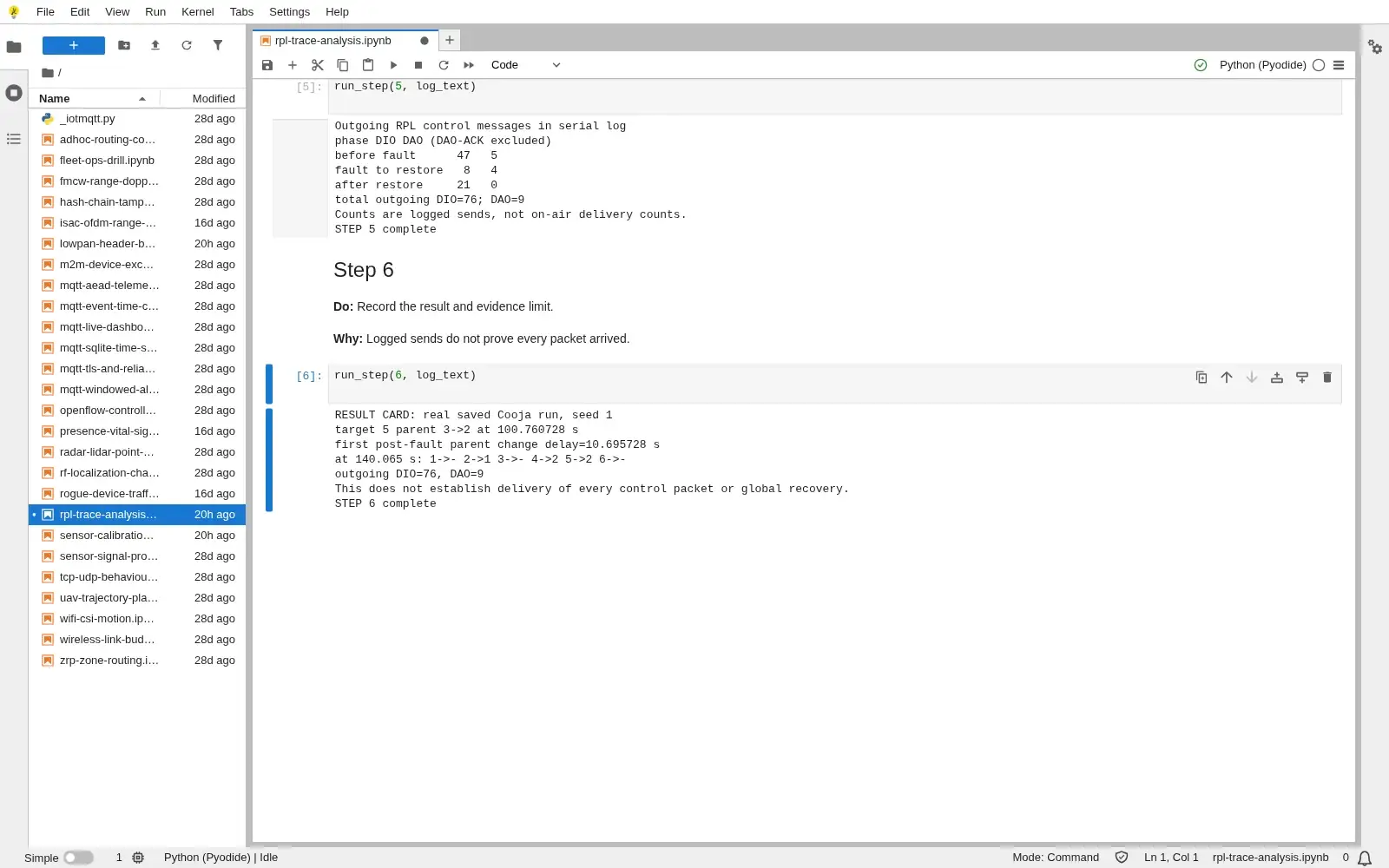

    Do
    In the JupyterLite notebook, run step 6 to record the result and its evidence limit.
    You will see
    RESULT CARD: real saved Cooja run, seed 1; target 5 parent 3->2 at 100.760728 s; first post-fault parent change delay=10.695728 s
    Why it matters
    A target recovery result does not prove global repair.

Chapter checks

These questions refer to the chapter’s examples. Use the return links to review their answers.

  1. A node has selected a preferred parent after hearing compatible DIO messages. Which extra RPL evidence matters when gateway-to-node commands are part of the claim?

    Return to the chapter’s knowledge check

  2. A trace shows one DAO from a node, then a parent repair occurs. Later, root-to-node commands fail. What is the strongest RPL review response?

    Return to the chapter’s knowledge check

Return to RPL Control Messages: DIO, DIS, DAO · Browse Labs
